Removal Procedure

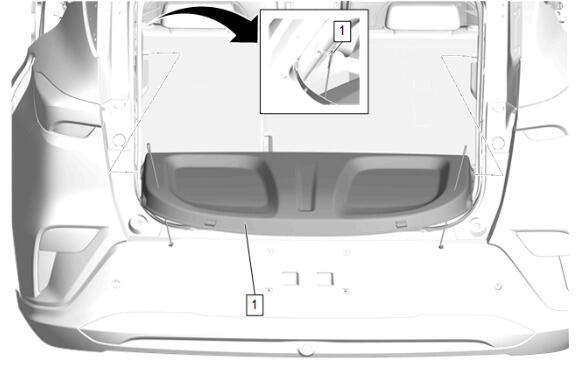

Luggage Shade (1) - Remove

1. Open the liftgate.
2. Release the luggage shade straps from the luggage shade pivot on both sides.

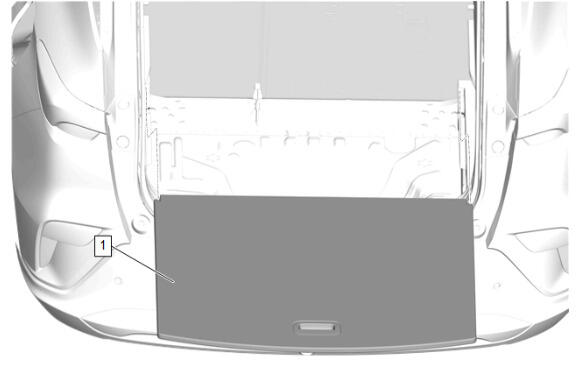

Load Floor Stowage Compartment Cover (1) - Remove

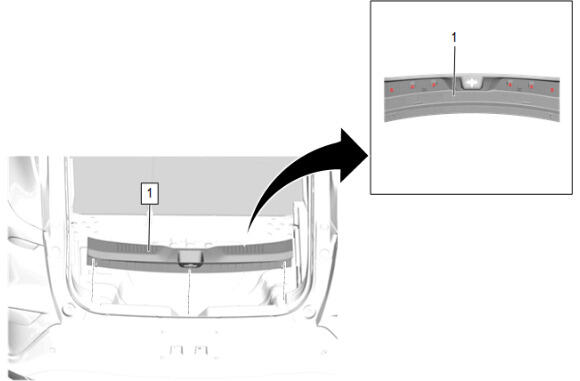

Grasp and gently pull up on the liftgate sill garnish molding (1) in order to release the integral retaining clips.

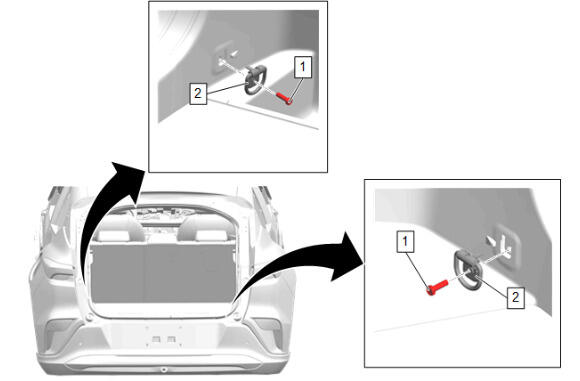

Cargo Tie Down Loop Fastener- Right Side (1) - Remove

Rear Compartment Courtesy Lamp (1) - Remove

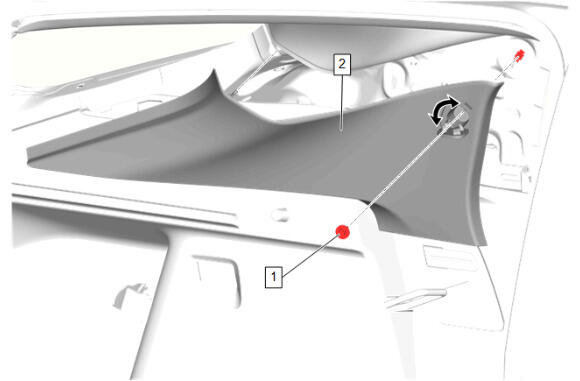

Use a flat-bladed tool to open the quarter window trim finish panel bolt cap.

1. Use a flat bladed plastic trim tool.
2. Grasp and gently pull up on the body lock pillar upper trim panel.

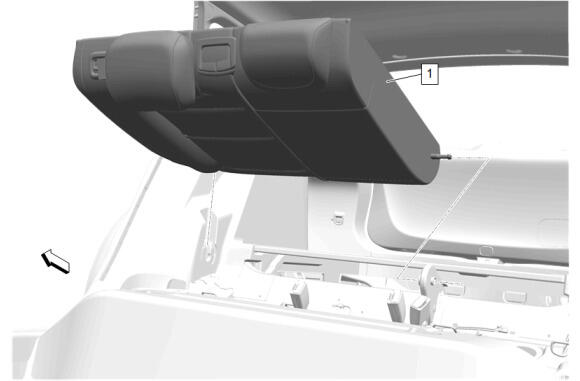

Rear Seat Back Cushion (1) - Remove - Rear Seat Back Cushion Removal and Installation (40 Percent Seat) , or Rear Seat Back Cushion Removal and Installation (60 Percent Seat) - 60%

Rear Side Door Sill Garnish Molding (1) - Remove

1. Starting at the front of the sill garnish molding, pull upward at the B-Pillar joint to disengage sill garnish molding.
2. Work your way rearward disengaging all of the garnish molding clips then pull forward to disengage from the C-Pillar lower.
3. Replace the retainers as required.

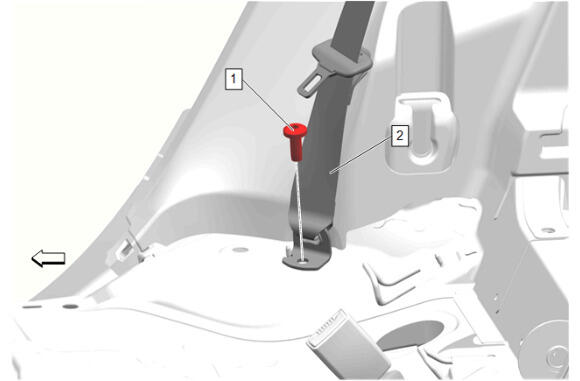

Rear Seat Belt Retractor Bolt (1) - Remove

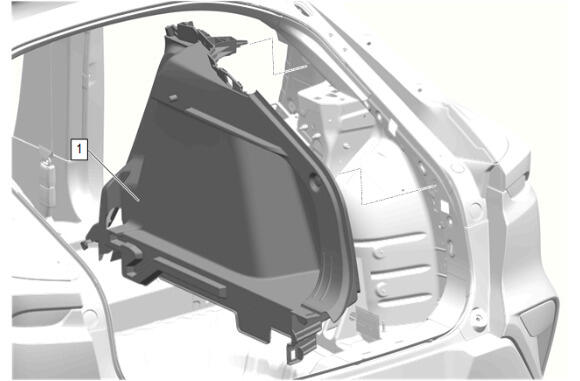

Quarter Lower Rear Trim Panel (1) - Reposition

1. Release the retainers with a suitable plastic trim tool.
2. Grasp and gently pull up on the quarter lower rear trim panel.

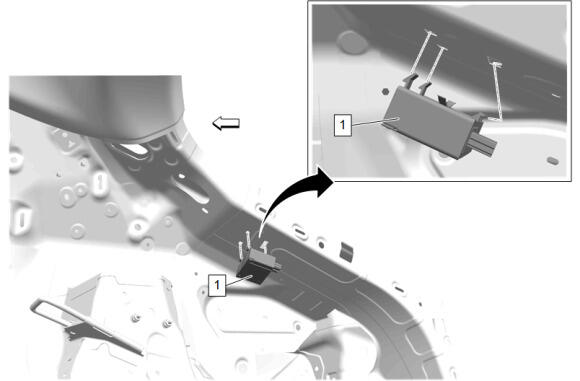

Disconnect the electrical connector.
