Fastener Specifications
Keyless Entry Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Keyless Entry Control Module Bracket Nut [2x] | - | - | 4.3 N.m (38 lb in) | Keyless Entry Control Module Replacement |

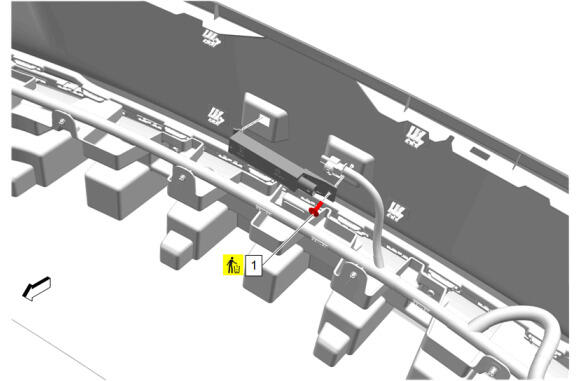

Low Frequency Rear Bumper Antenna
| Callout | Component Name | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Low Frequency Rear Bumper Antenna Rivet | Yes | - | - | Low Frequency Rear Bumper Antenna Replacement |
