Chart 3: No Code 12 Displayed
Chart 3: No Code 12 Displayed

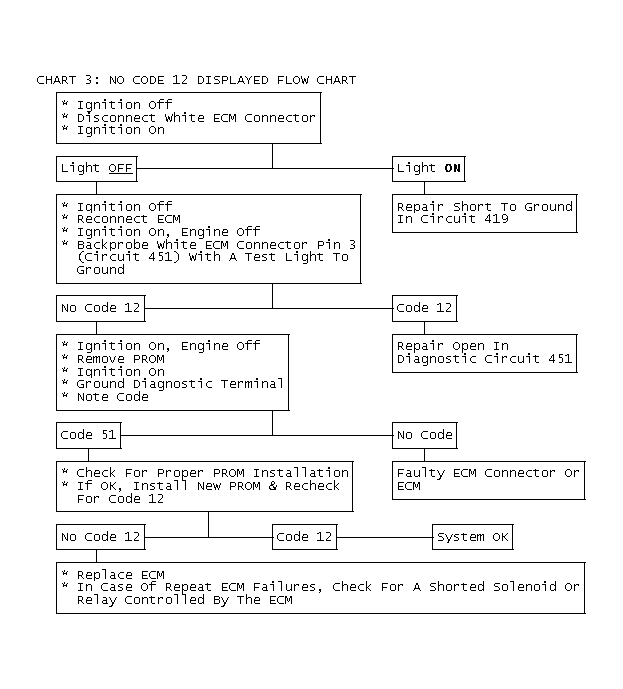

Fig 1: Chart 3: No Code 12 Displayed Flow Chart

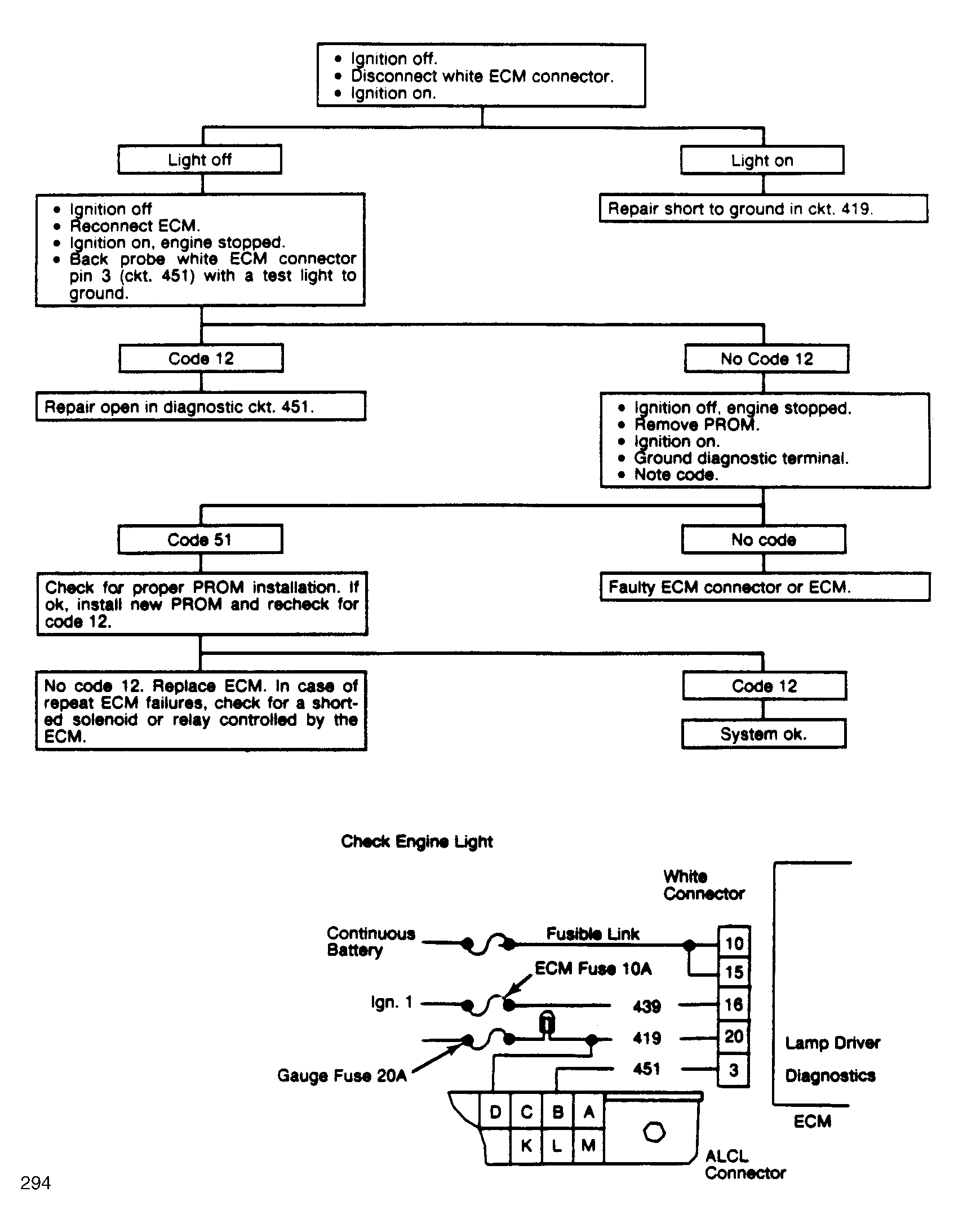

Fig 2: Chart 3: No Code 12 Displayed Flow Chart
