CADILLAC TPS Application Table: Notes

CADILLAC TPS APPLICATION

Application Part Number
Type 2 (70898) HT4100 (17067979)

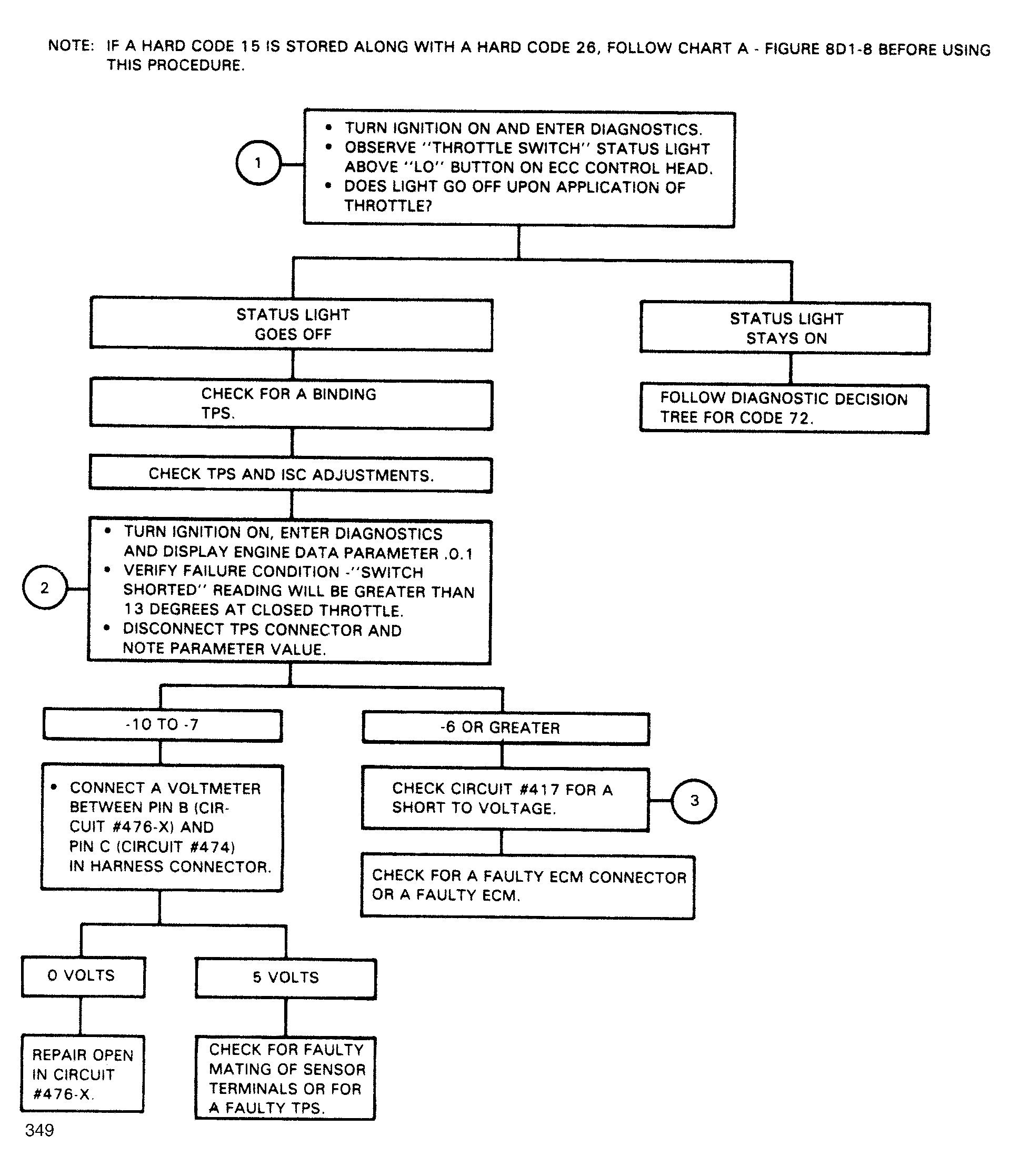

Fig 1: Flow Chart, Code 26 - Shorted Throttle Position Switch (TPS) Circuit
G349

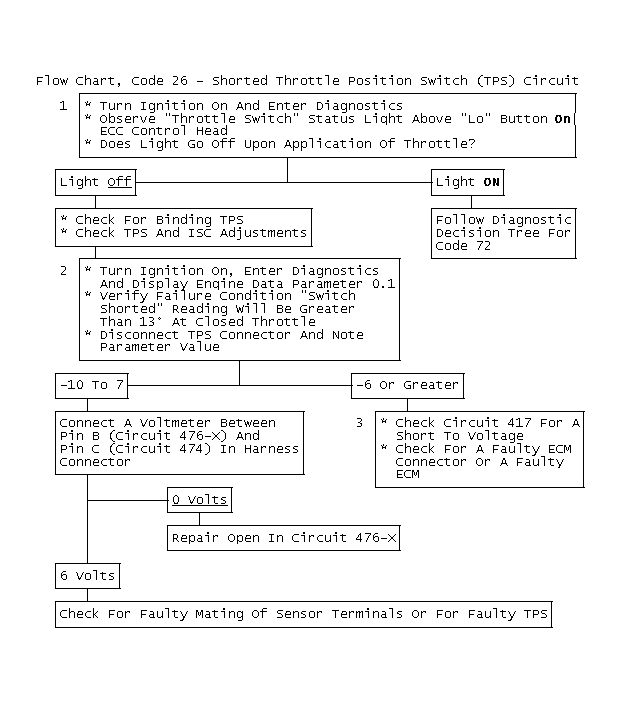

Fig 2: Flow Chart, Code 26 - Shorted Throttle Position Switch (TPS) Circuit
GB0046325
