Home >> Cadillac >> 1983 >> Seville 4.1 8 >> Repair and Diagnosis >> Engine Performance >> System >> DFI Tests W/Codes >> Diagnostic Code Charts >> Code 32 - Open Map Sensor Circuit >> Notes

Code 32 - Open Map Sensor Circuit: Notes

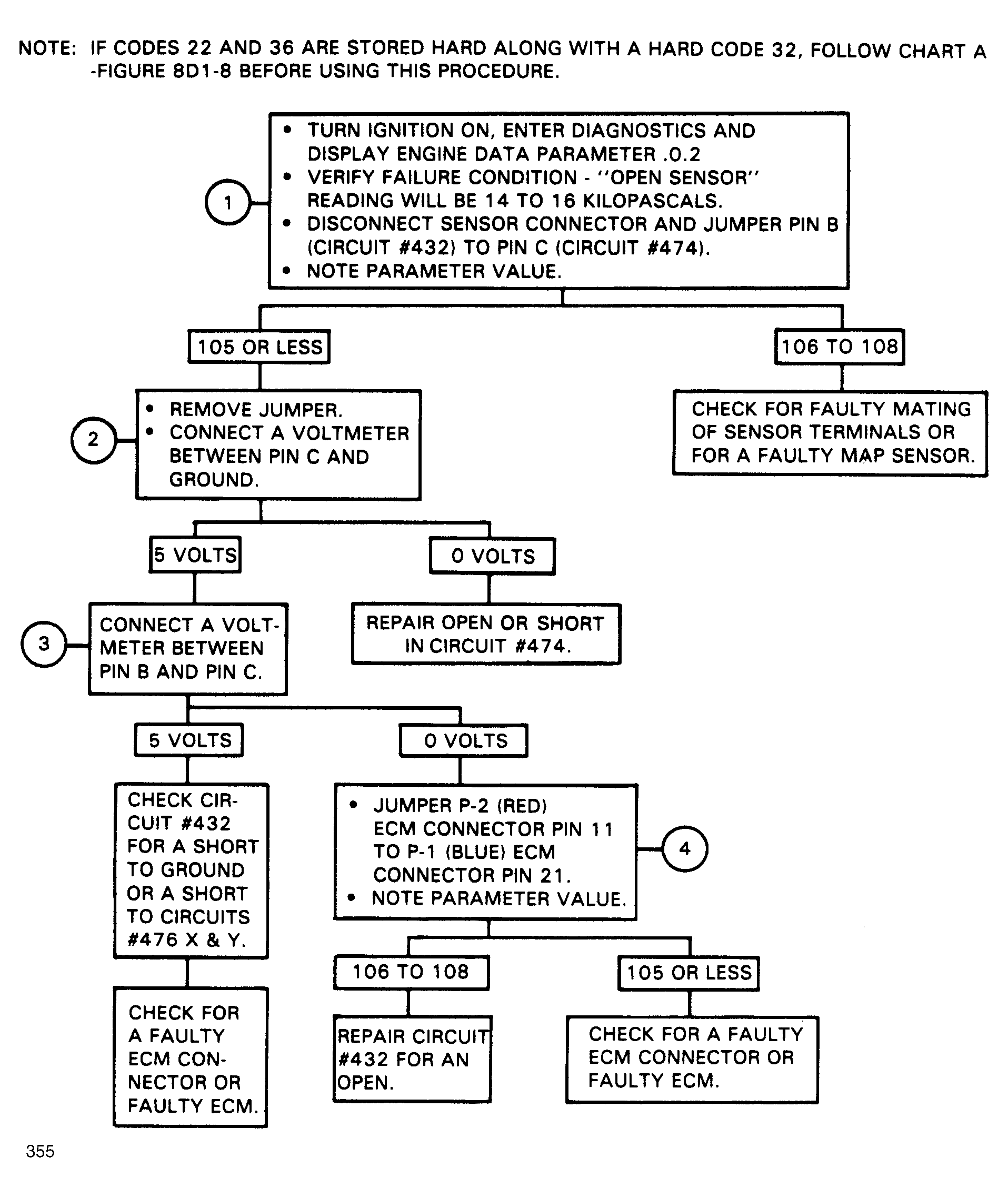

Fig 1: Flow Chart, Code 32 - Open Map Sensor Circuit

G355

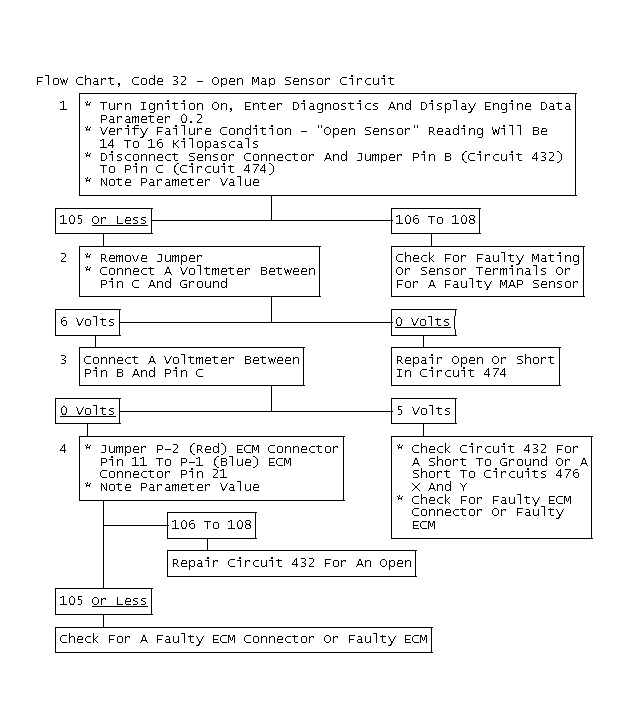

Fig 2: Flow Chart, Code 32 - Open Map Sensor Circuit

GB0046332
