Code 39 - TCC Problem: Notes

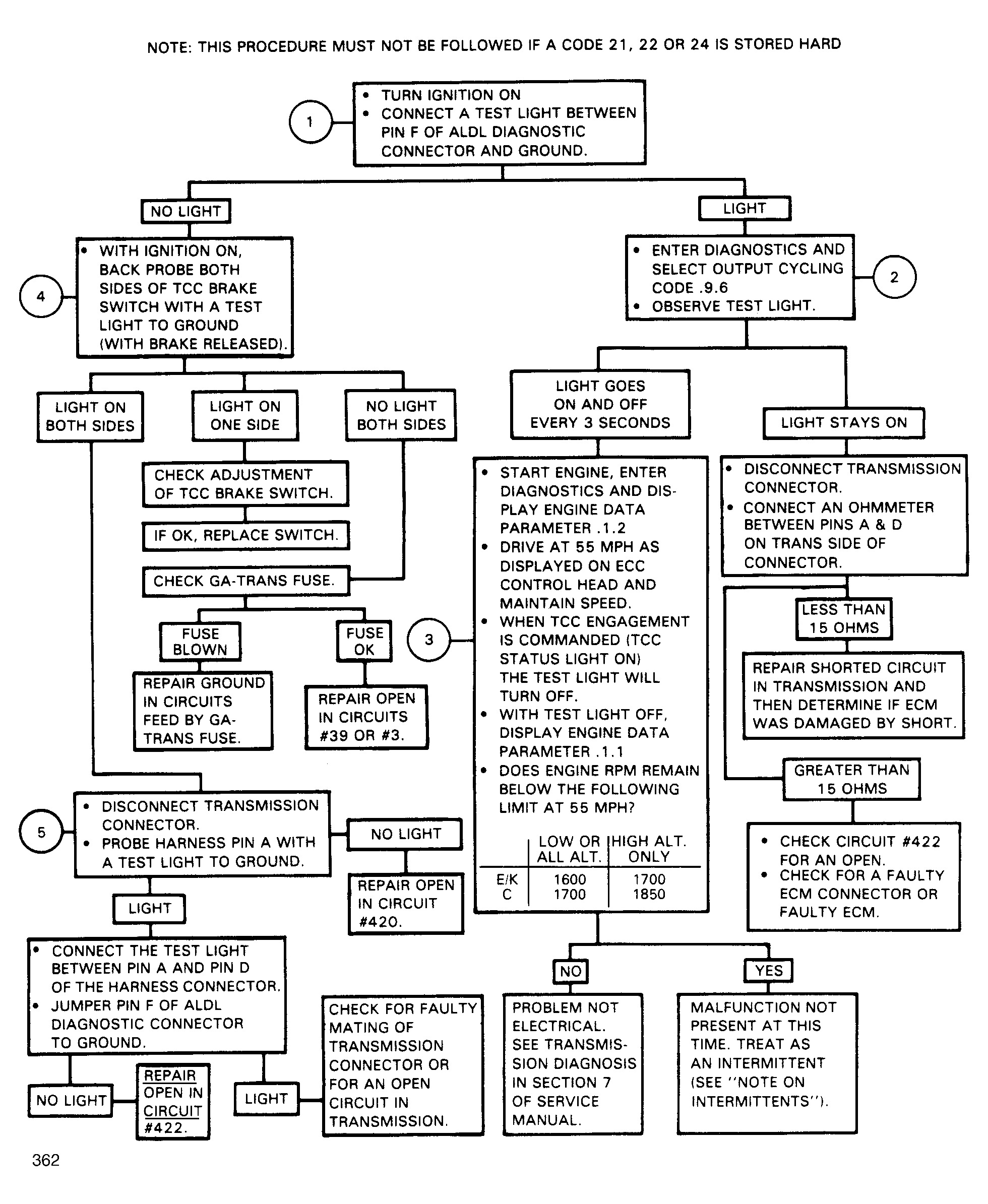

Fig 1: Flow Chart, Code 39 - TCC Engagement Problem

G362

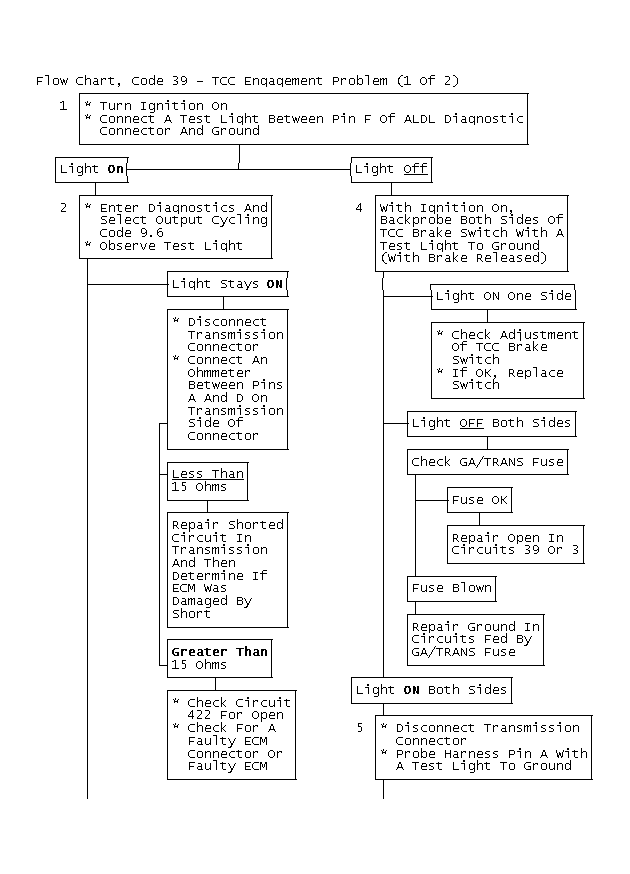

Fig 2: Flow Chart, Code 39 - TCC Engagement Problem (1 Of 2)

GB0046339

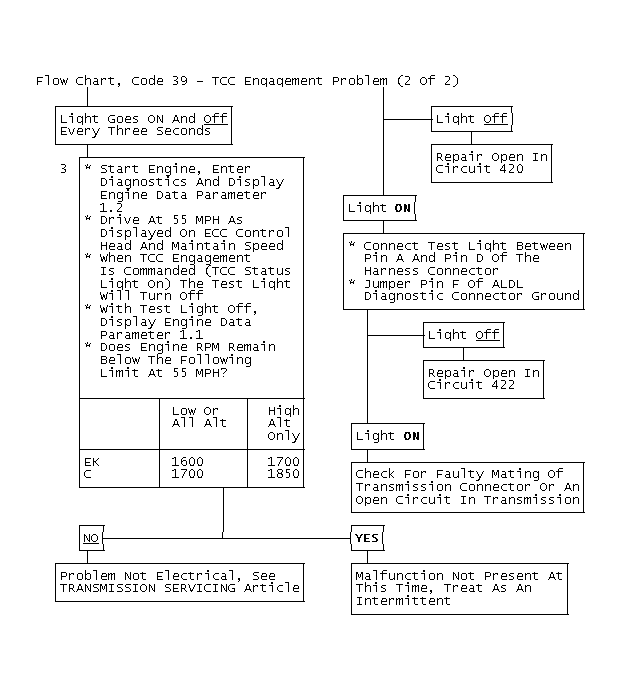

Fig 3: Flow Chart, Code 39 - TCC Engagement Problem (2 Of 2)

GB0046340
