Home >> Cadillac >> 1983 >> Seville 4.1 8 >> Repair and Diagnosis >> Engine Performance >> System >> DFI Tests W/Codes >> Diagnostic Code Charts >> Code 72 - Throttle Switch Circuit >> Notes

Code 72 - Throttle Switch Circuit: Notes

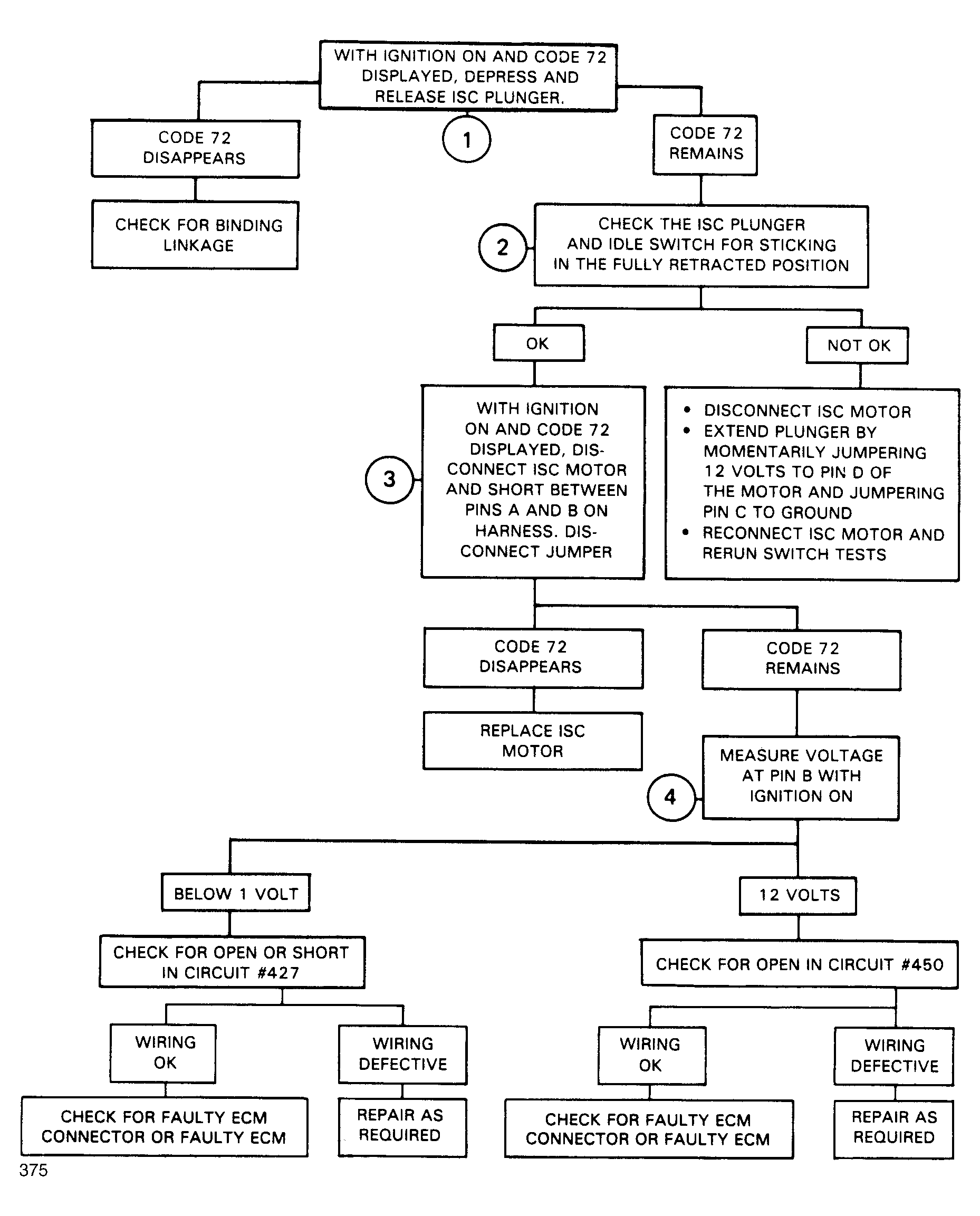

Fig 1: Flow Chart, Code 72 - Throttle Switch Circuit

G375

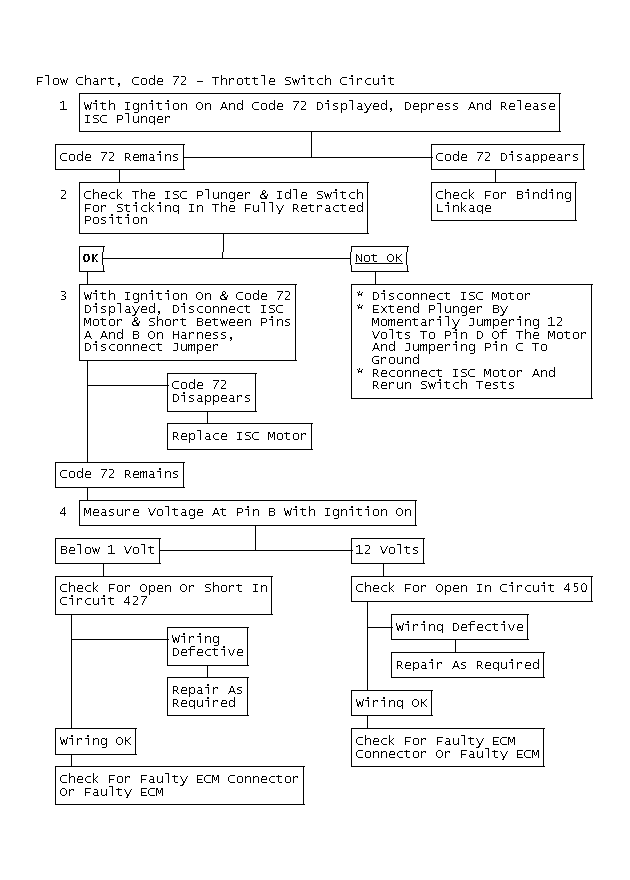

Fig 2: Flow Chart, Code 72 - Throttle Switch Circuit

GB0046348
