Code 30 - ISC Circuit: Notes

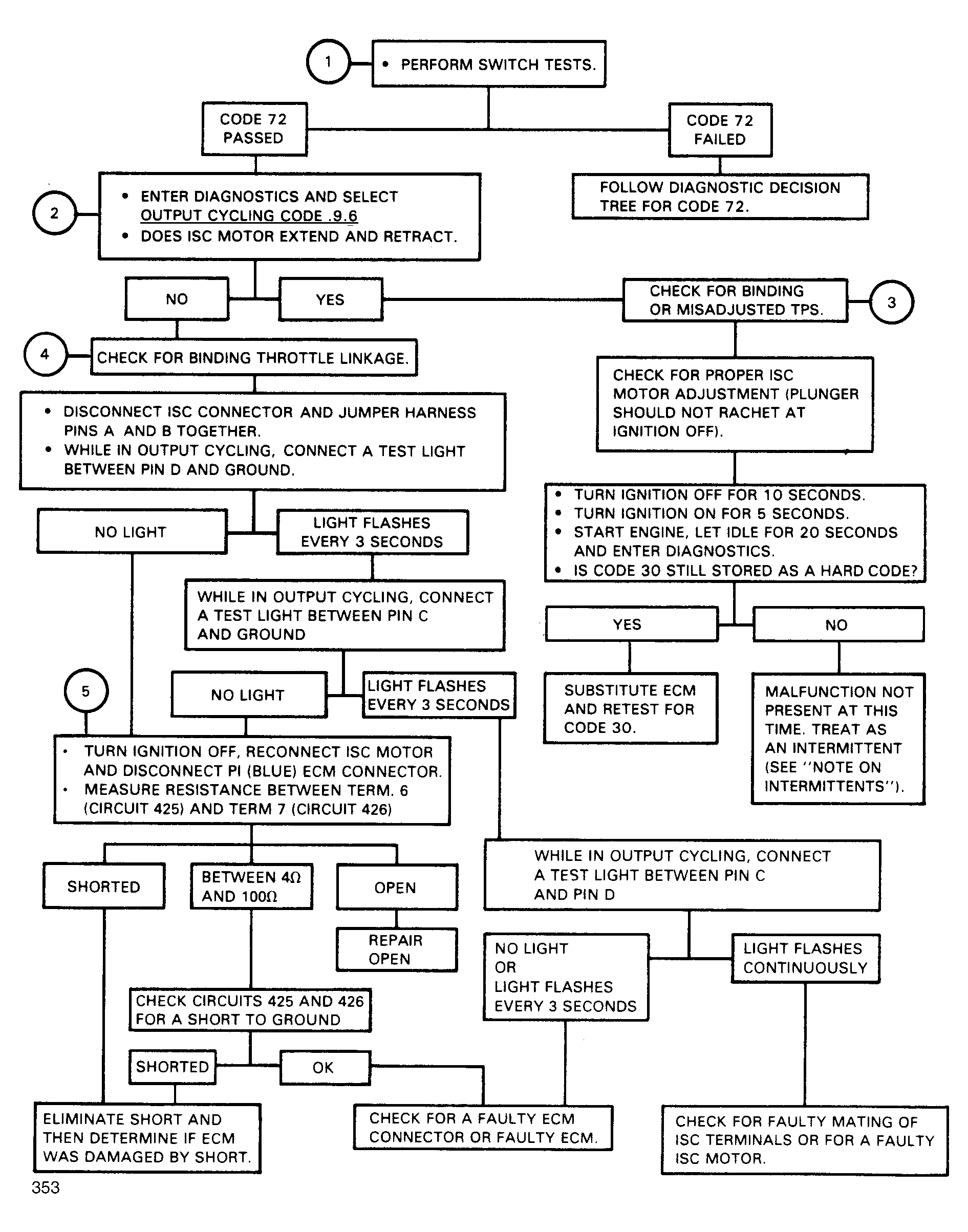

Fig 1: Flow Chart, Code 30 - ISC Circuit Problem

G353

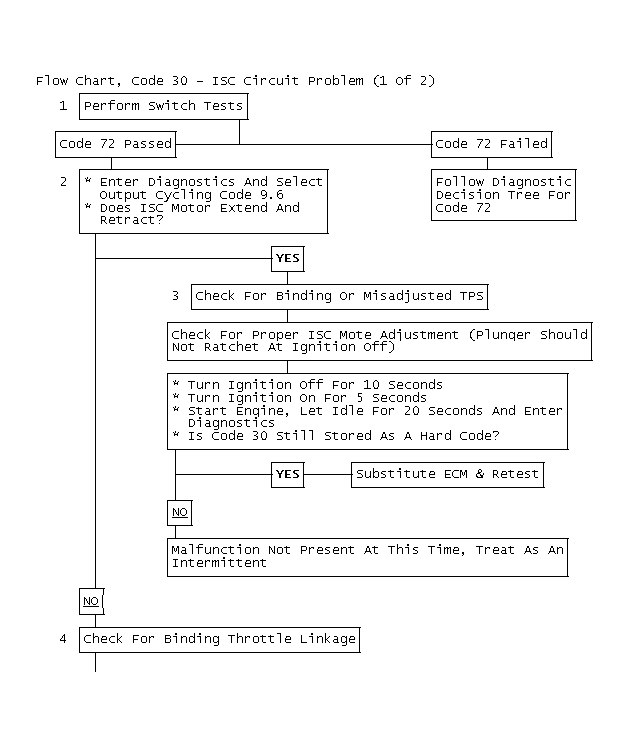

Fig 2: Flow Chart, Code 30 - ISC Circuit Problem (1 Of 2)

GB0046329

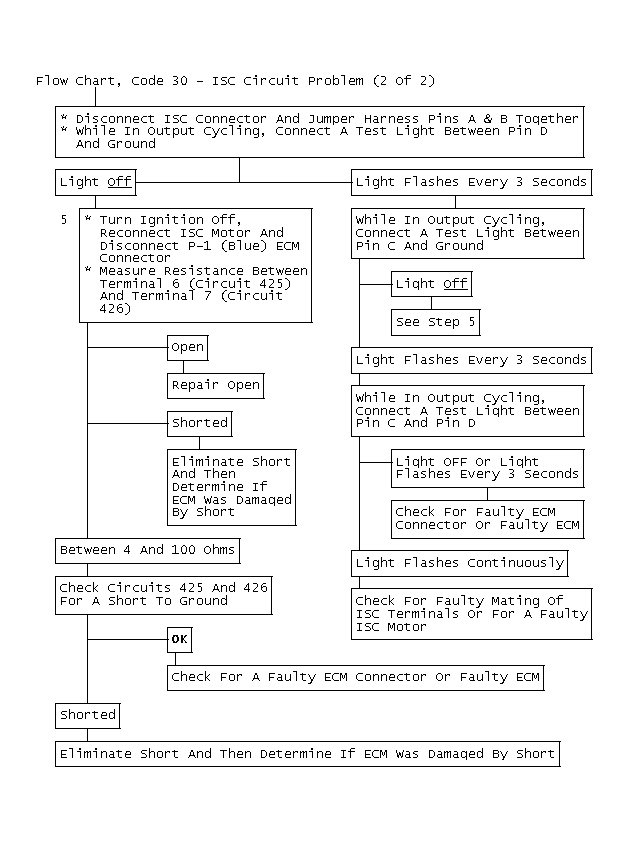

Fig 3: Flow Chart, Code 30 - ISC Circuit Problem (2 Of 2)

GB0046330
