Home >> Cadillac >> 1983 >> Seville 5.7 N >> Repair and Diagnosis >> Engine Performance >> System >> DFI Tests W/Codes >> Diagnostic Code Charts >> Code 31 - Shorted Map Sensor Circuit >> Notes

Code 31 - Shorted Map Sensor Circuit: Notes

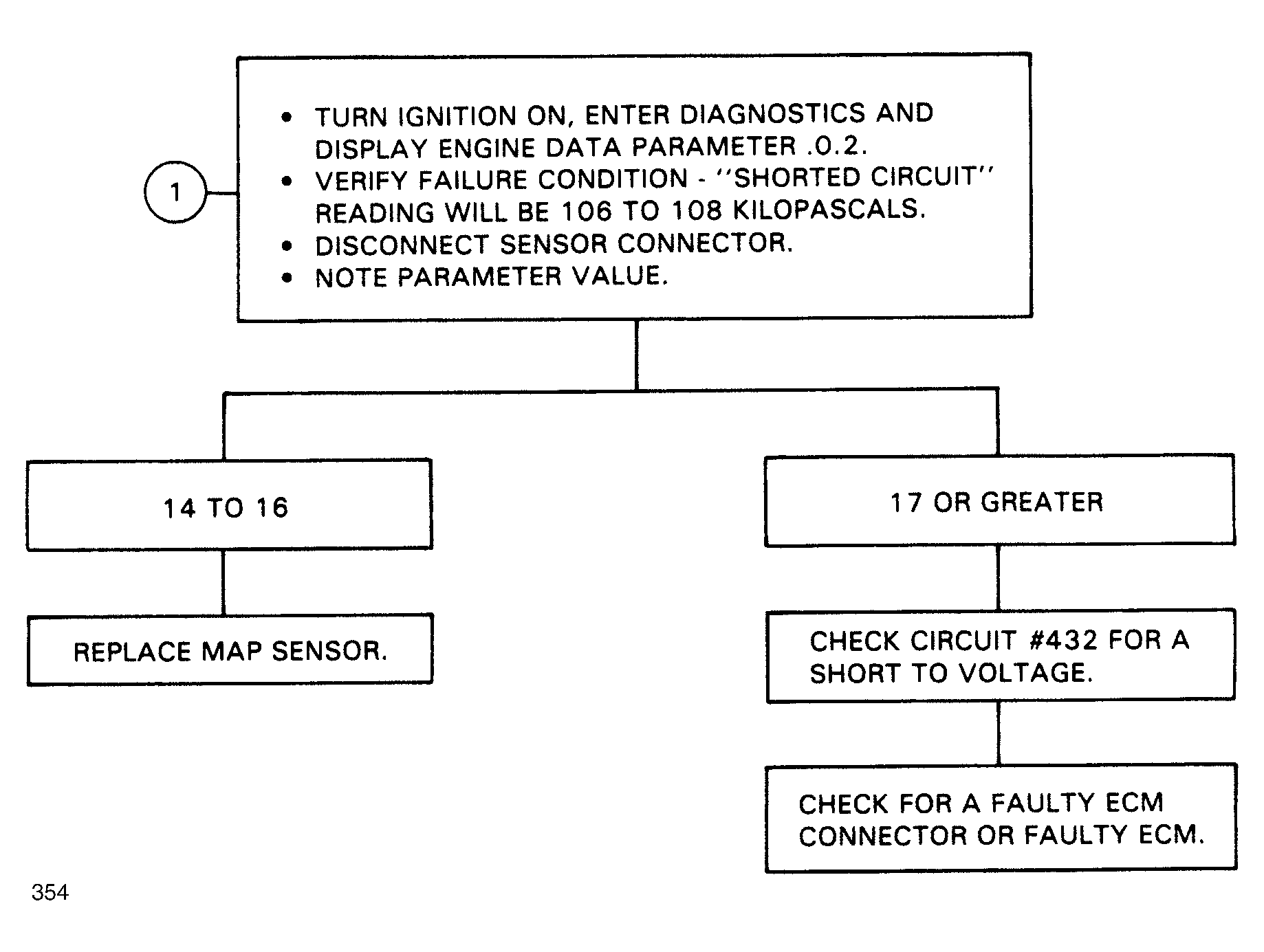

Fig 1: Flow Chart, Code 31 - Shorted Map Sensor Circuit

G354

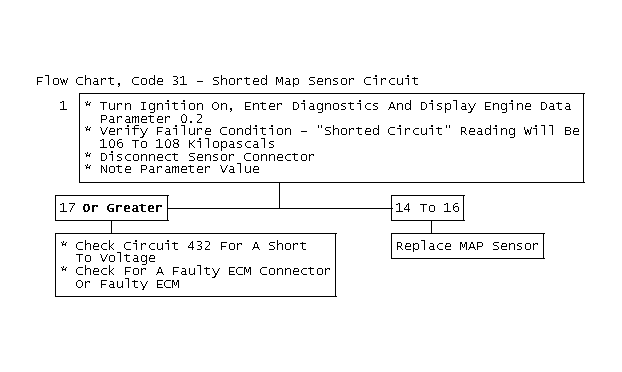

Fig 2: Flow Chart, Code 31 - Shorted Map Sensor Circuit

GB0046331
