Wiring Diagrams

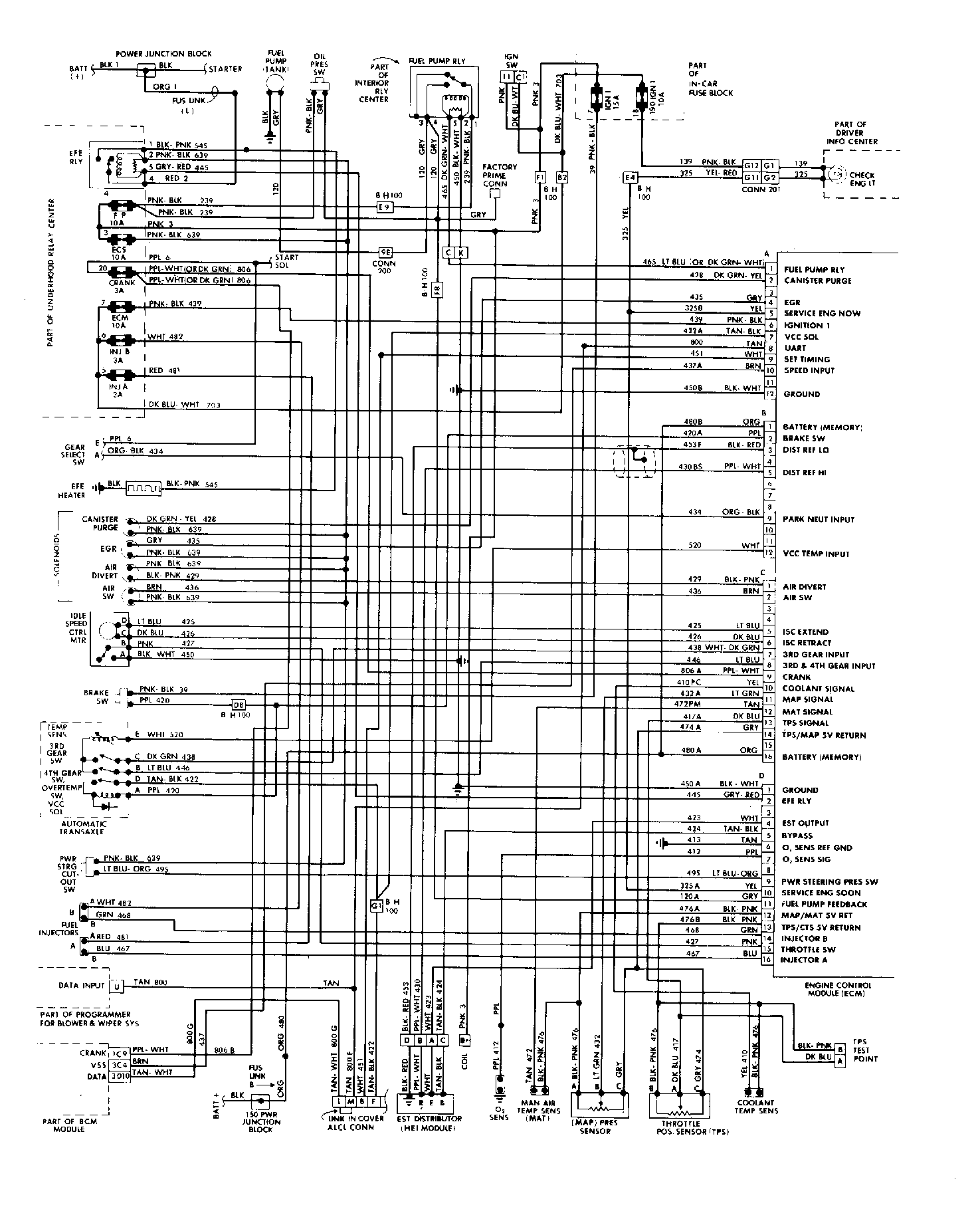

Fig 1: DFI System Wiring Diagram (Eldorado & Seville)

G5350

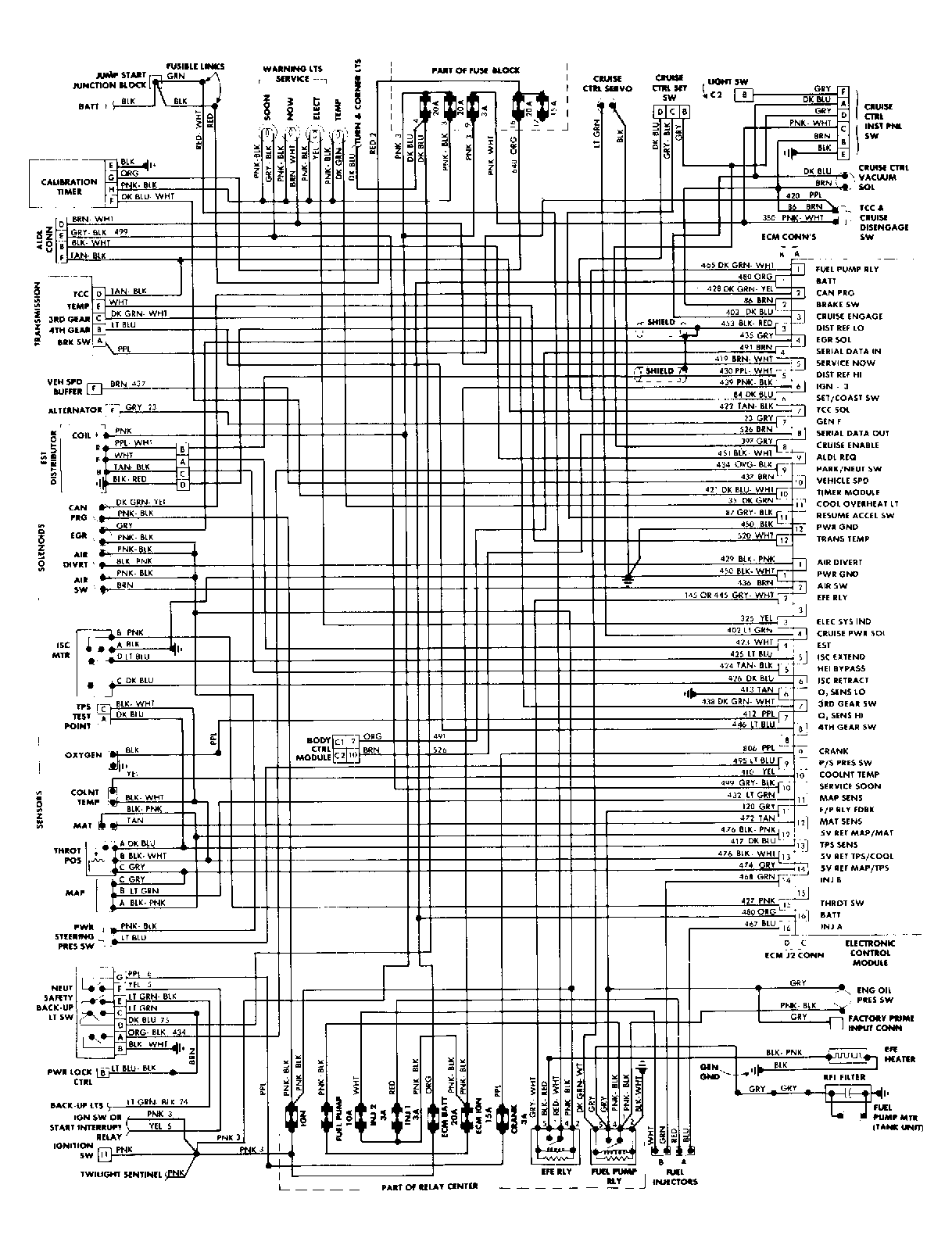

Fig 2: DFI System Wiring Diagram (DeVille & Fleetwood)

G5351
