Connector Identification
Connector Identification

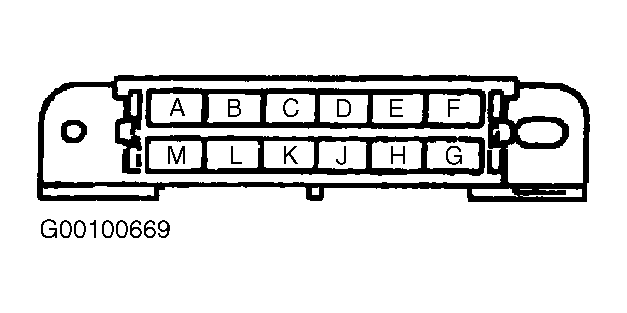

Fig 1: Identifying Assembly Line Data Link (ALDL) Connector Terminal
Courtesy of GENERAL MOTORS CORP.

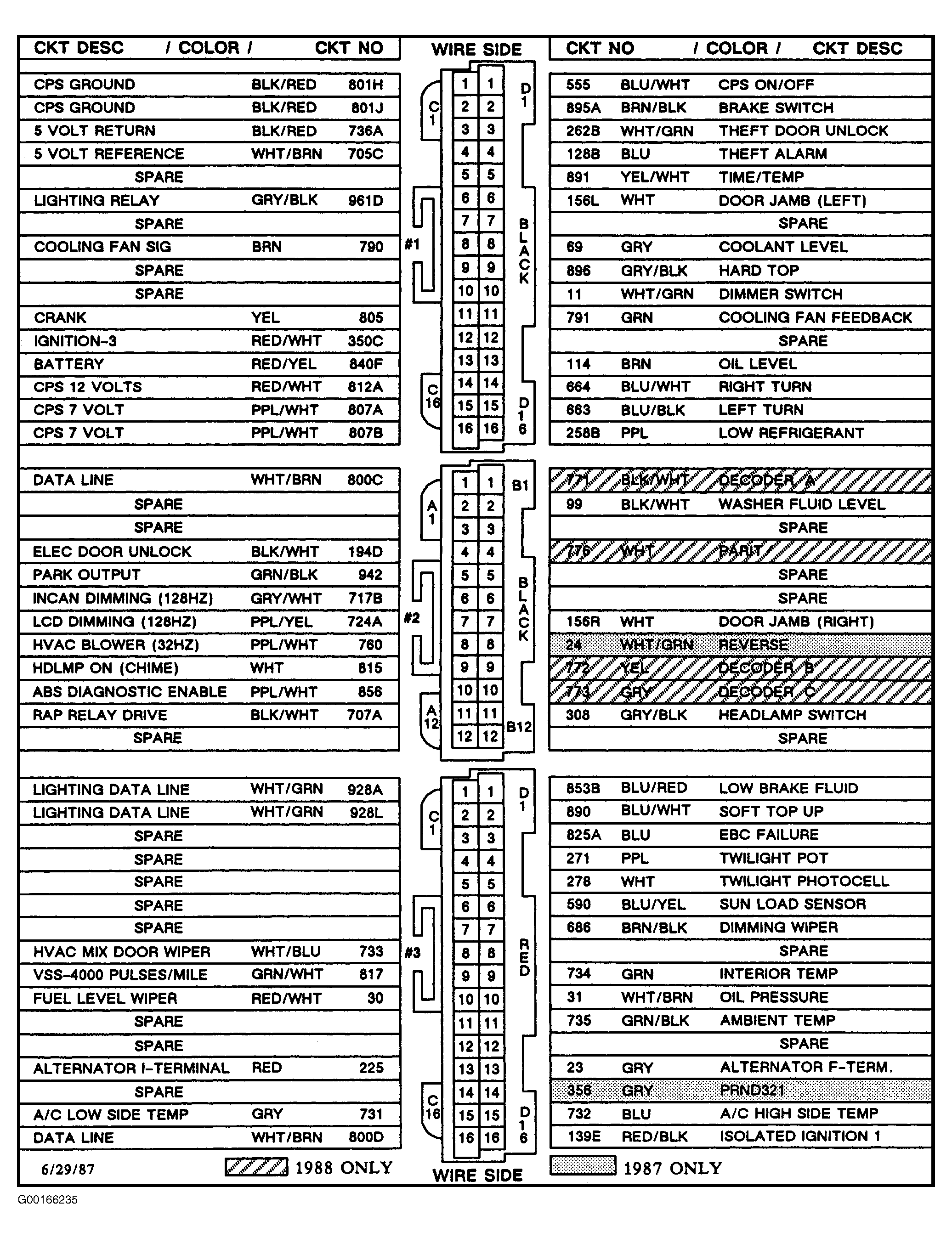

Fig 2: BCM Circuit Identification (Wire Side Of Connectors)
Courtesy of GENERAL MOTORS CORP.

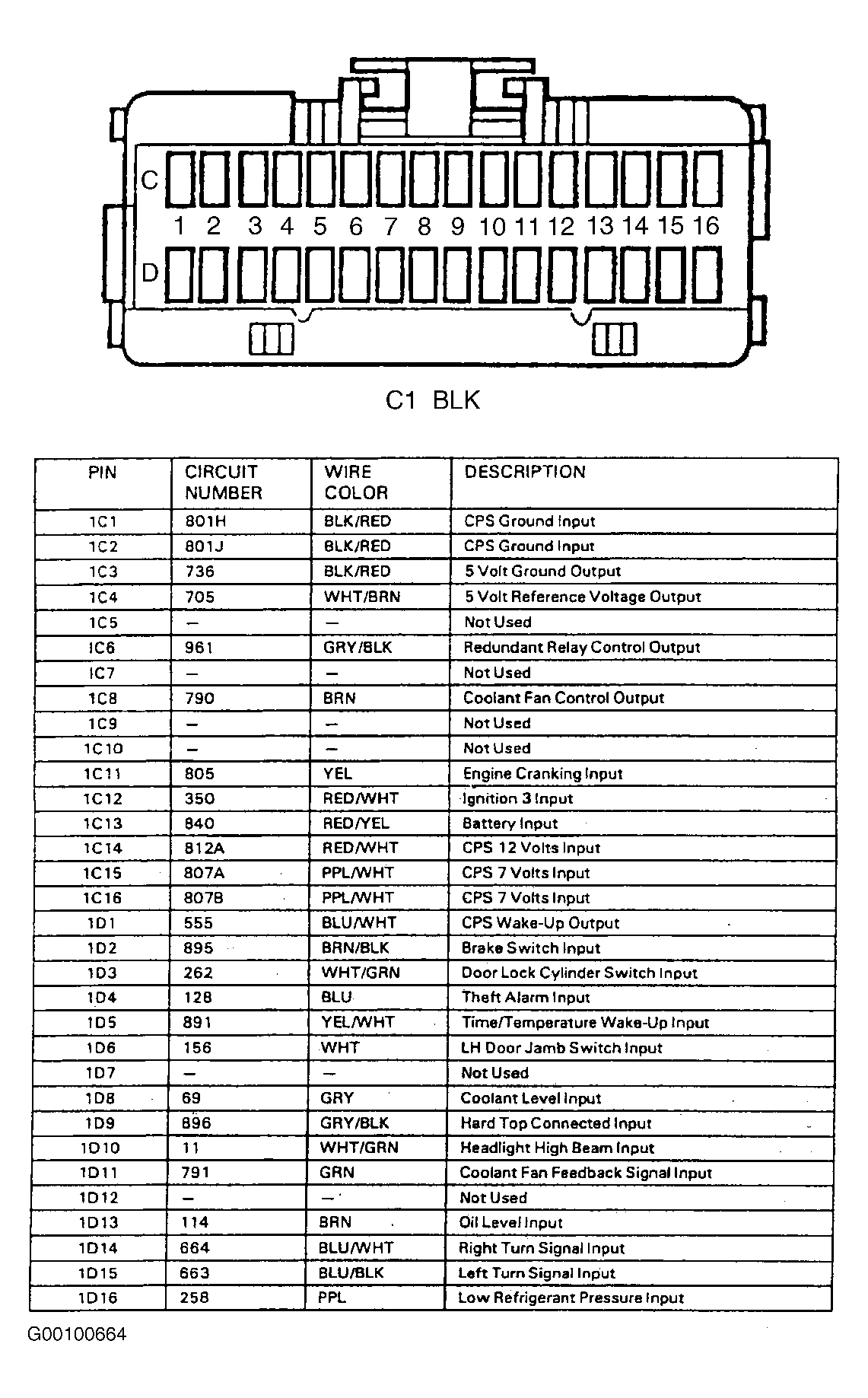

Fig 3: Identifying BCM C1 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

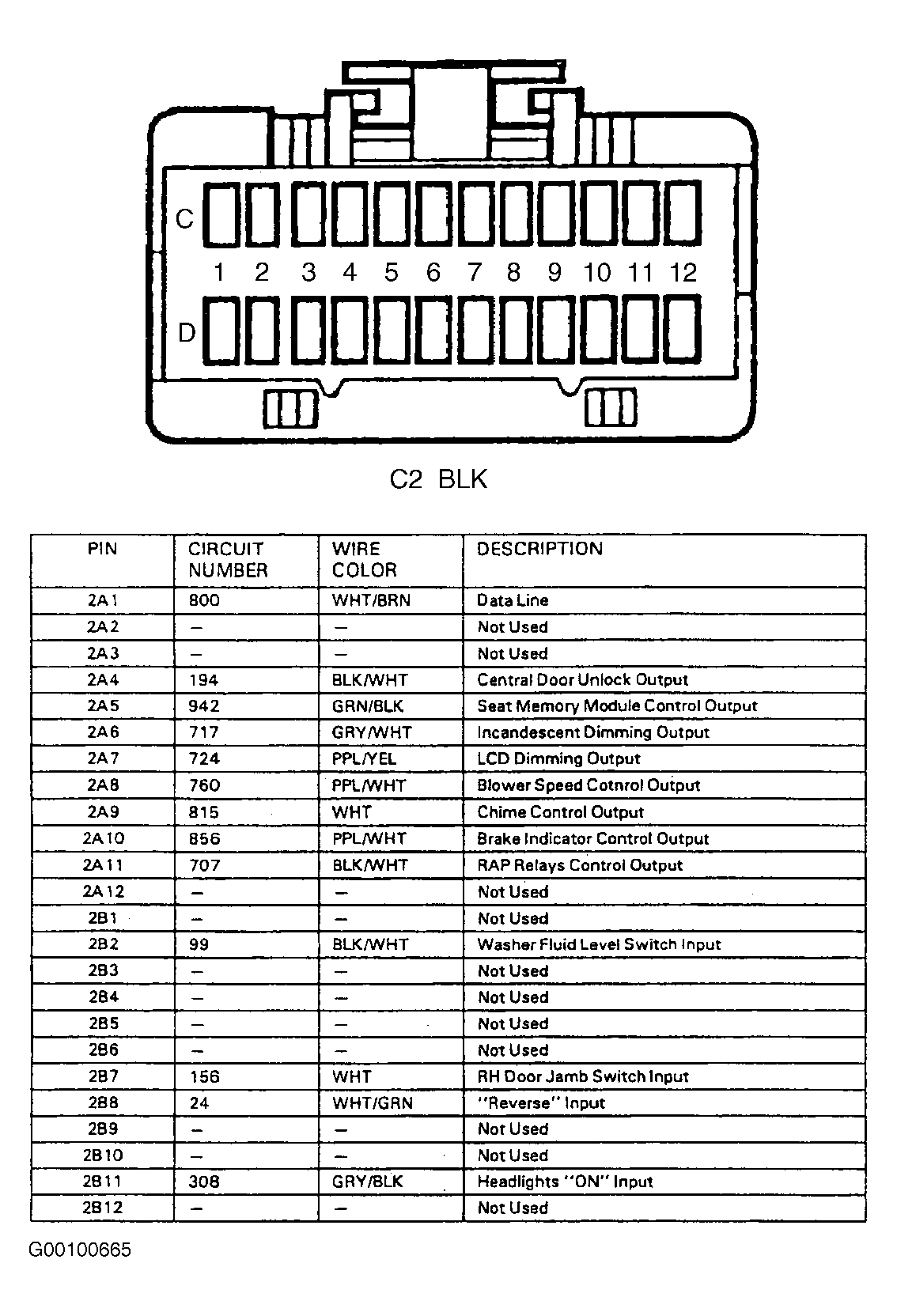

Fig 4: Identifying BCM C2 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

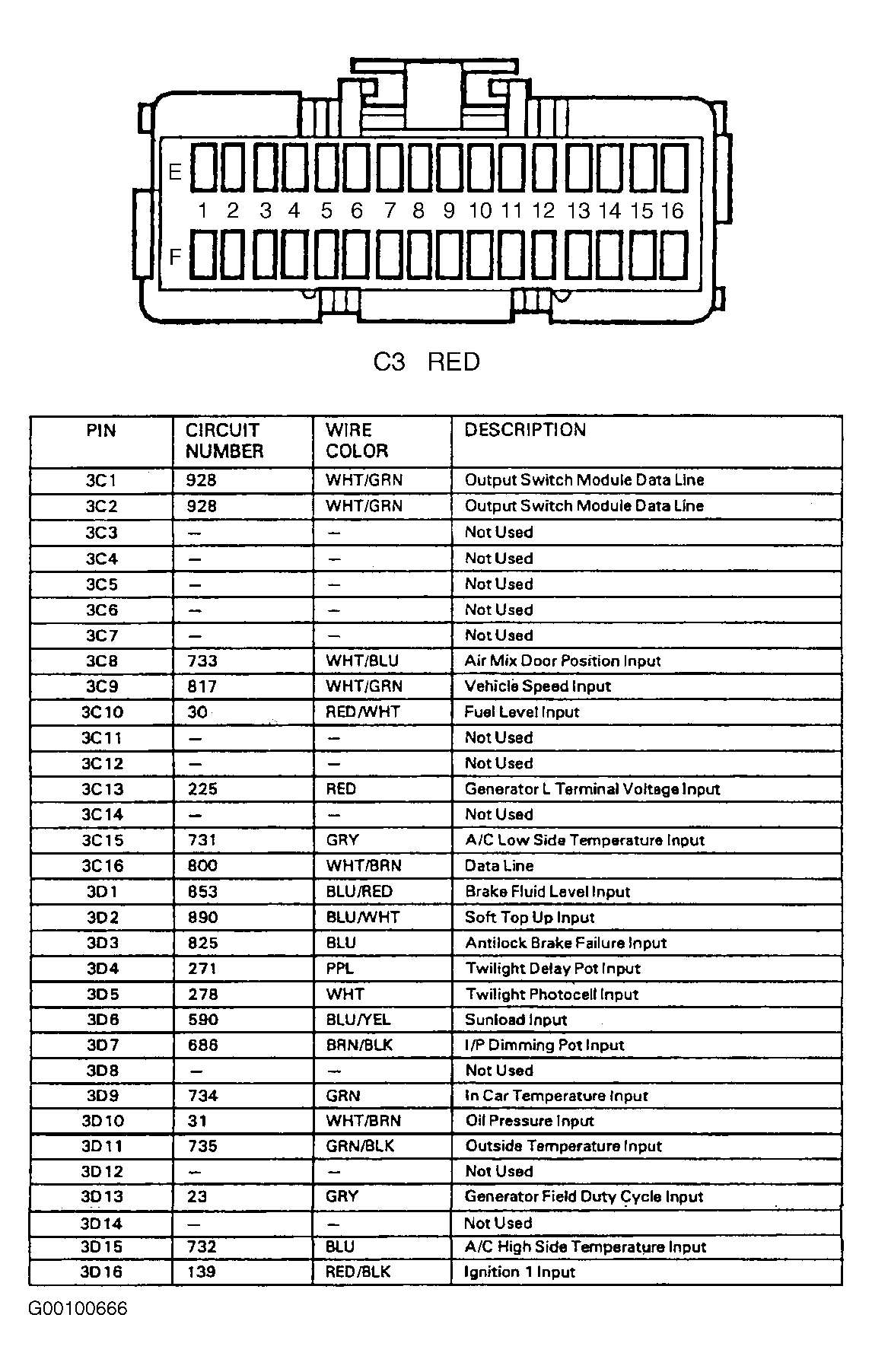

Fig 5: Identifying BCM C3 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

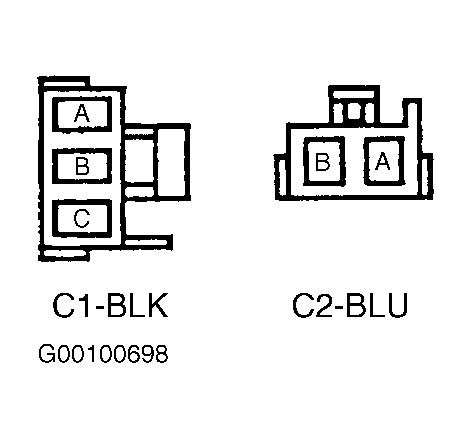

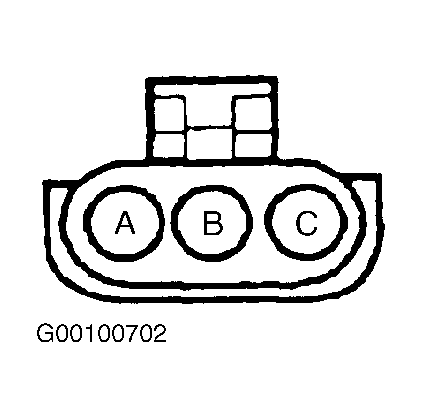

Fig 6: Identifying Brake Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

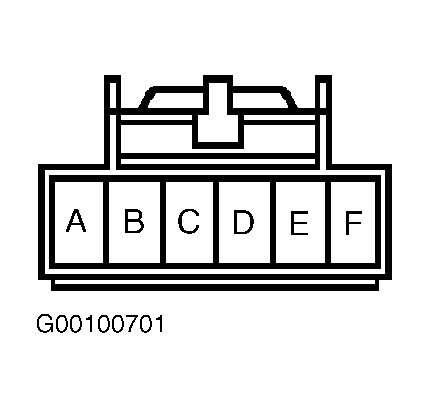

Fig 7: Identifying C319 Connector Terminal
Courtesy of GENERAL MOTORS CORP.

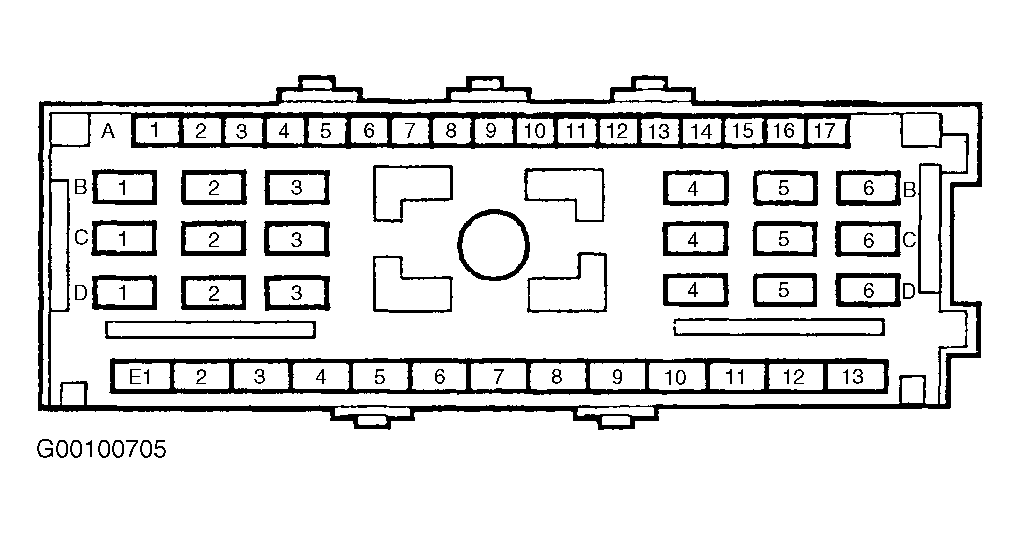

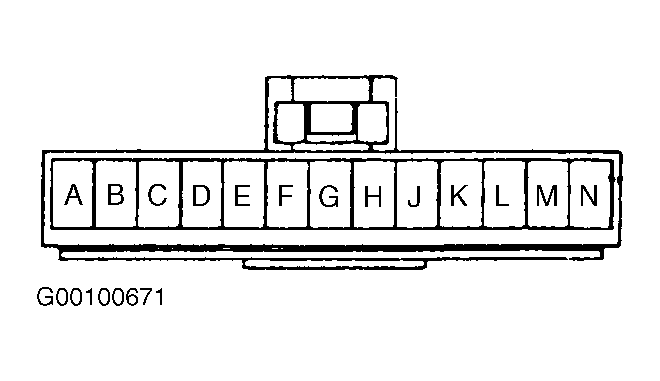

Fig 8: Identifying Central Power Supply (CPS) Connector Terminal
Courtesy of GENERAL MOTORS CORP.

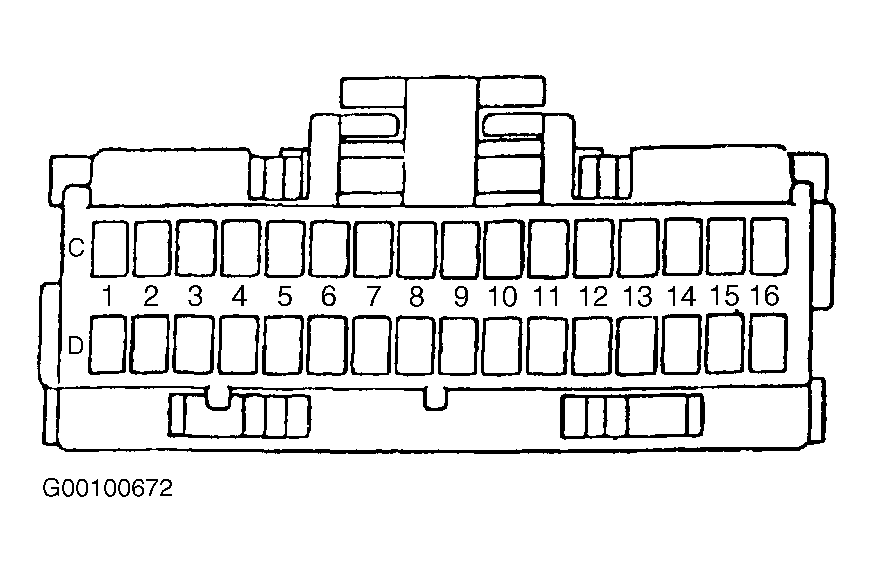

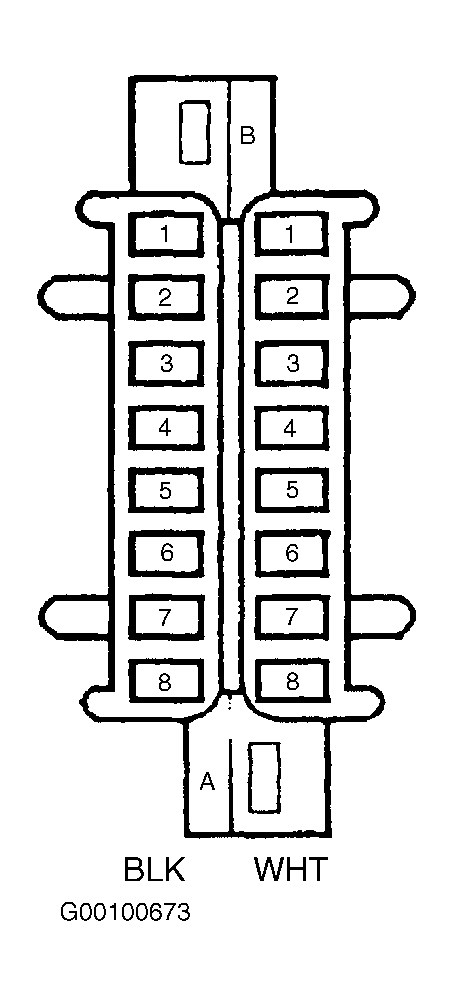

Fig 9: Identifying Climate Control/Driver Information Center (CCDIC) Connector Terminal (Left Switch Pod Similar)
Courtesy of GENERAL MOTORS CORP.

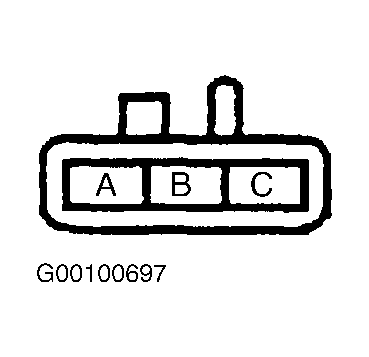

Fig 10: Identifying Right & Left Door Jamb Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

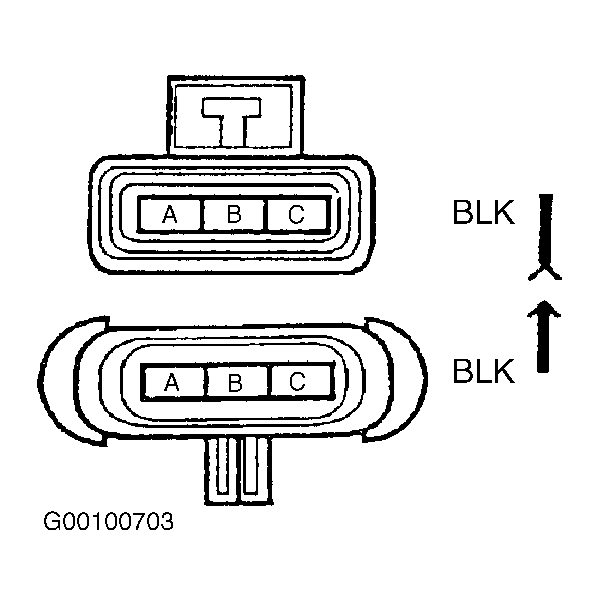

Fig 11: Identifying Door Lock Cylinder Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

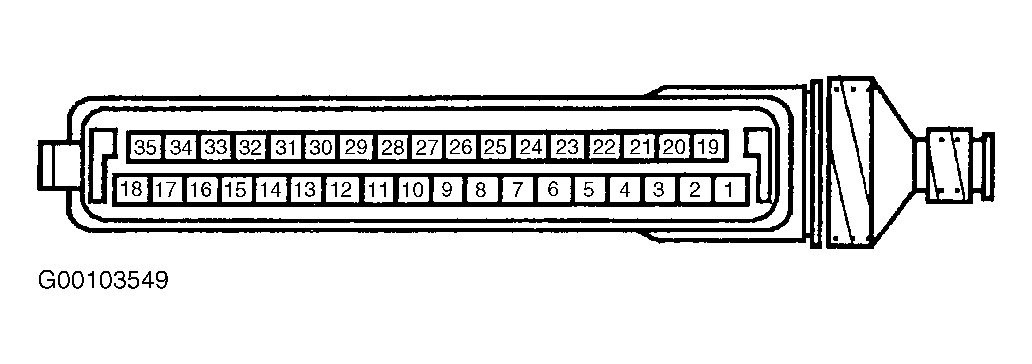

Fig 12: Identifying Electronic Brake Control Module (EBCM) Connector Terminal
Courtesy of GENERAL MOTORS CORP.

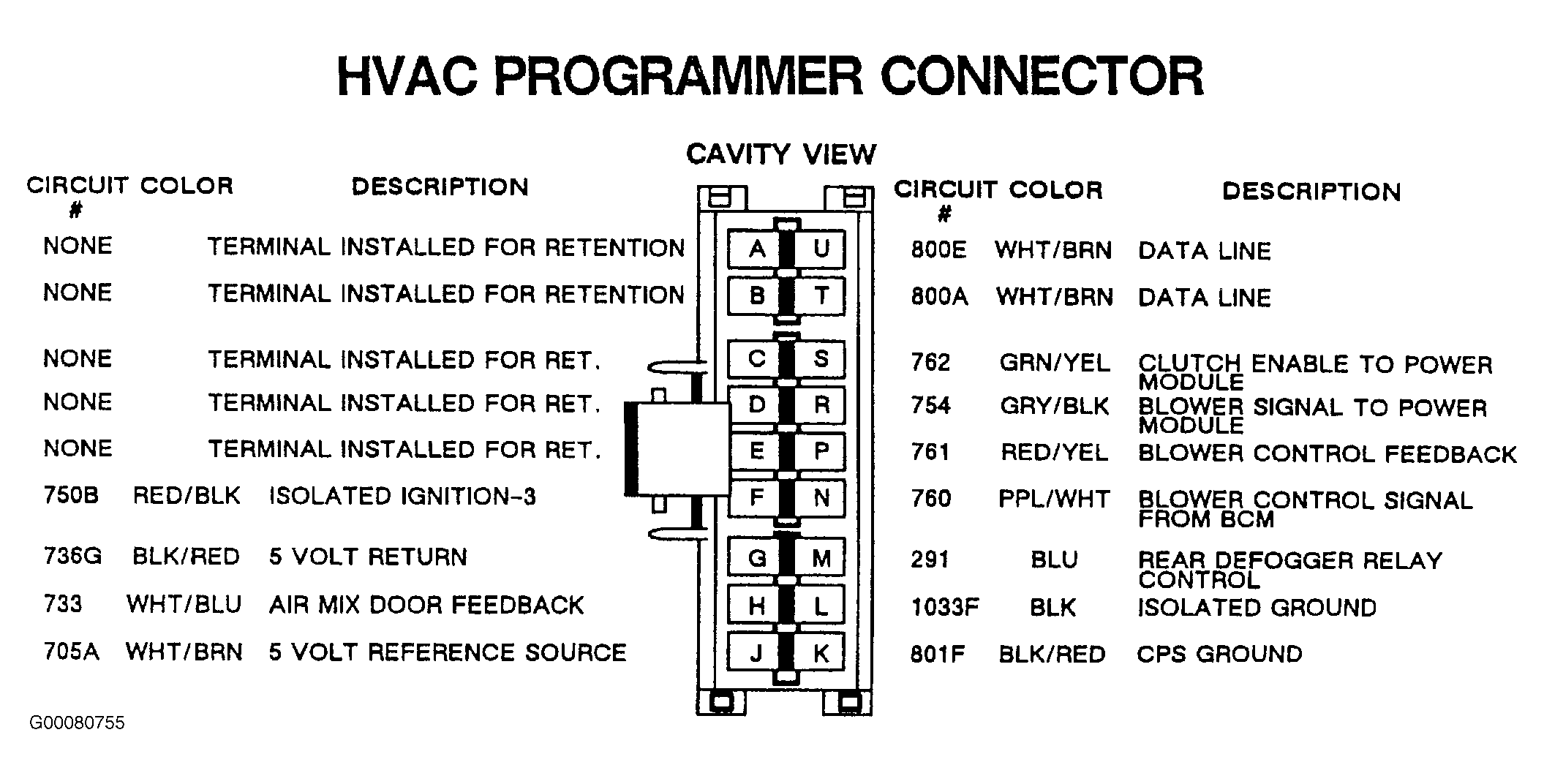

Fig 13: Identifying Programmer Harness Connector Terminal
Courtesy of GENERAL MOTORS CORP.

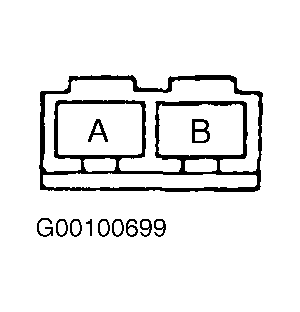

Fig 14: Identifying Low Coolant Level Module Connector Terminal
Courtesy of GENERAL MOTORS CORP.

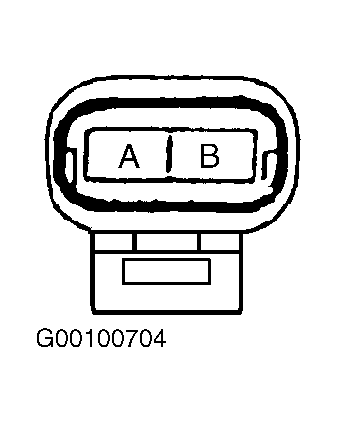

Fig 15: Identifying Oil Level Sensor Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.

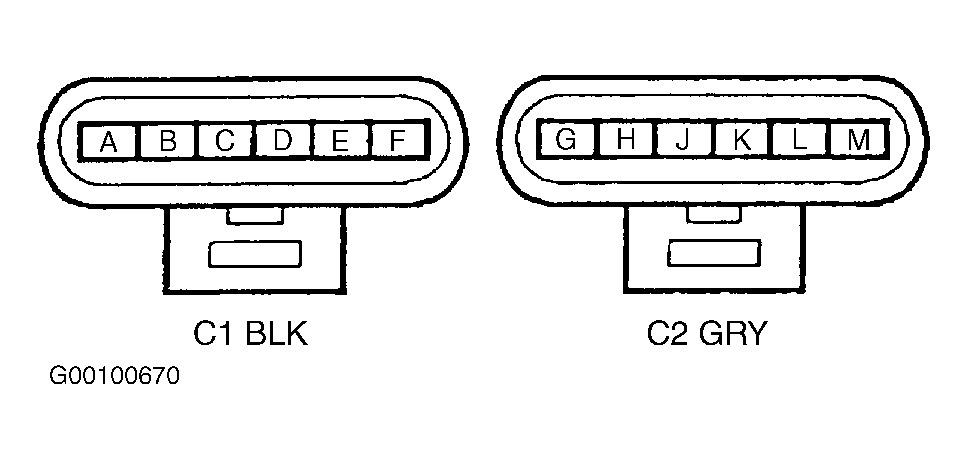

Fig 16: Identifying Output Switching Module (OSM) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

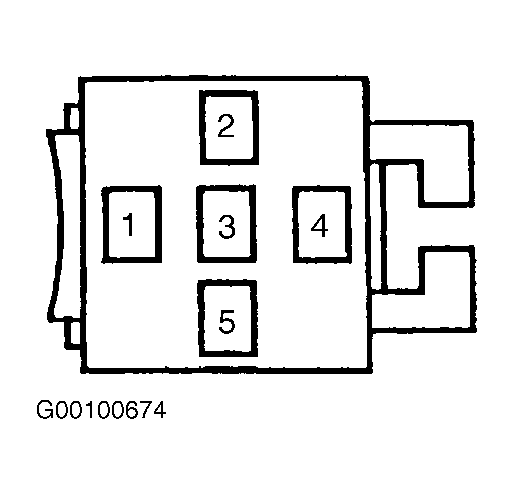

Fig 17: Identifying Retained Accessory Power Relay (RAP) 1 & 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Theft Deterrent Module Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying C202 Turn Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Washer Fluid Level Switch Connector Terminal
Courtesy of GENERAL MOTORS CORP.
