System Check Chart B-3

You have been sent to this chart due to display problems with the CCDIC or IPC. This chart will lead through a check of power and ground circuits to the affected display.

NOTE: The following step numbers refer to circled numbers on diagnostic chart. See Fig 1 . For circuit identification, see Fig 2 .

This step assures that the BCM is initialized correctly to observe the symptoms.
If IPC is lit with no display, the likely cause is a circuit 801A problem.
If IPC is not lit some characters may be seen faintly, with no backlighting. This branch will check powers and grounds that could cause this symptom.
This step checks power and grounds for the CCDIC.

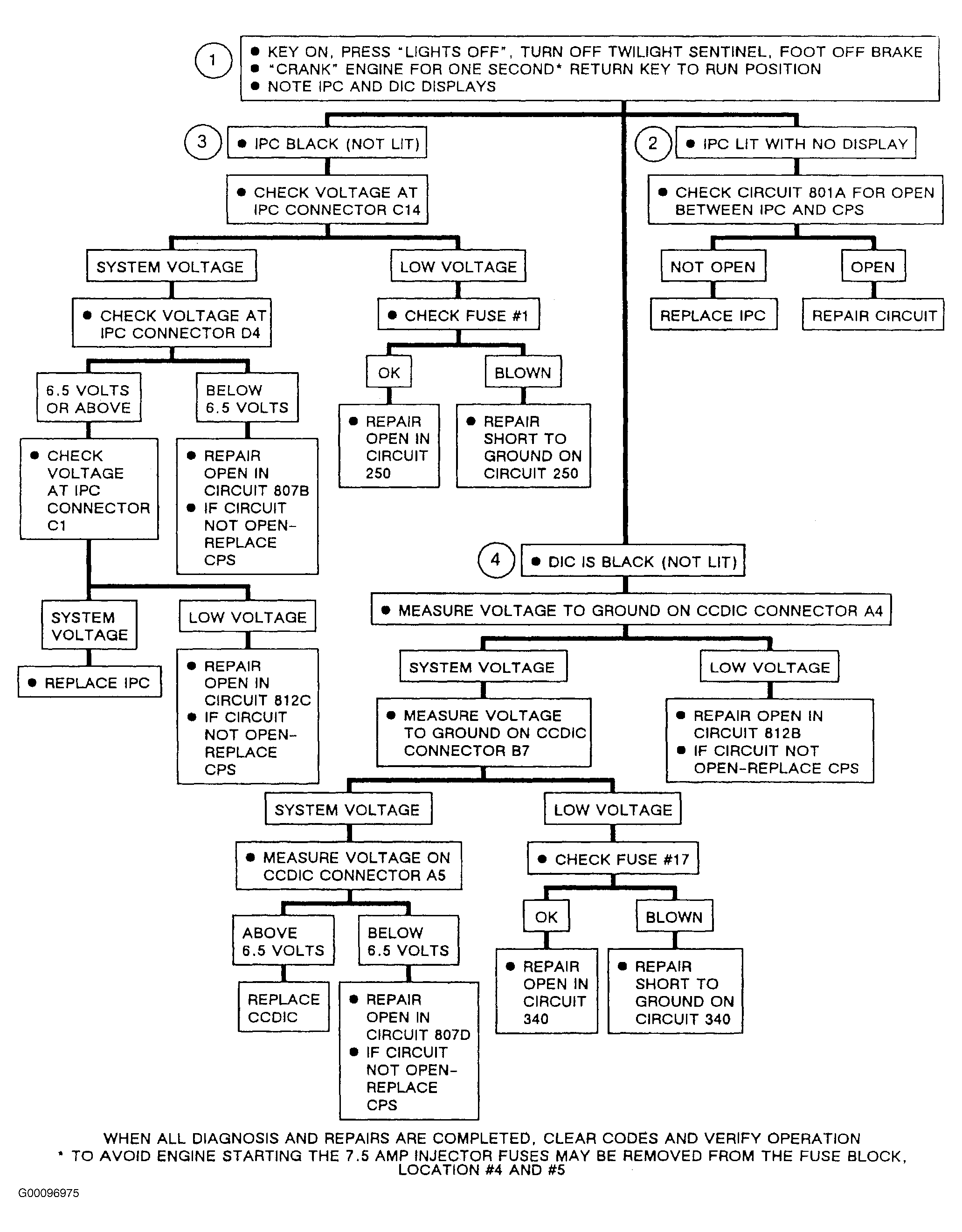

Fig 1: Identifying Chart B-3 Flow Chart

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Chart B-3 Flow Chart Circuit

Courtesy of GENERAL MOTORS CORP.
