Wiring Diagrams

Fig 1: DFI System Wiring Diagram (DeVille & Fleetwood)

G7730

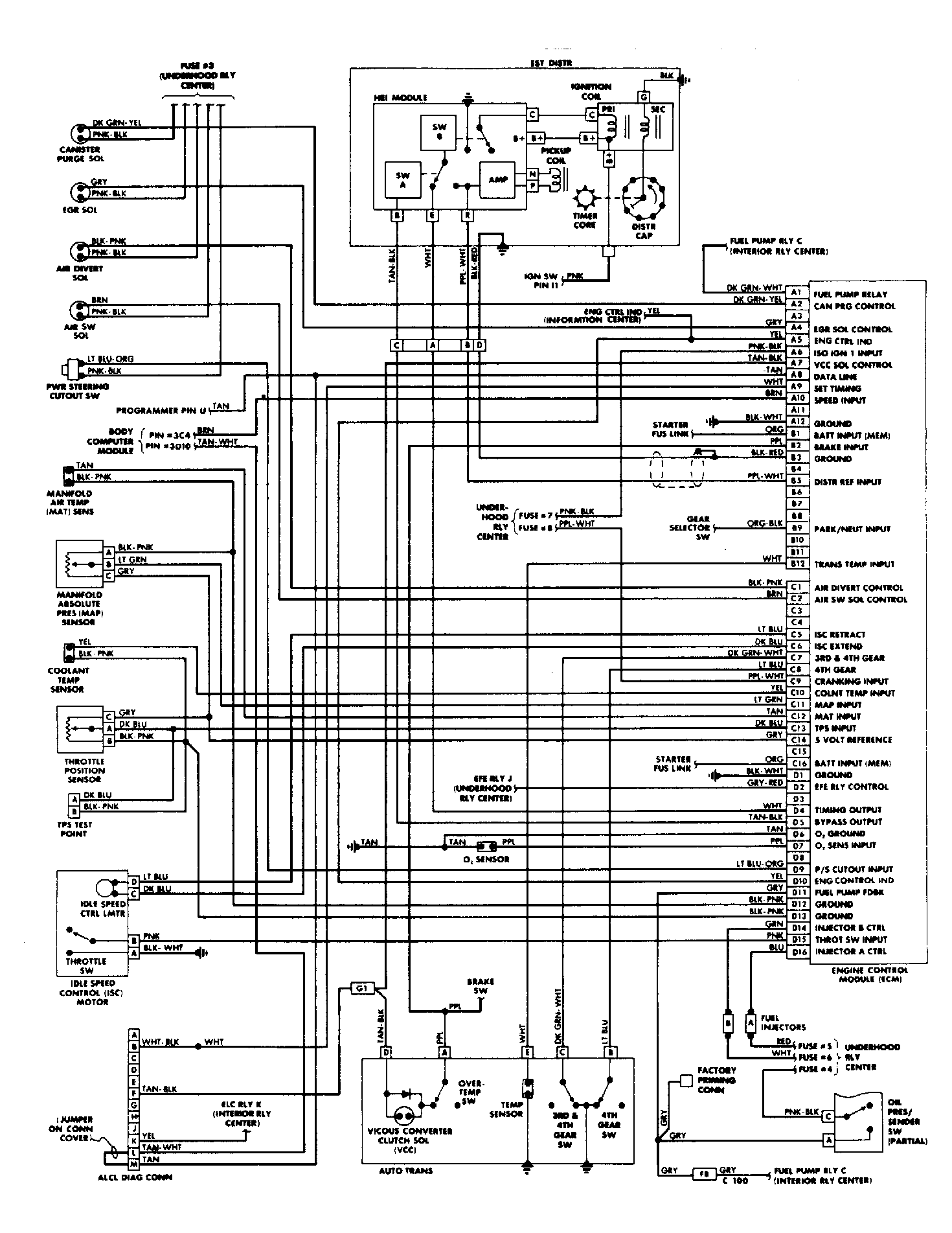

Fig 2: DFI System Wiring Diagram (Eldorado & Seville)

G7731
