Wiring Diagrams
NOTE:
For more information on wiring, see
1989 CADILLAC -- ALLANTE
SYSTEM WIRING DIAGRAMS article.

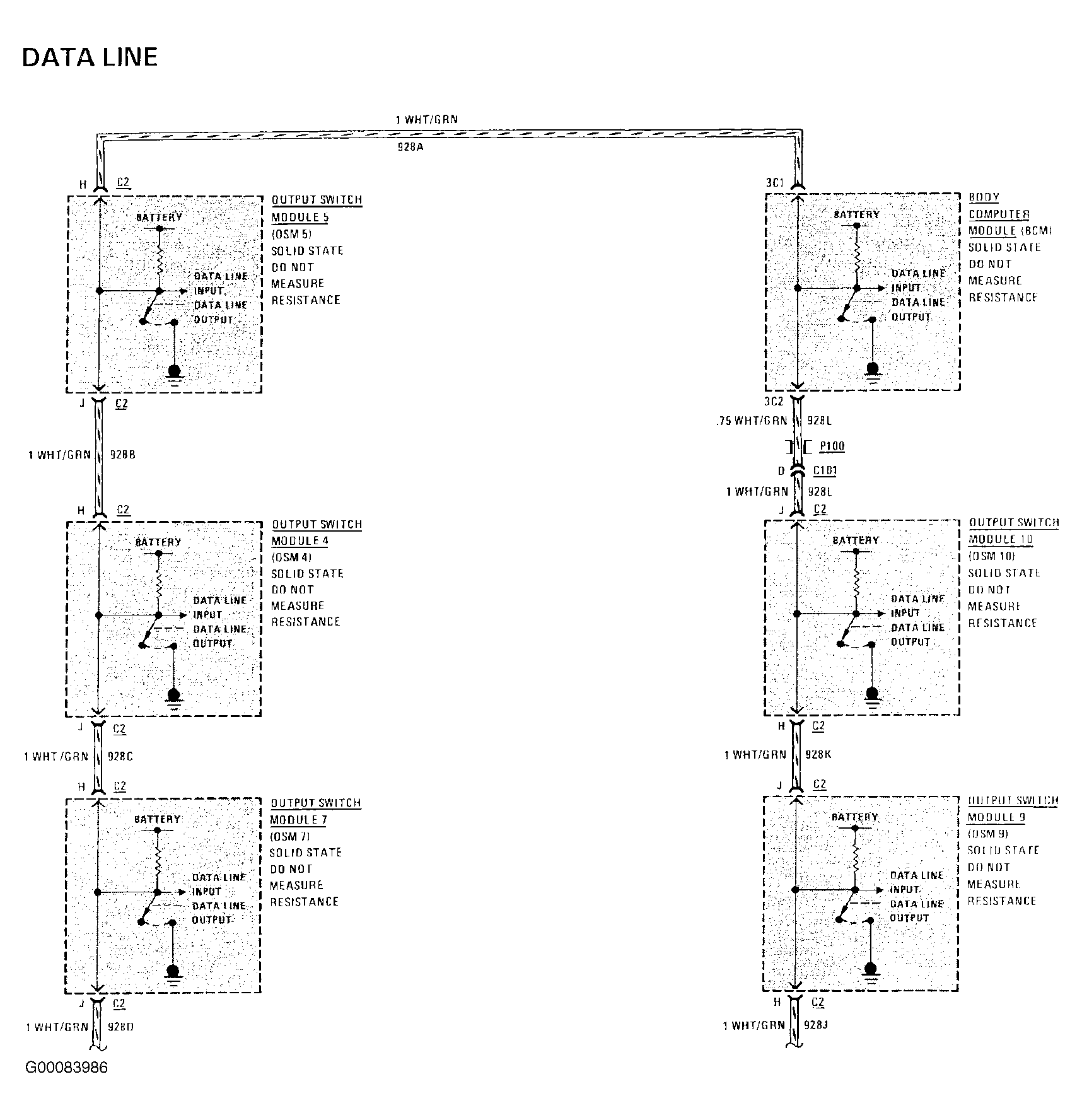

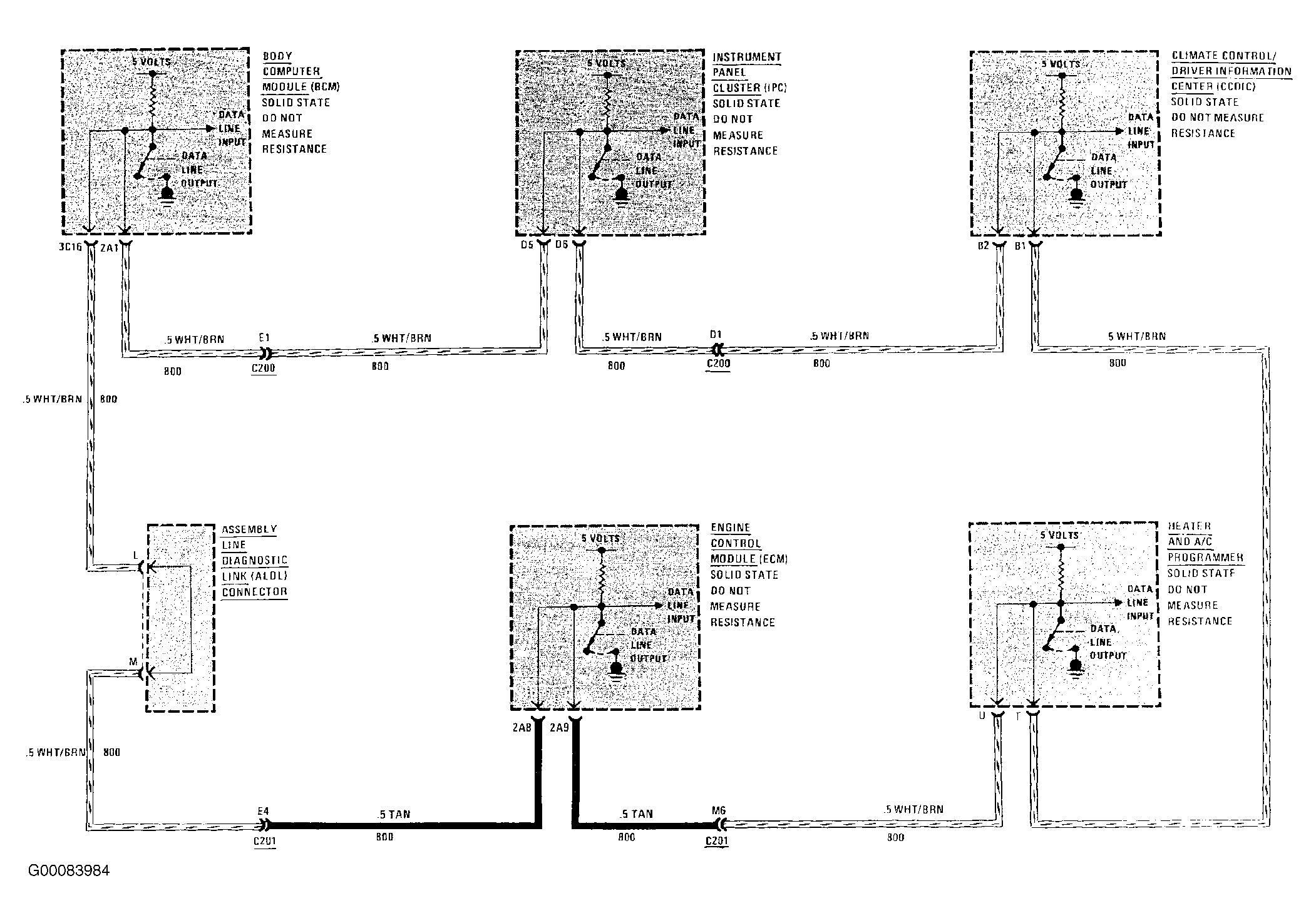

Fig 1: Data Line Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

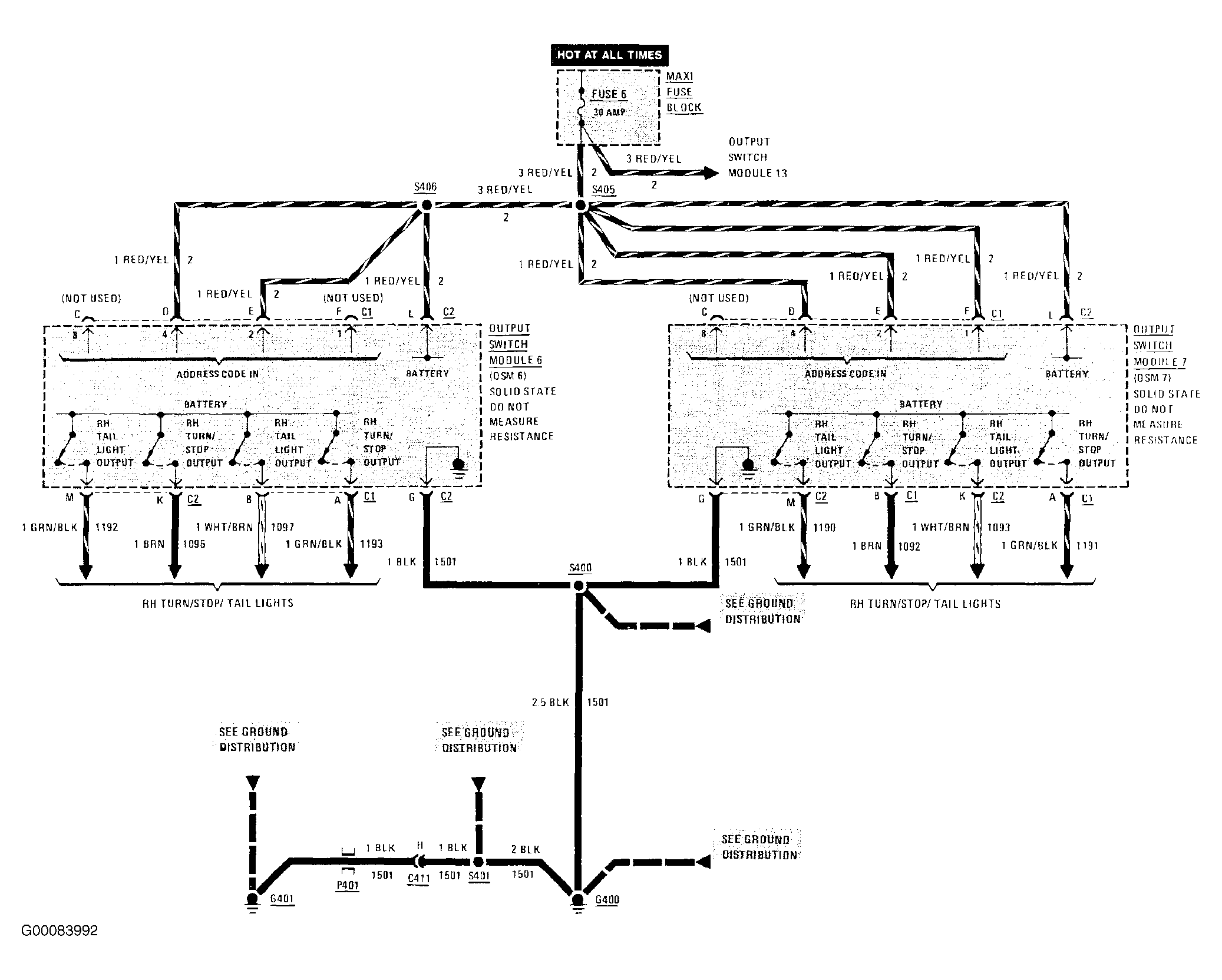

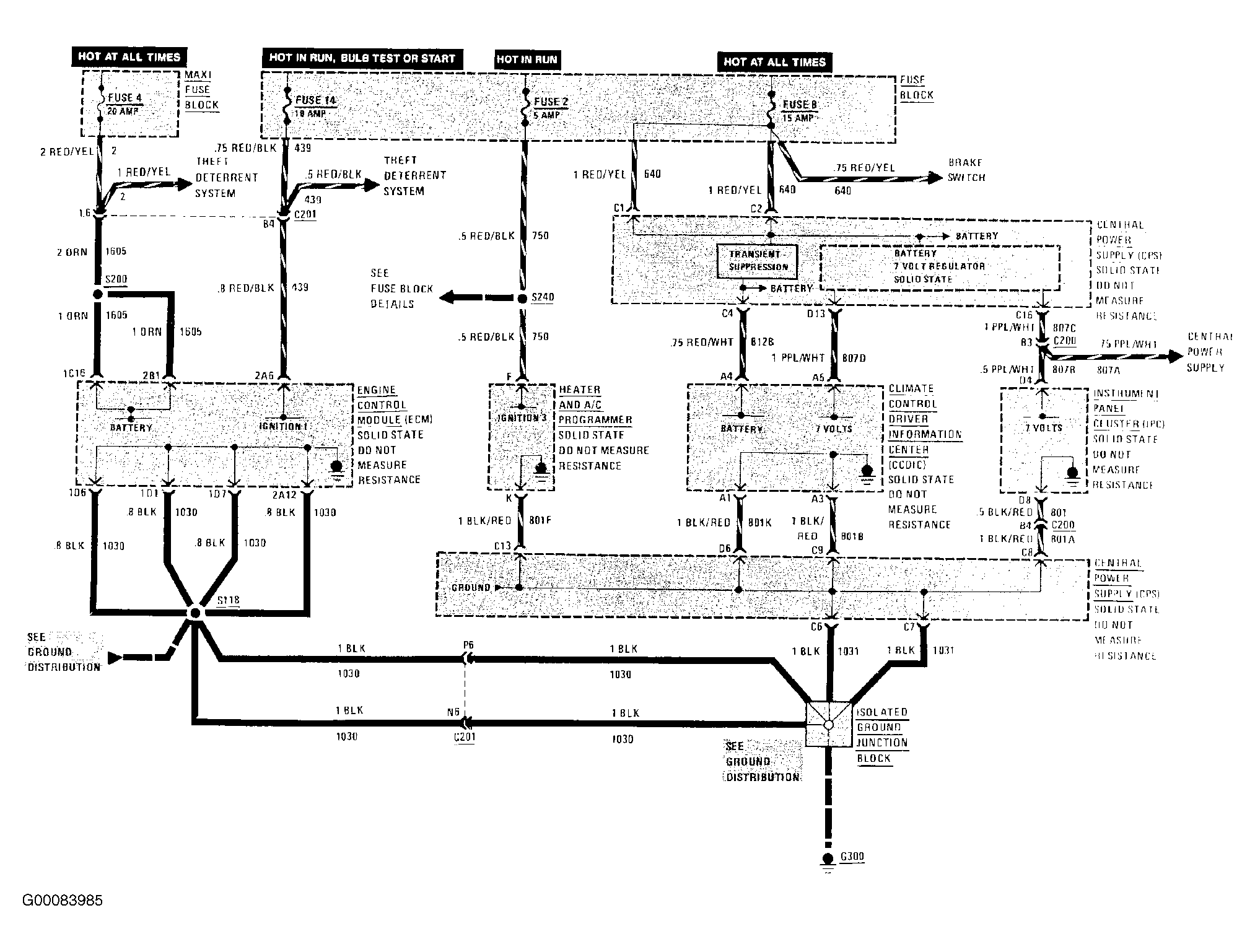

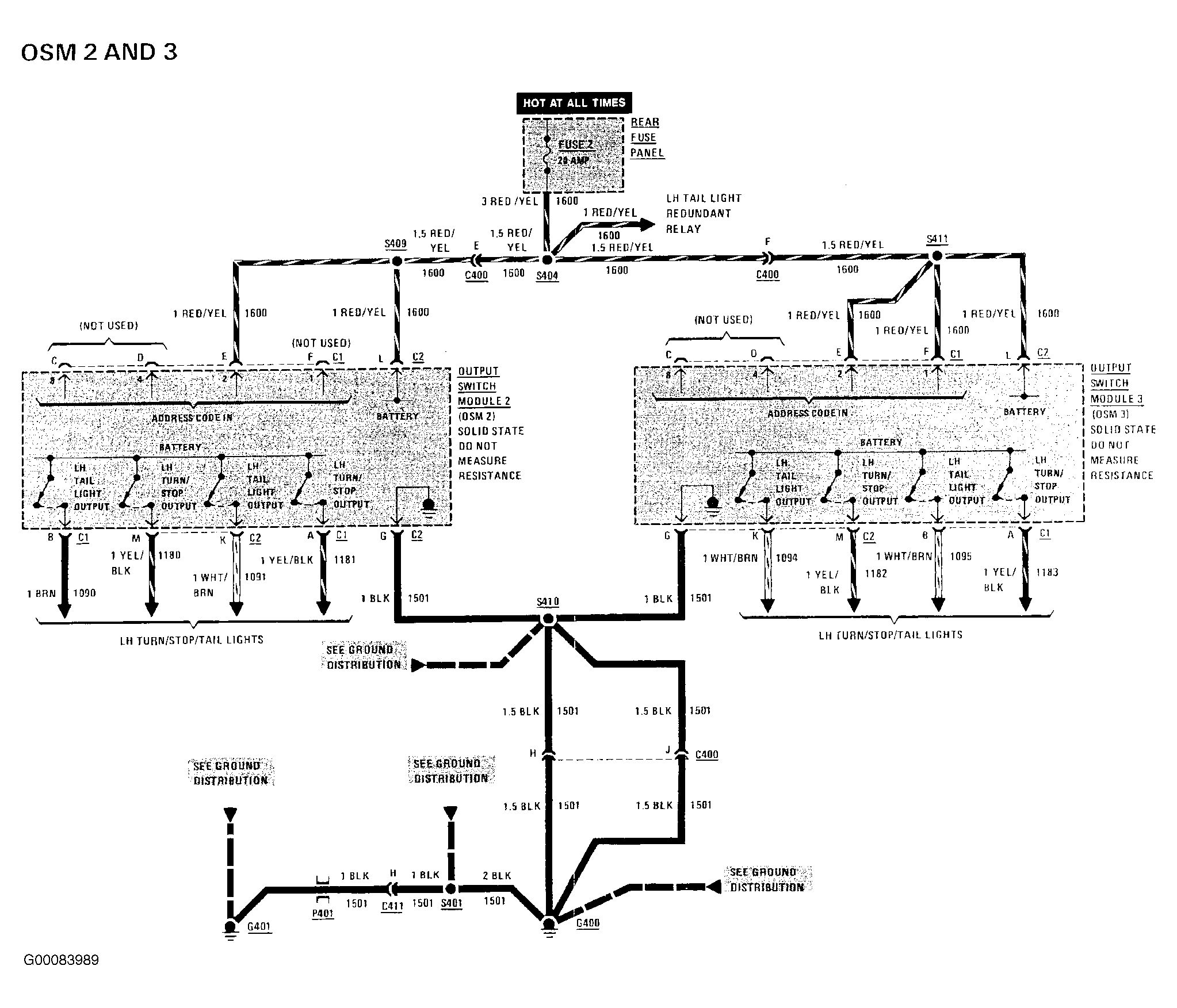

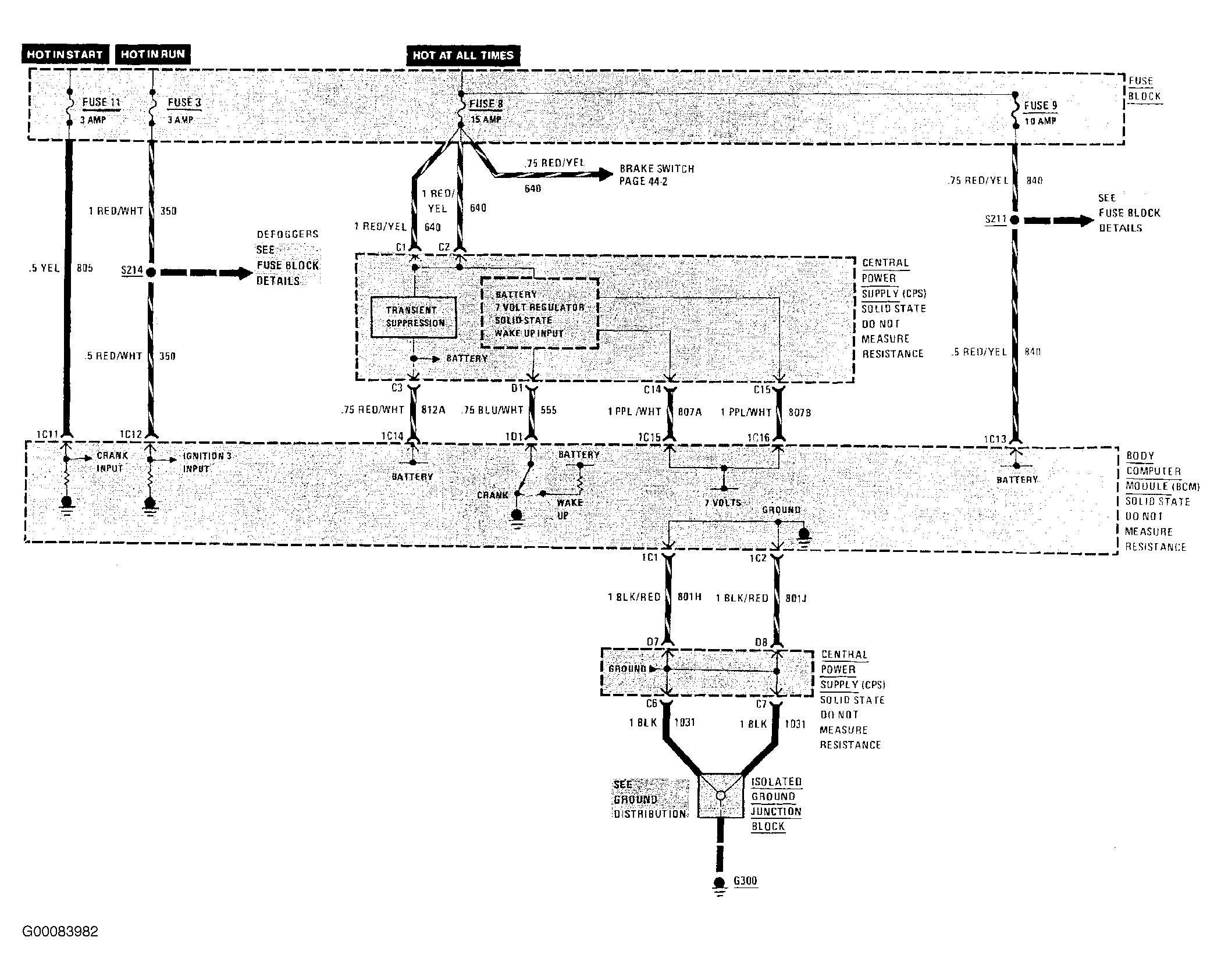

Fig 2: Power & Ground Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Power & Ground Wiring Diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

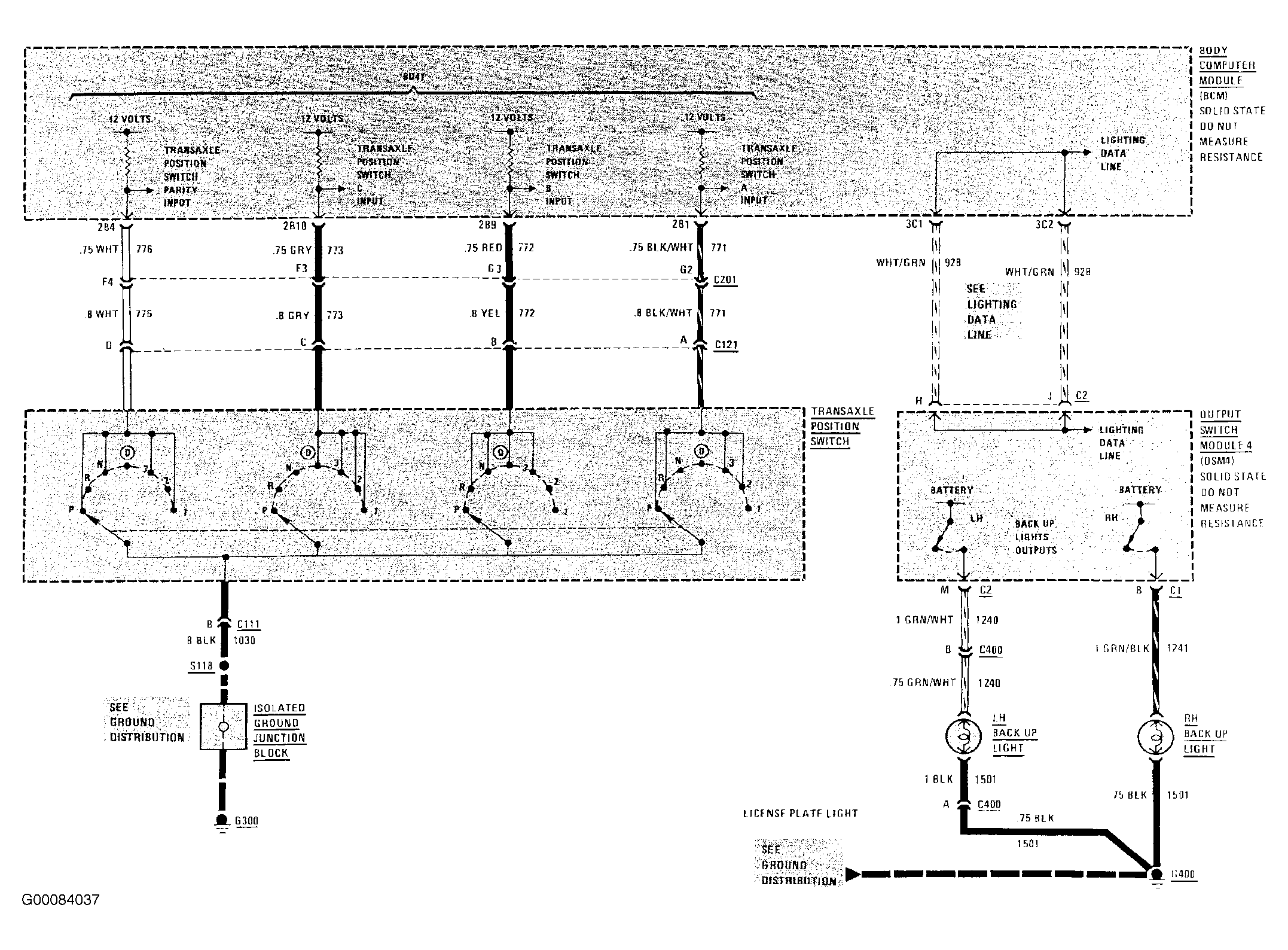

Fig 4: Back Up Lights Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

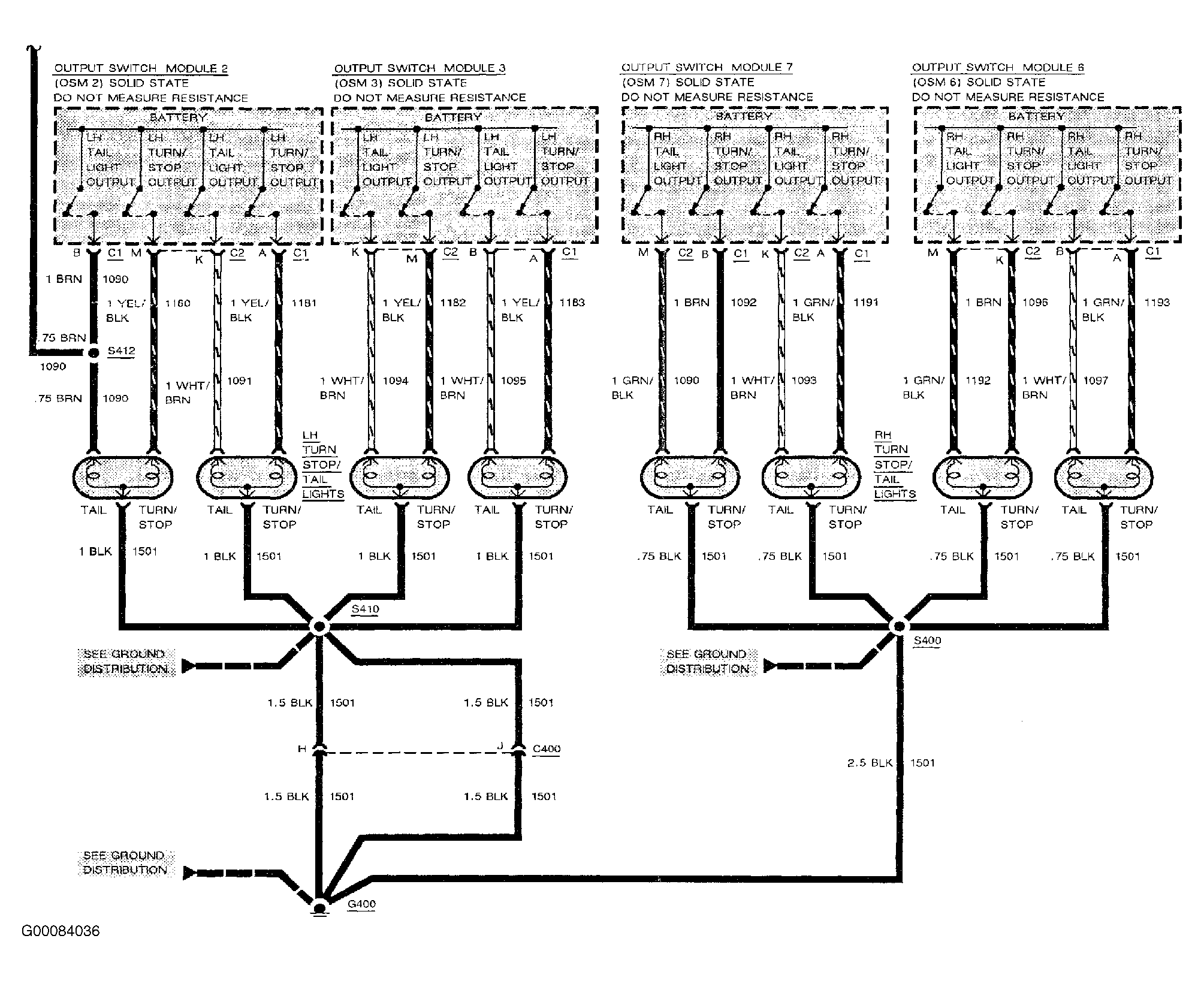

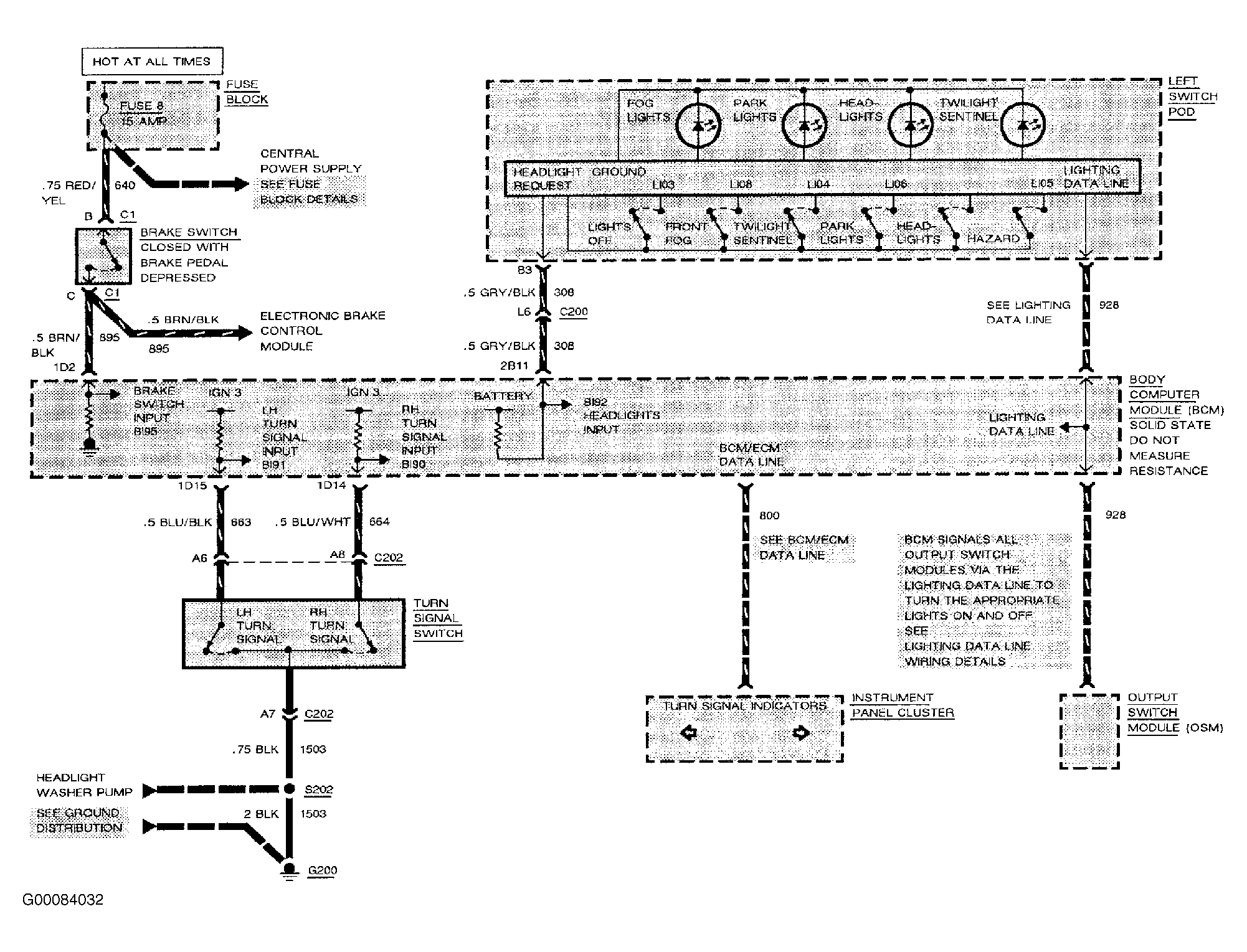

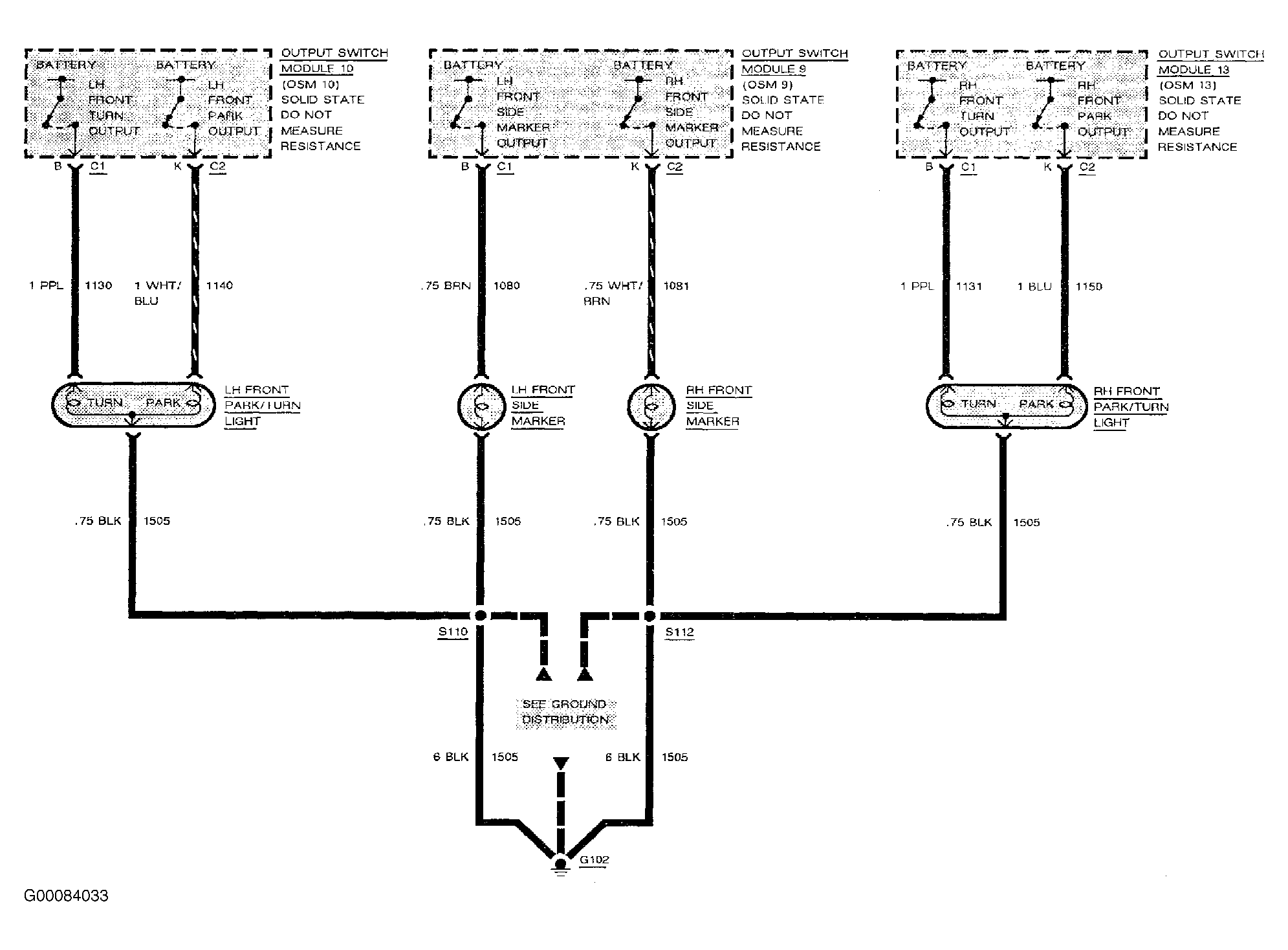

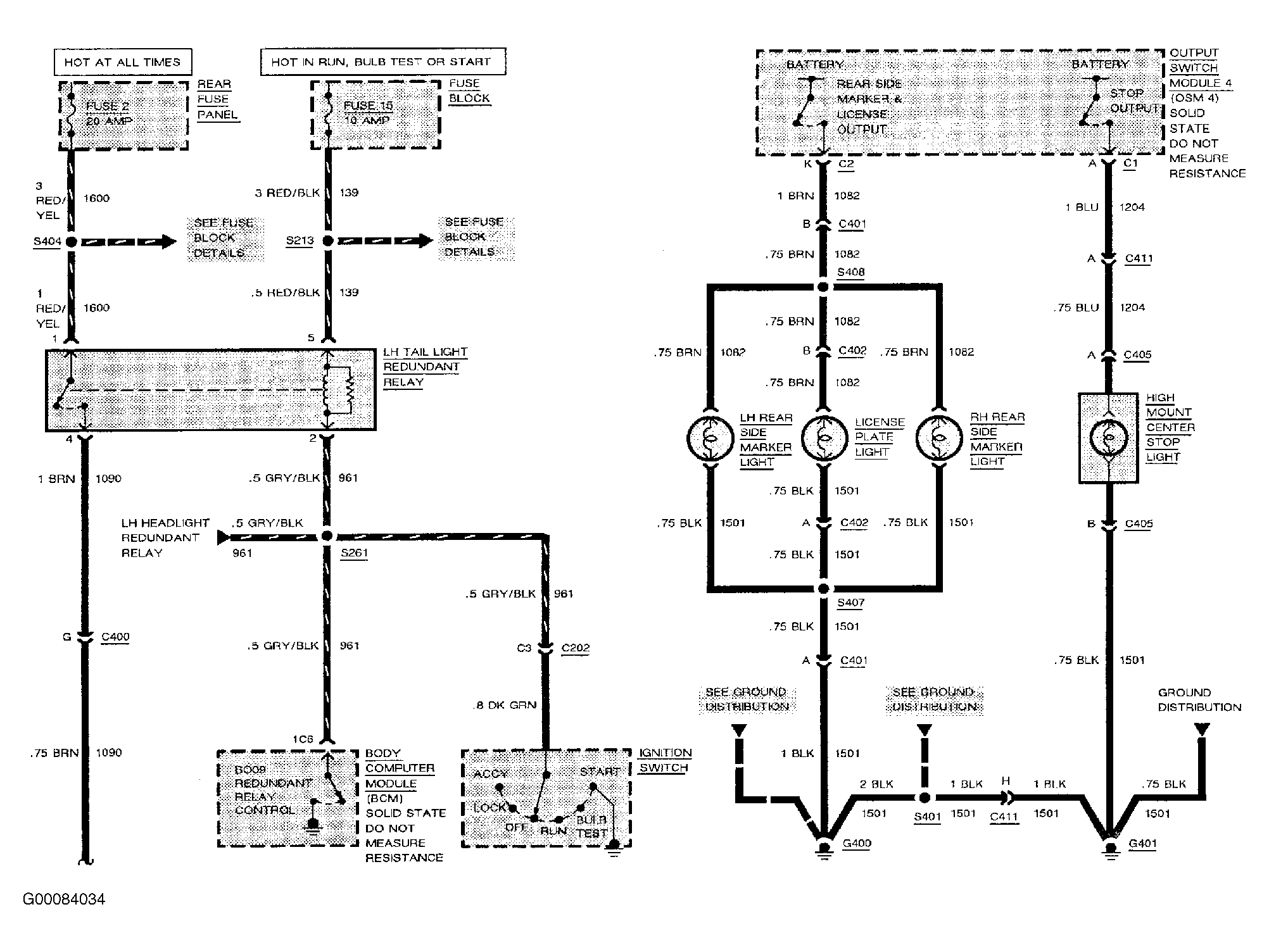

Fig 5: Exterior Lights Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Exterior Lights Wiring Diagram (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Exterior Lights Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Exterior Lights Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.

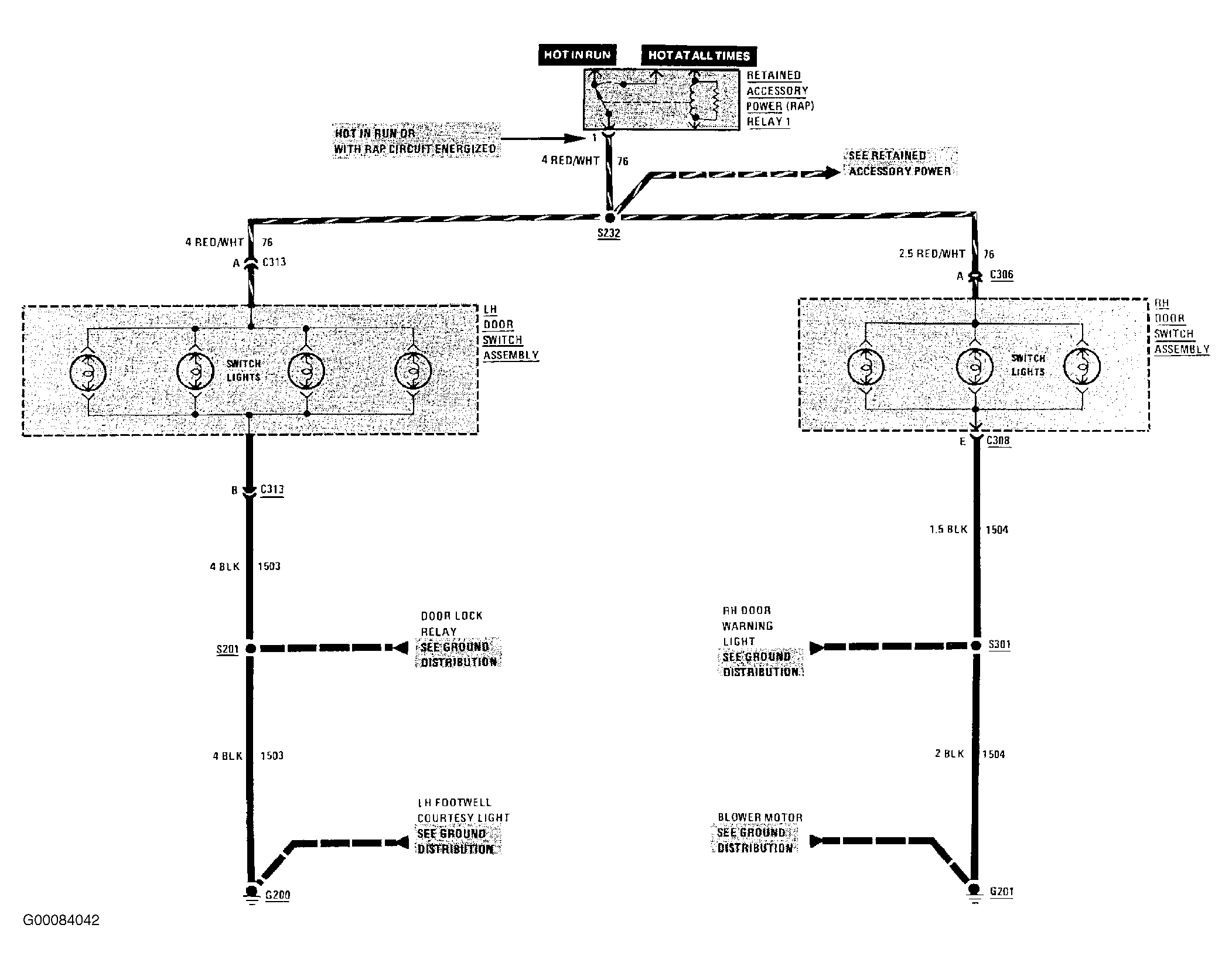

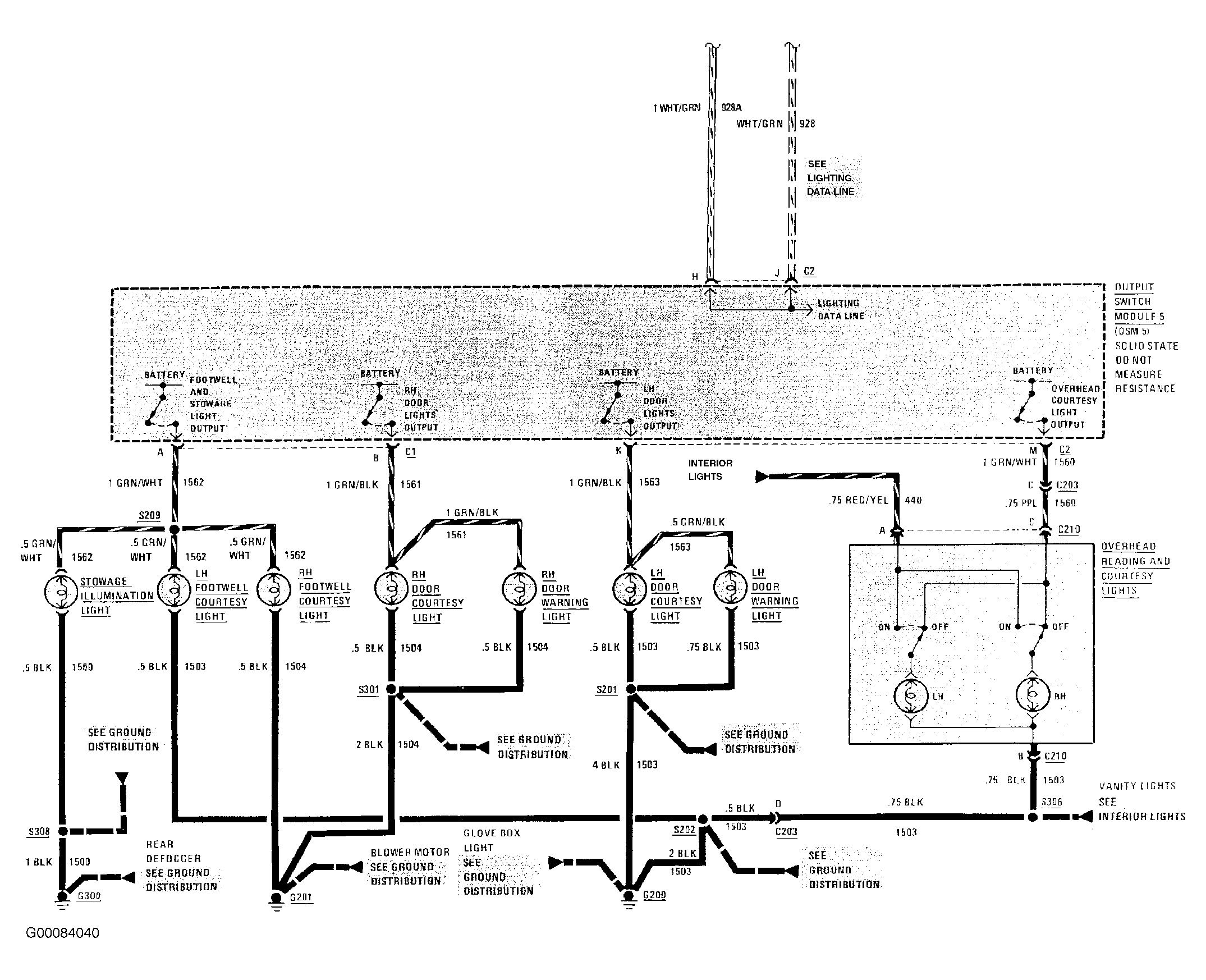

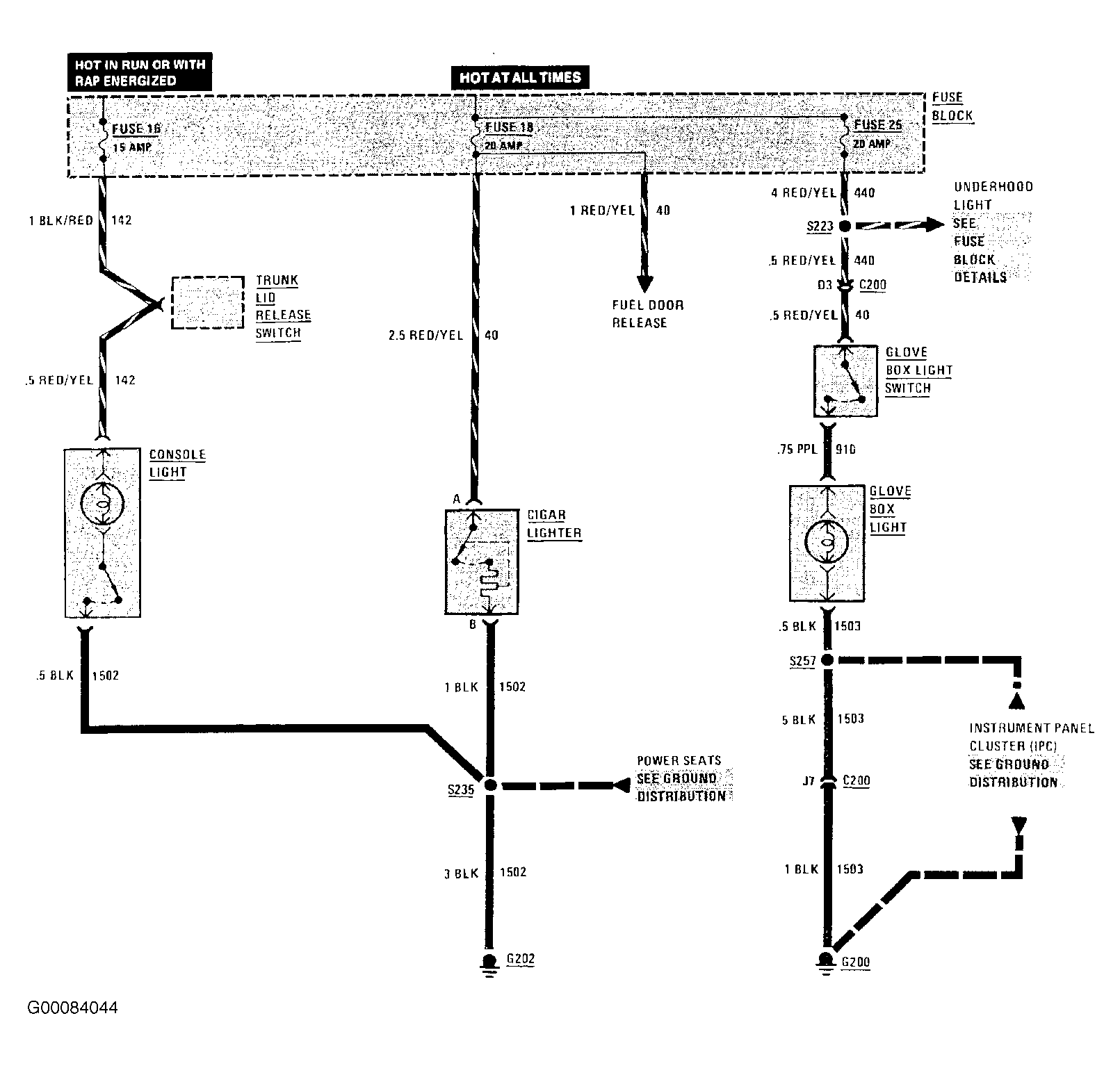

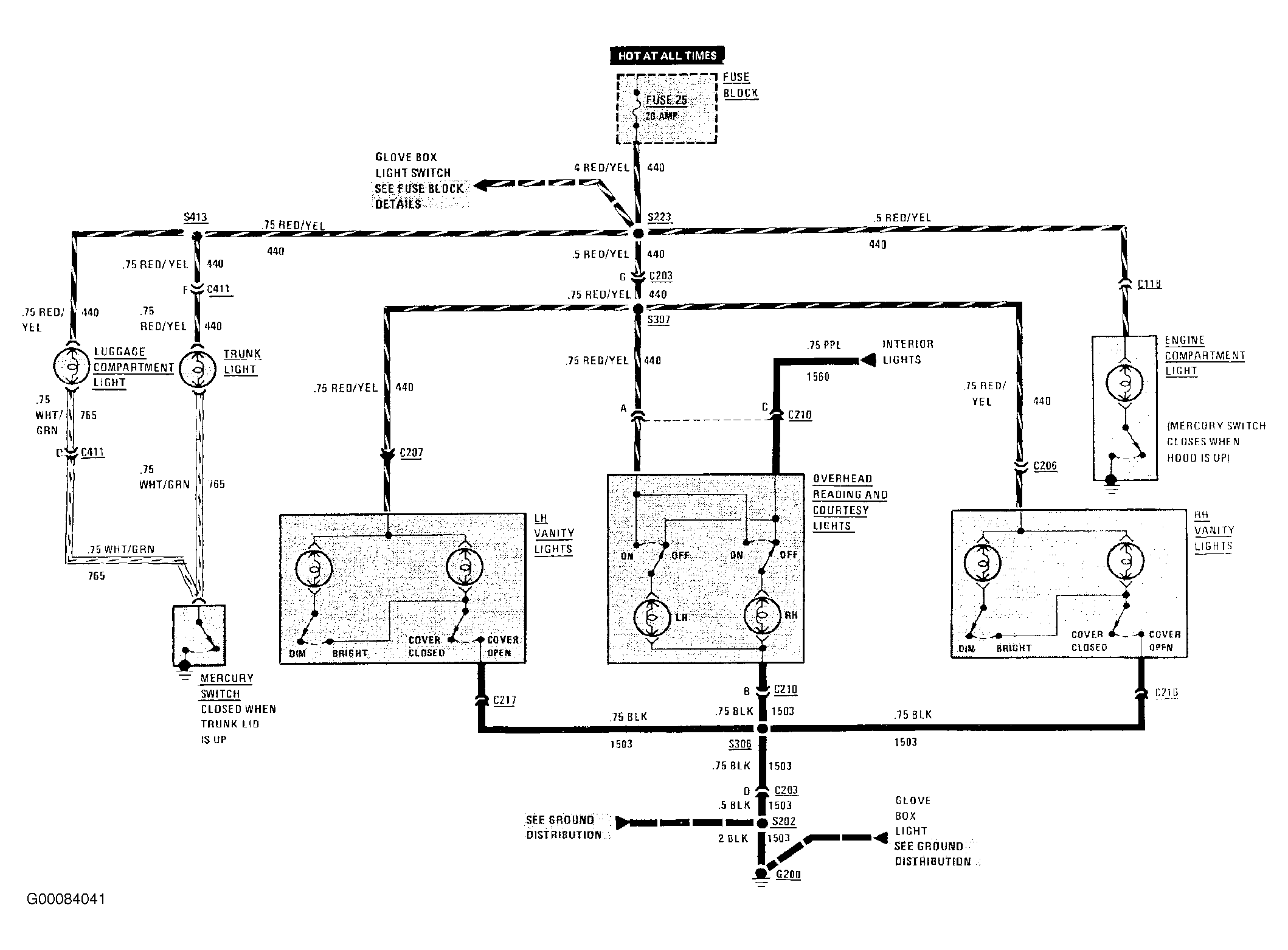

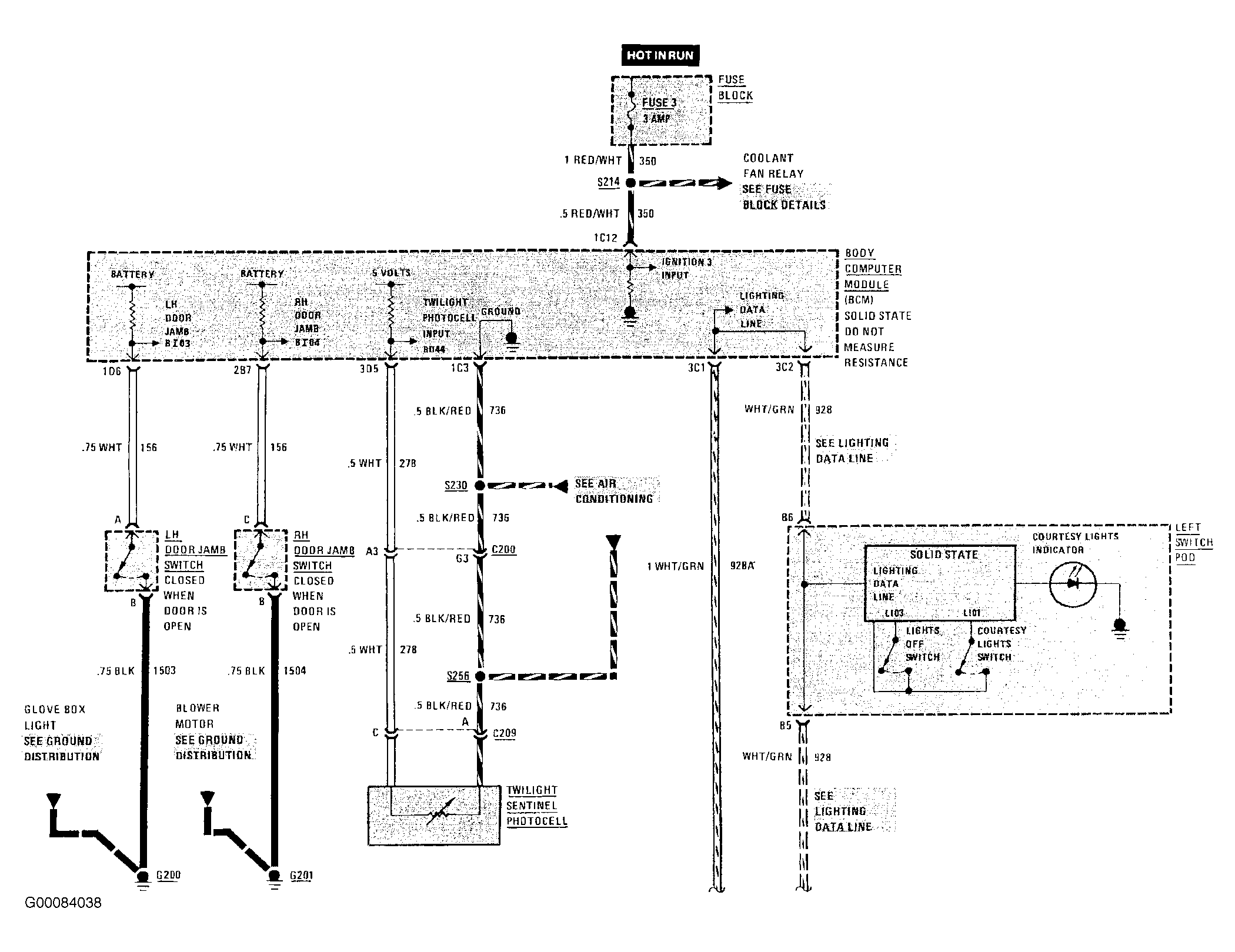

Fig 9: Interior Lights W/Illuminated Entry Wiring Diagram (1 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Interior Lights W/Illuminated Entry Wiring Diagram (2 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Interior Lights W/Illuminated Entry Wiring Diagram (3 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Interior Lights W/Illuminated Entry Wiring Diagram (4 Of 5)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Interior Lights W/Illuminated Entry Wiring Diagram (5 Of 5)
Courtesy of GENERAL MOTORS CORP.

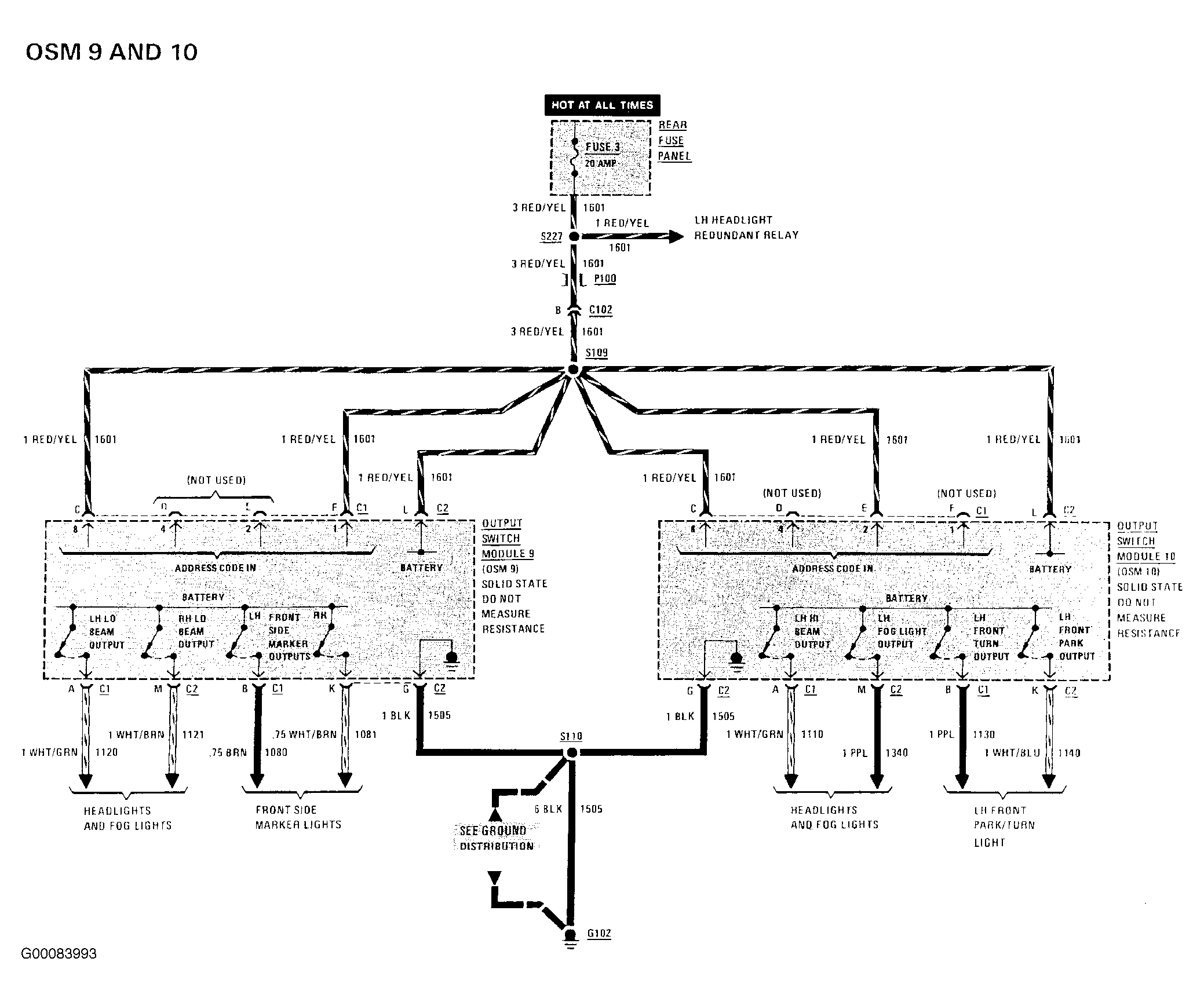

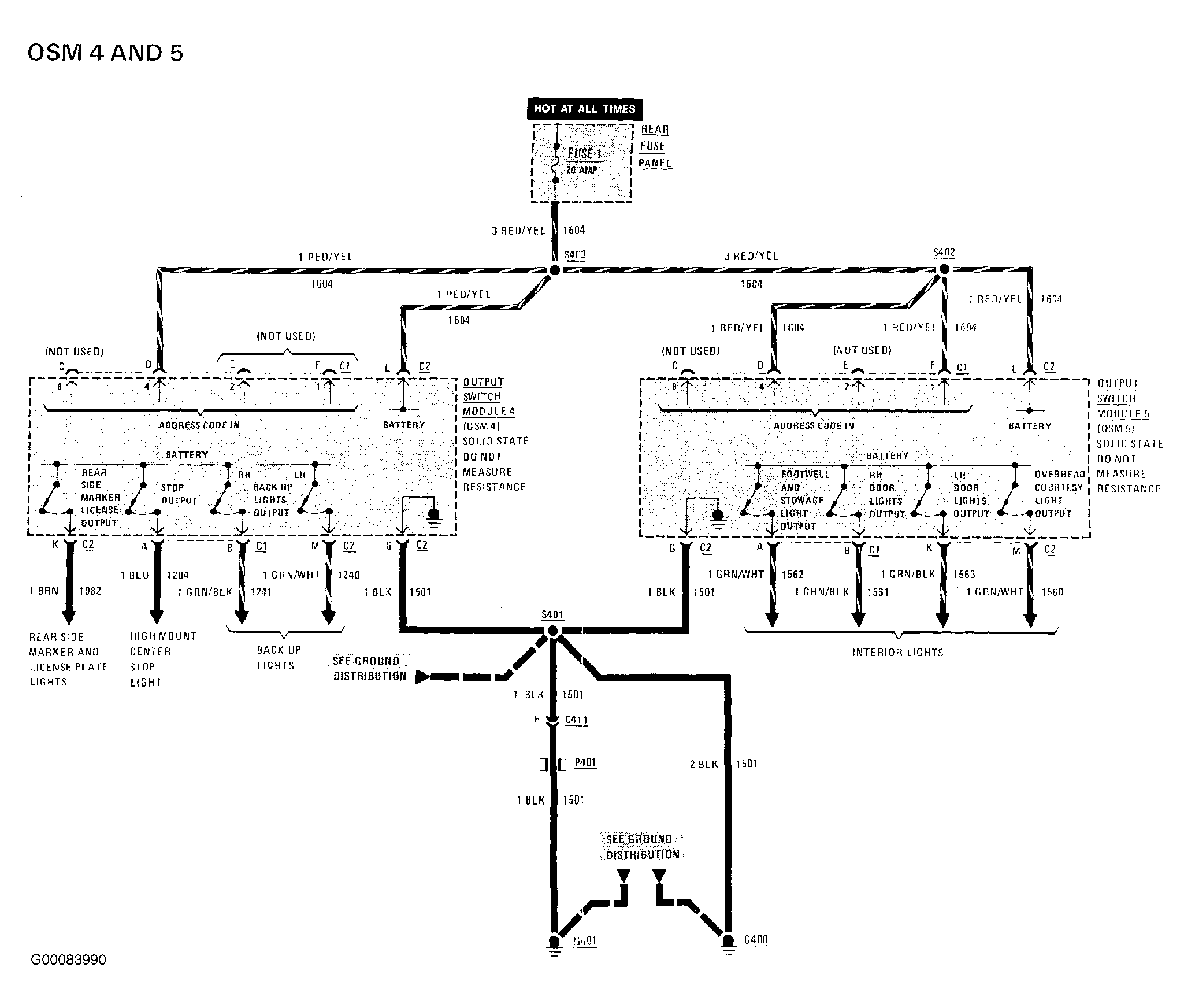

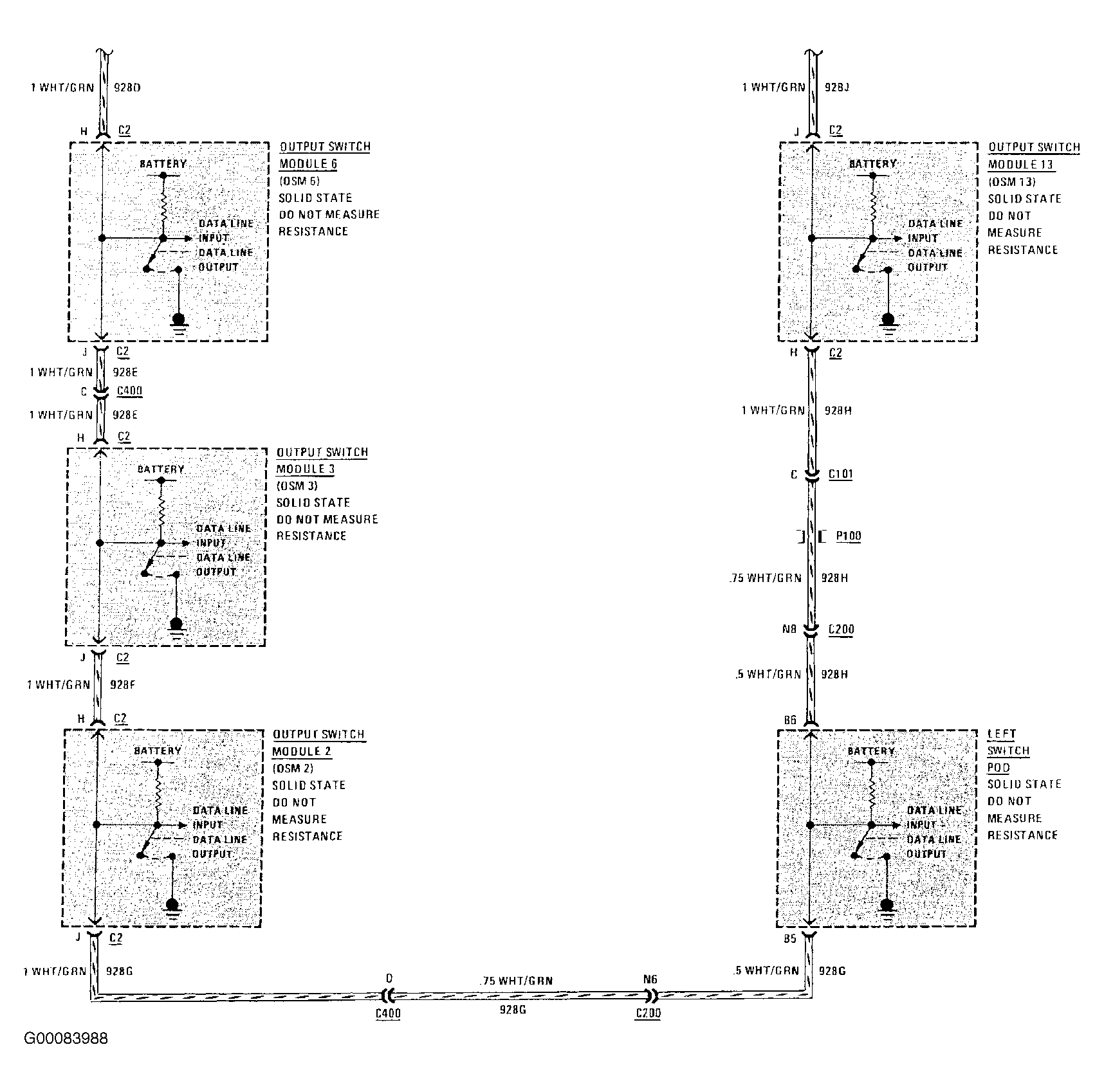

Fig 14: Lighting Data Line Wiring Diagram (1 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Lighting Data Line Wiring Diagram (2 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Lighting Data Line Wiring Diagram (3 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Lighting Data Line Wiring Diagram (4 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Lighting Data Line Wiring Diagram (5 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Lighting Data Line Wiring Diagram (6 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Lighting Data Line Wiring Diagram (7 Of 7)
Courtesy of GENERAL MOTORS CORP.

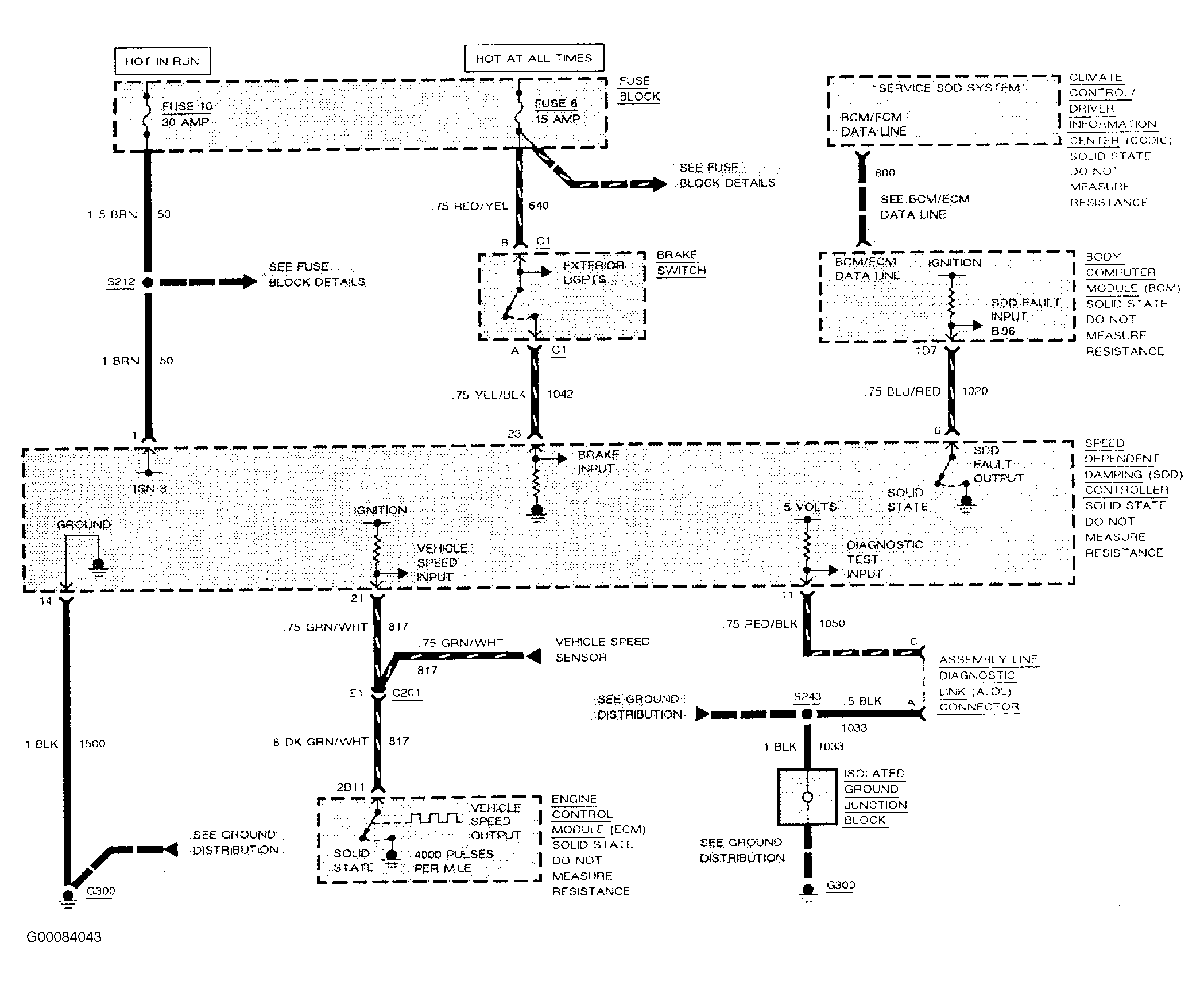

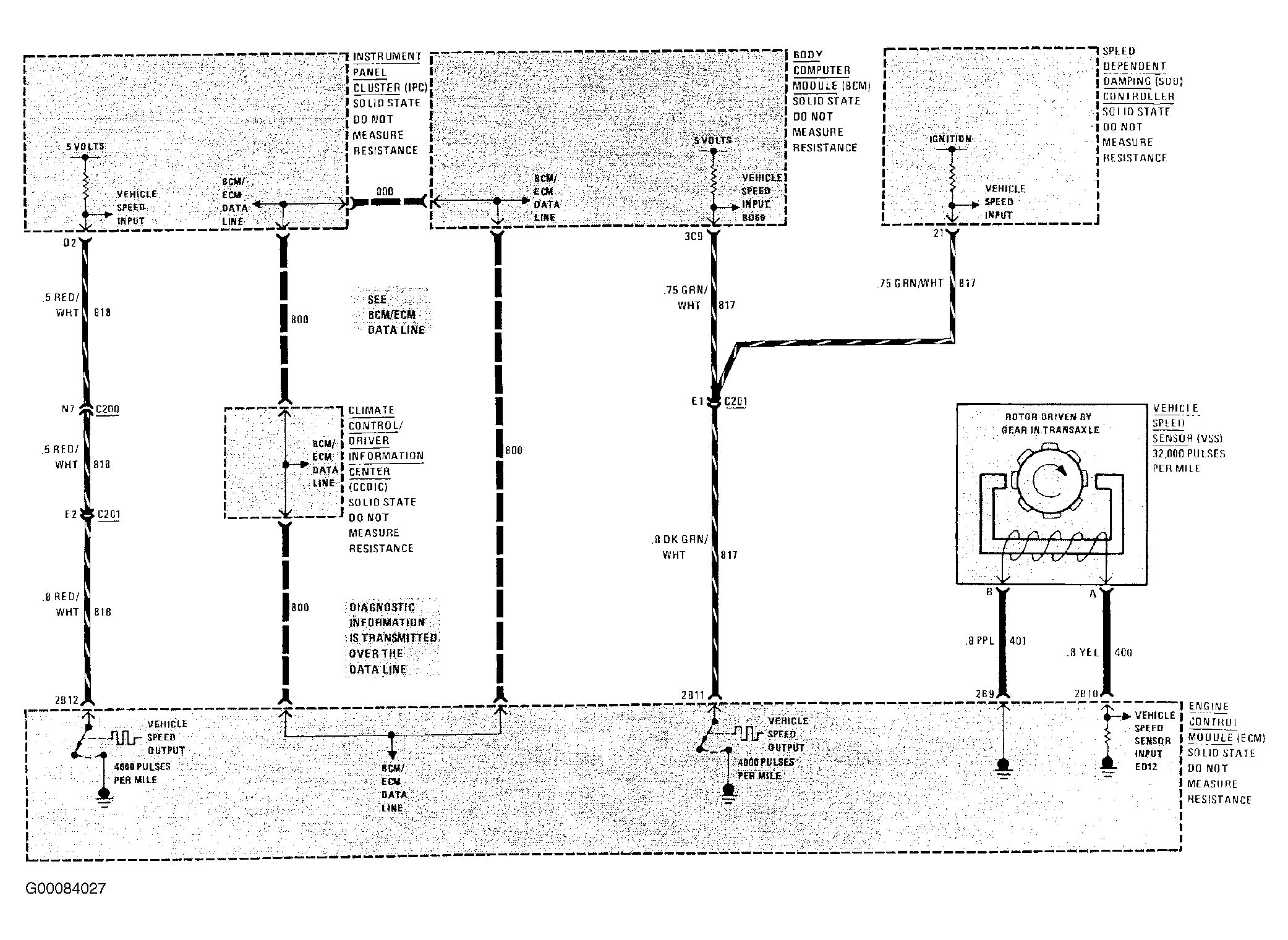

Fig 21: Speed Dependent Damping Wiring Diagram (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Speed Dependent Damping Wiring Diagram (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Speed Dependent Damping Wiring Diagram (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
