Home
>>
Cadillac
>>
1989
>>
Seville Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DFI ECM Tests W/Codes
>>
Testing
>>
ECM Diagnostics
ECM Diagnostics

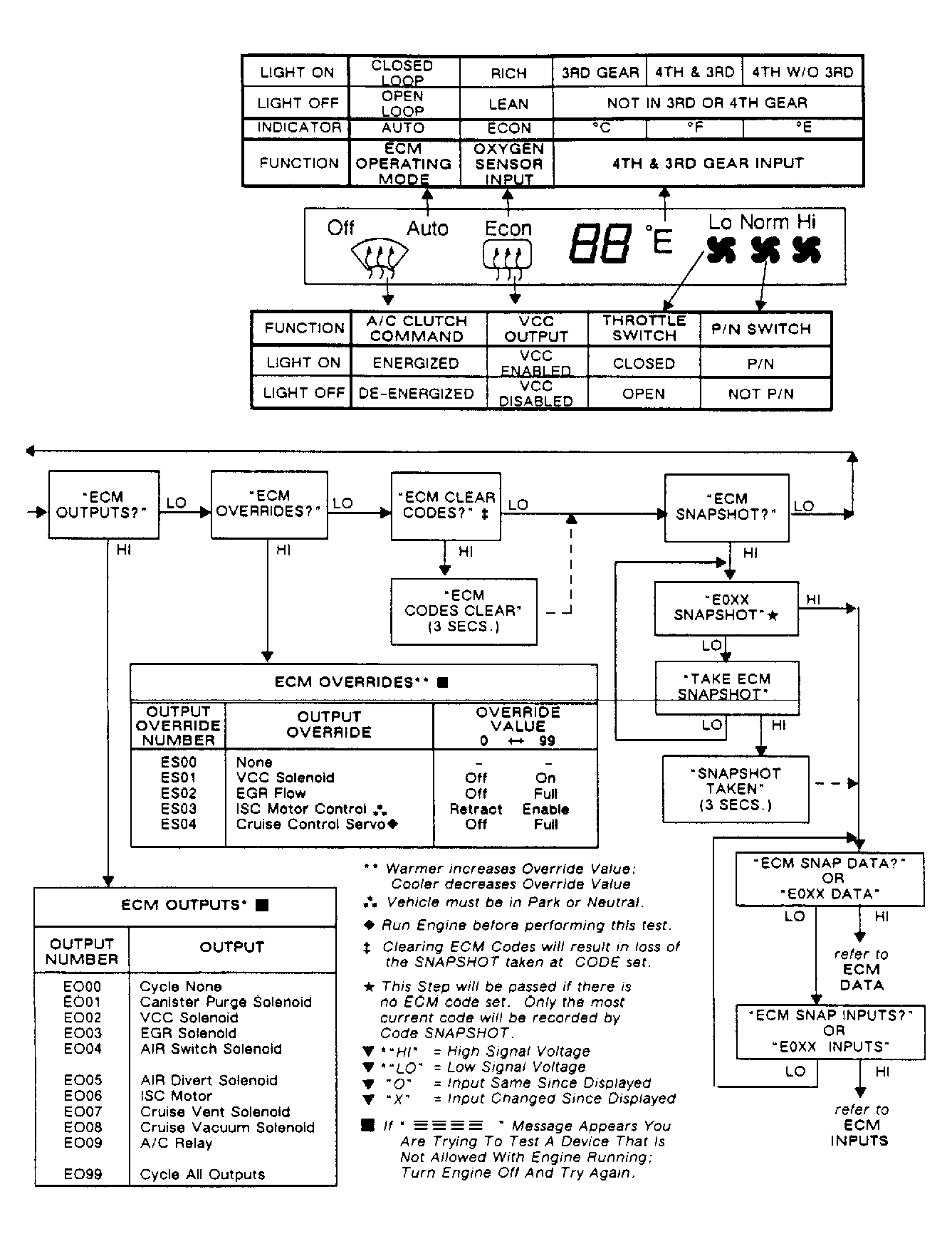

Fig 1: ECM Diagnostics - Basic Operation & Status Light Displays
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
