BCM Connector Identification
BCM Connector Identification

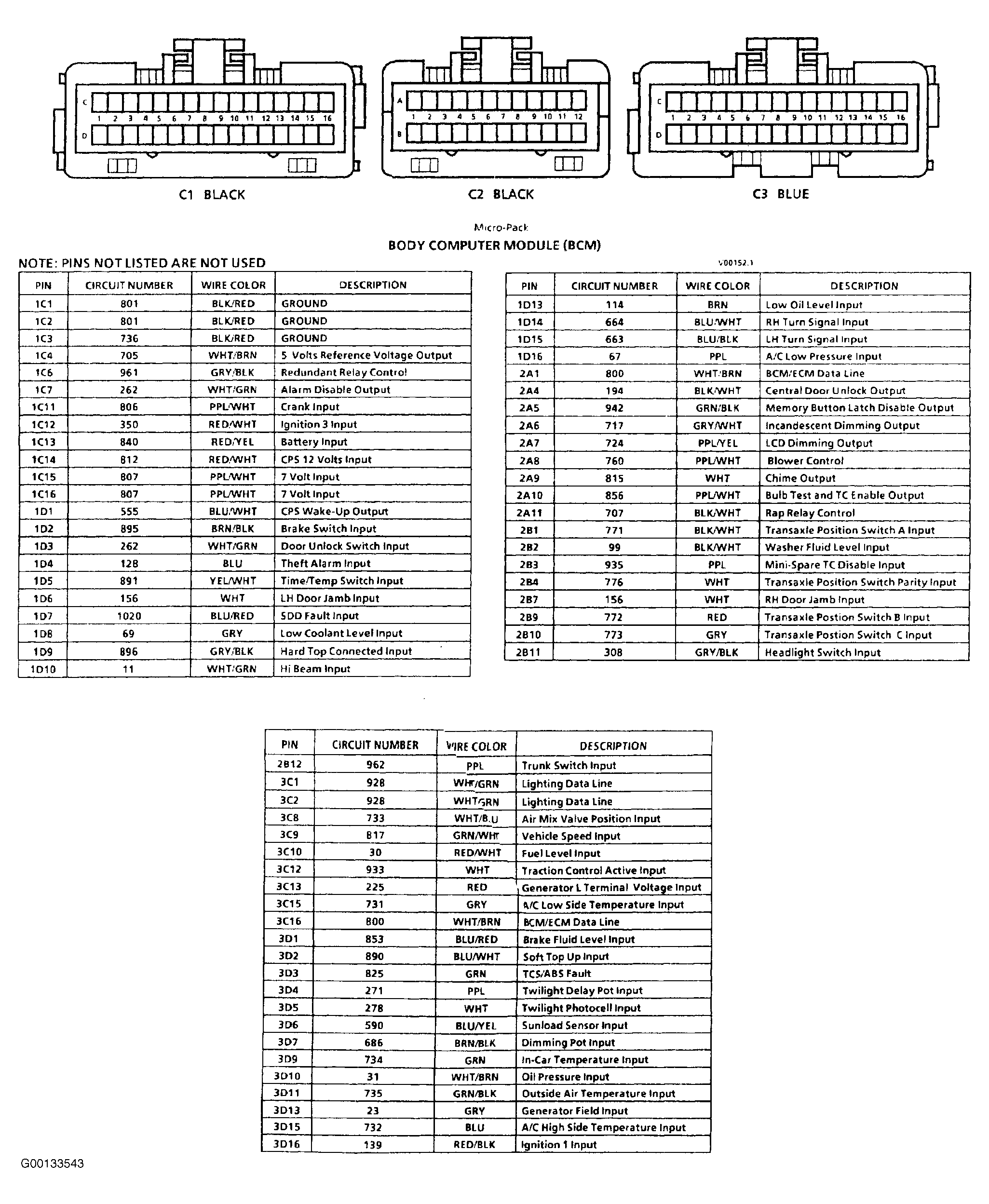

Fig 1: Identifying BCM Terminal Connectors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
