lemon-mirror
:
Home
>>
Cadillac
>>
1991
>>
Seville Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
System Tests
>>
Test B
Test B

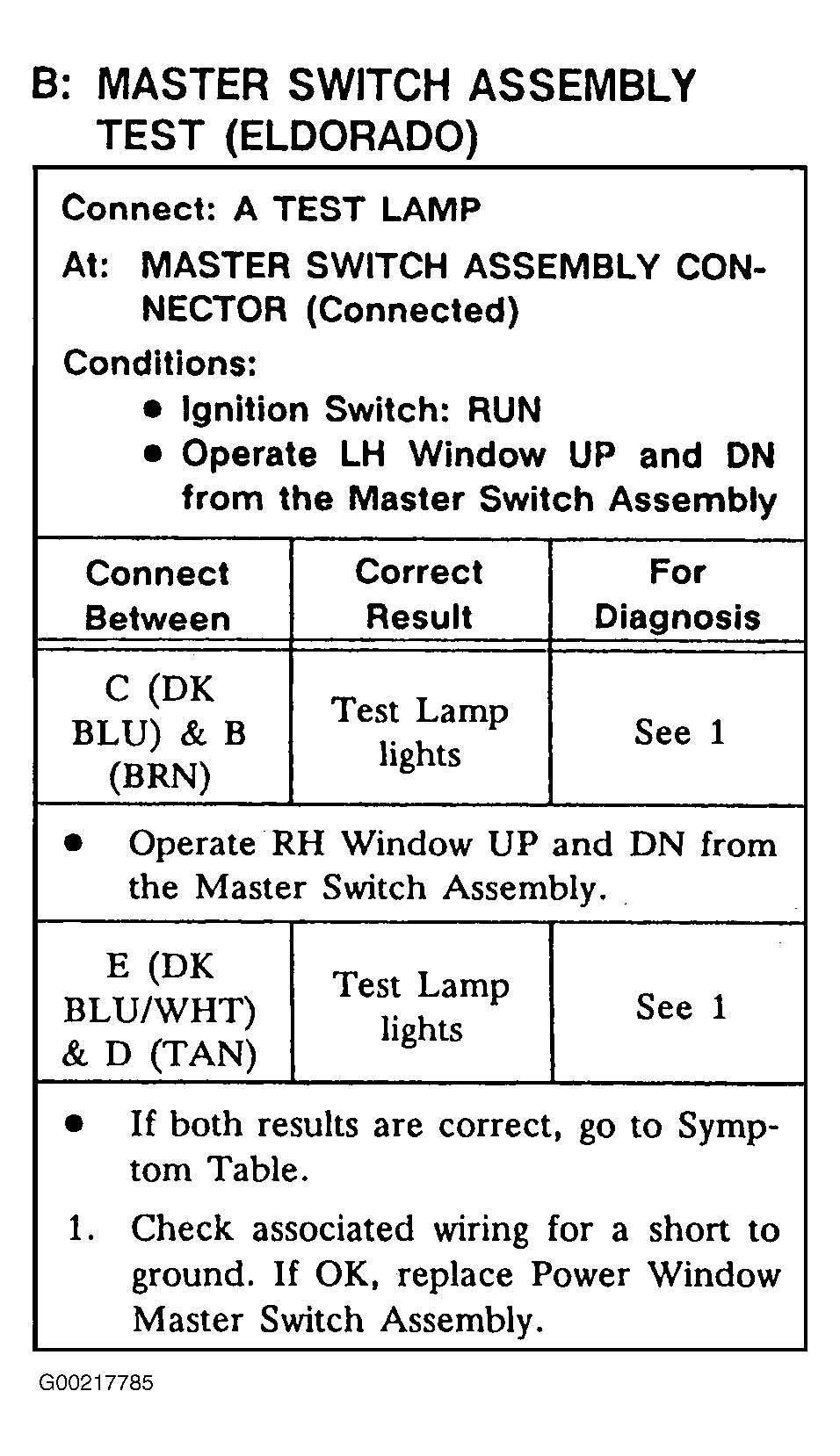

Fig 1: Testing Master Switch Assembly (Eldorado)
Courtesy of GENERAL MOTORS CORP.

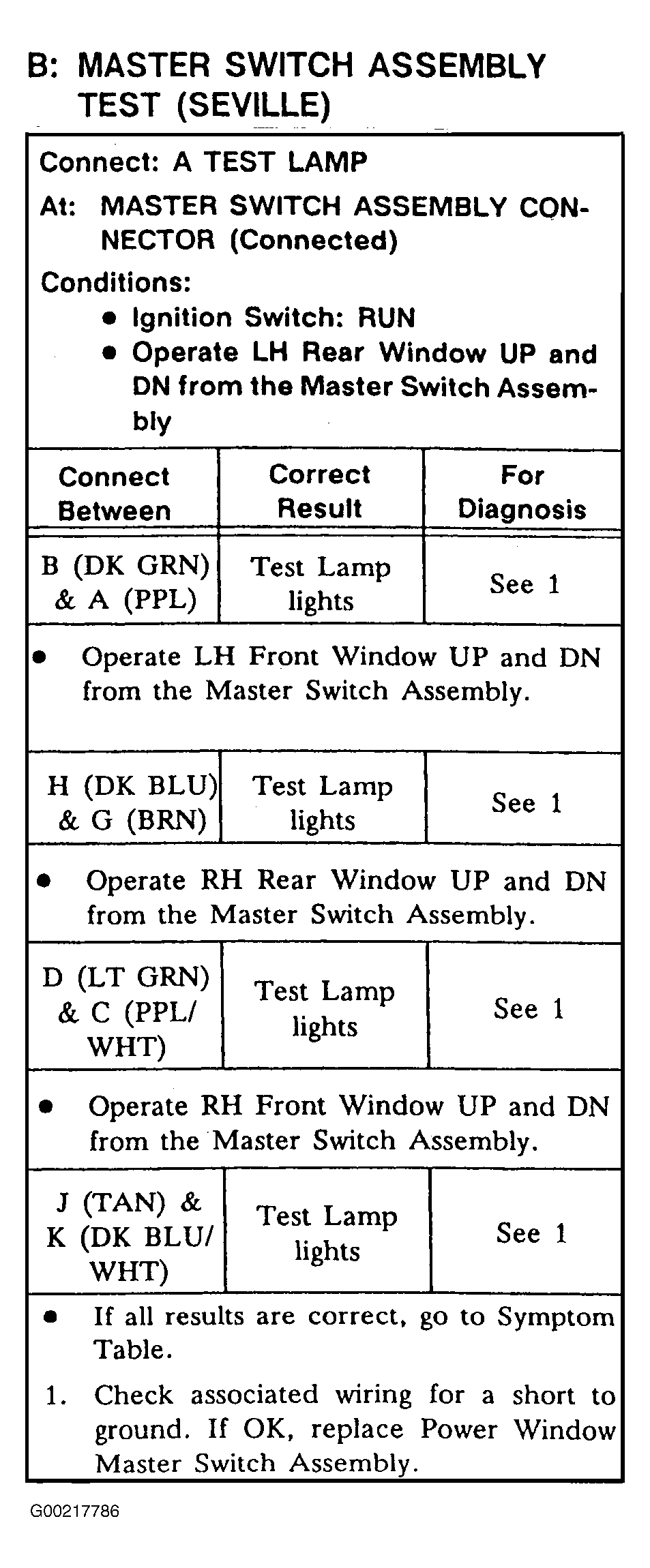

Fig 2: Testing Master Switch Assembly (Seville)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
