Engine Controls - Tests W/Codes
>>
Operation Of Service Mode
>>
Selecting Snapshots
>>
Notes
Selecting Snapshots: Notes
For selection of snapshot data, See
Fig 1
.

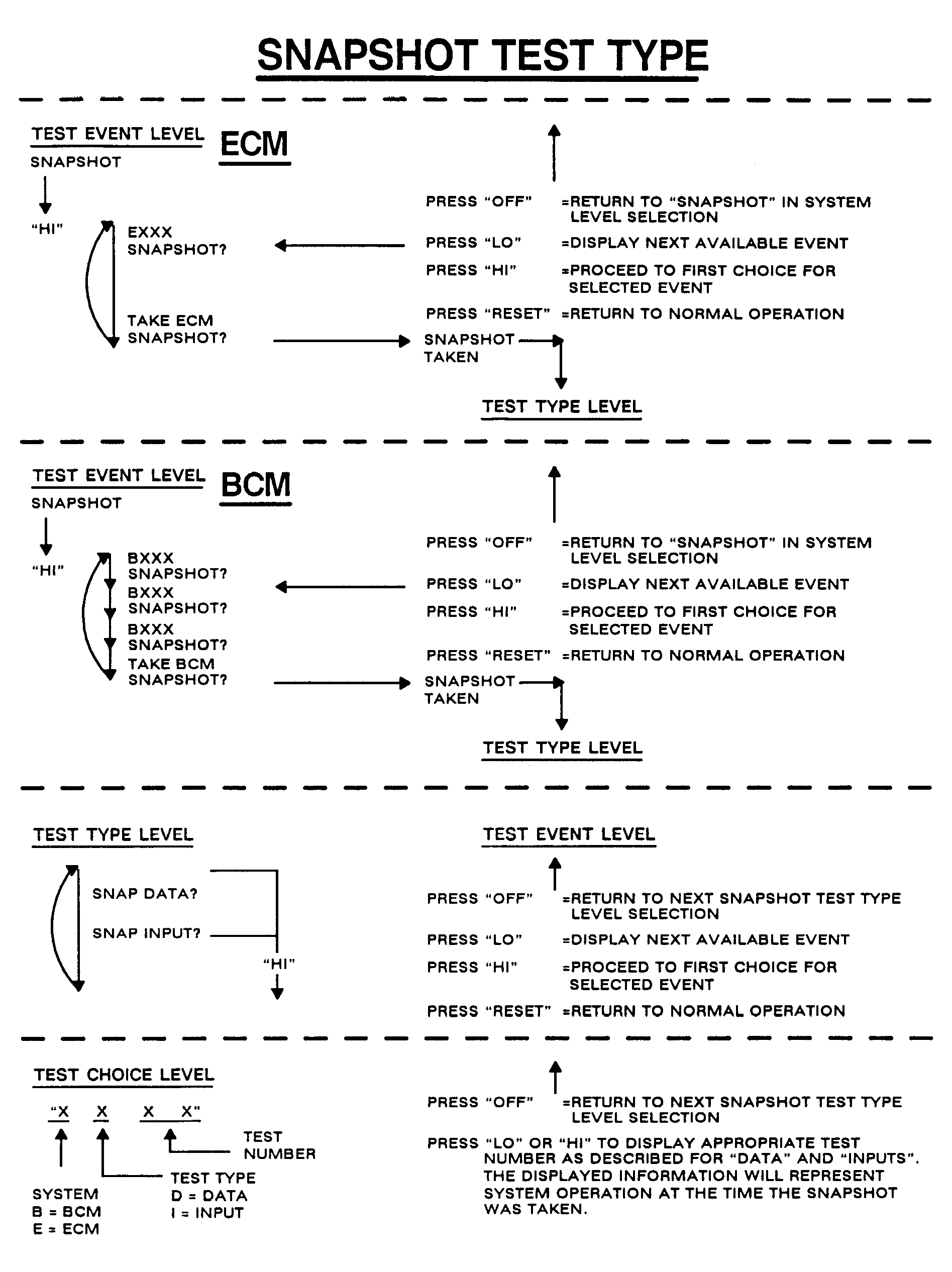

Fig 1: Selecting Snapshot Test
Courtesy of GENERAL MOTORS CORP.
