Wiring Diagrams

NOTE: For more information, see SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

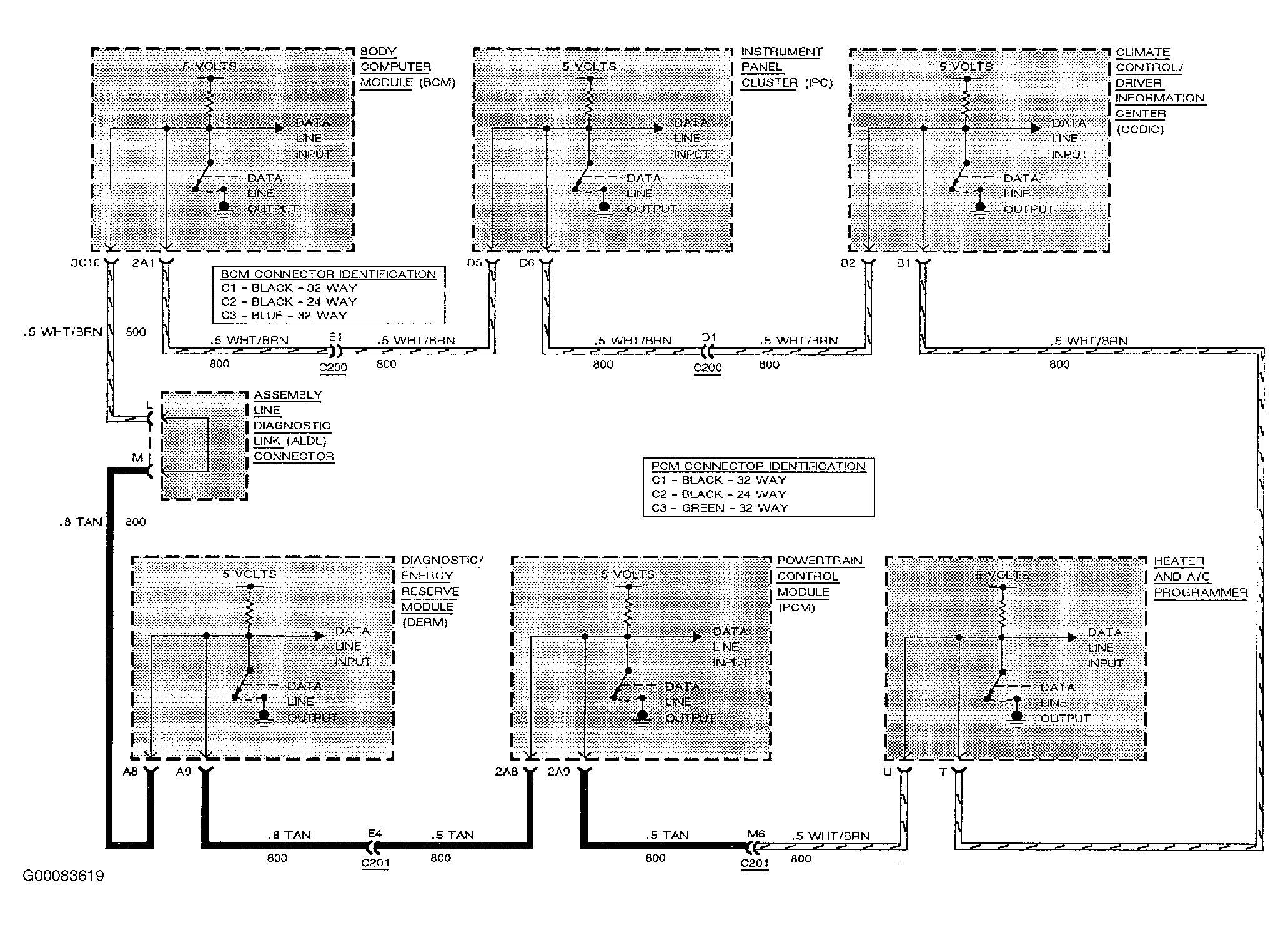

Fig 1: BCM/PCM Data Line Wiring Diagram (1 Of 3)

G00083619

Courtesy of GENERAL MOTORS CORP.

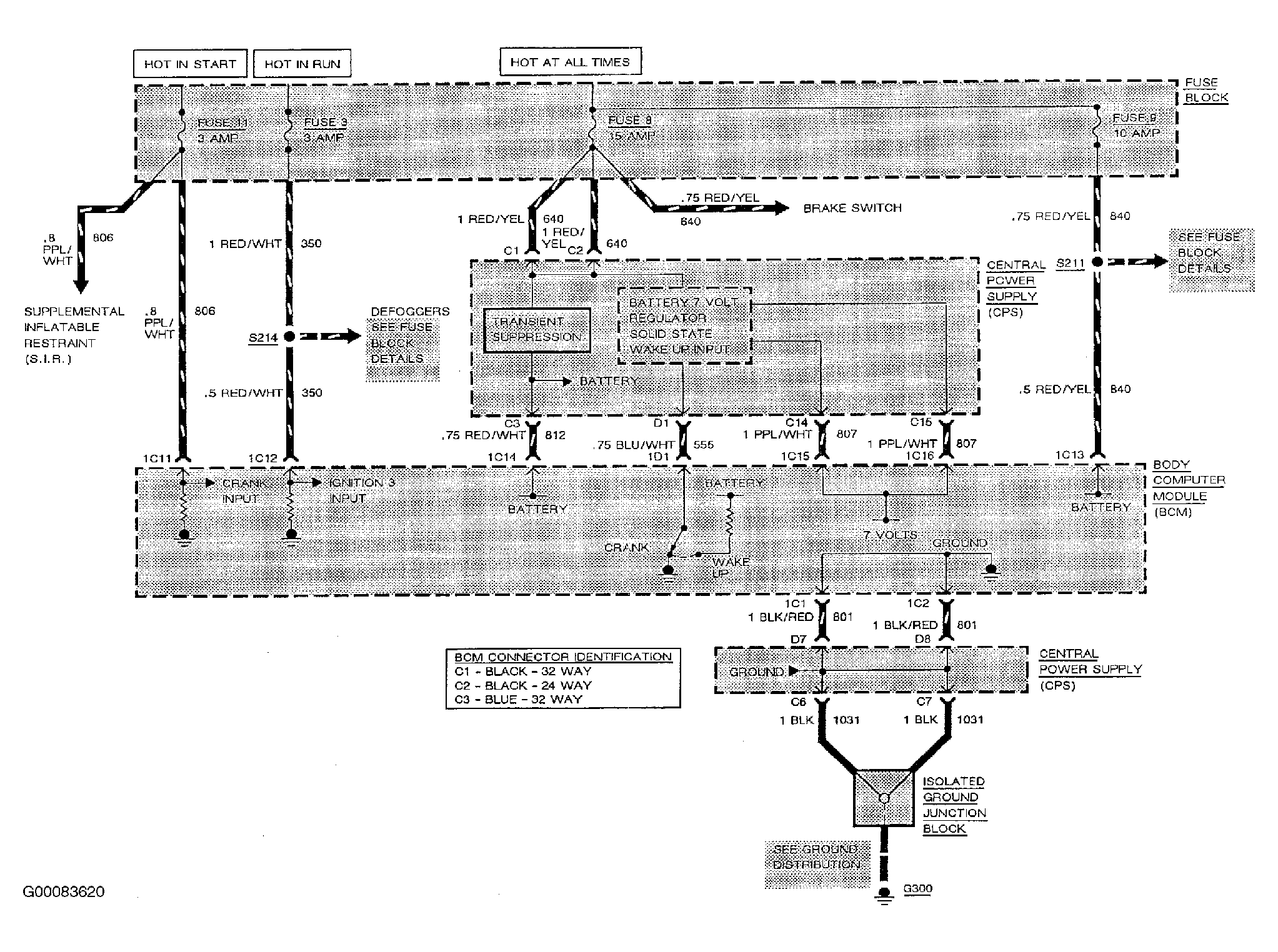

Fig 2: BCM/PCM Data Line Wiring Diagram (2 Of 3)

G00083620

Courtesy of GENERAL MOTORS CORP.

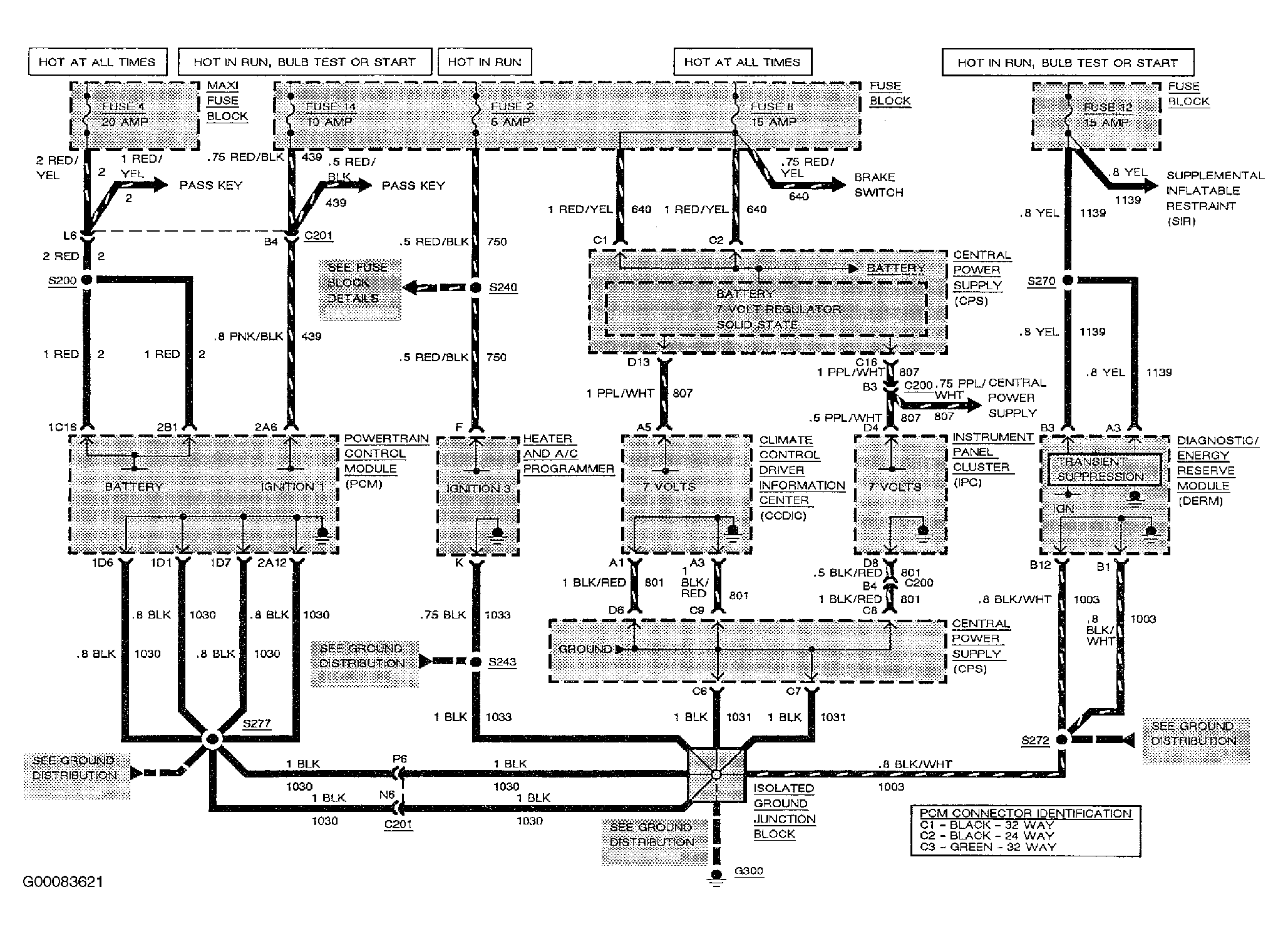

Fig 3: BCM/PCM Data Line Wiring Diagram (3 Of 3)

G00083621

Courtesy of GENERAL MOTORS CORP.

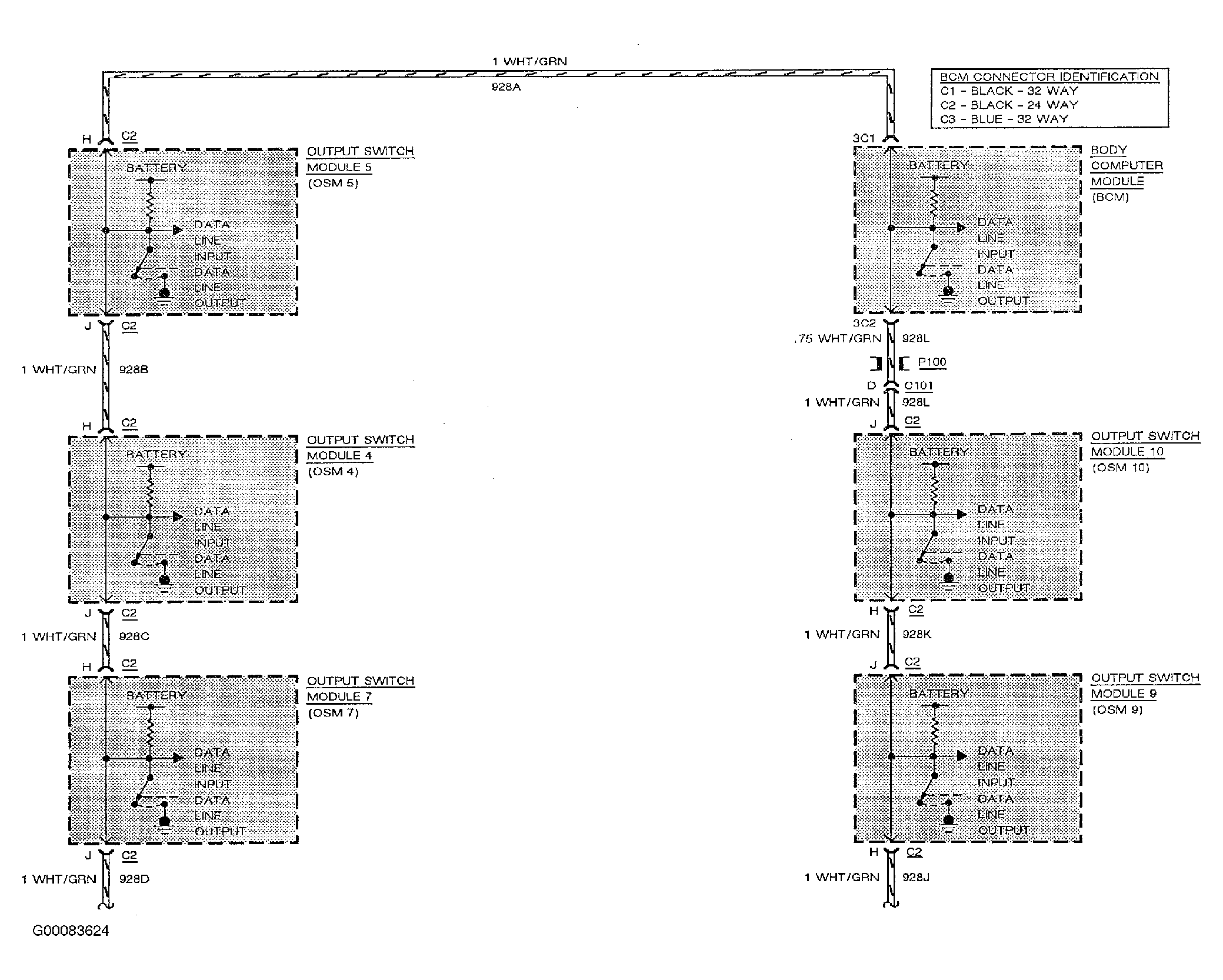

Fig 4: Lighting Data Line Wiring Diagram (1 Of 2)

G00083624

Courtesy of GENERAL MOTORS CORP.

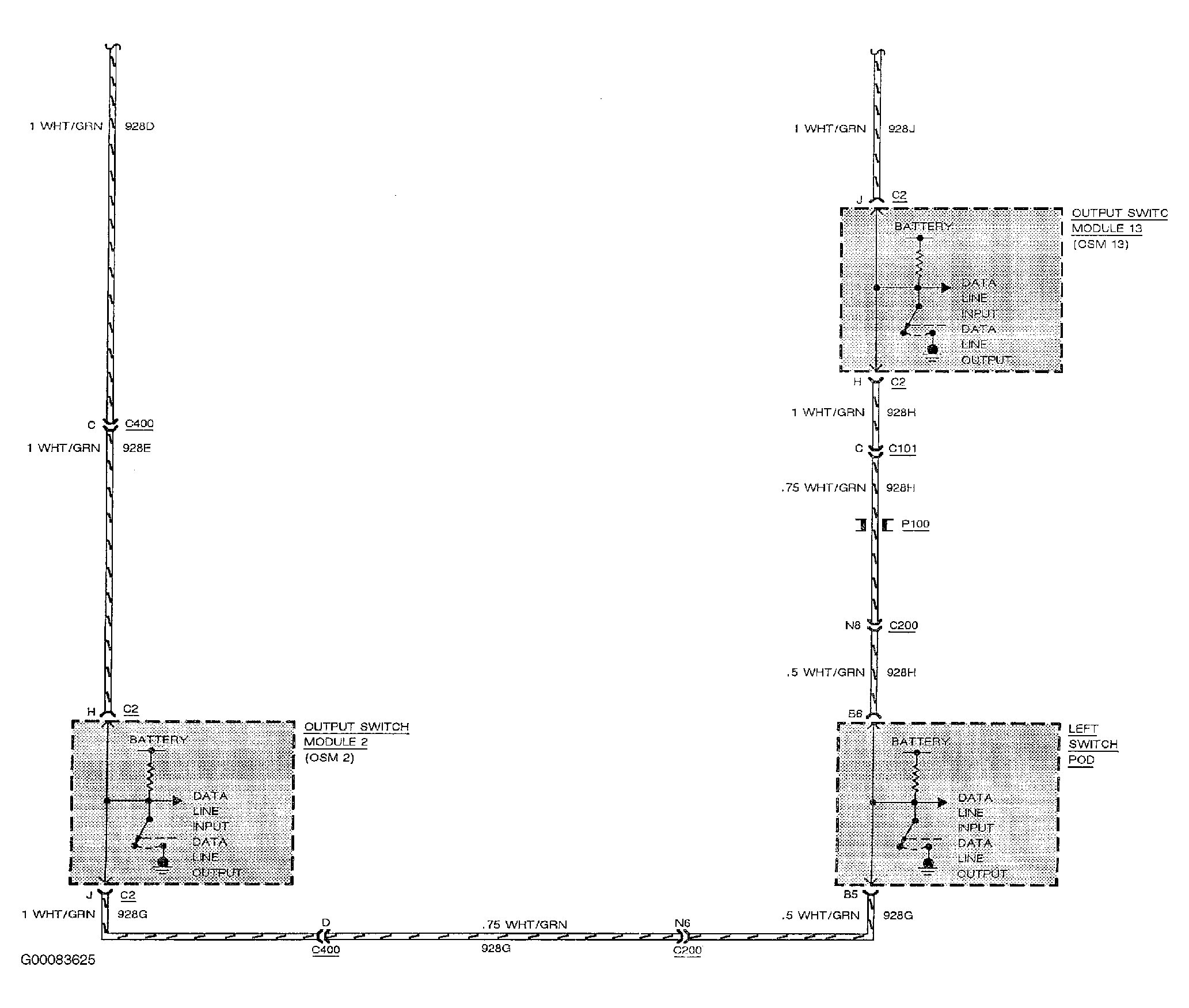

Fig 5: Lighting Data Line Wiring Diagram (2 Of 2)

G00083625

Courtesy of GENERAL MOTORS CORP.

Fig 6: Lighting Data Line Wiring Diagram (Output Switch Module 2)

G00083626

Courtesy of GENERAL MOTORS CORP.

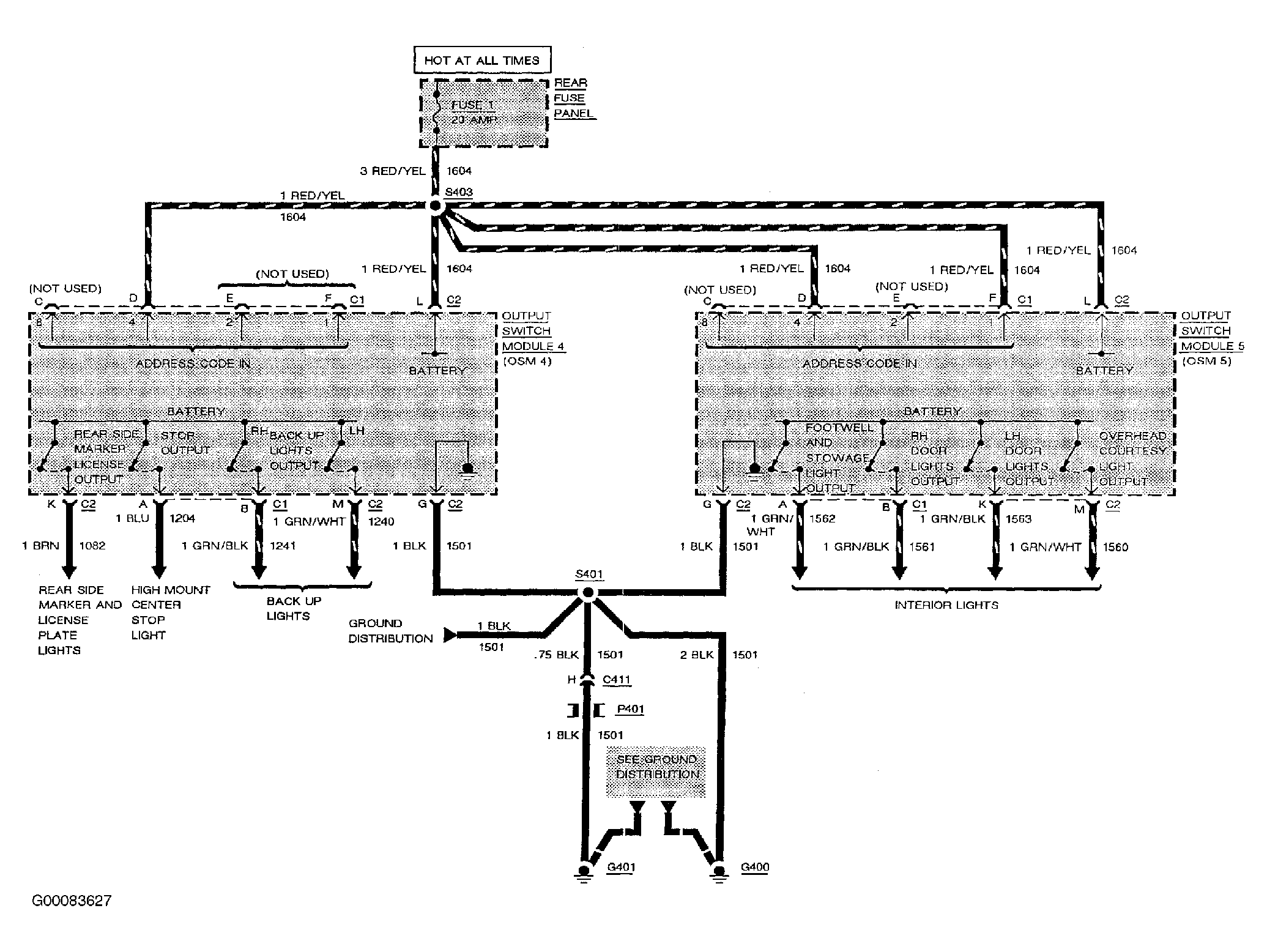

Fig 7: Lighting Data Line Wiring Diagram (Output Switch Module 4 & 5)

G00083627

Courtesy of GENERAL MOTORS CORP.

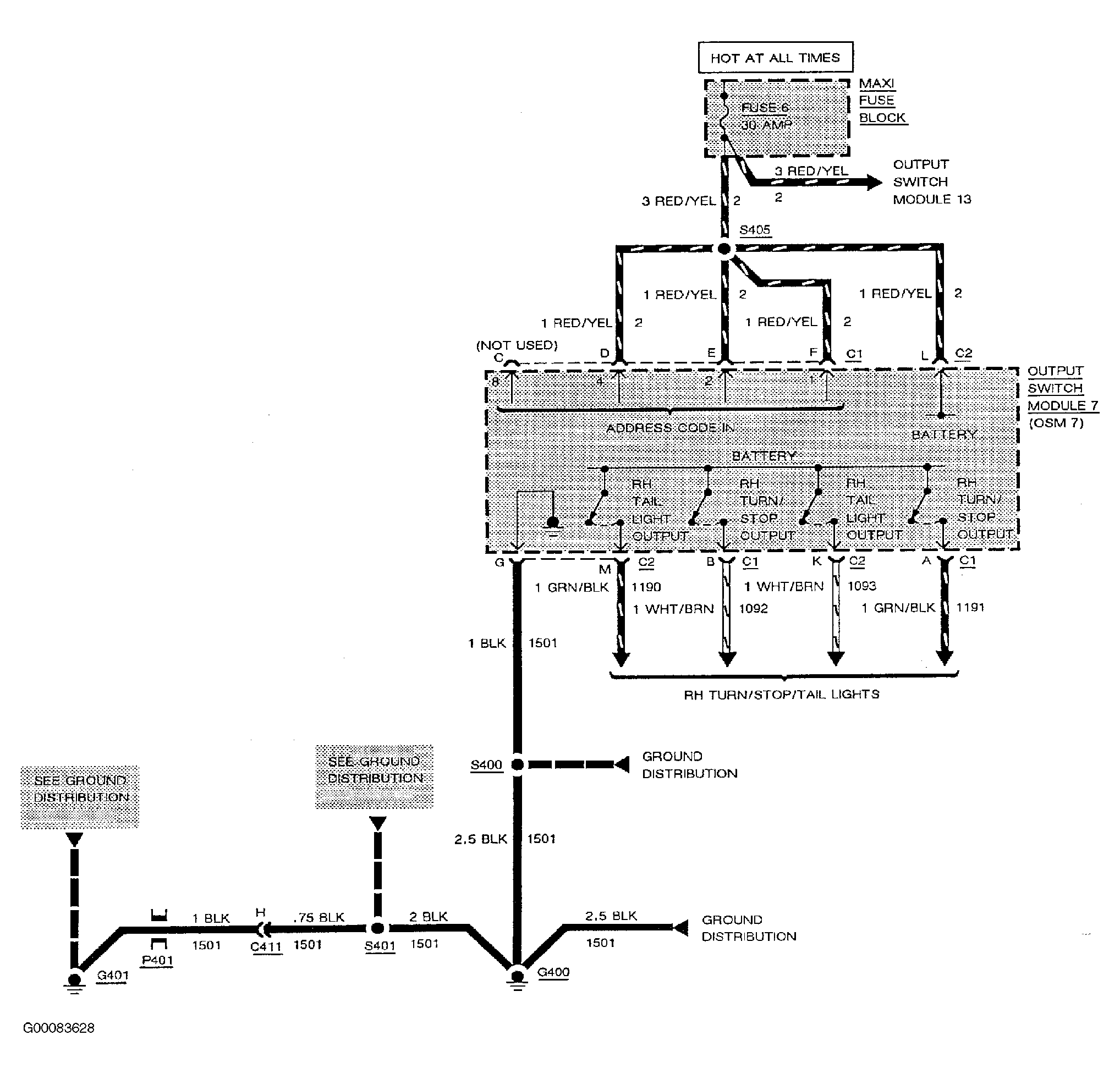

Fig 8: Lighting Data Line Wiring Diagram (Output Switch Module 7)

G00083628

Courtesy of GENERAL MOTORS CORP.

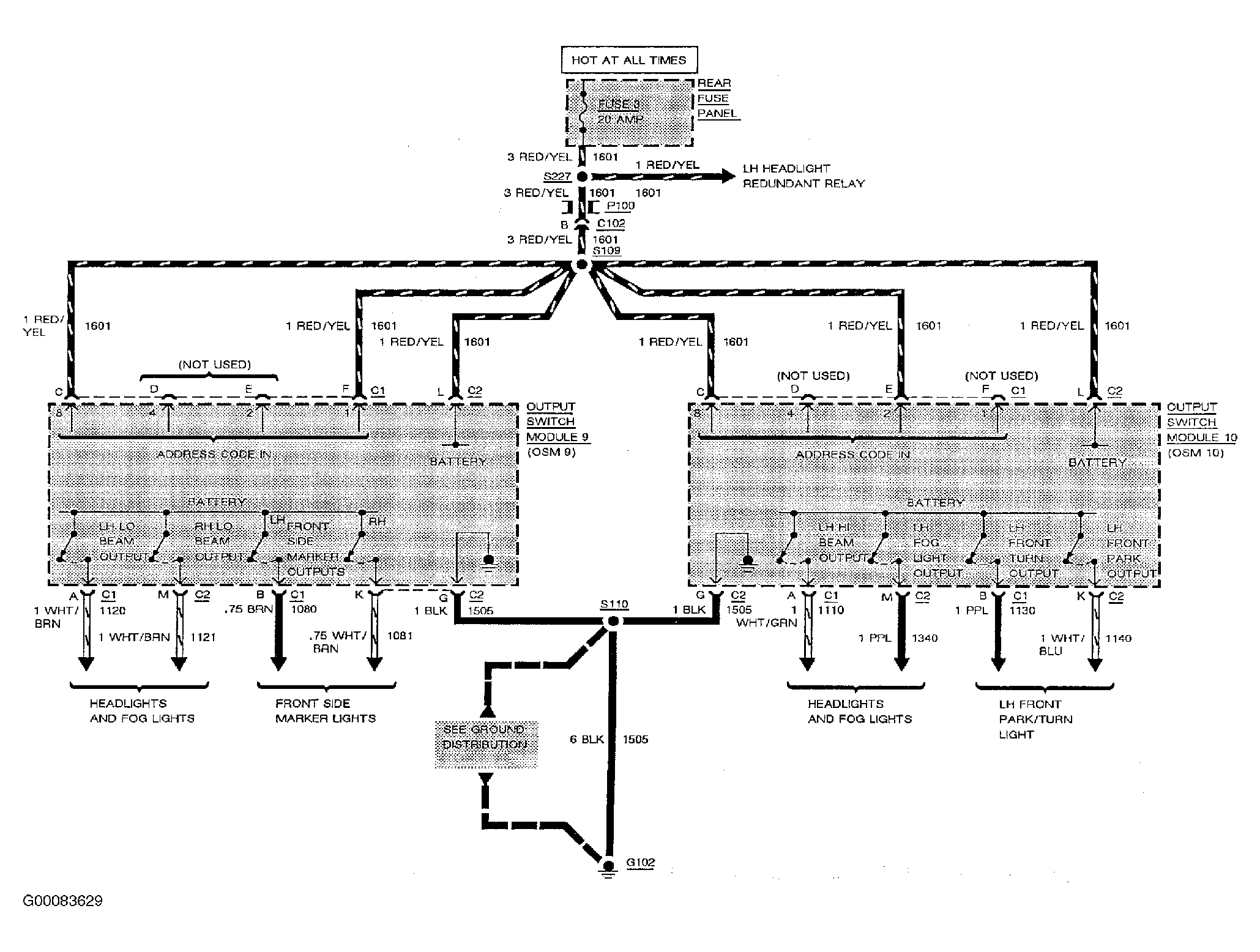

Fig 9: Lighting Data Line Wiring Diagram (Output Switch Module 9 & 10)

G00083629

Courtesy of GENERAL MOTORS CORP.

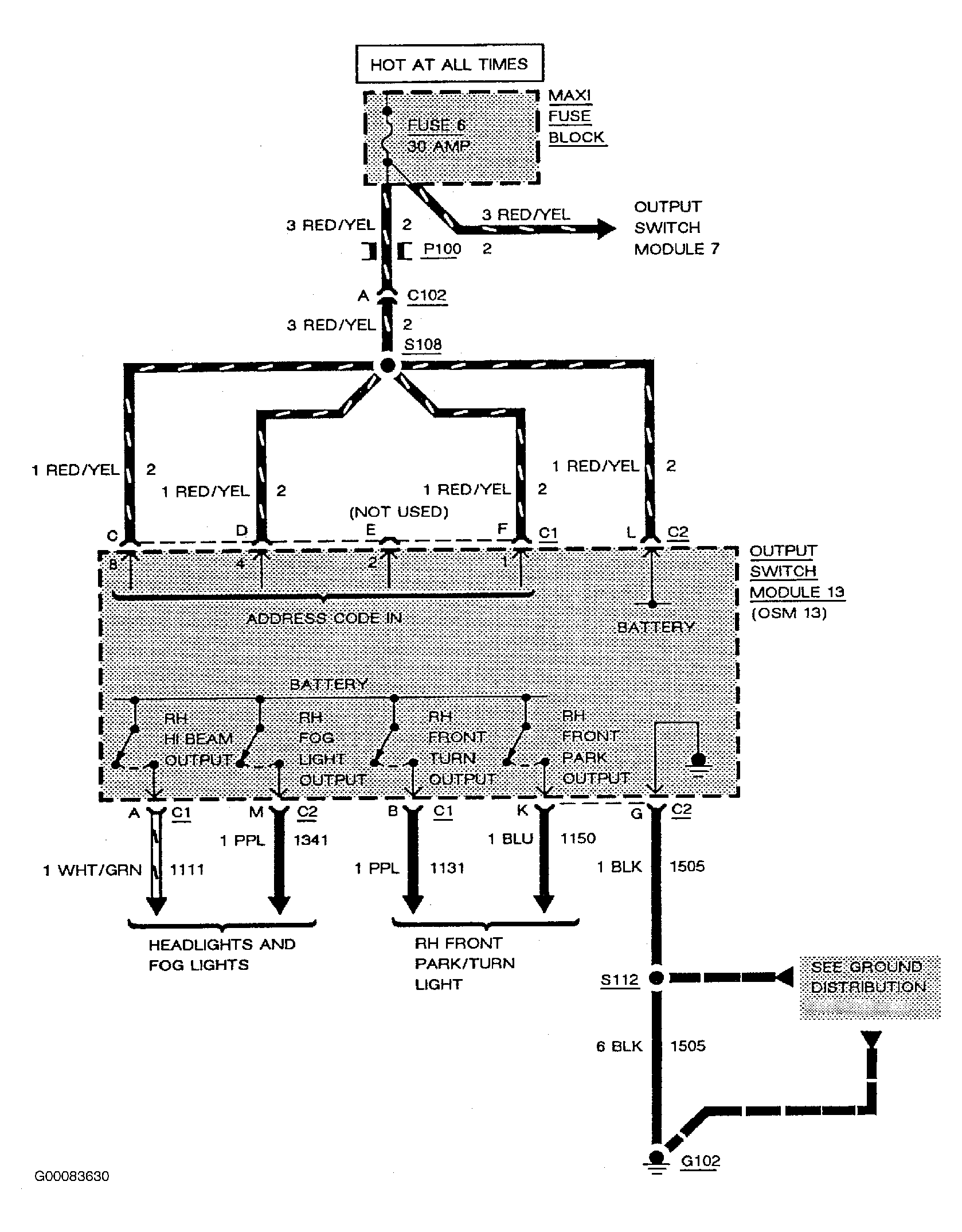

Fig 10: Lighting Data Line Wiring Diagram (Output Switch Module 13)

G00083630

Courtesy of GENERAL MOTORS CORP.

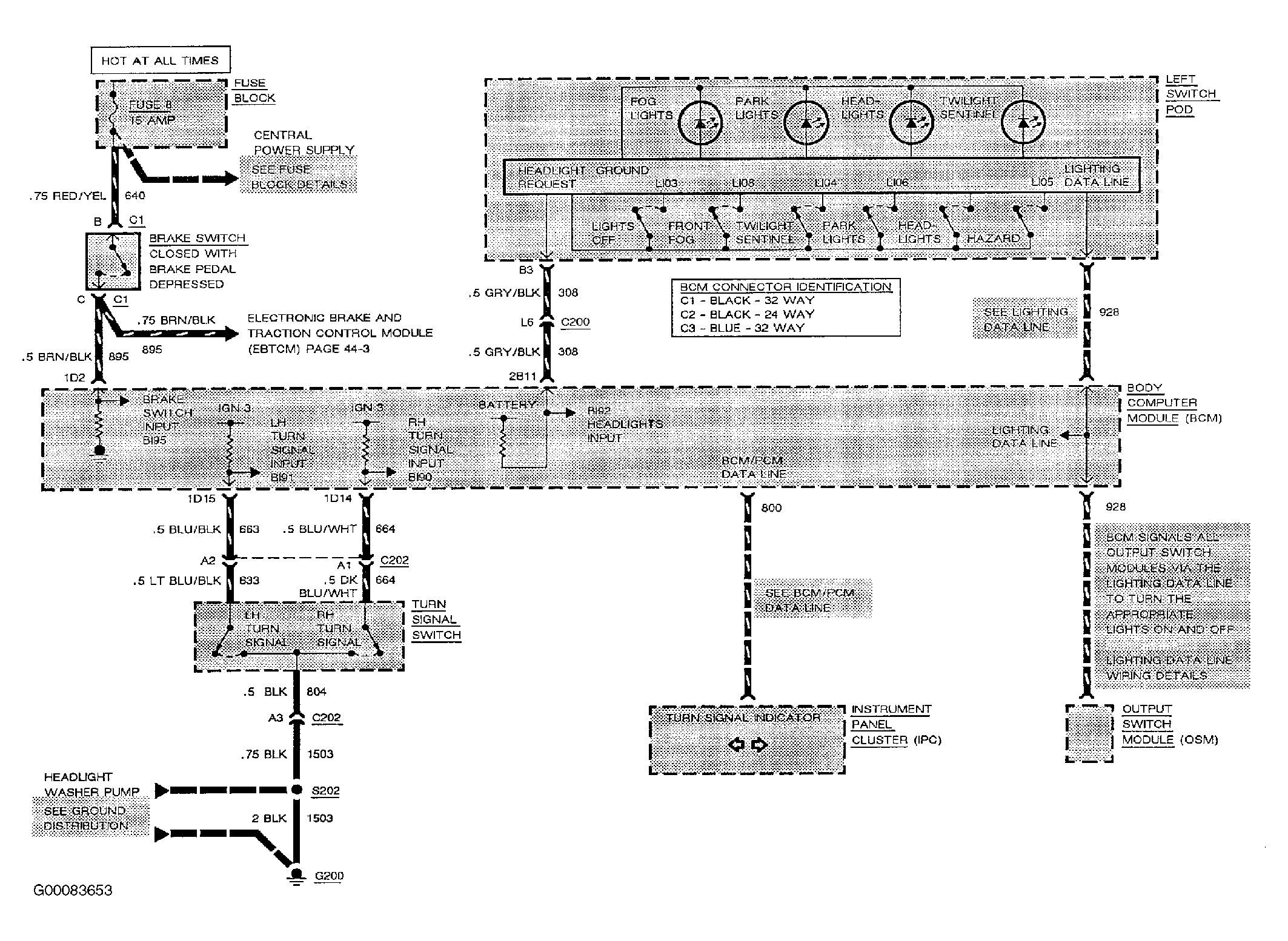

Fig 11: Exterior Lights Wiring Diagram (1 Of 4)

G00083653

Courtesy of GENERAL MOTORS CORP.

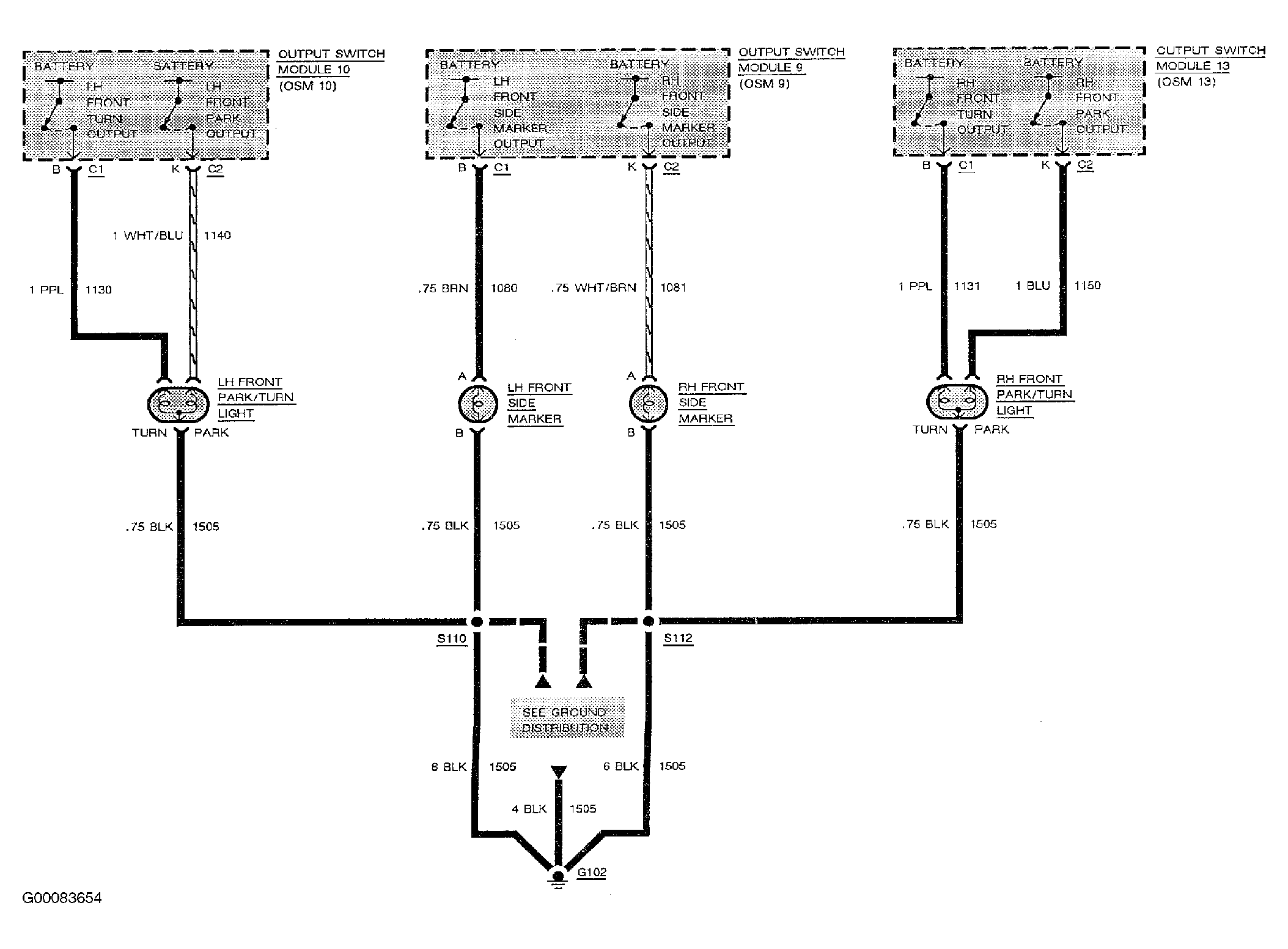

Fig 12: Exterior Lights Wiring Diagram (2 Of 4)

G00083654

Courtesy of GENERAL MOTORS CORP.

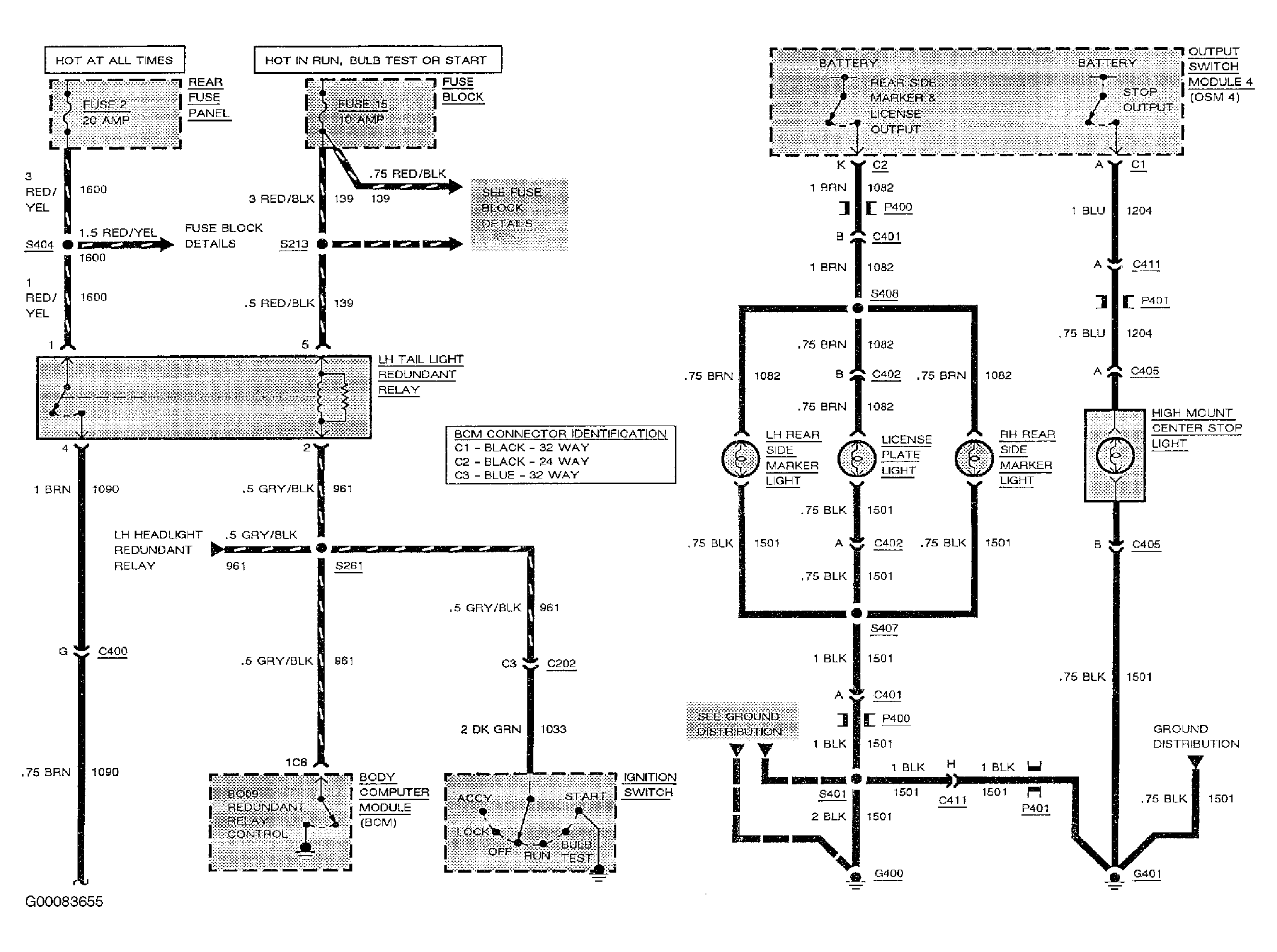

Fig 13: Exterior Lights Wiring Diagram (3 Of 4)

G00083655

Courtesy of GENERAL MOTORS CORP.

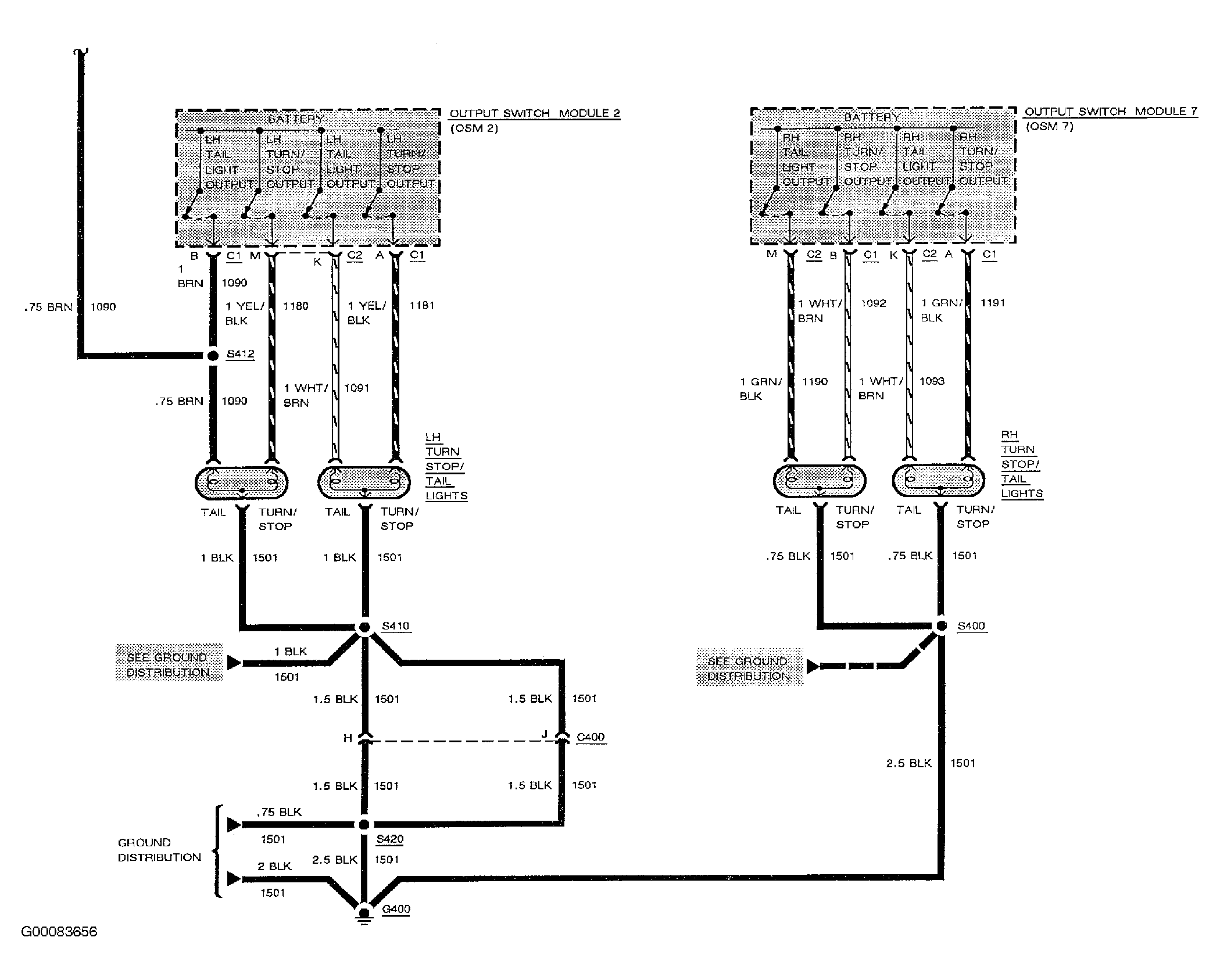

Fig 14: Exterior Lights Wiring Diagram (4 Of 4)

G00083656

Courtesy of GENERAL MOTORS CORP.

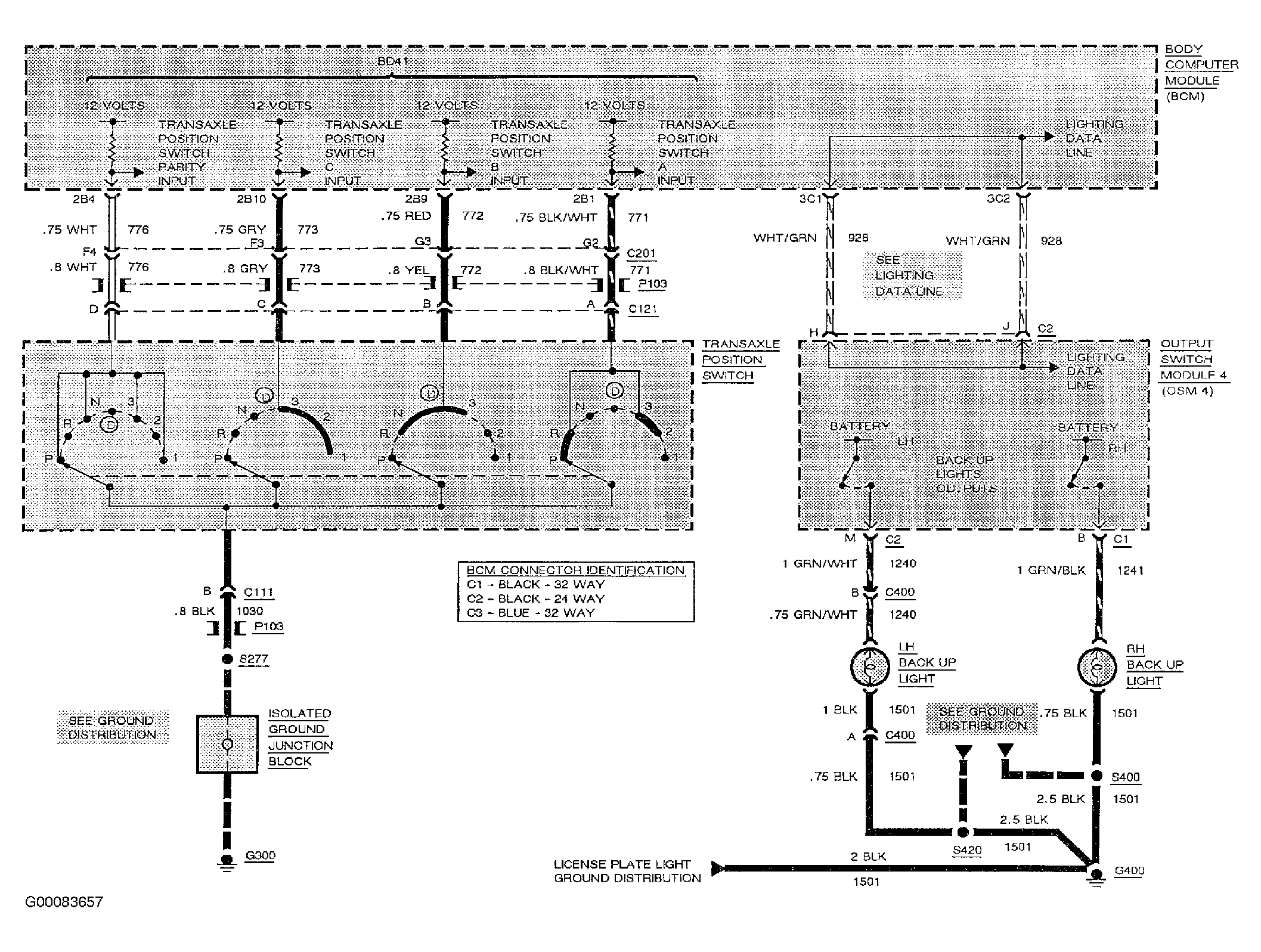

Fig 15: Back Up Lights Wiring Diagram

G00083657

Courtesy of GENERAL MOTORS CORP.

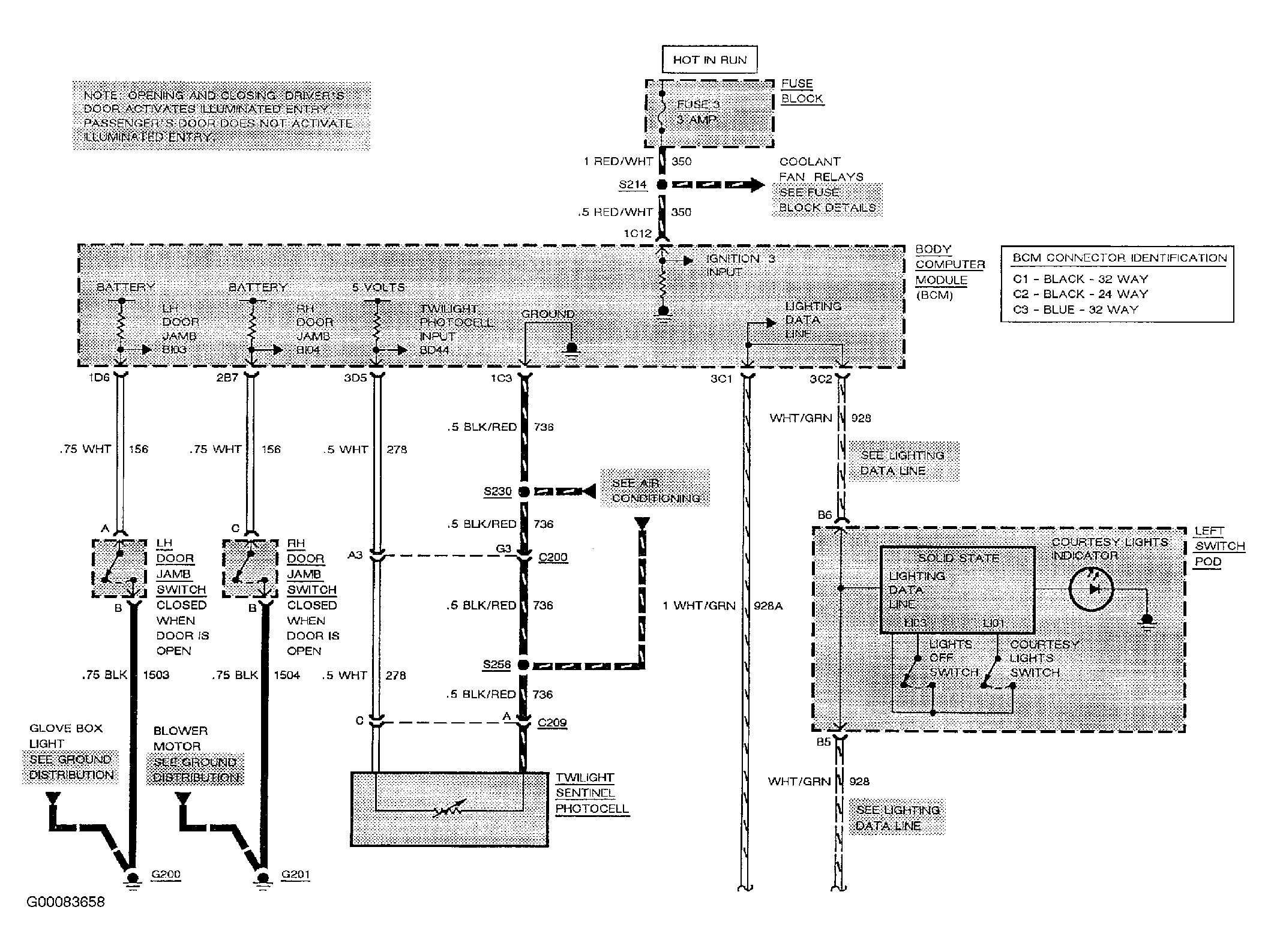

Fig 16: Interior Lights With Illuminated Entry Wiring Diagram (1 Of 5)

G00083658

Courtesy of GENERAL MOTORS CORP.

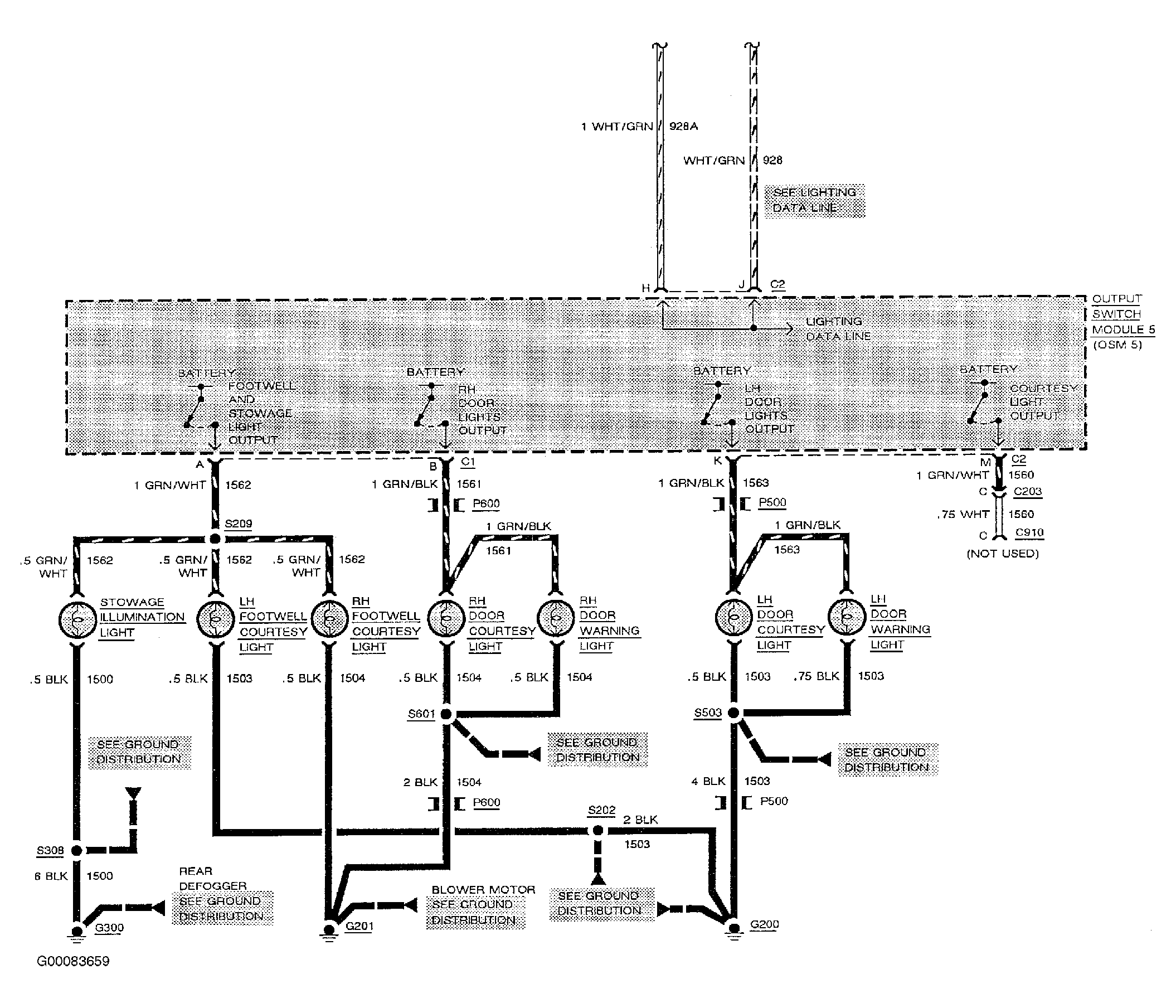

Fig 17: Interior Lights With Illuminated Entry Wiring Diagram (2 Of 5)

G00083659

Courtesy of GENERAL MOTORS CORP.

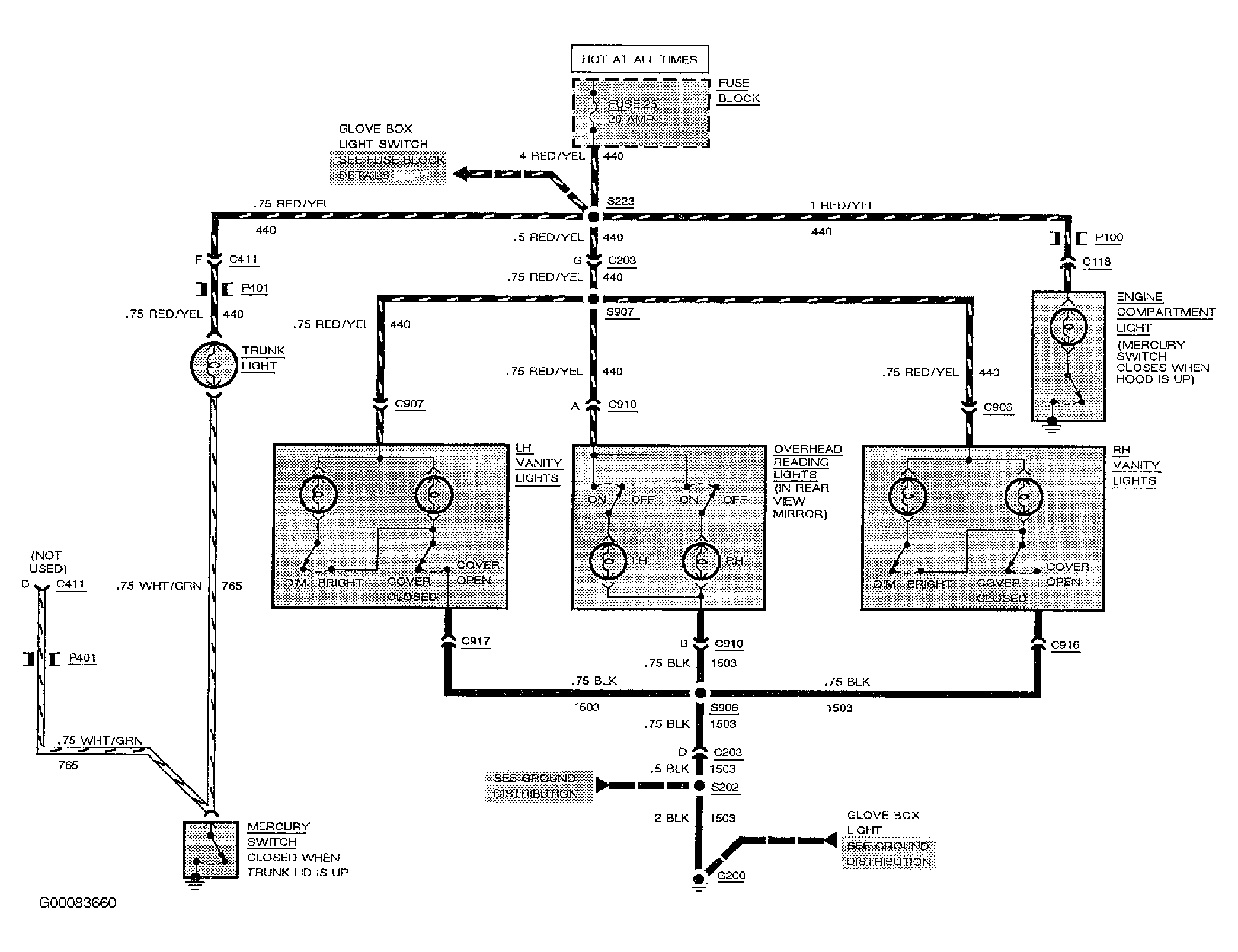

Fig 18: Interior Lights With Illuminated Entry Wiring Diagram (3 Of 5)

G00083660

Courtesy of GENERAL MOTORS CORP.

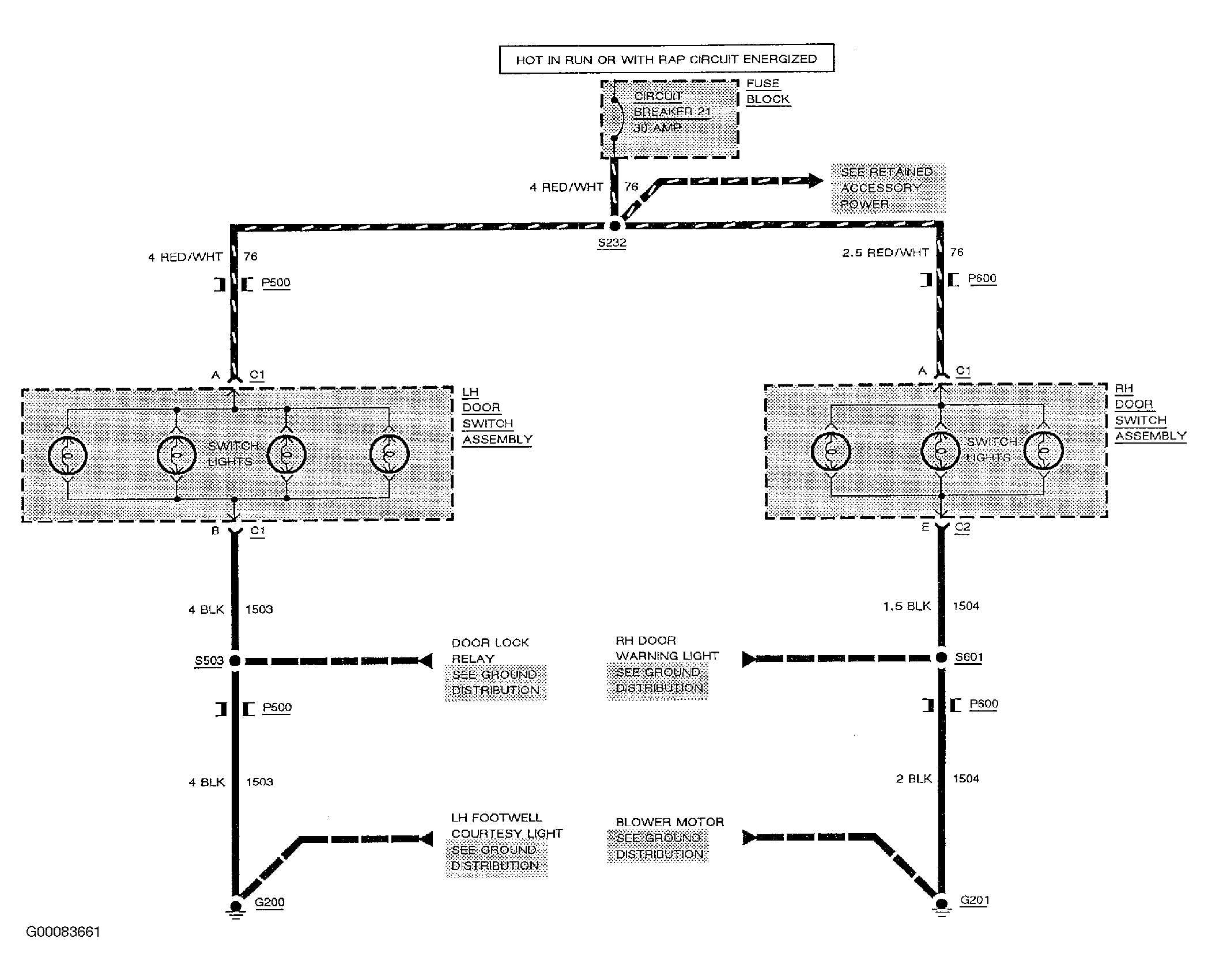

Fig 19: Interior Lights With Illuminated Entry Wiring Diagram (4 Of 5)

G00083661

Courtesy of GENERAL MOTORS CORP.

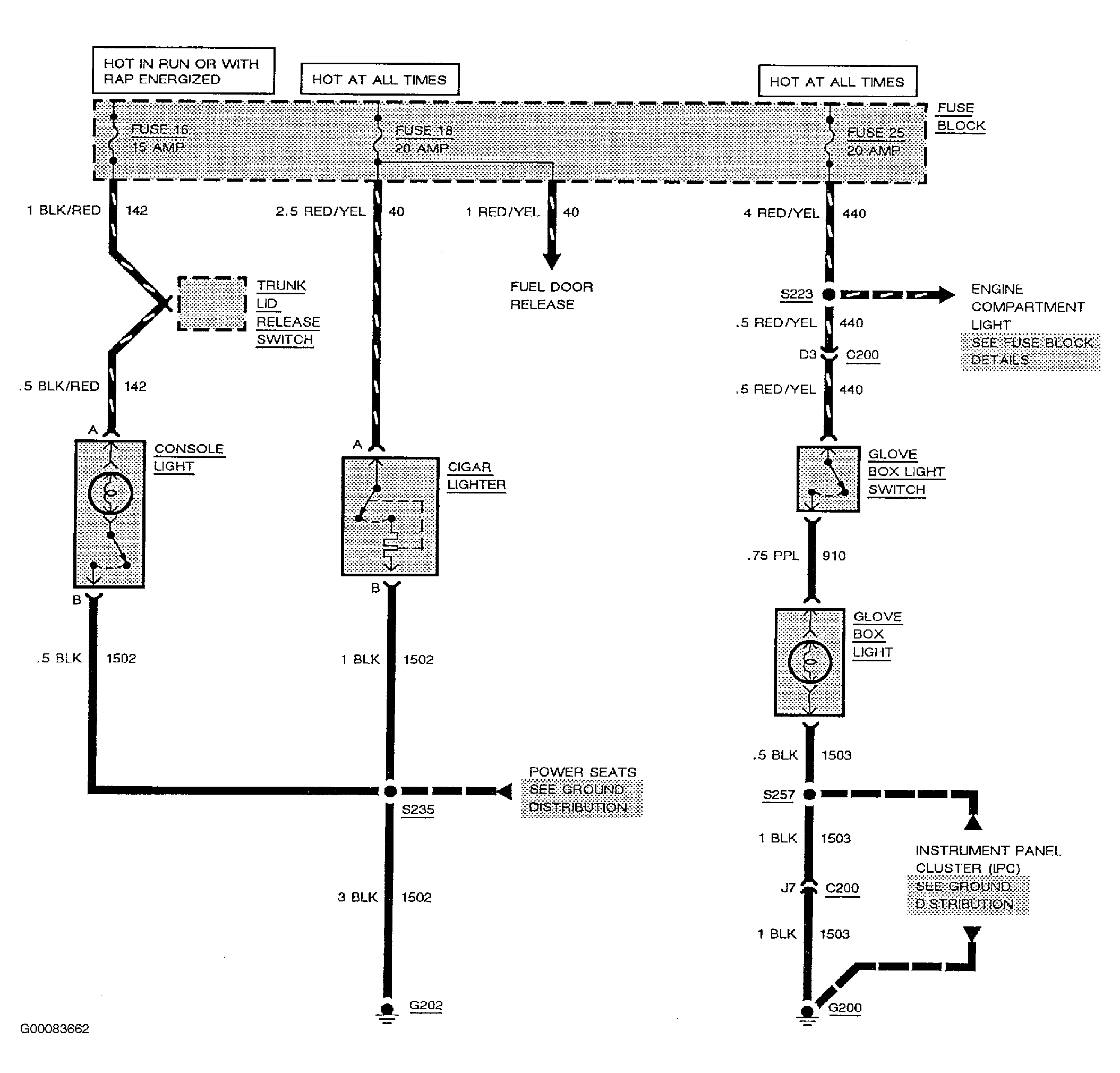

Fig 20: Interior Lights With Illuminated Entry Wiring Diagram (5 Of 5)

G00083662

Courtesy of GENERAL MOTORS CORP.

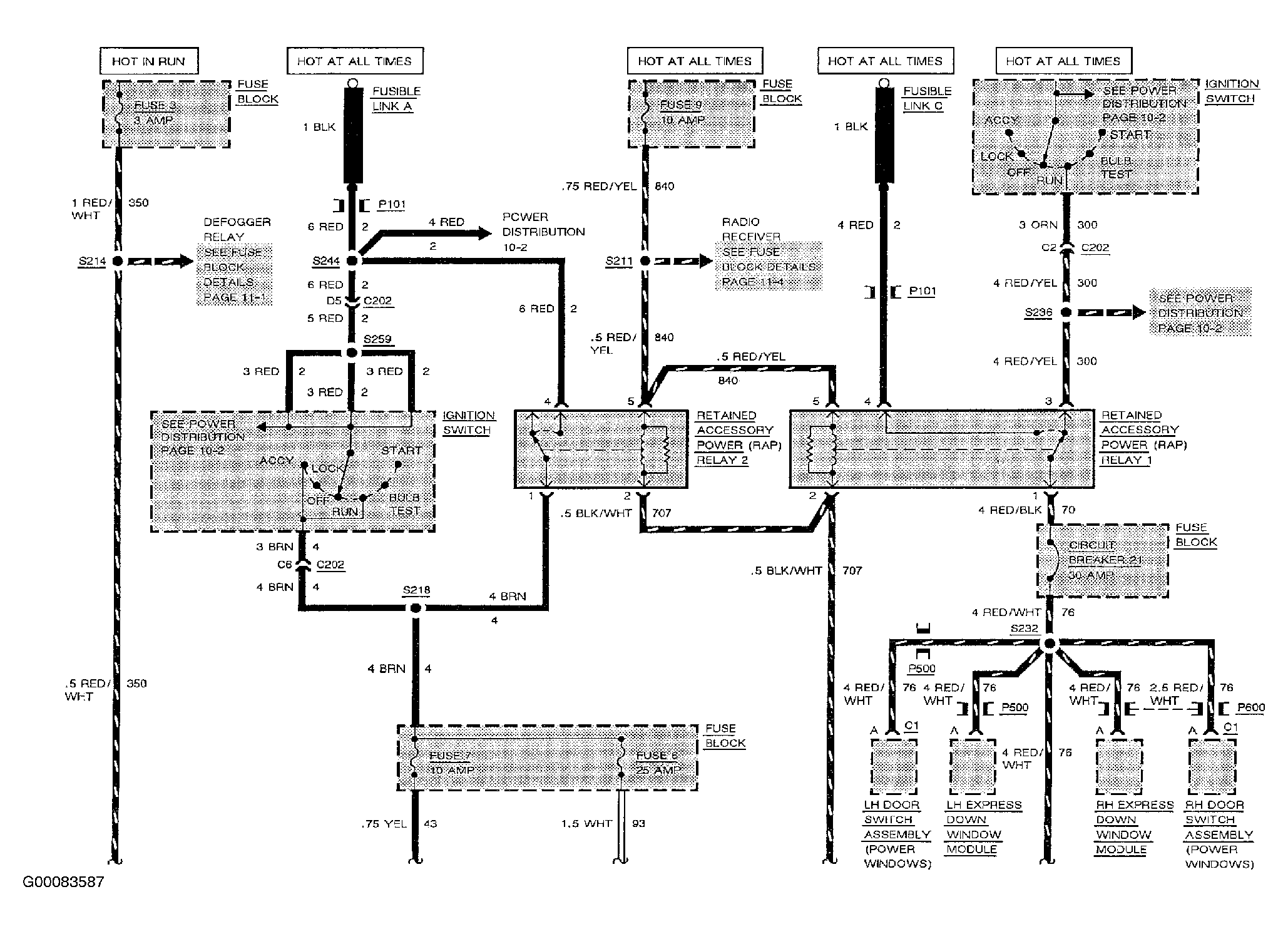

Fig 21: Retained Accessory Power Wiring Diagram (1 Of 2)

G00083587

Courtesy of GENERAL MOTORS CORP.

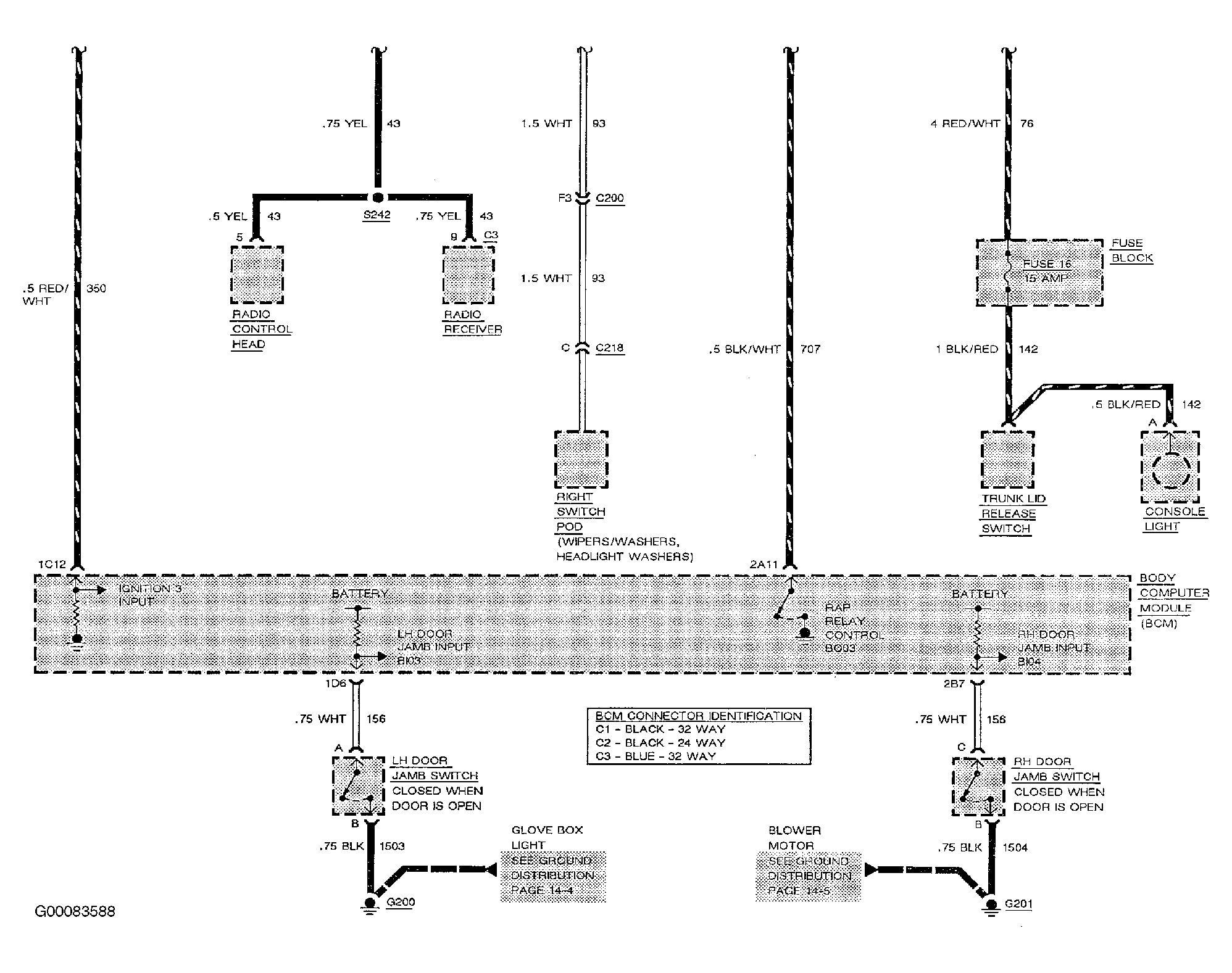

Fig 22: Retained Accessory Power Wiring Diagram (2 Of 2)

G00083588

Courtesy of GENERAL MOTORS CORP.
