Engine Controls - System/Component Tests
>>
Component Locations
Component Locations

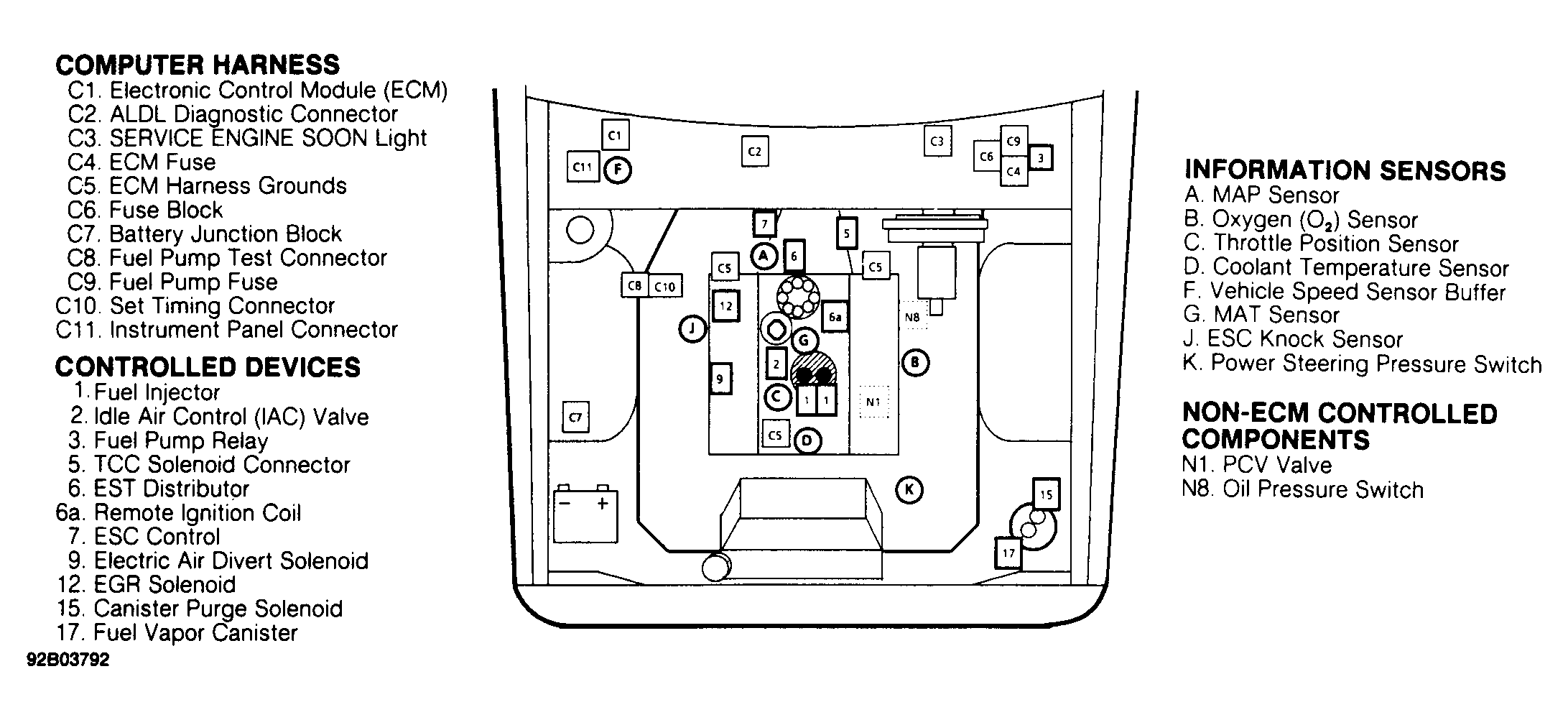

Fig 1: Component Locations, (5.0L VIN E & 5.7L VIN 7)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
