Removal & Installation

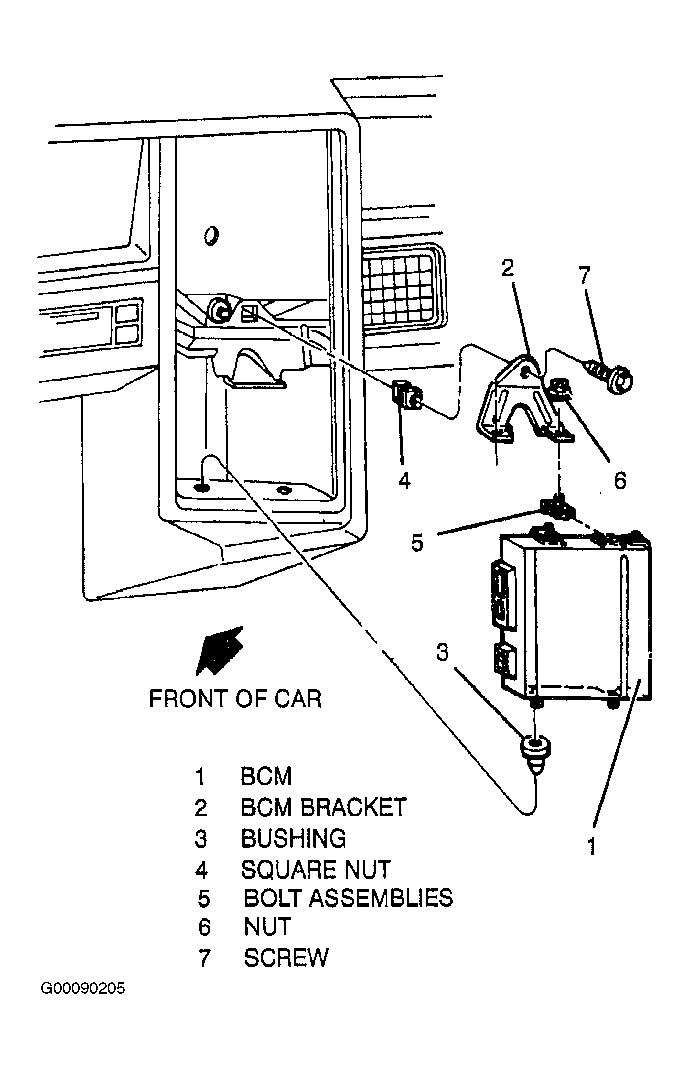

Remove climate control panel/driver information center assembly. See COMBO-PANEL (CLIMATE CONTROL DRIVER INFORMATION CENTER) in INSTRUMENT PANEL & GAUGES article in ACCESSORIES & EQUIPMENT. Remove BCM bracket. Disconnect and remove BCM. See Fig 1 . To install, reverse removal procedure.
