Connector Identification

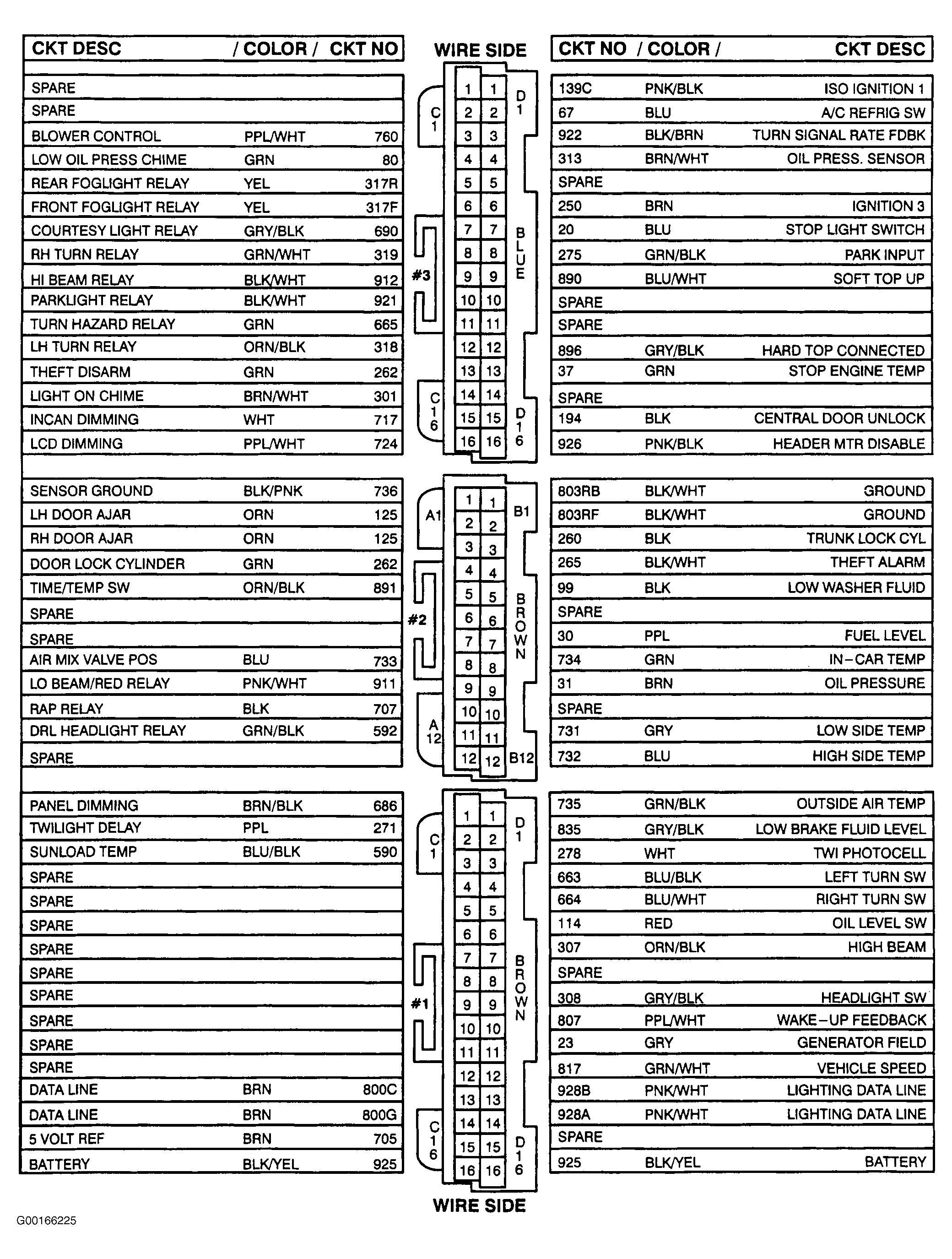

Fig 1: BCM Connector Identification
G00166225Courtesy of GENERAL MOTORS CORP.

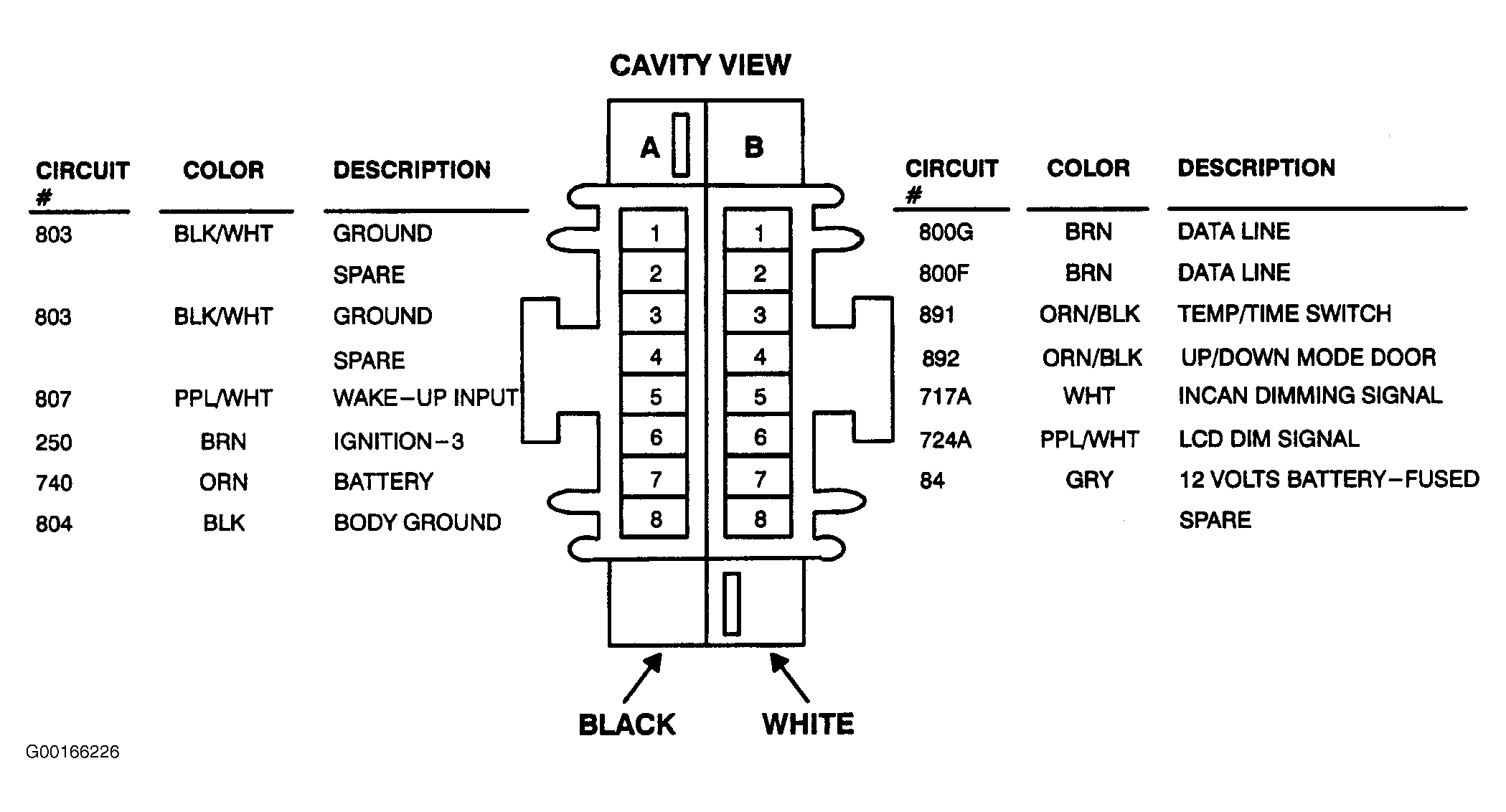

Fig 2: Climate Control/Driver Information System Connector
G00166226Courtesy of GENERAL MOTORS CORP.

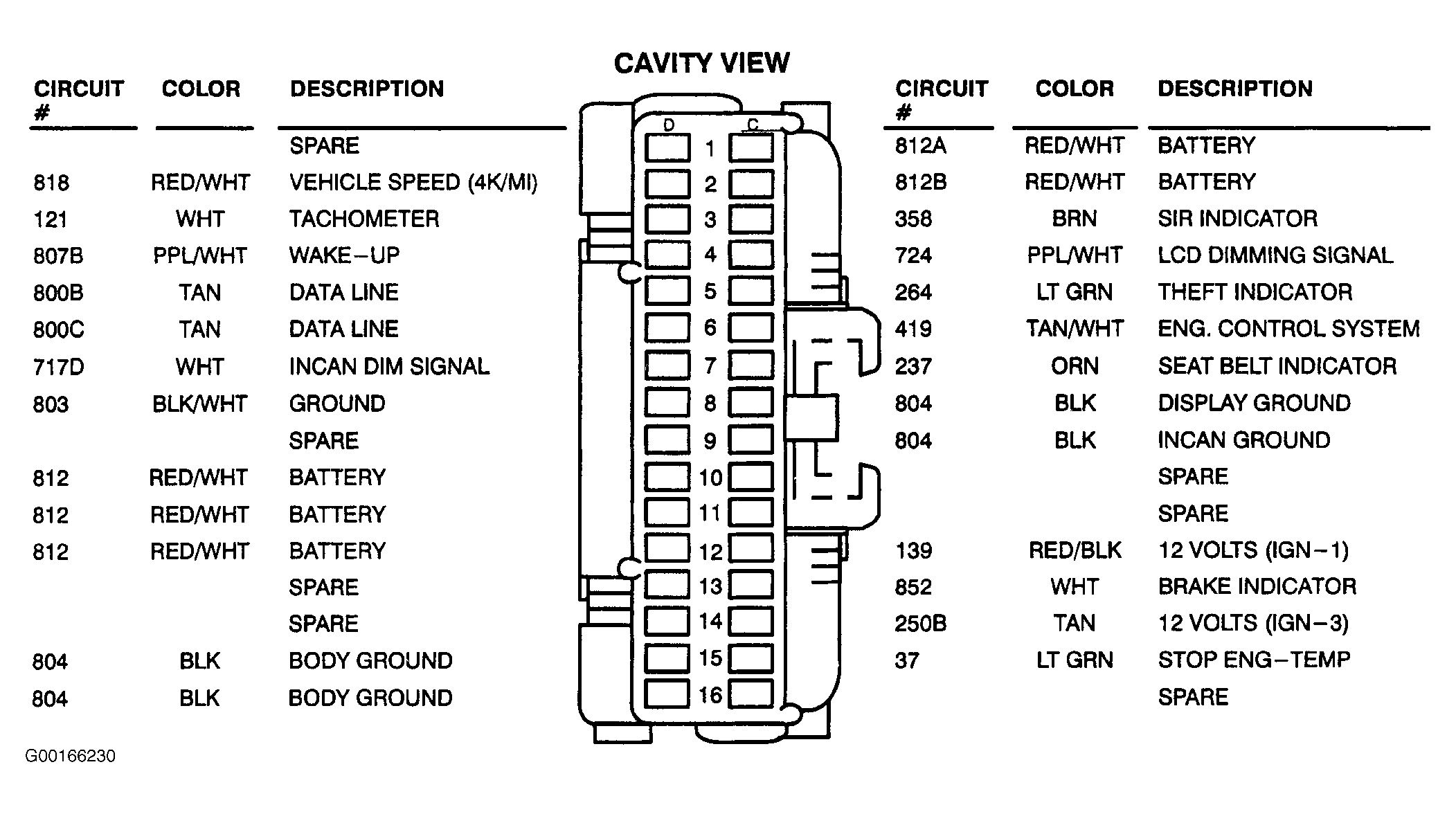

Fig 3: Instrument Panel Connector (Black)
G00166230Courtesy of GENERAL MOTORS CORP.

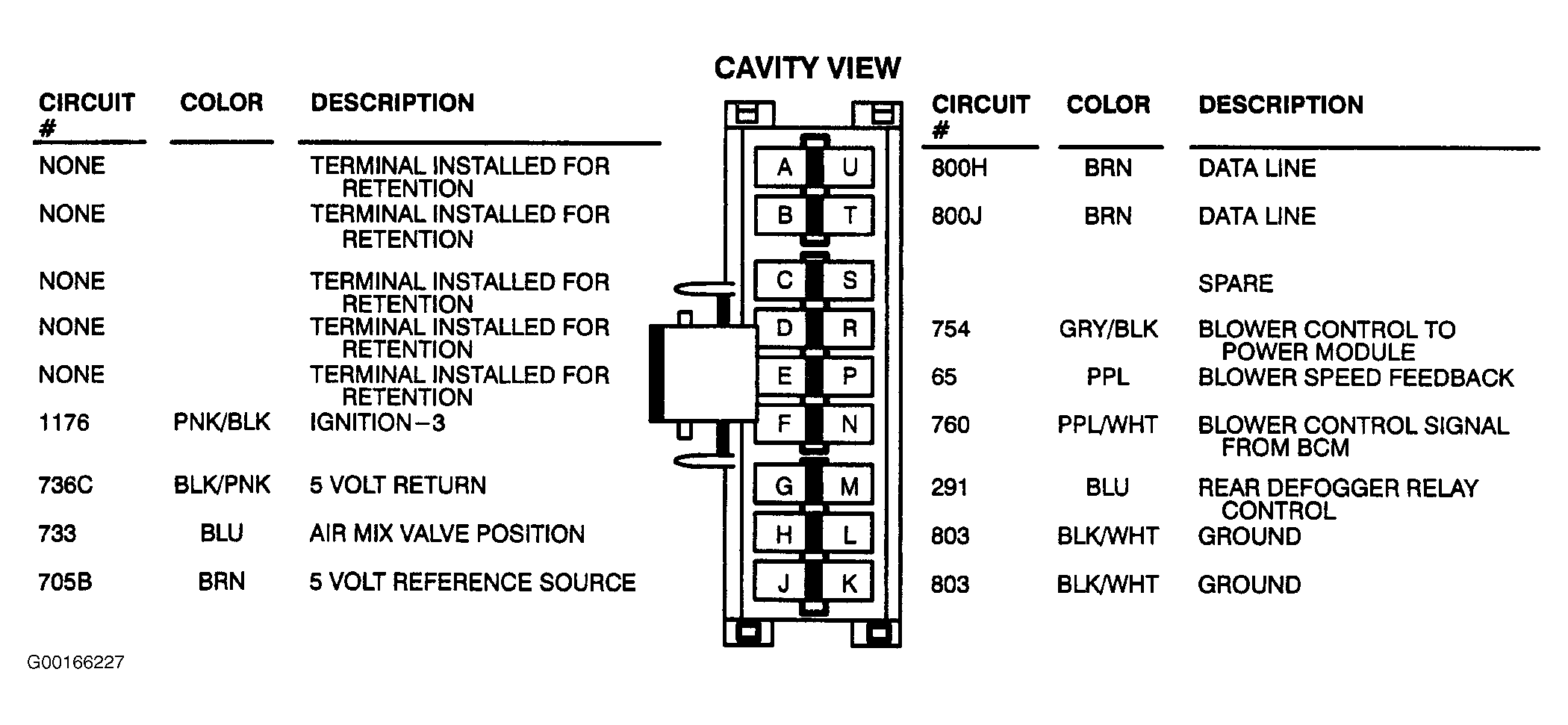

Fig 4: HVAC Programmer Connector
G00166227Courtesy of GENERAL MOTORS CORP.
