Connector Identification

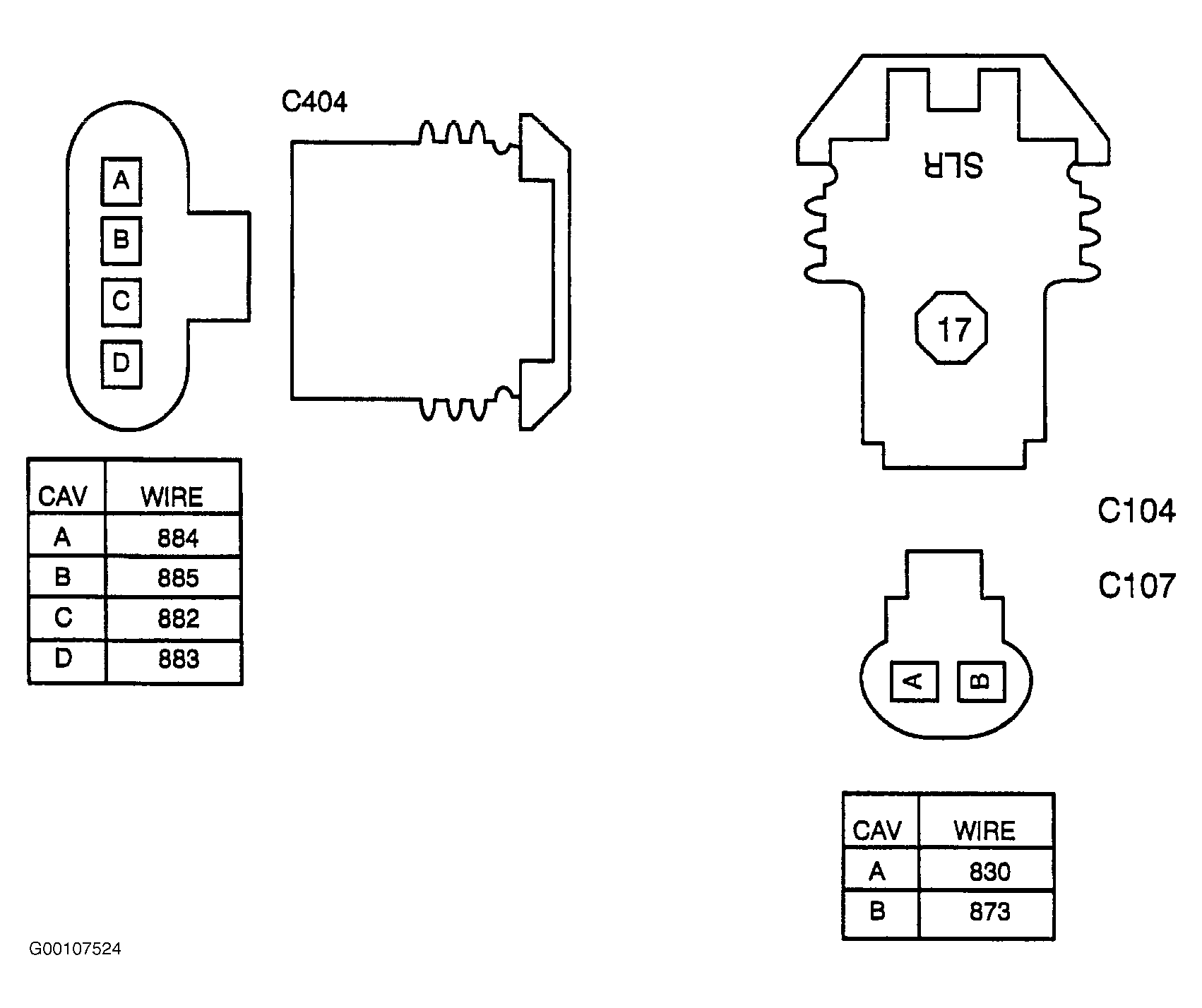

Fig 1: Identifying Wheel Speed Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

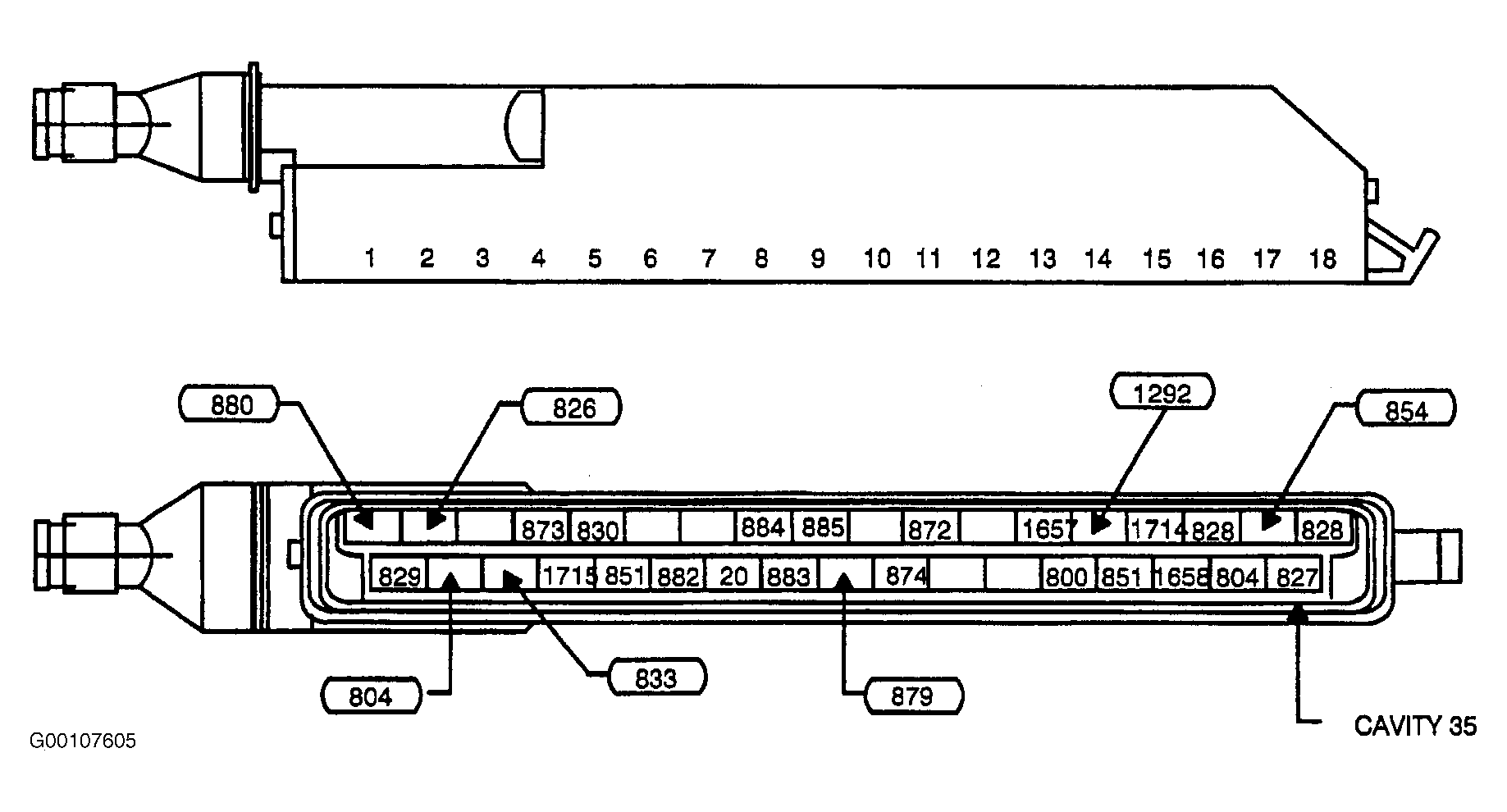

Fig 2: Identifying EBTCM Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Brake Pressure Modulator Valve Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Brake Pressure Modulator Valve Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

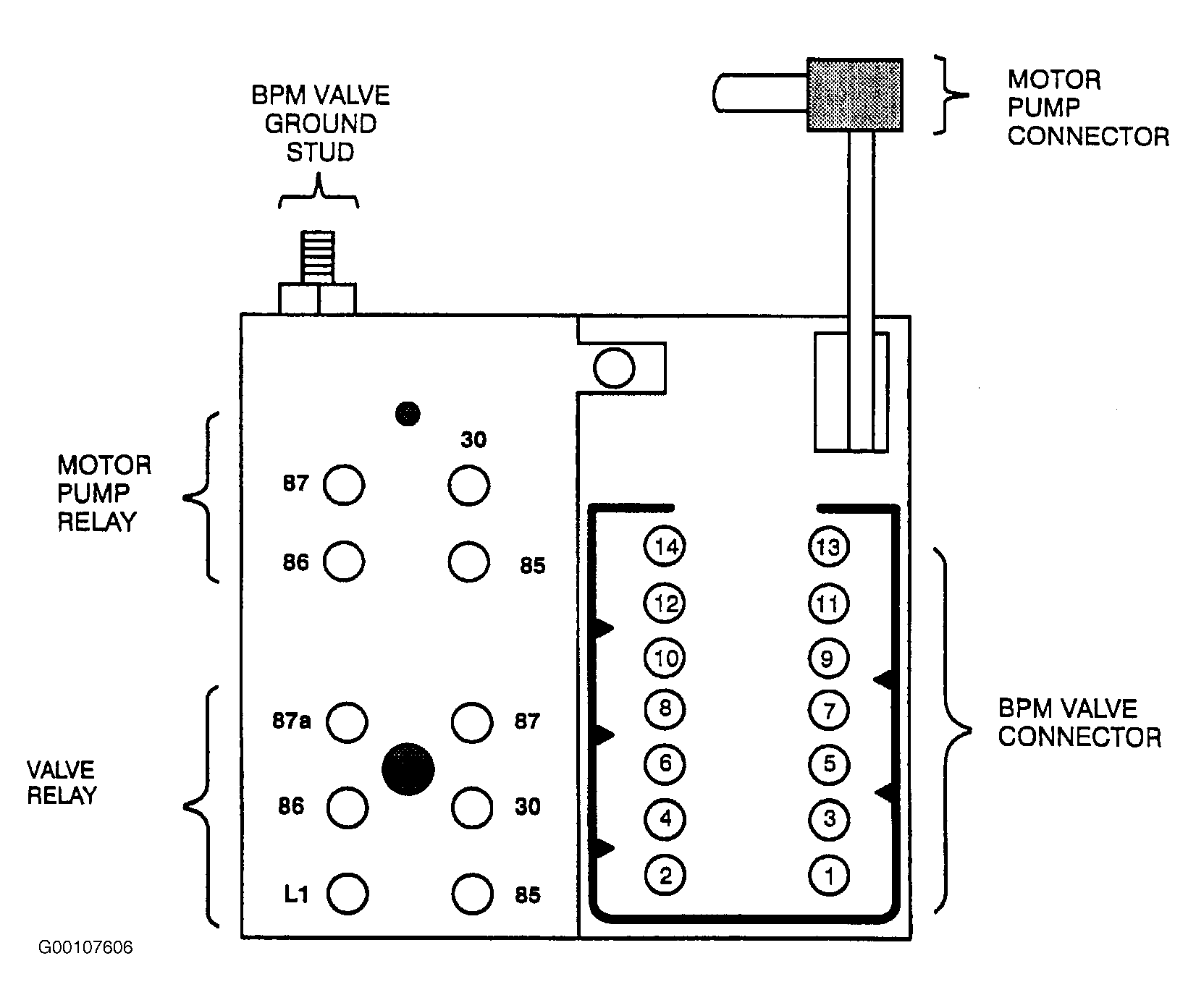

Fig 5: Identifying Pump Motor Relay & Valve Relay Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying Brake Fluid Level Sensor & C201 Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

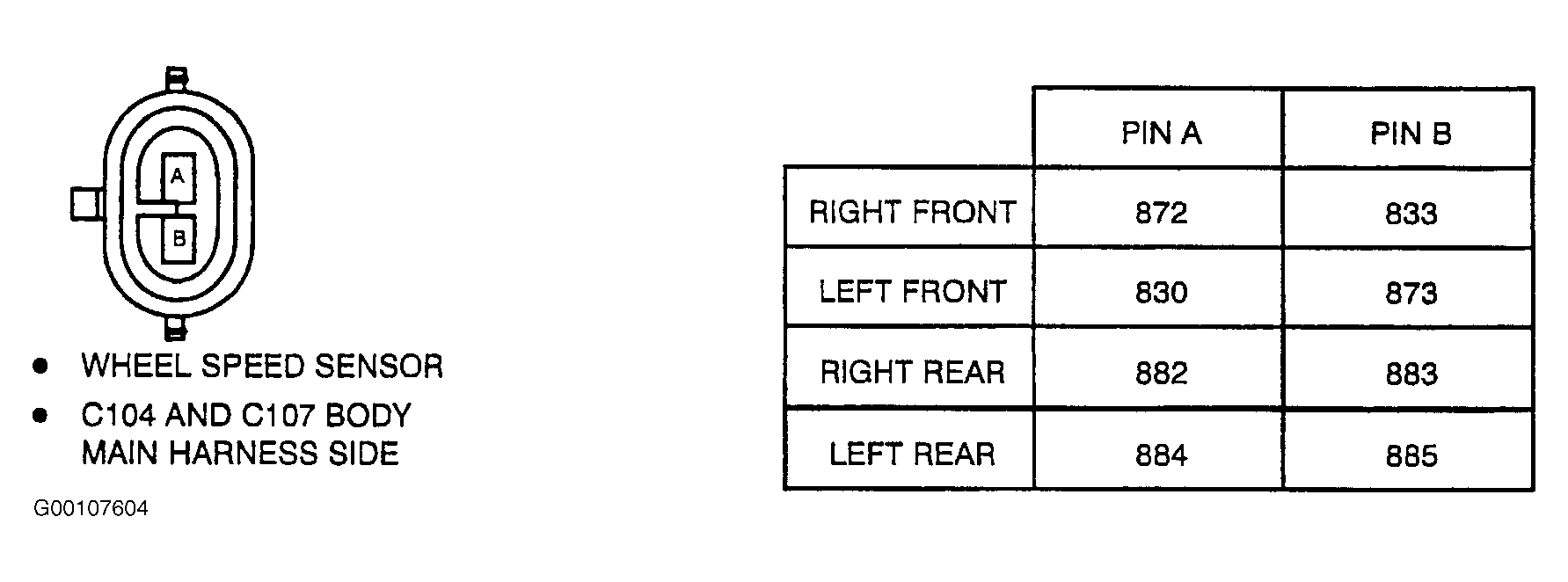

Fig 7: Identifying Wheel Speed Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
