Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

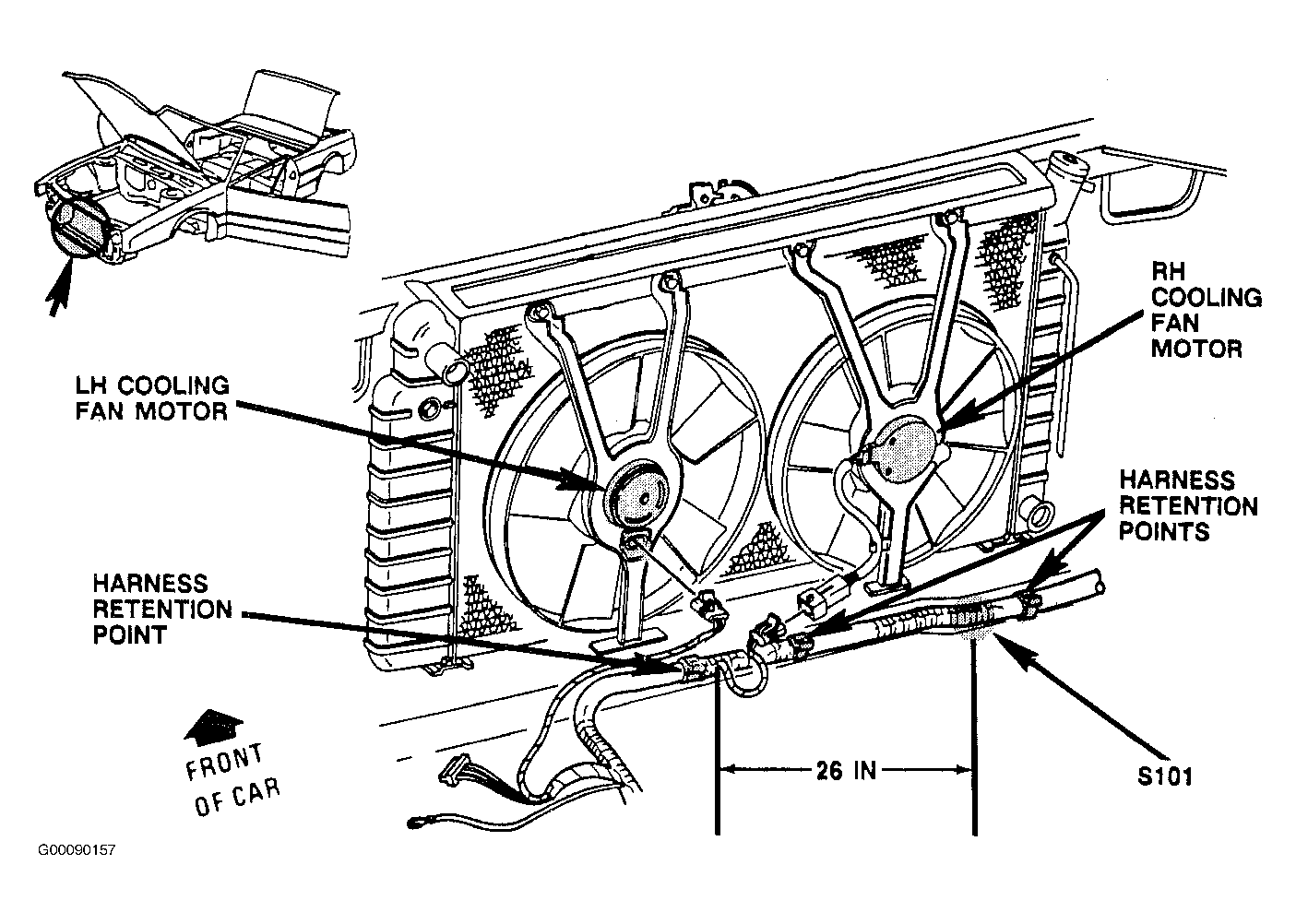

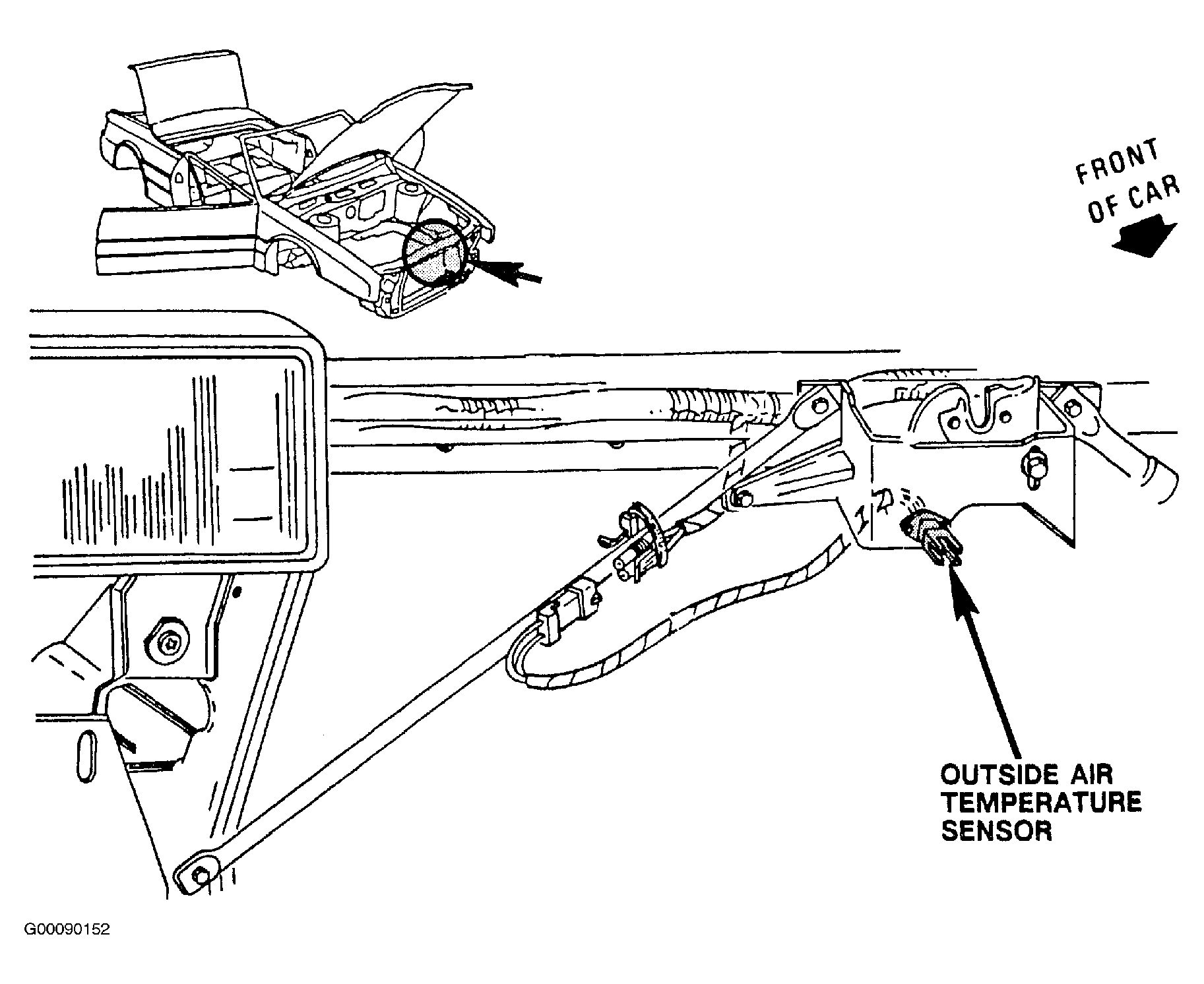

Fig 1: Center Front Of Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Center Front Of Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

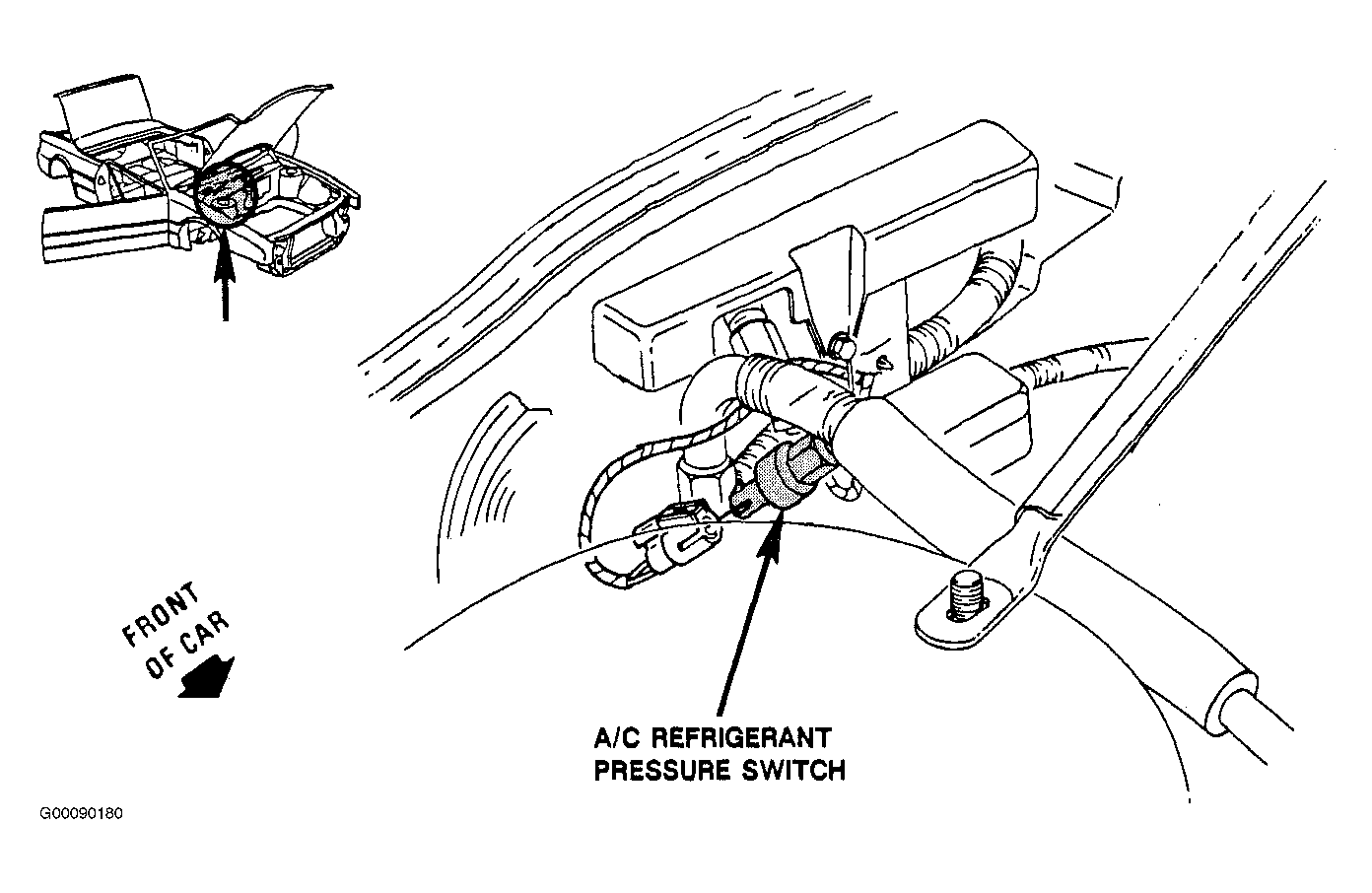

Fig 3: Right Front Of Engine Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

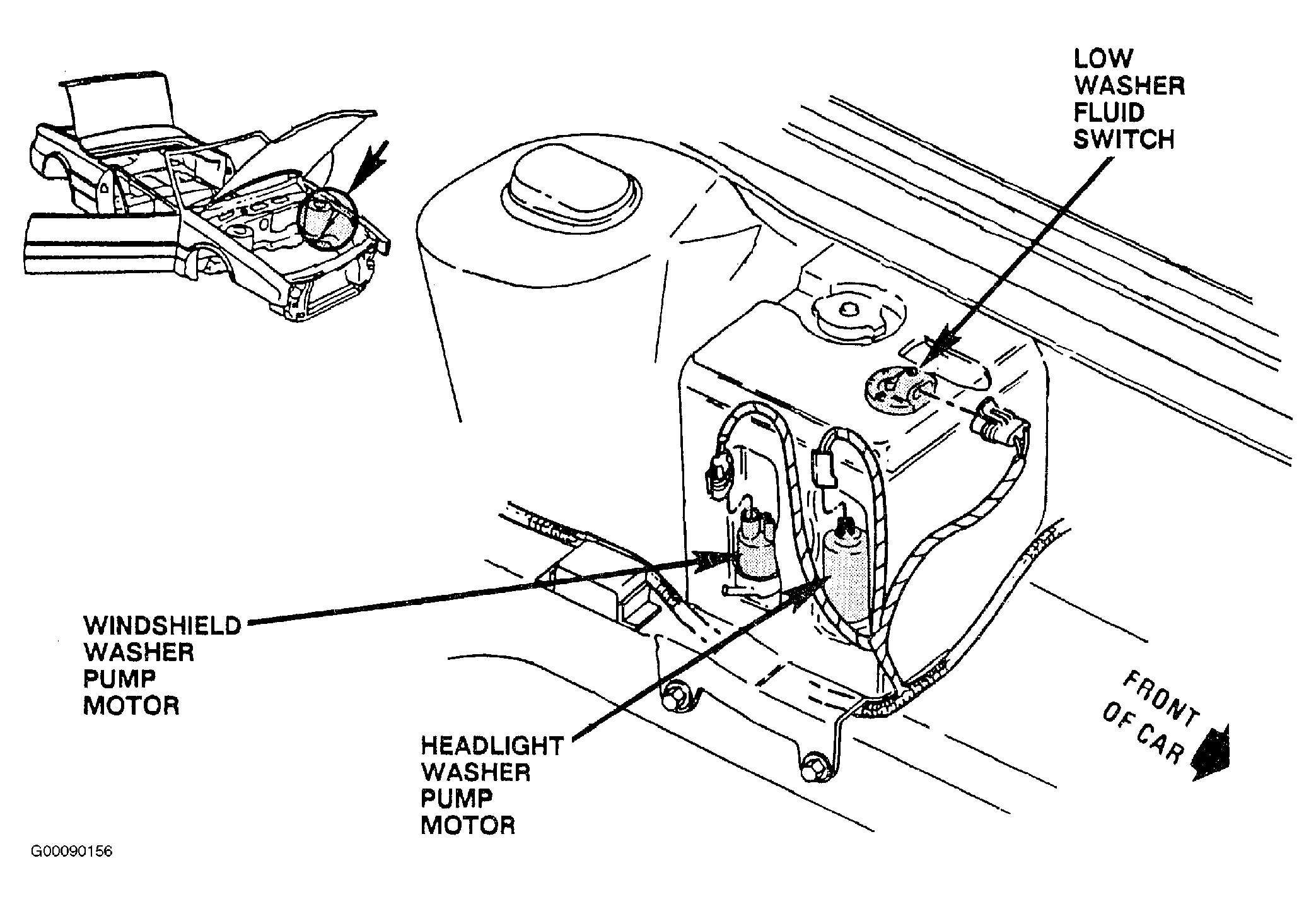

Fig 4: Right Front Of Engine Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

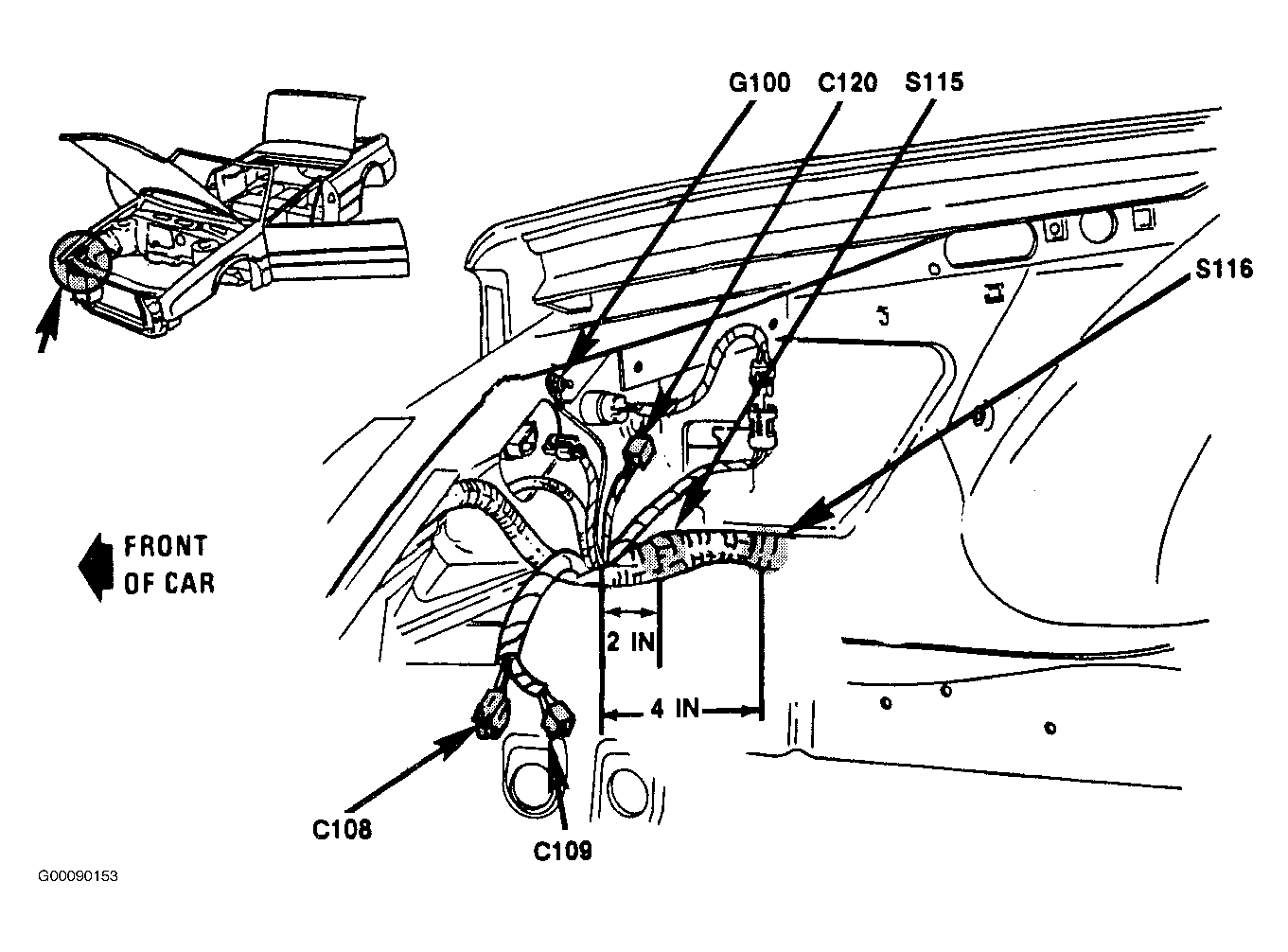

Fig 5: Left Side Of Engine Compartment (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left Side Of Engine Compartment (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Side Of Engine Compartment (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

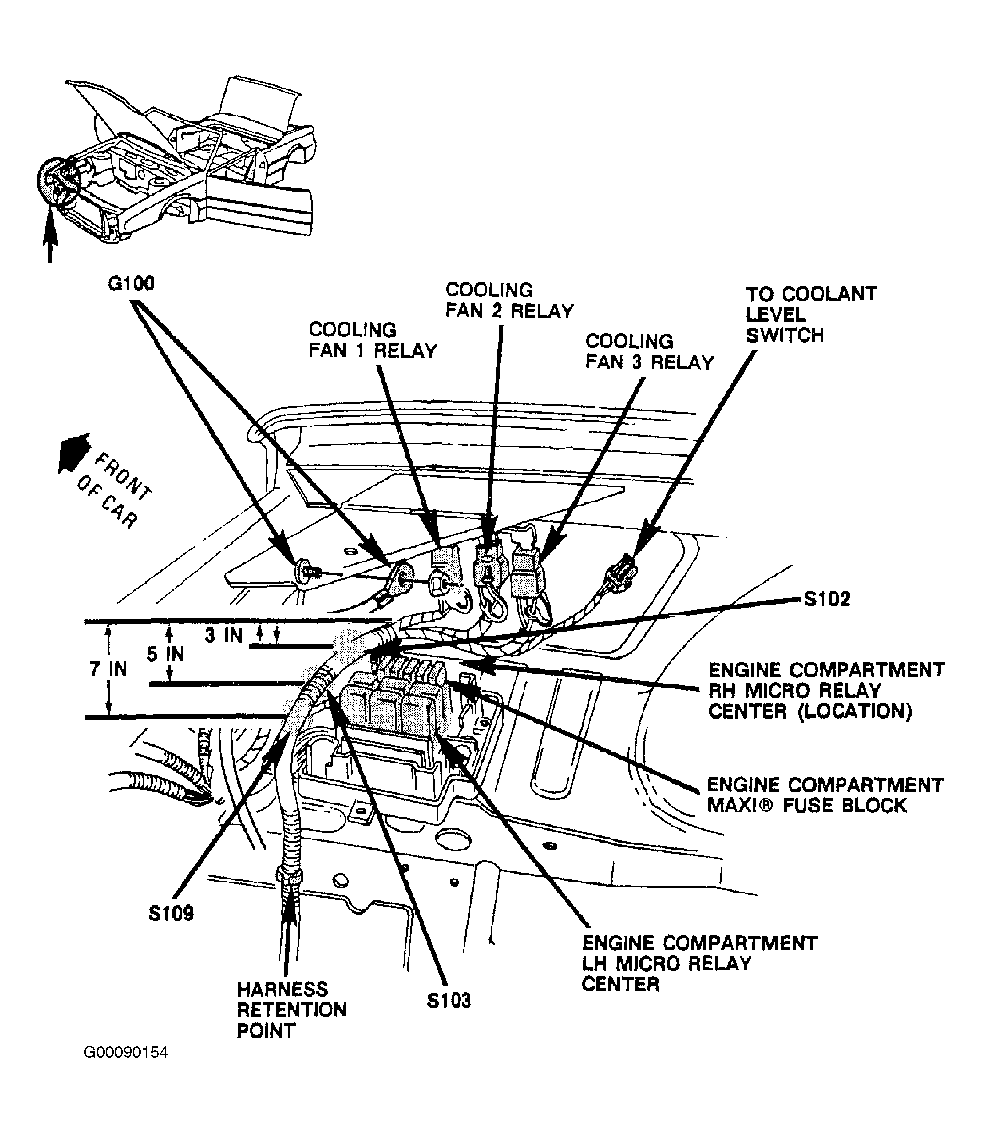

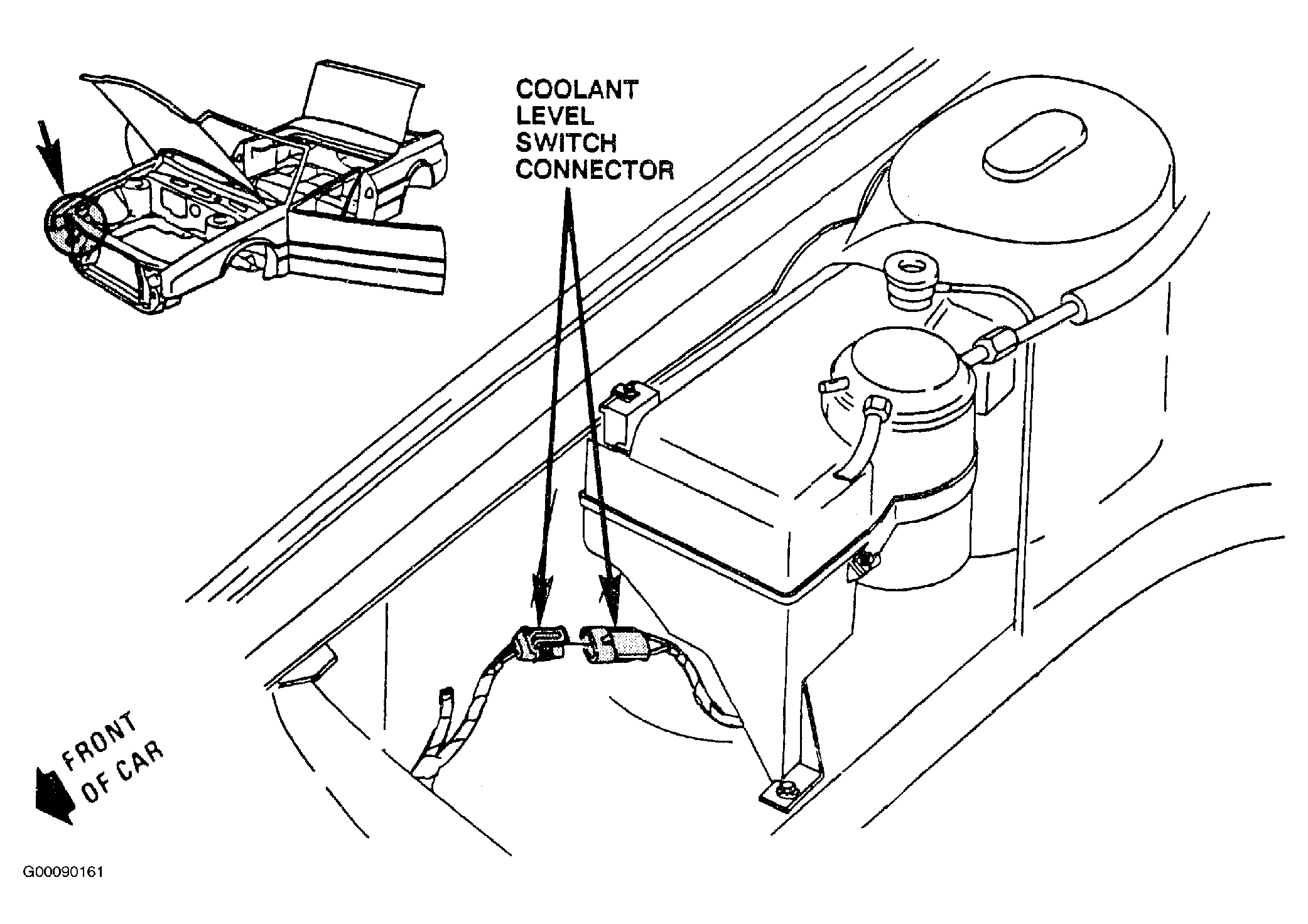

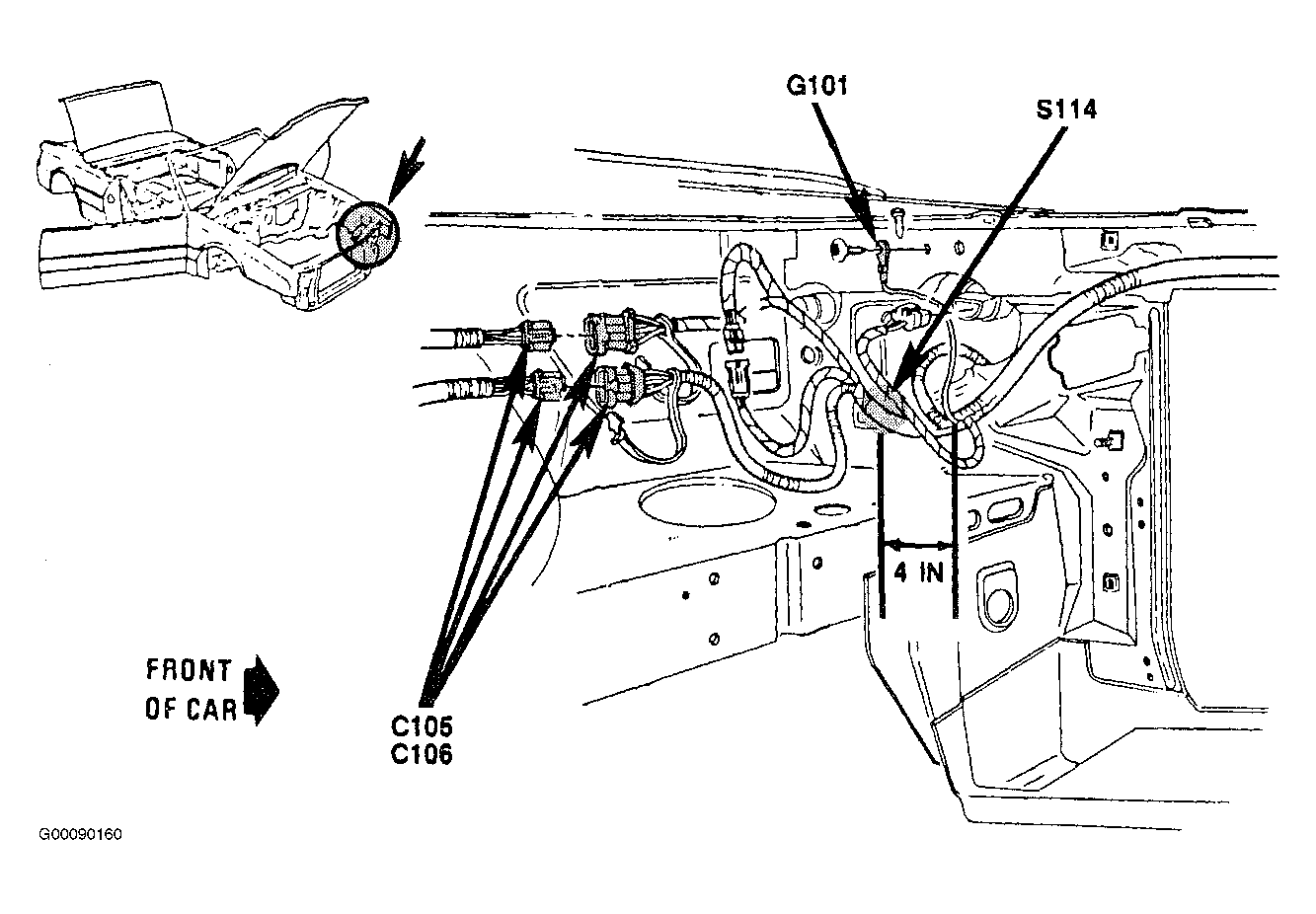

Fig 9: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

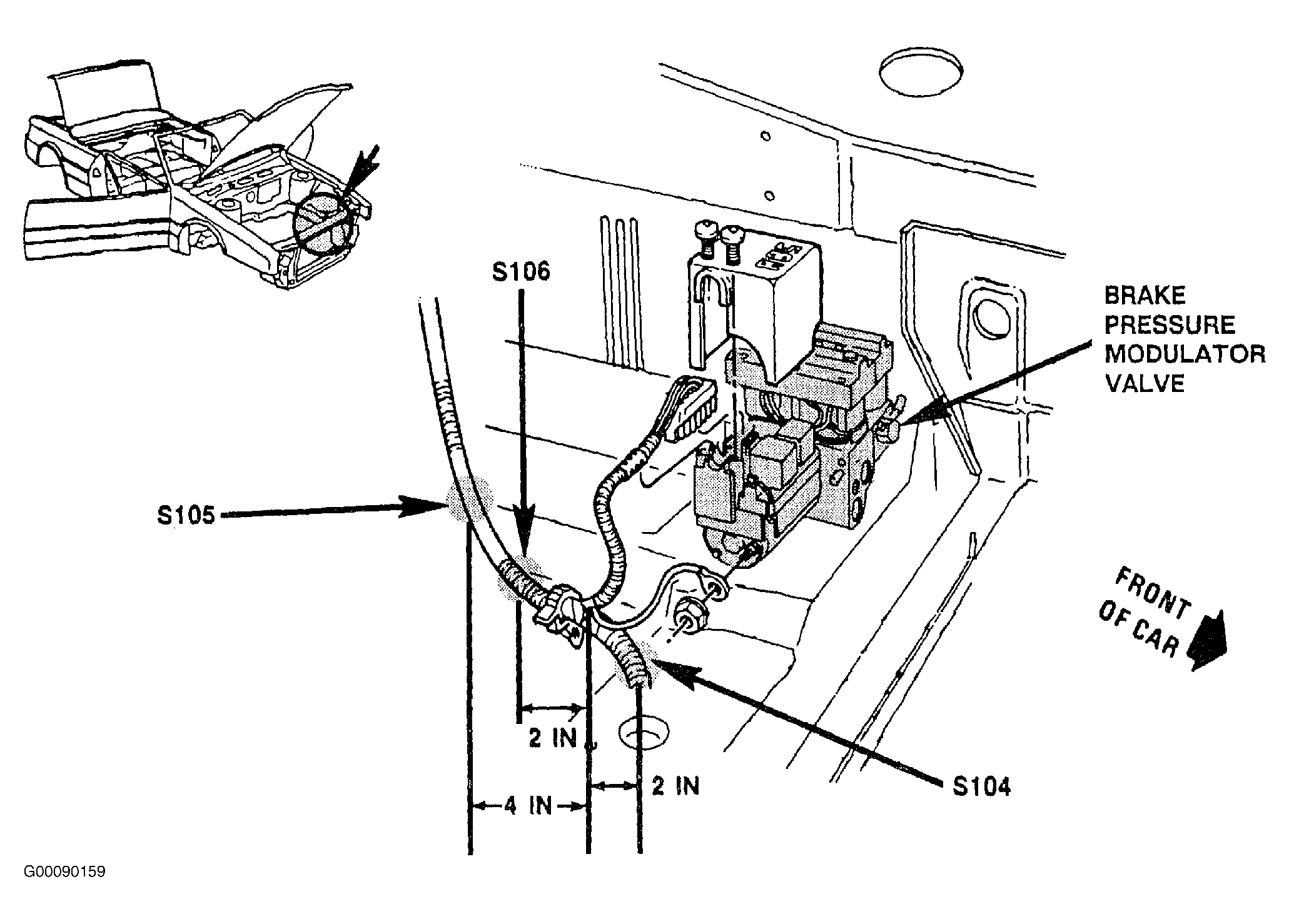

Fig 10: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Rear Of Engine Compartment (Right Similar)
Courtesy of GENERAL MOTORS CORP.

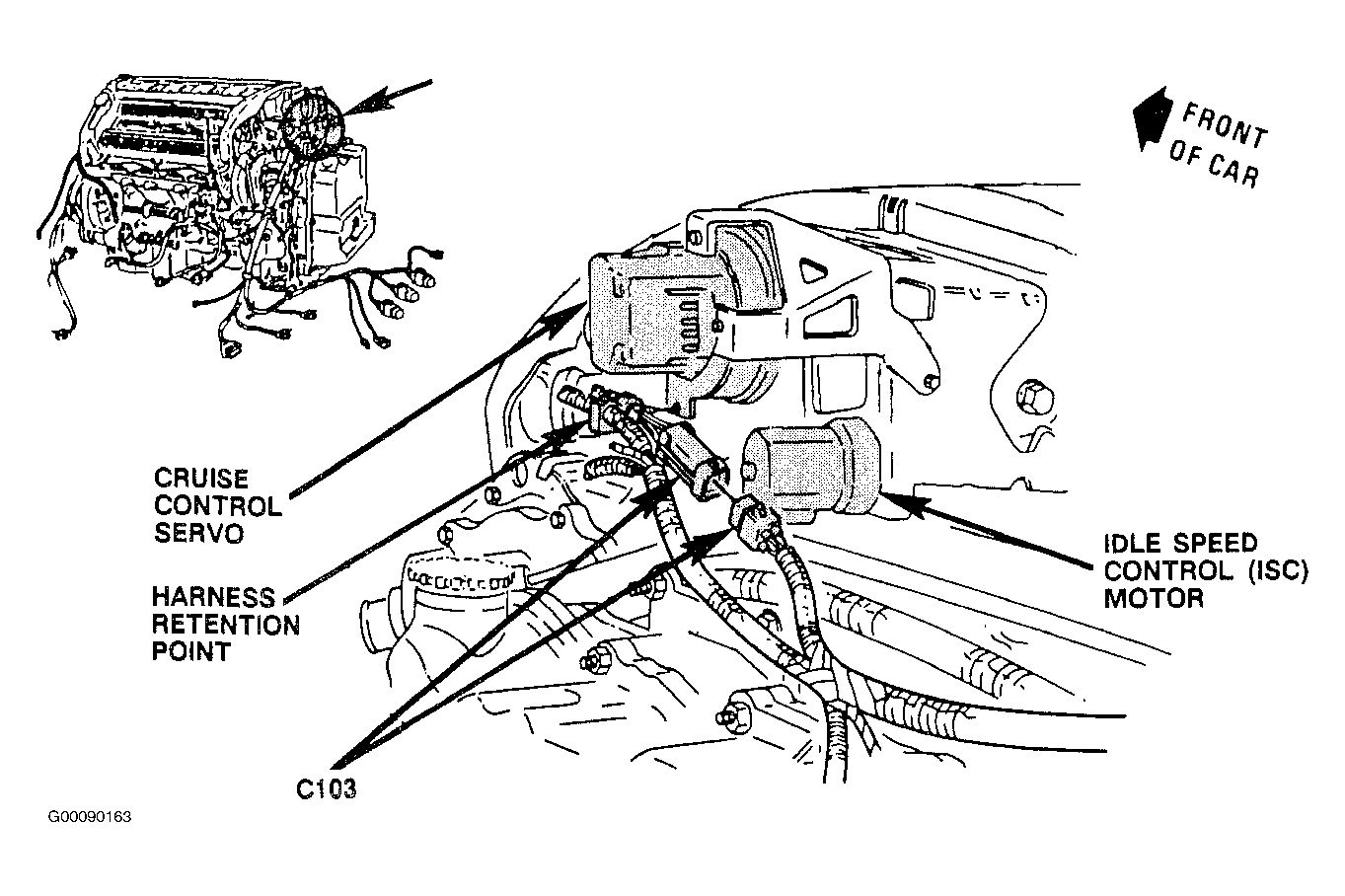

Fig 12: Top Left Side Of Engine (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

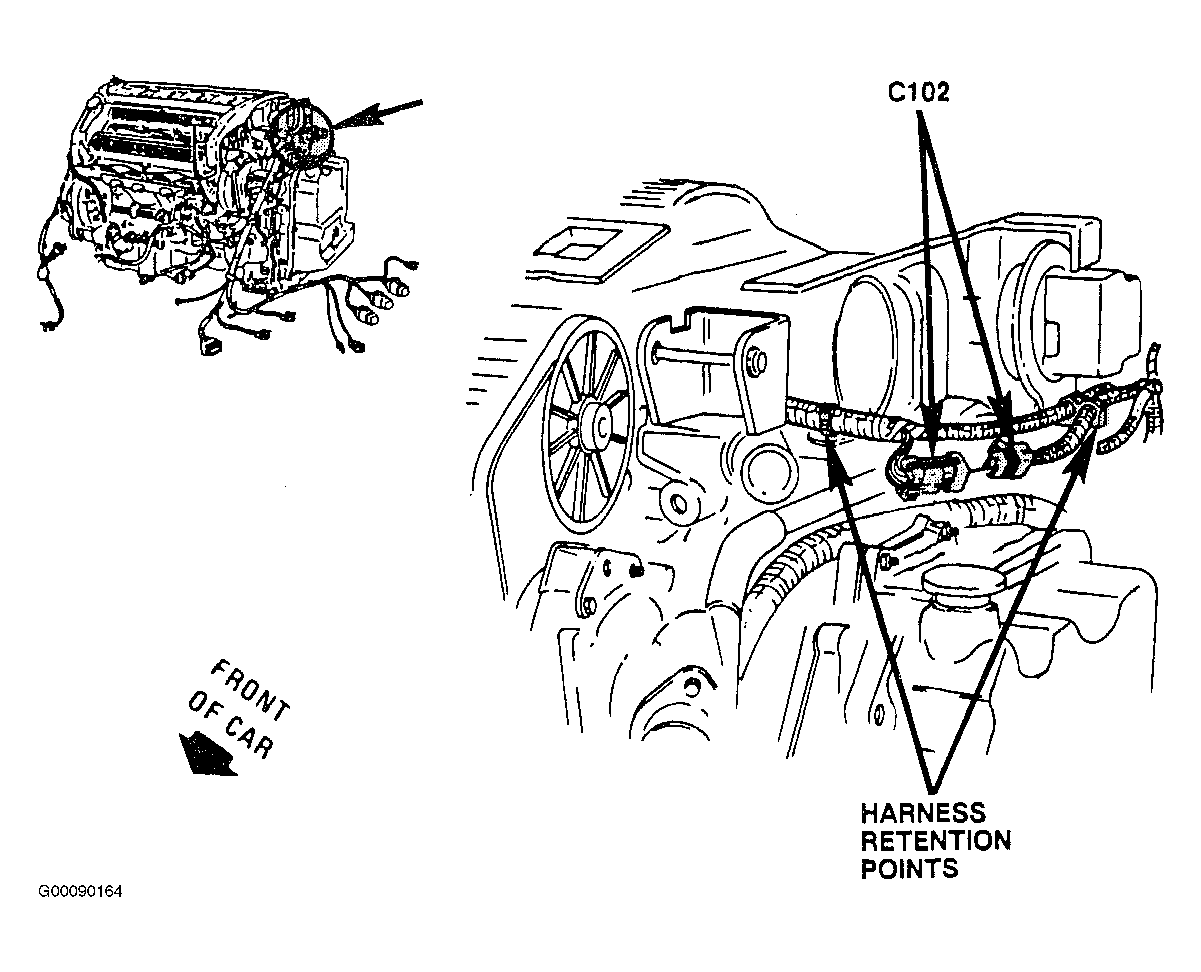

Fig 13: Top Left Side Of Engine (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Top Left Side Of Engine (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Top Left Side Of Engine (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

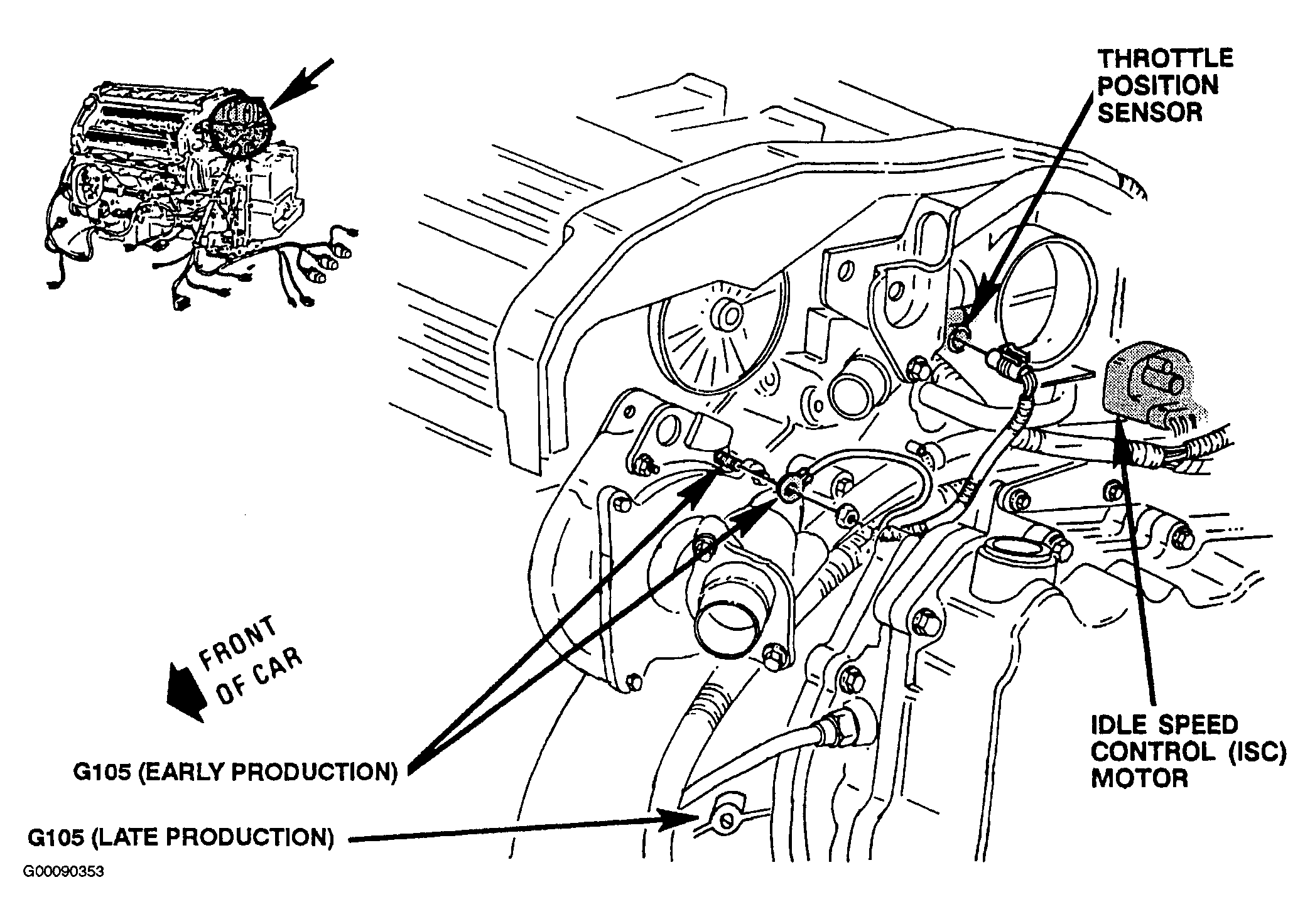

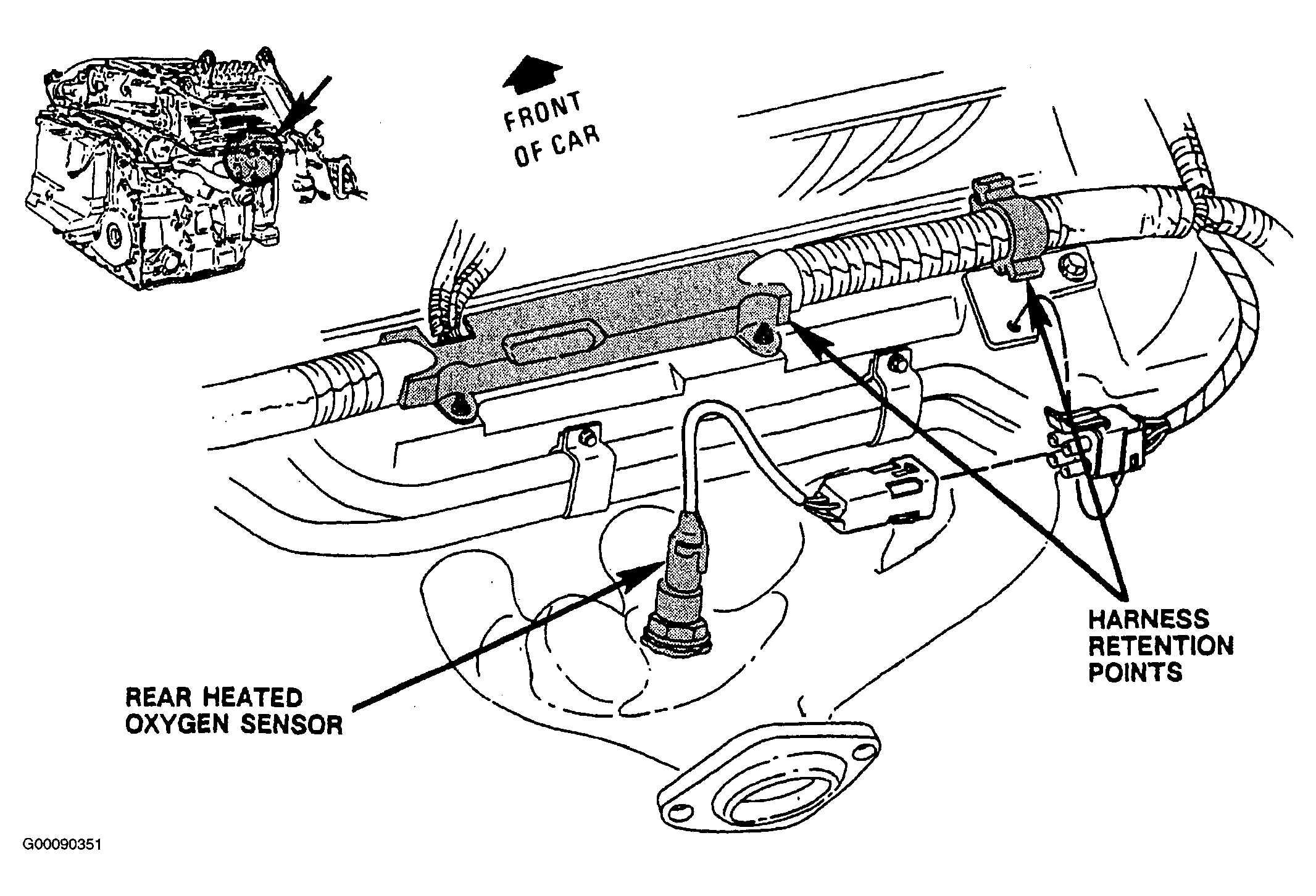

Fig 16: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

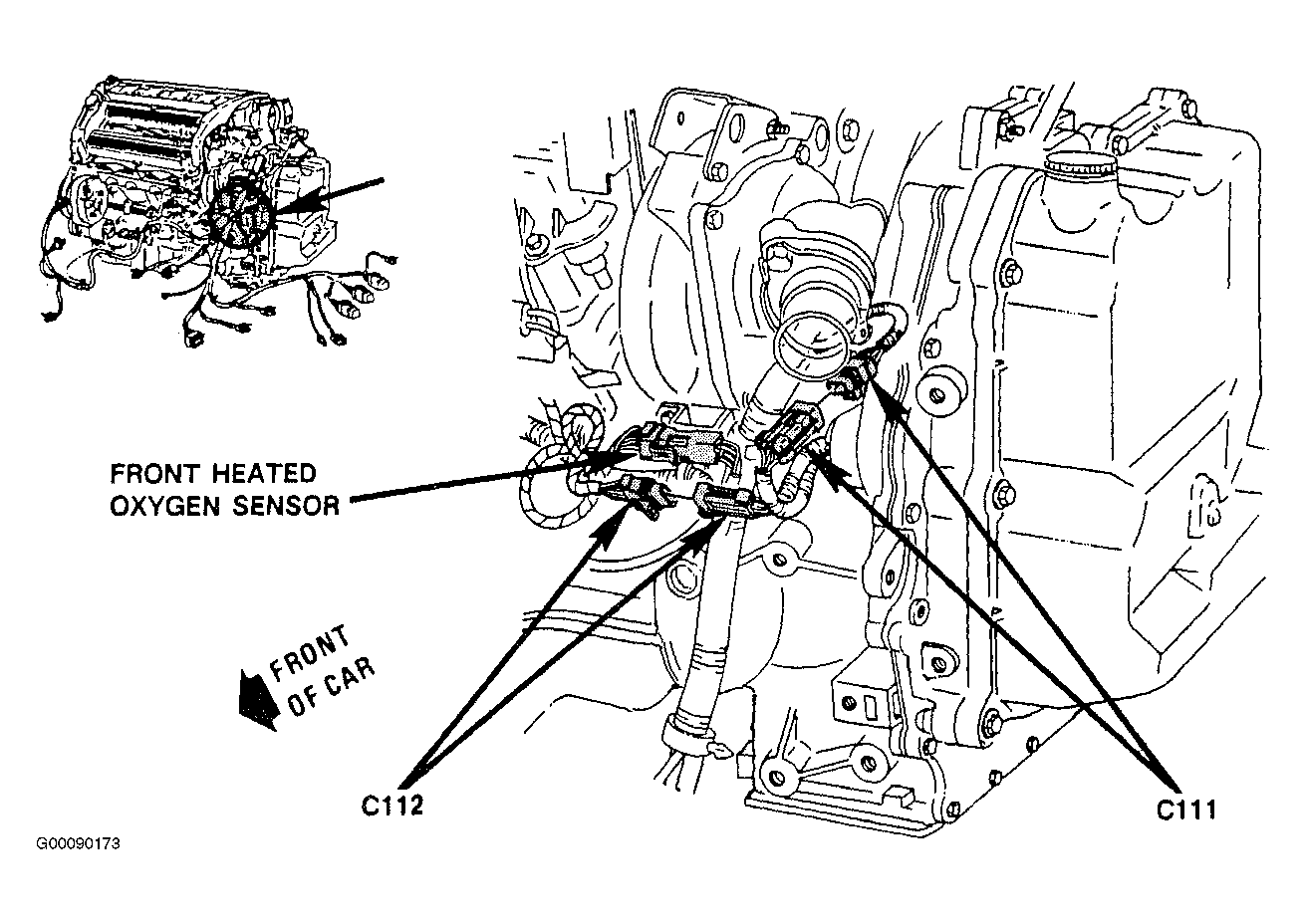

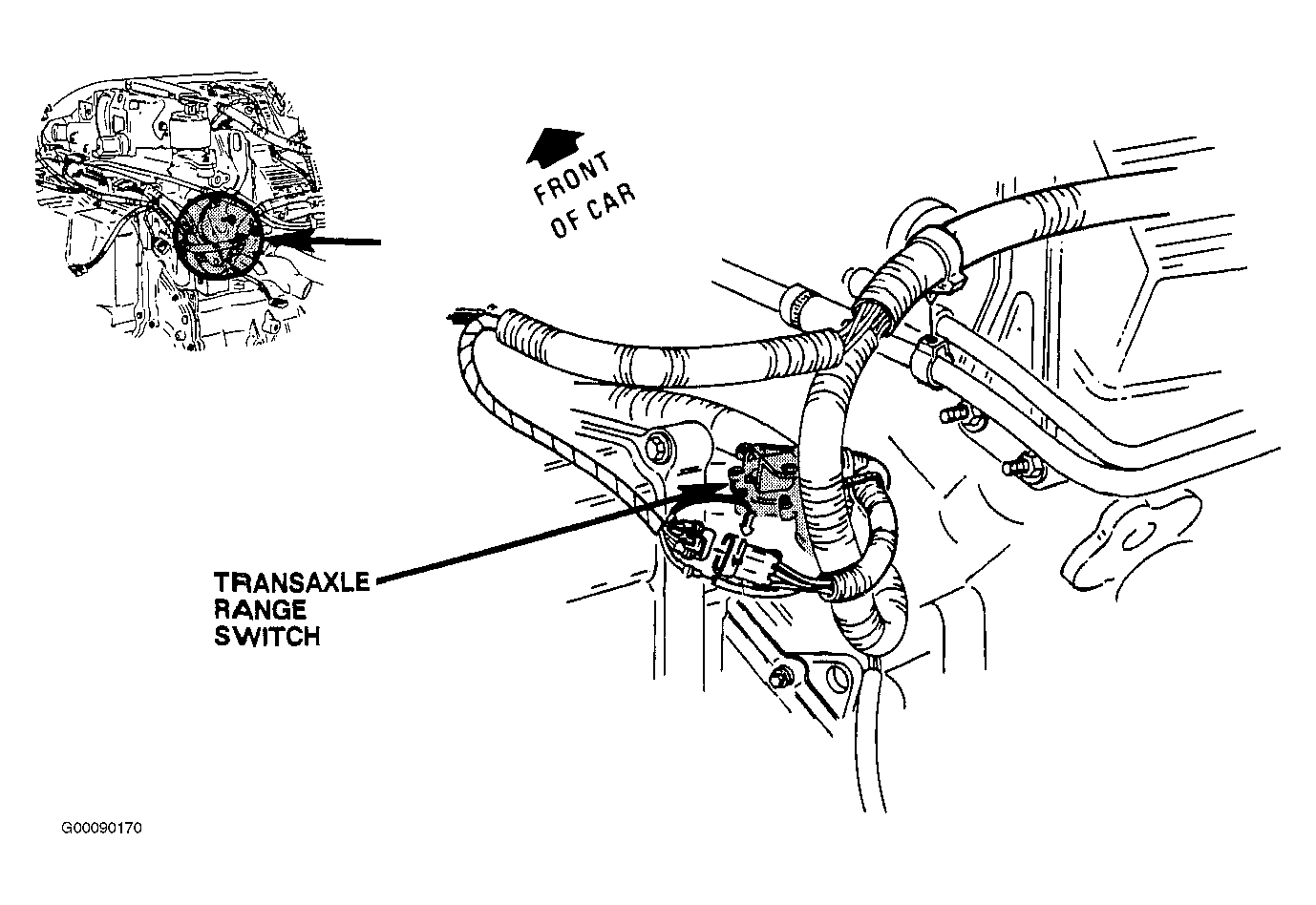

Fig 17: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

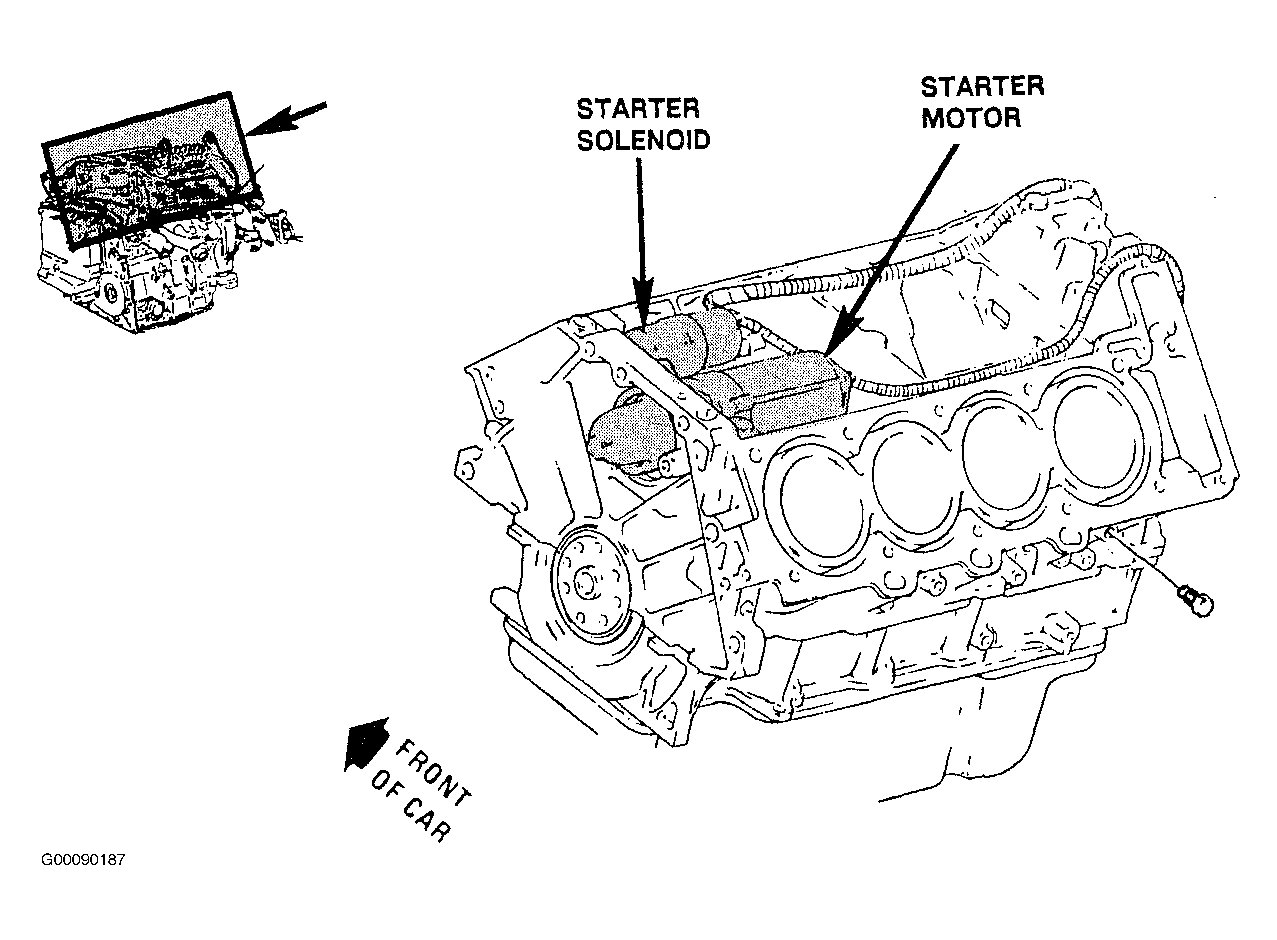

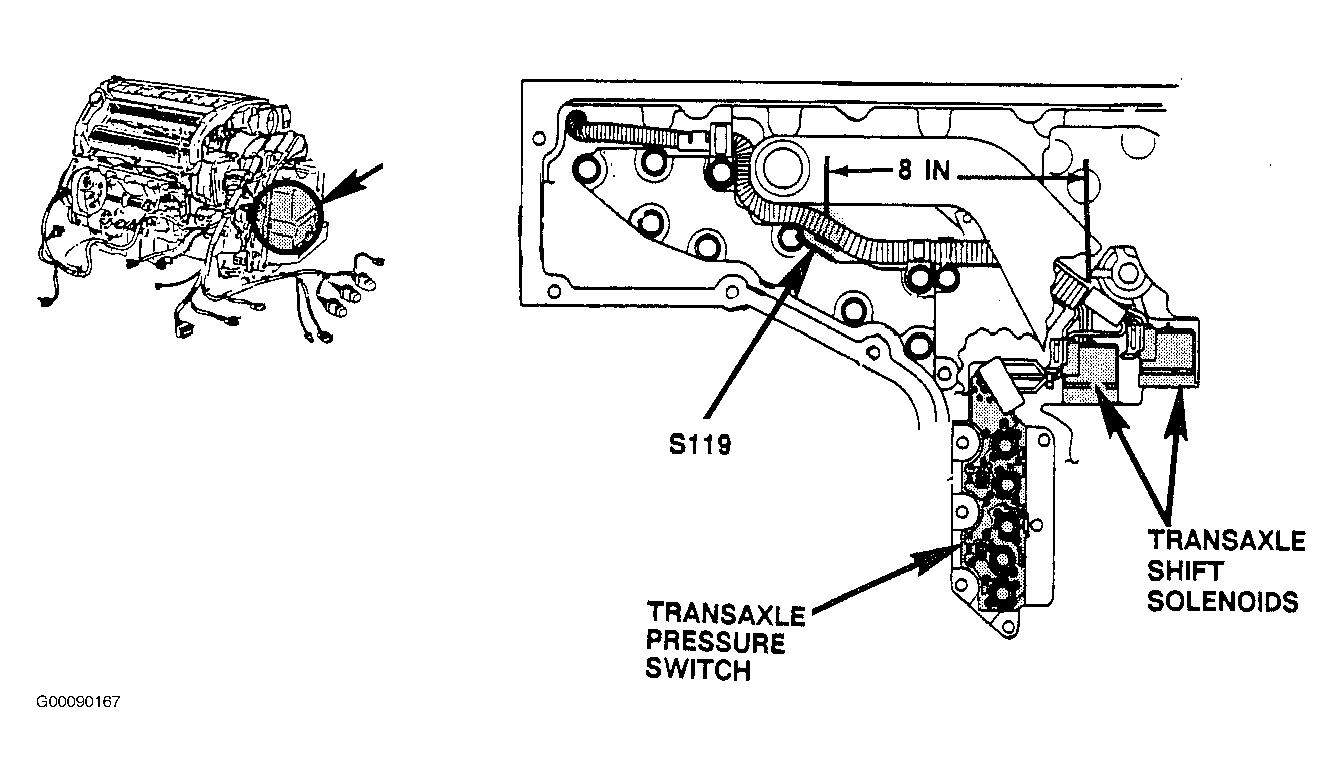

Fig 18: Lower Left Side Of Engine (Transaxle Removed)
Courtesy of GENERAL MOTORS CORP.

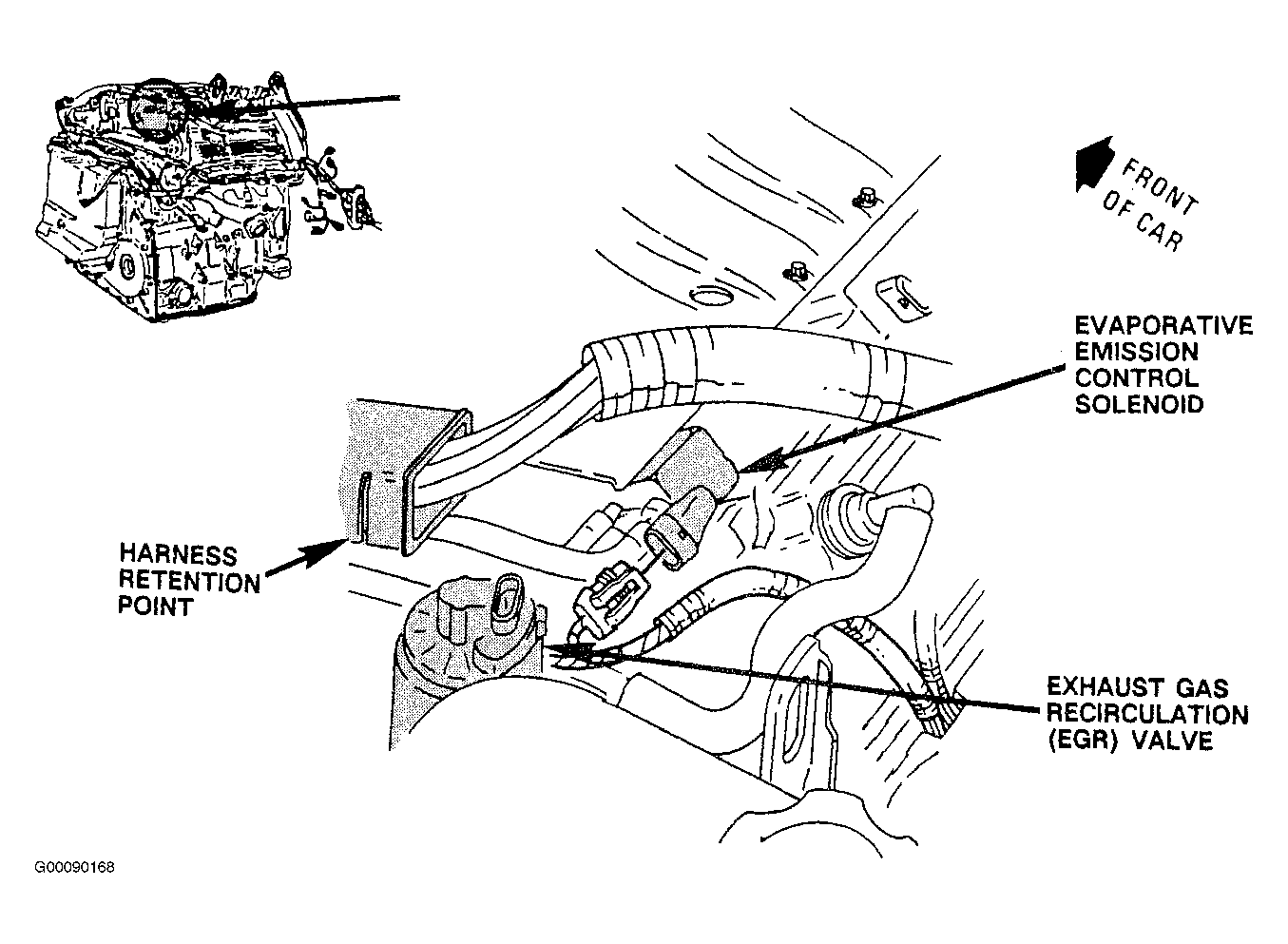

Fig 19: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

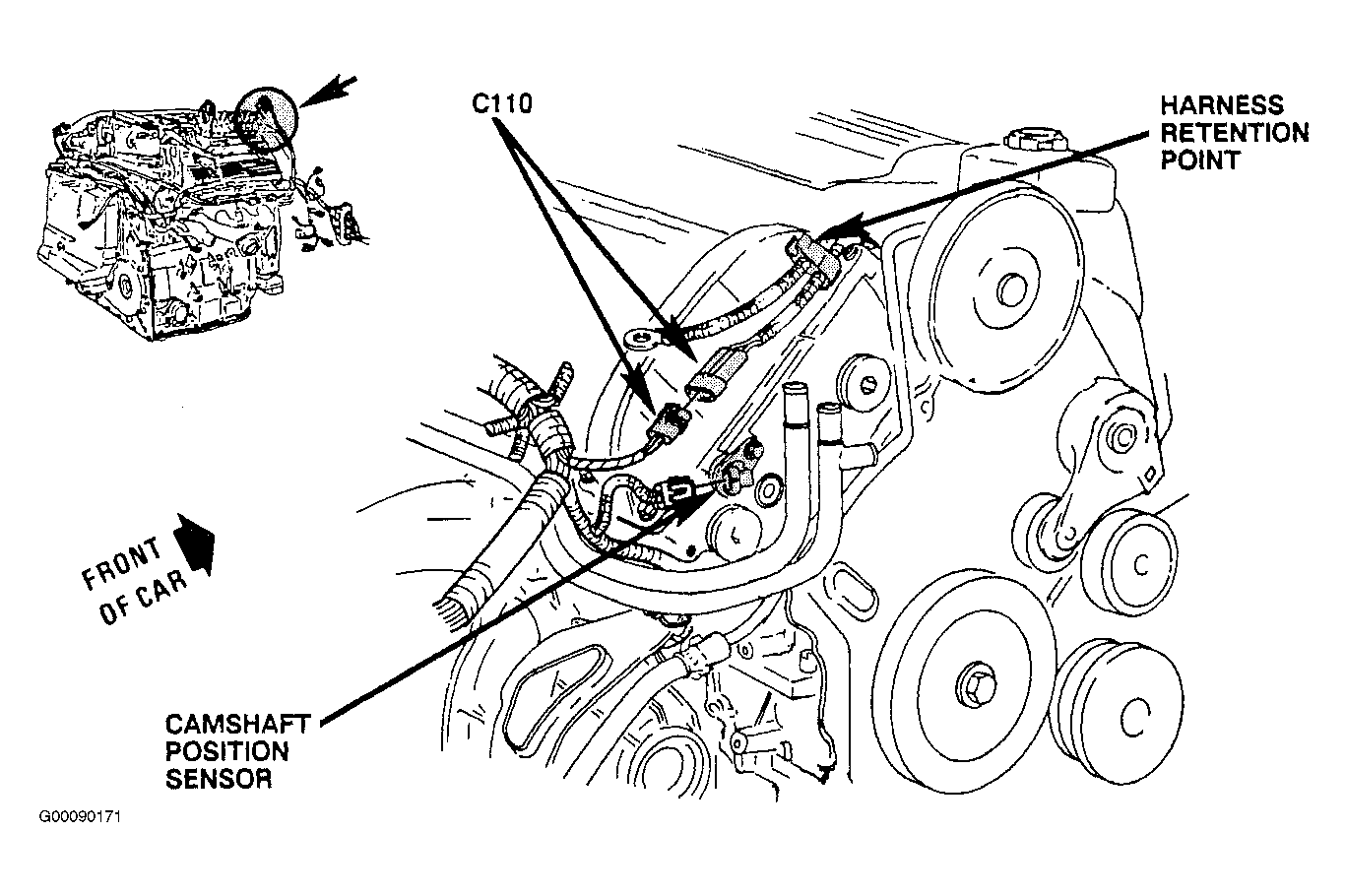

Fig 20: Right Side Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Right Side Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

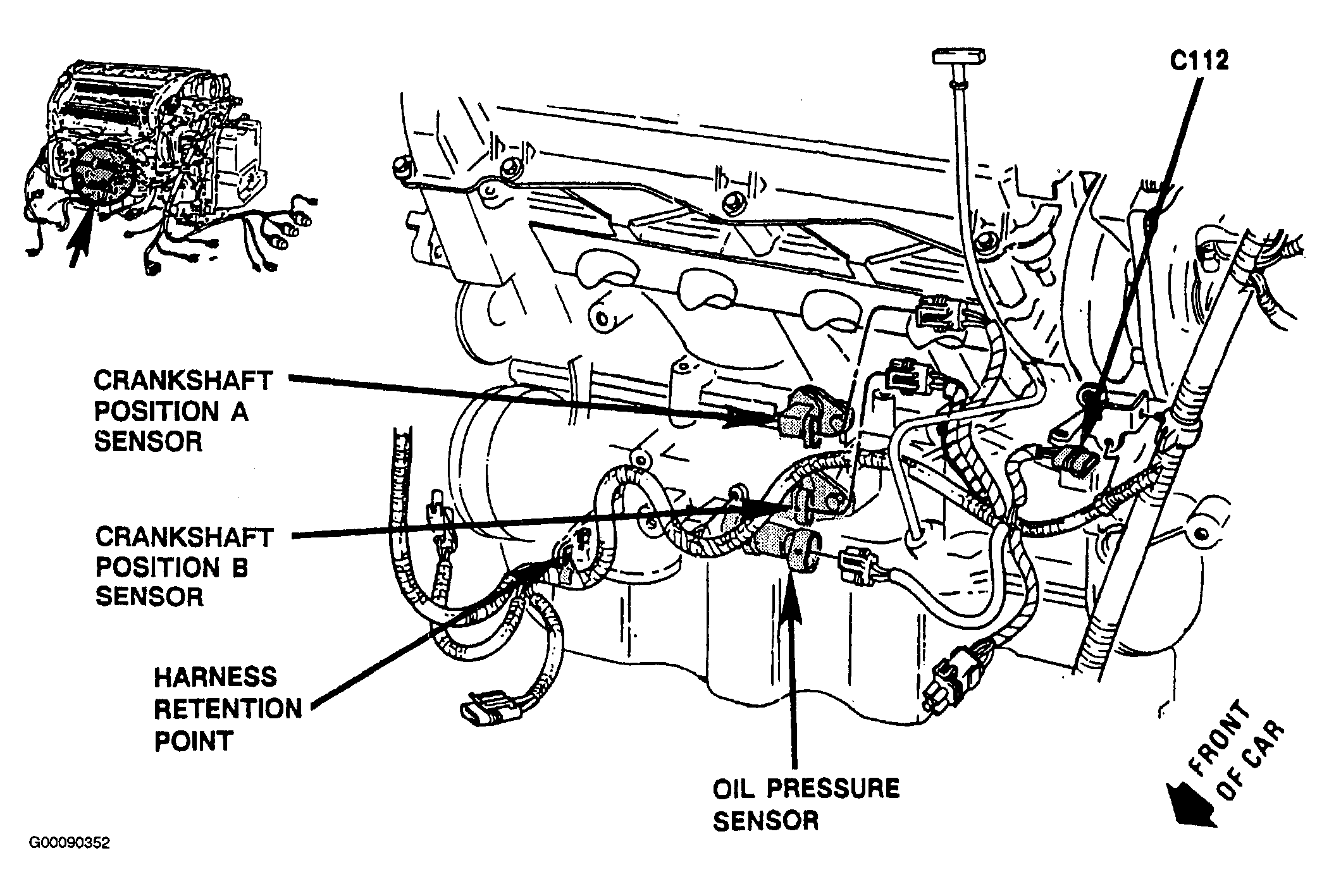

Fig 22: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

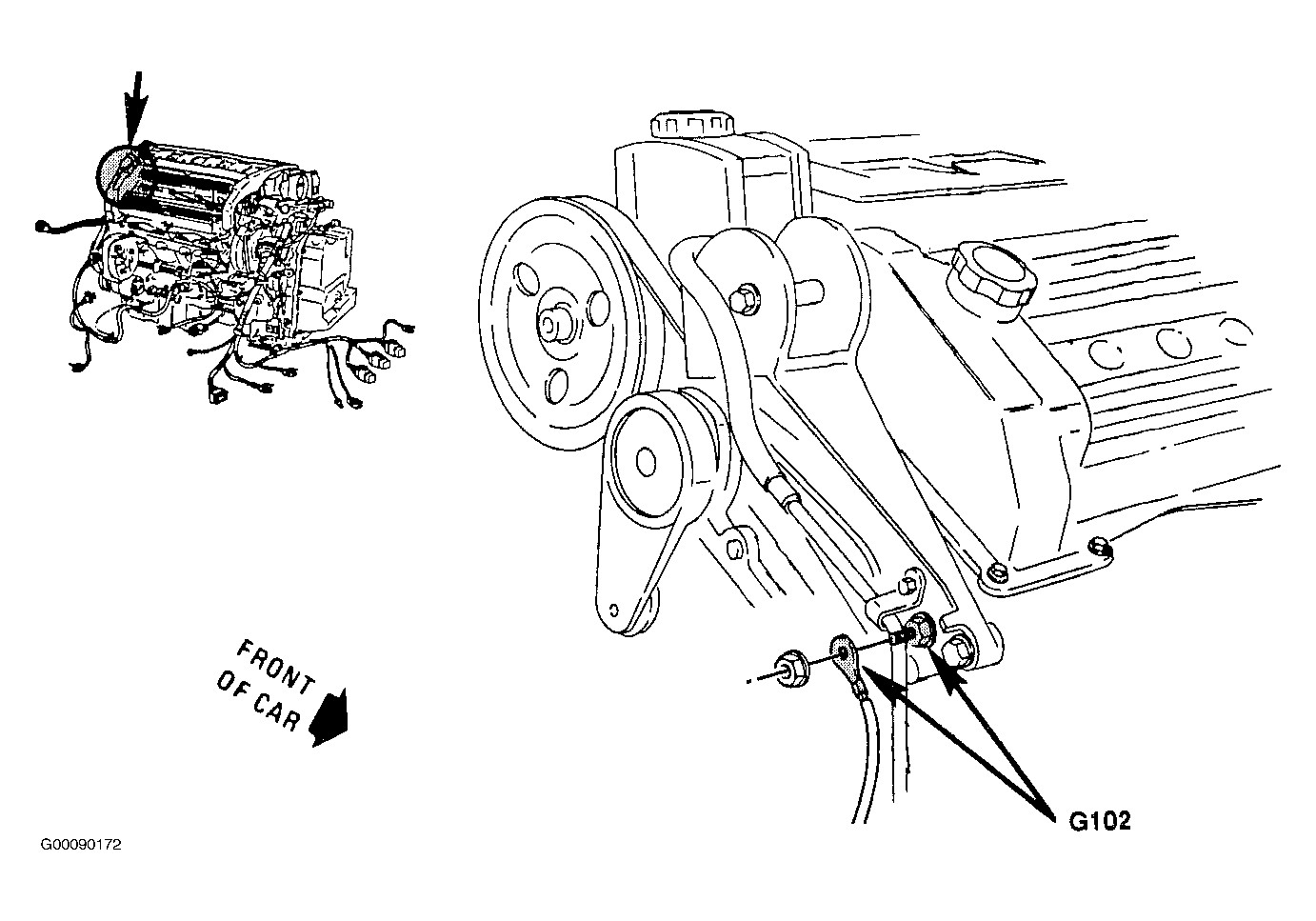

Fig 23: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.

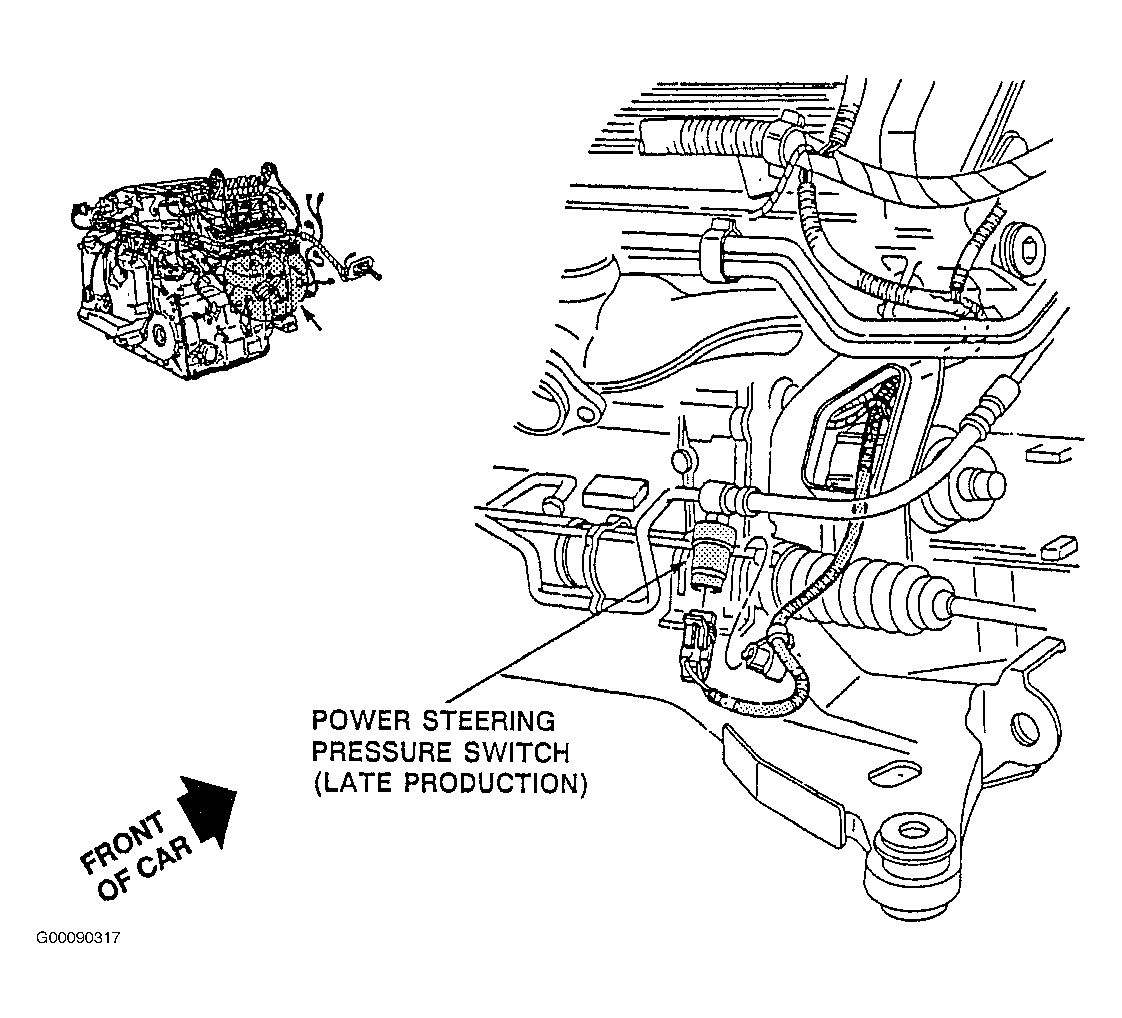

Fig 24: Lower Right Front Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Lower Right Front Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Lower Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

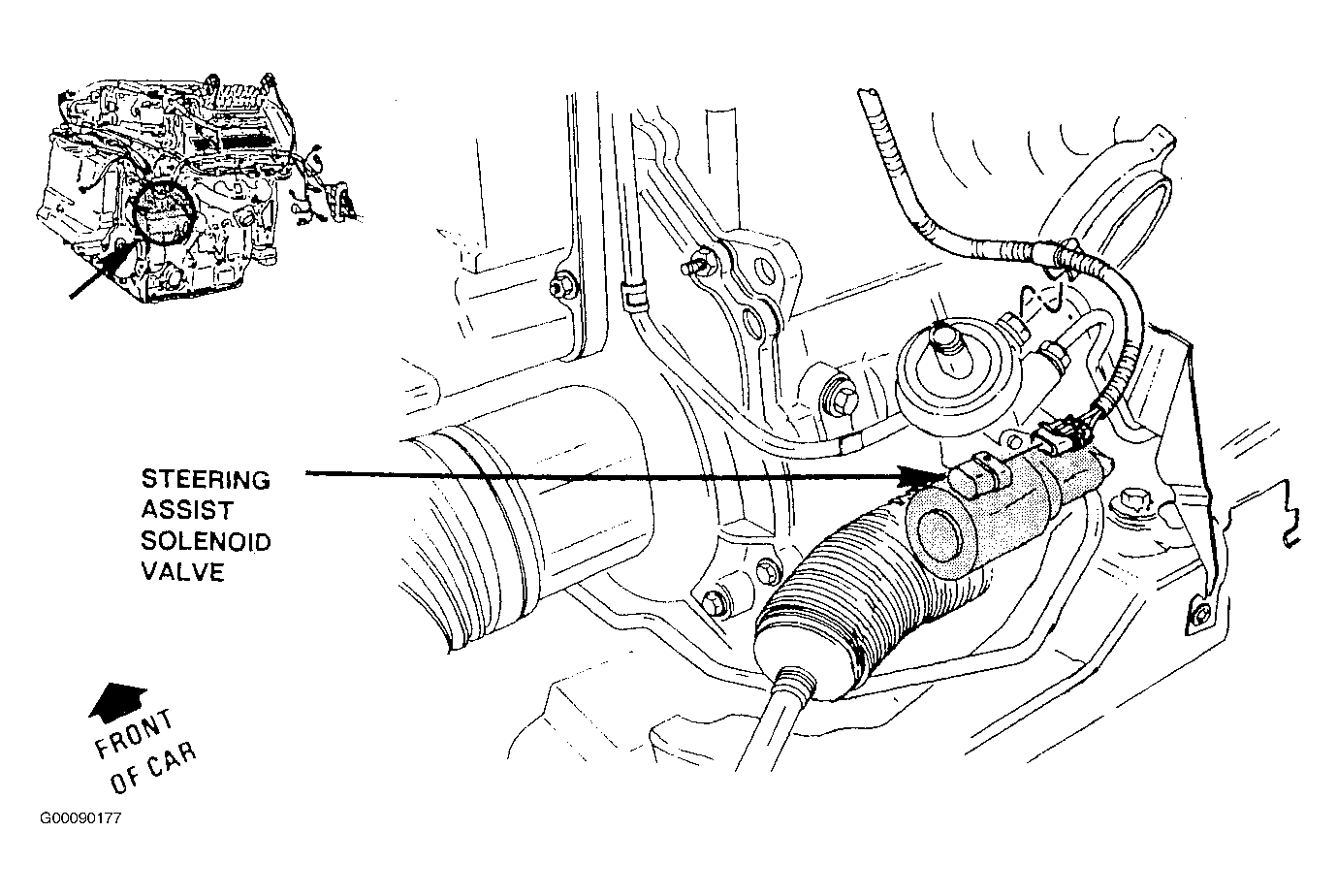

Fig 27: Lower Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

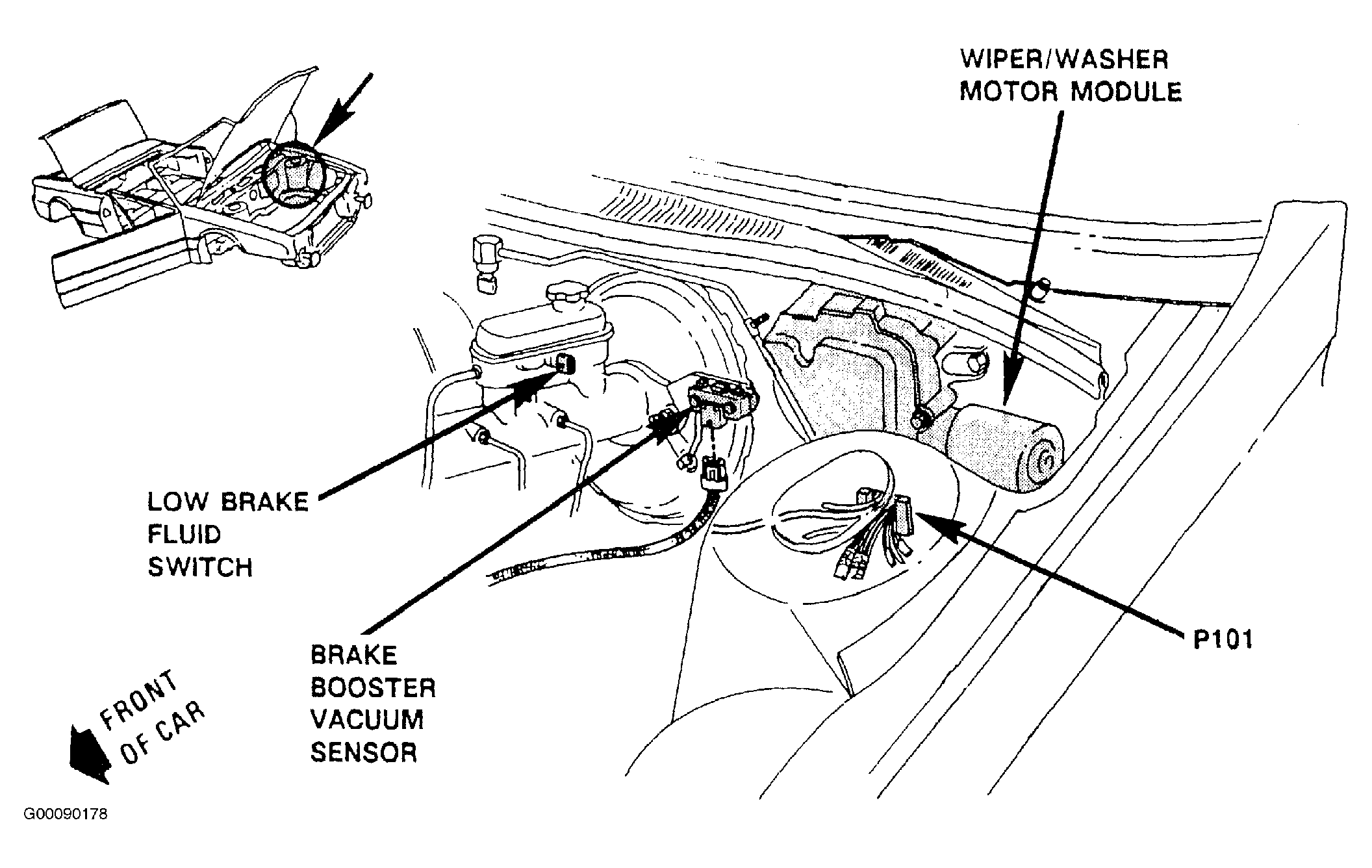

Fig 28: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

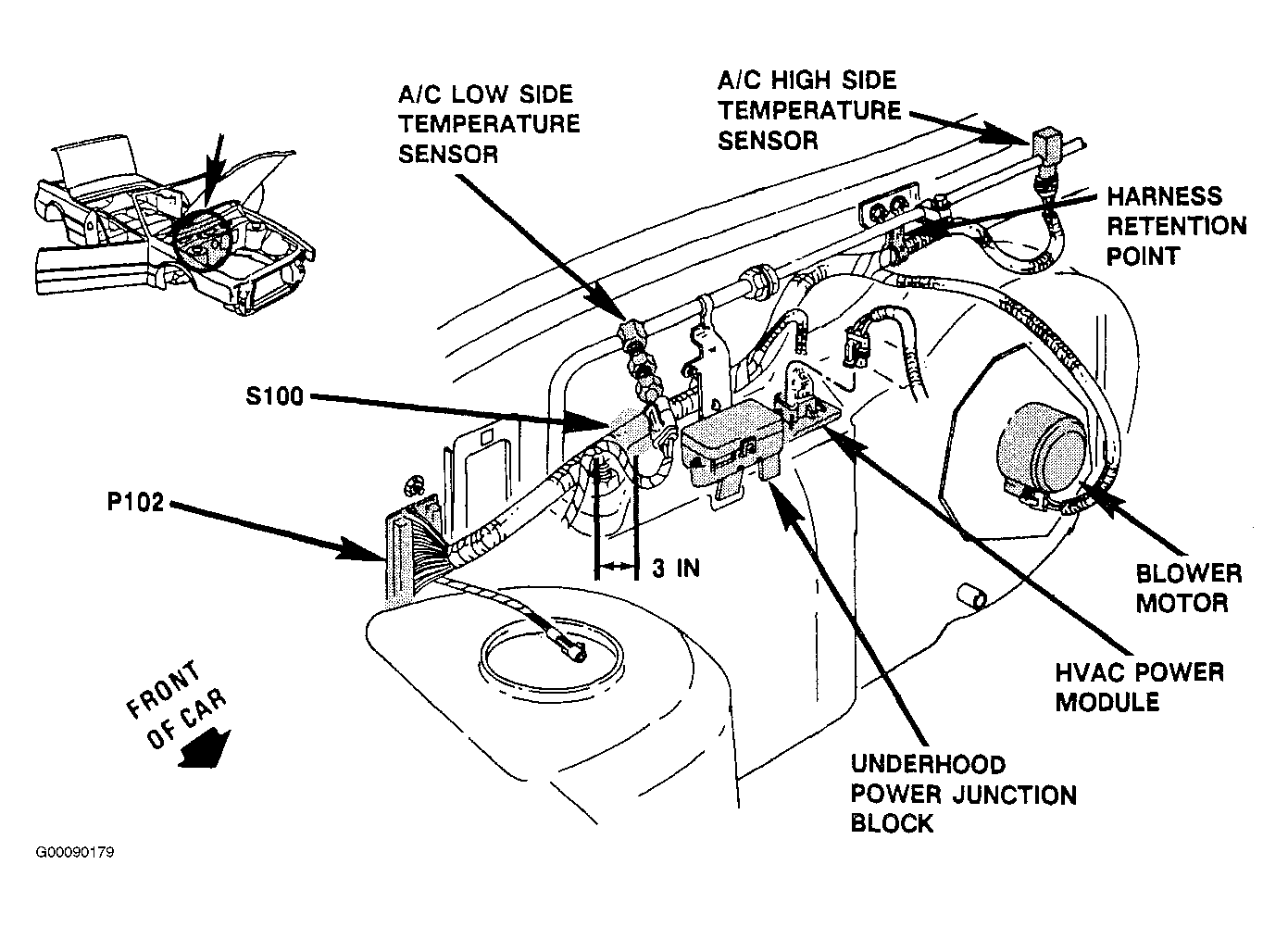

Fig 30: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

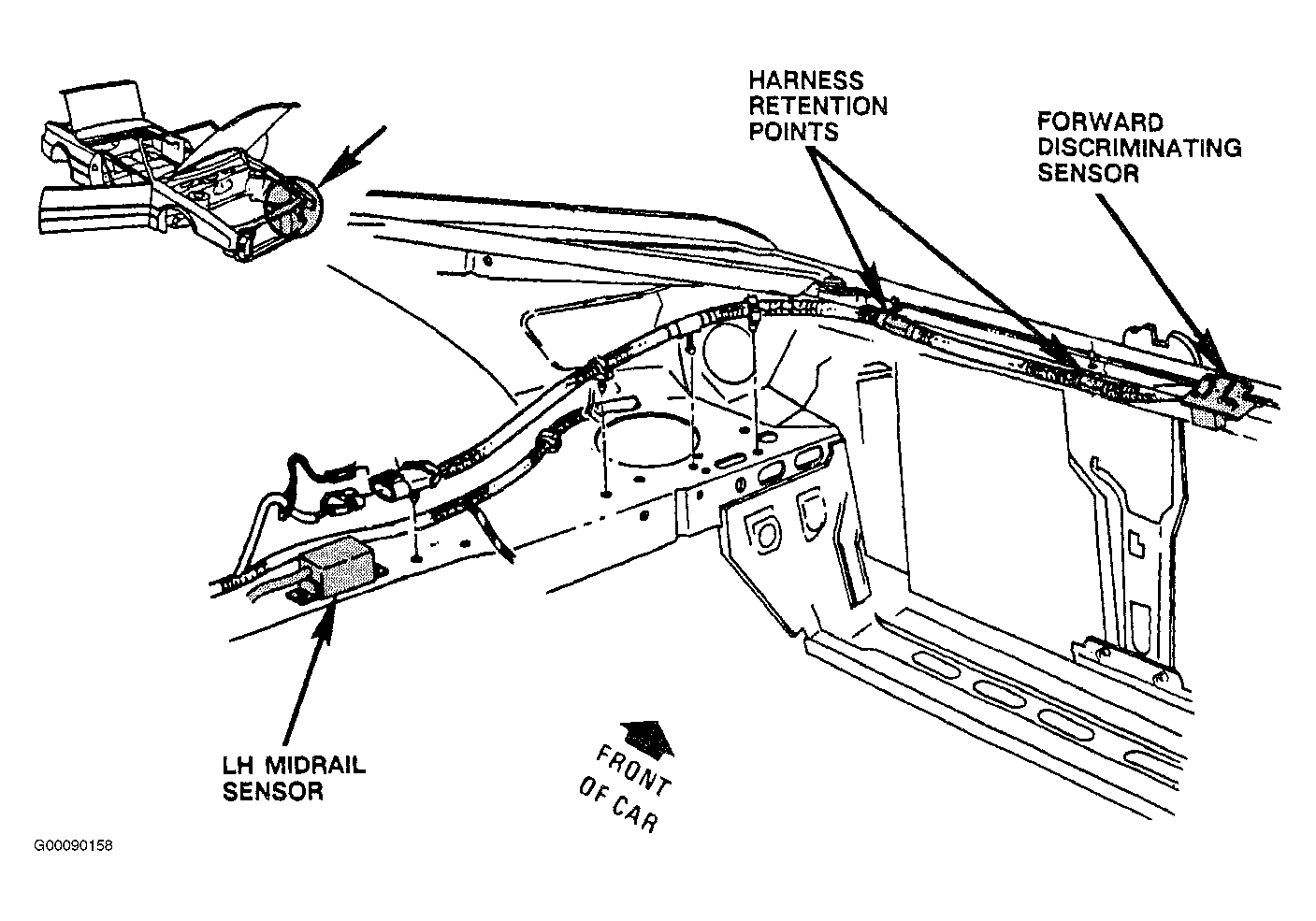

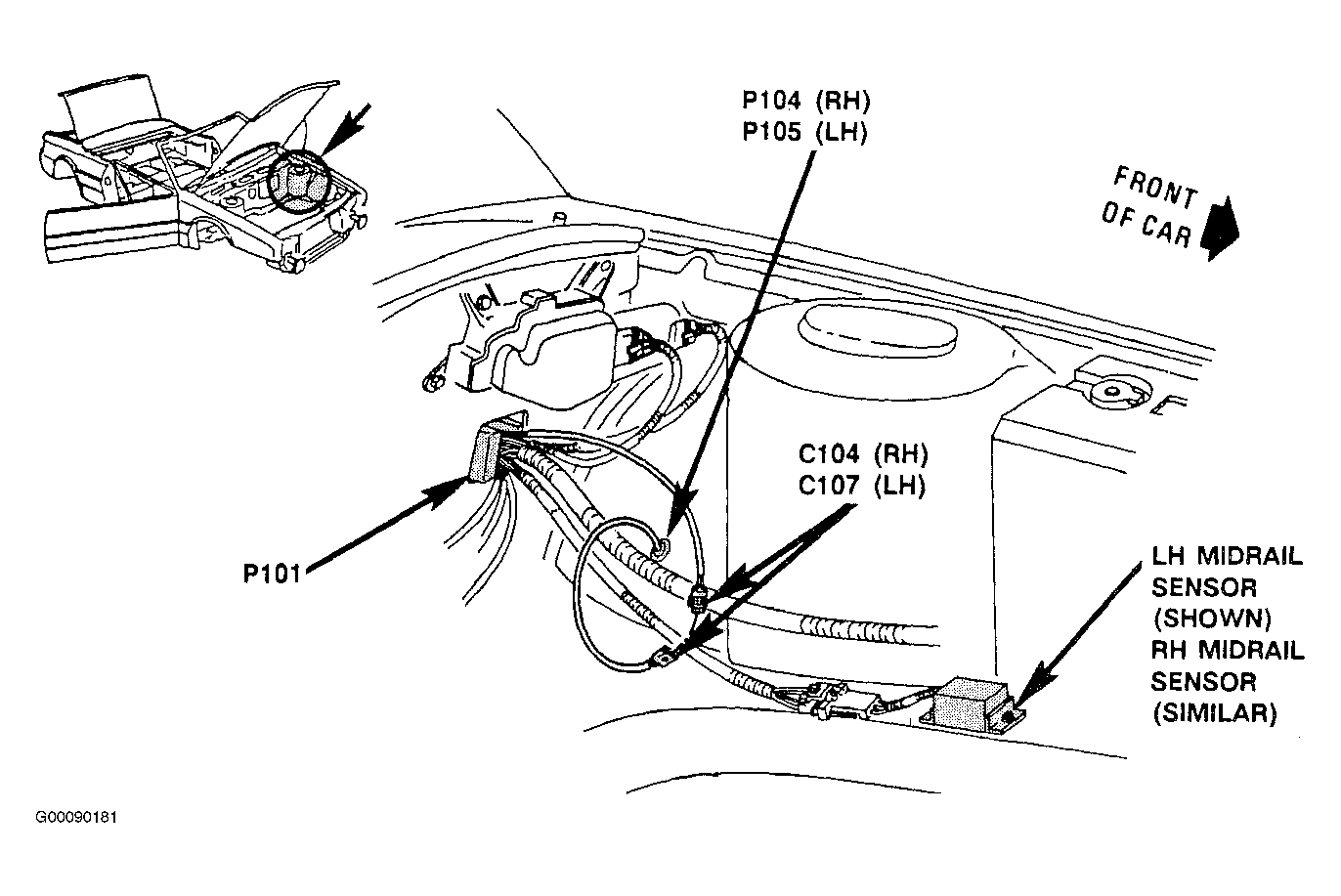

Fig 31: Left Side Of Engine Compartment (Right Similar)
Courtesy of GENERAL MOTORS CORP.

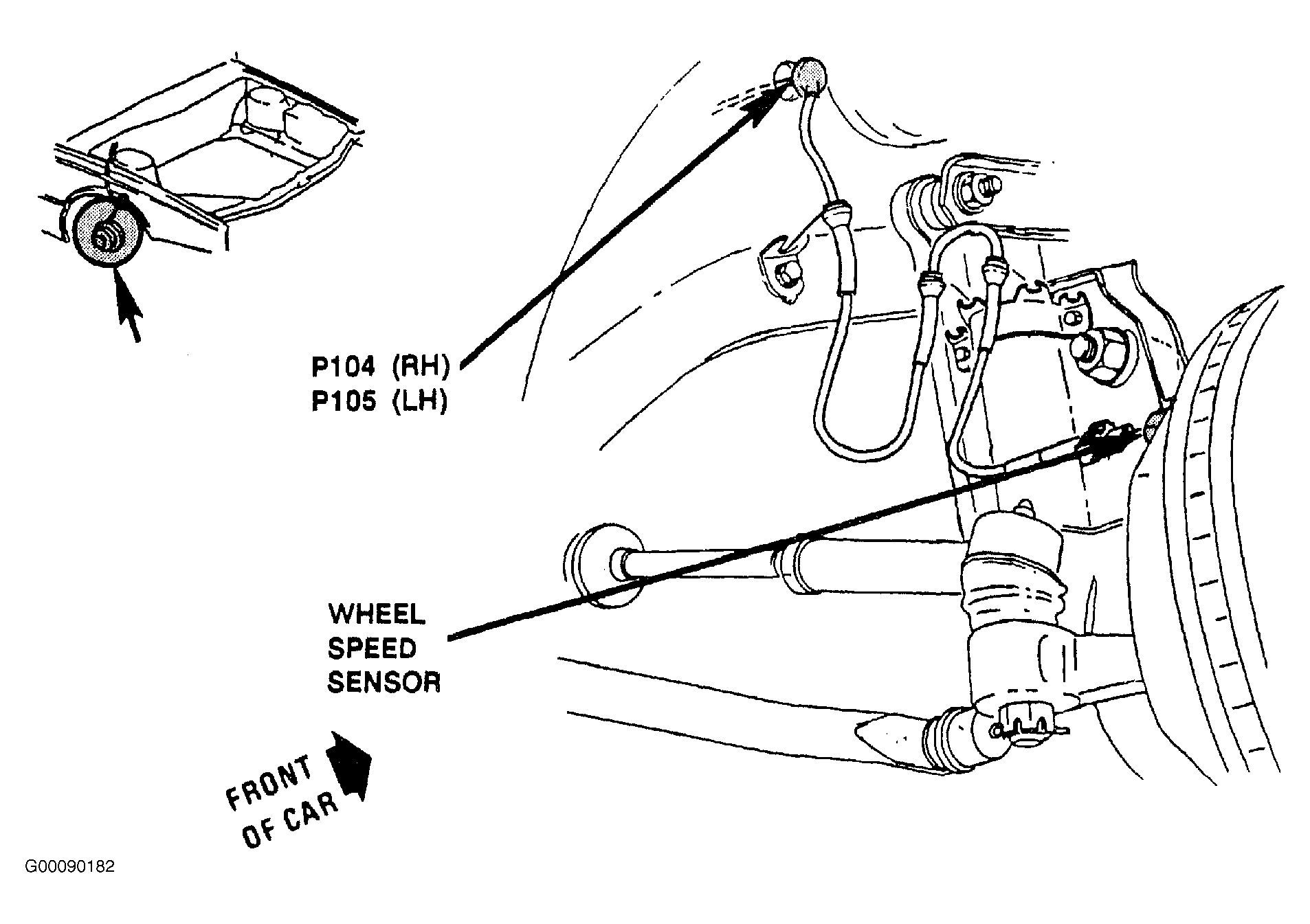

Fig 32: Right Front Wheelhouse (Left Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Lower Right Front Of Car
Courtesy of GENERAL MOTORS CORP.

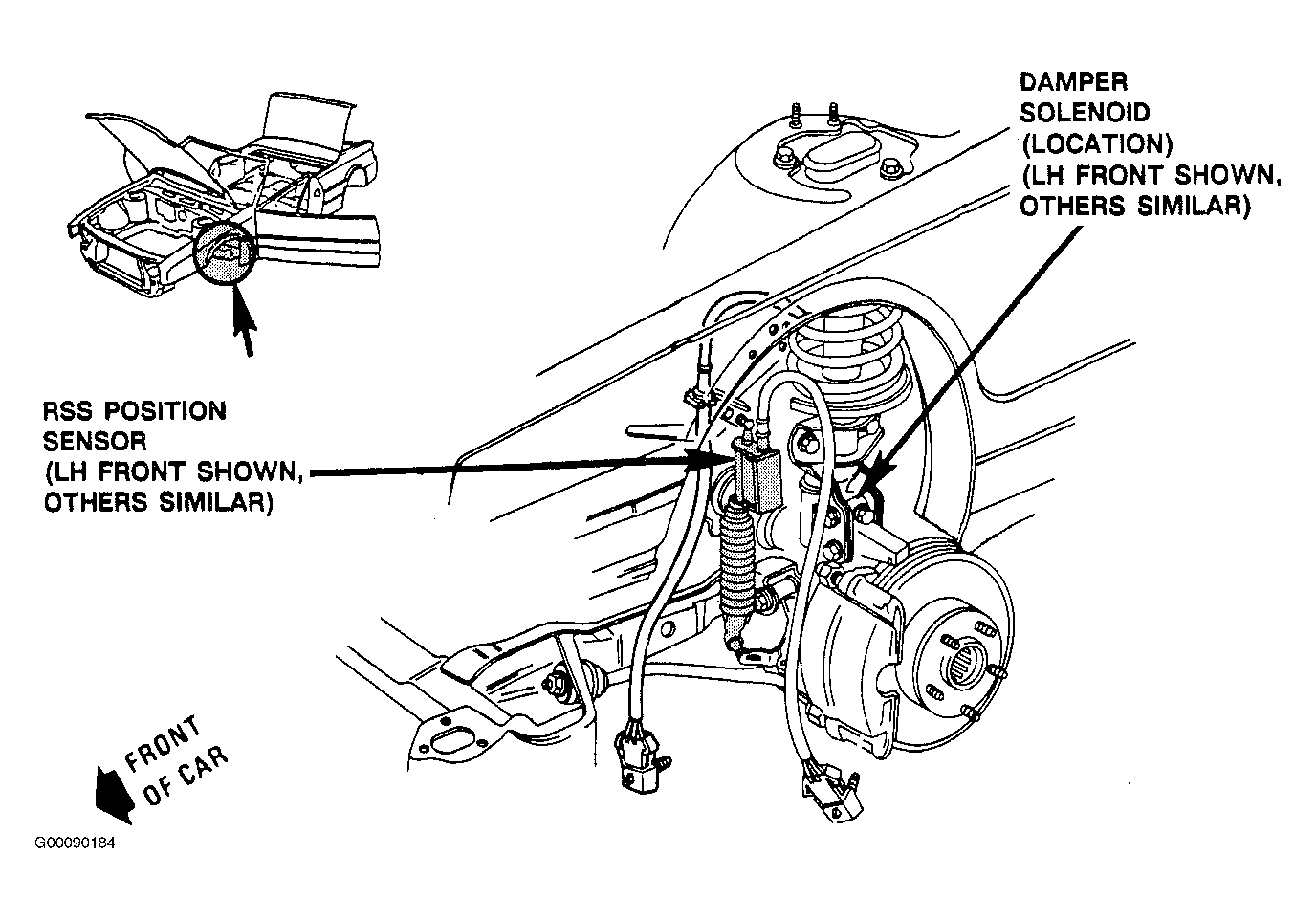

Fig 34: Left Front Wheelhouse
Courtesy of GENERAL MOTORS CORP.

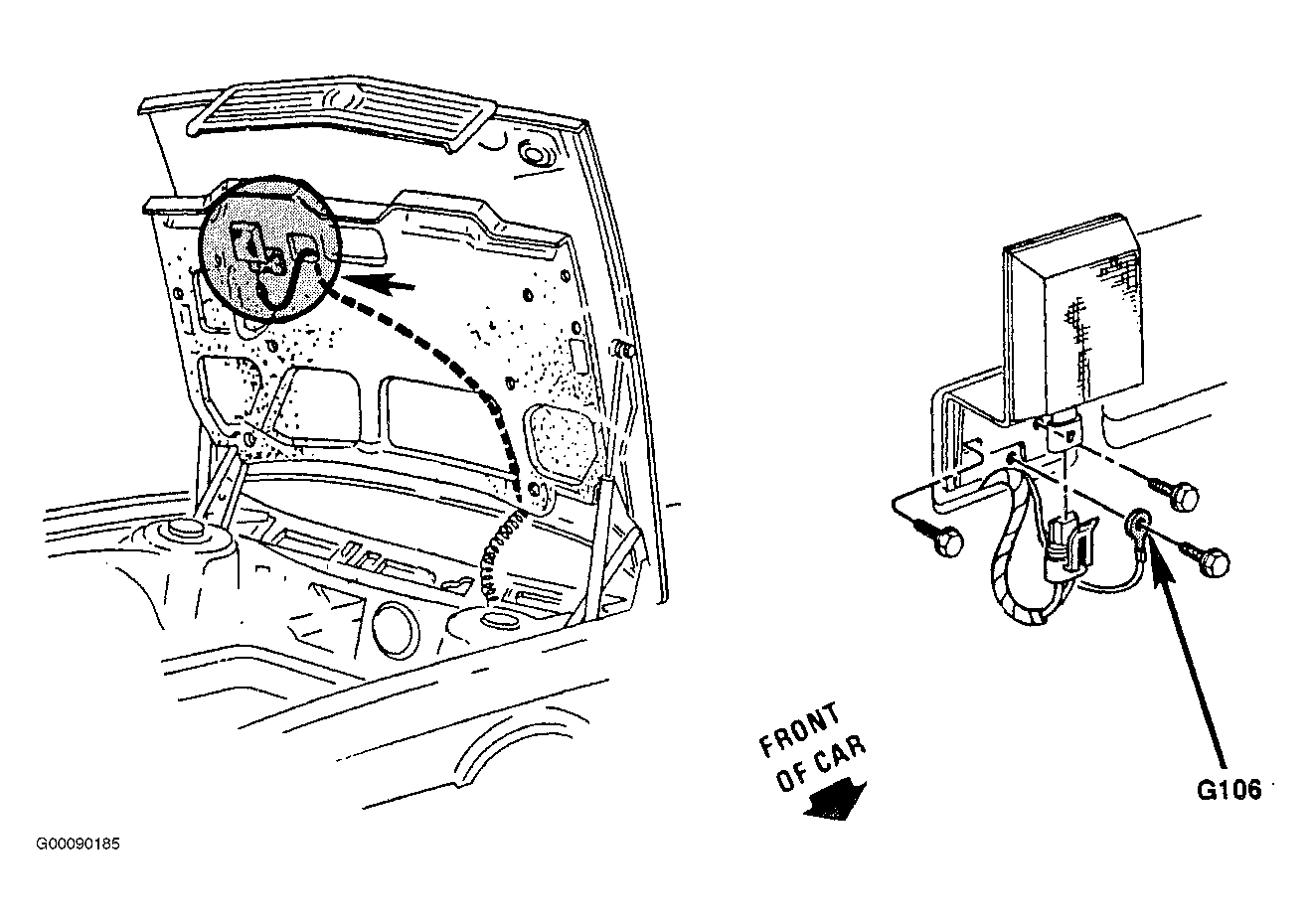

Fig 35: Underside Of Hood
Courtesy of GENERAL MOTORS CORP.
Fig 36: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

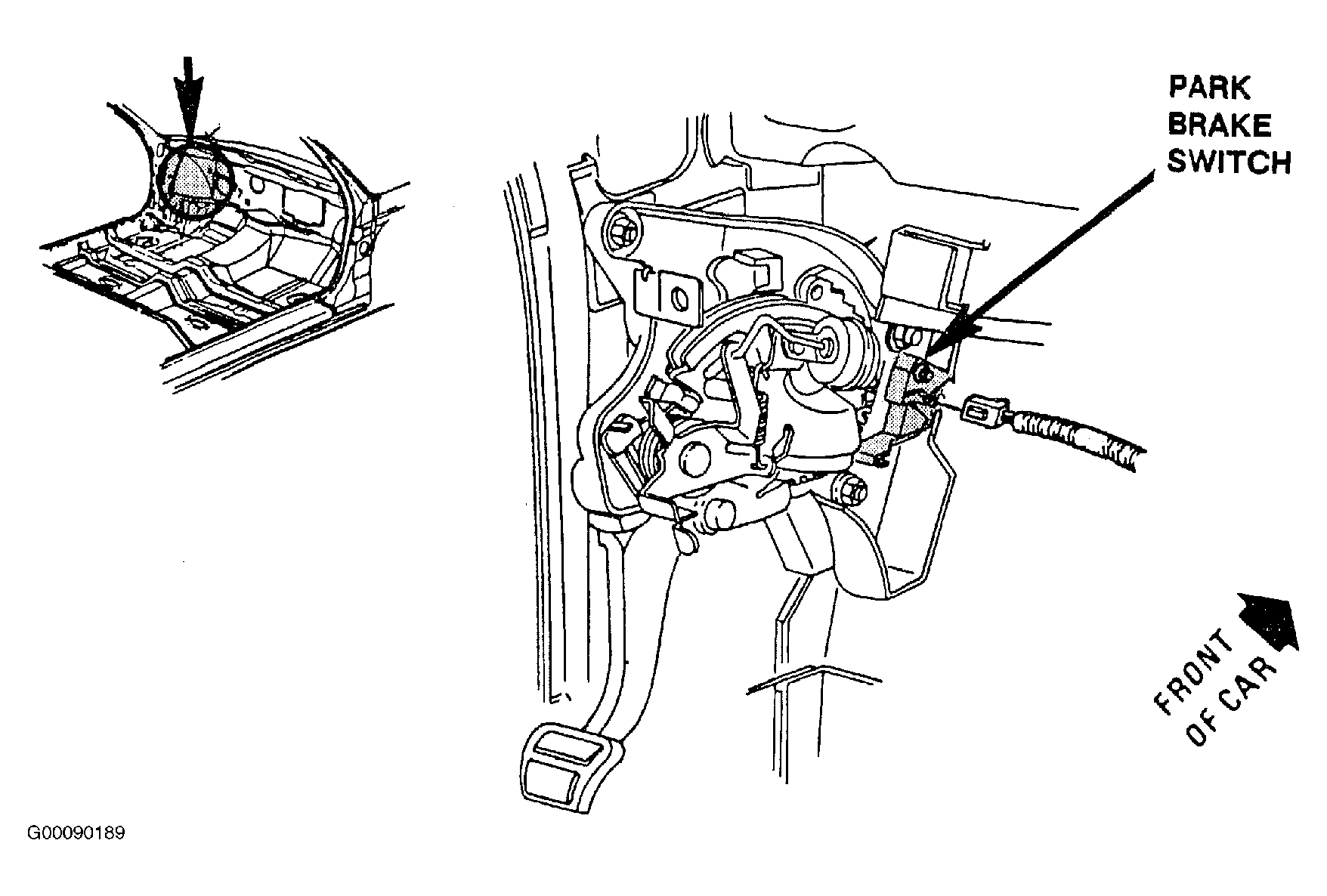

Fig 37: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.
Fig 38: At Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

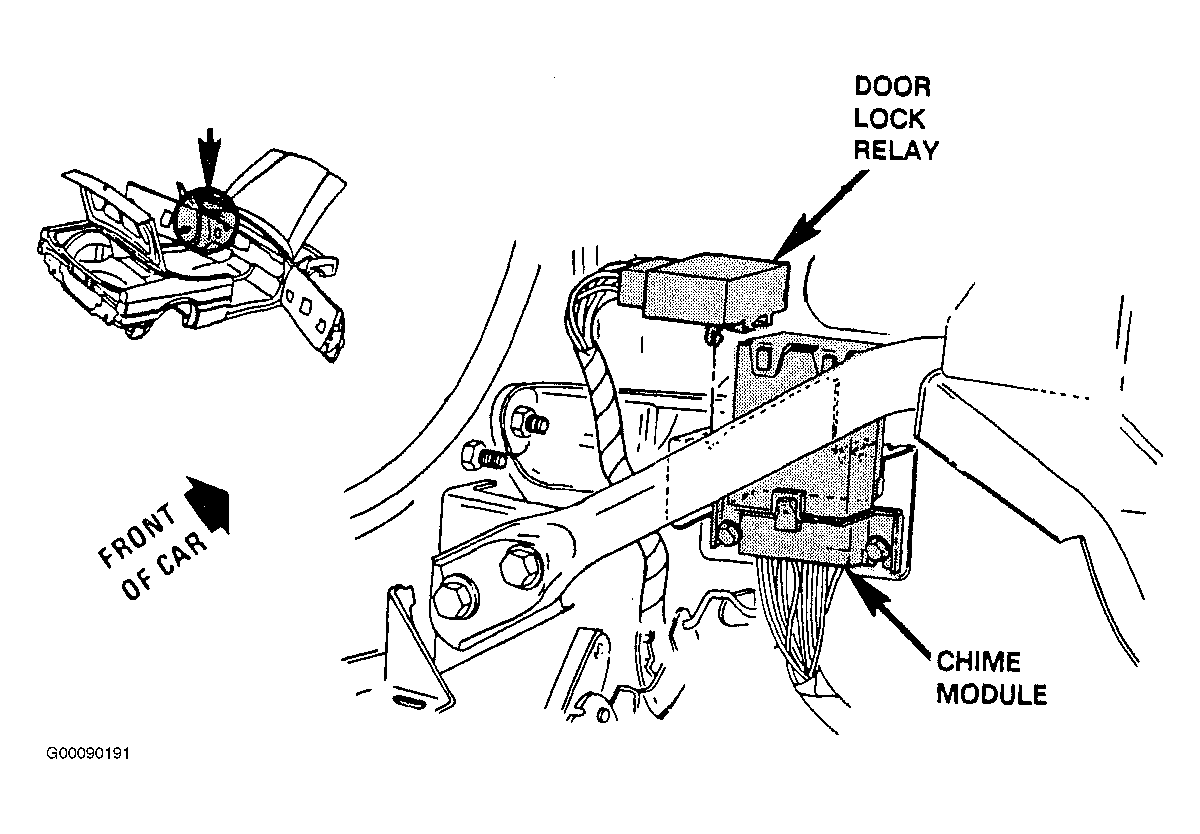

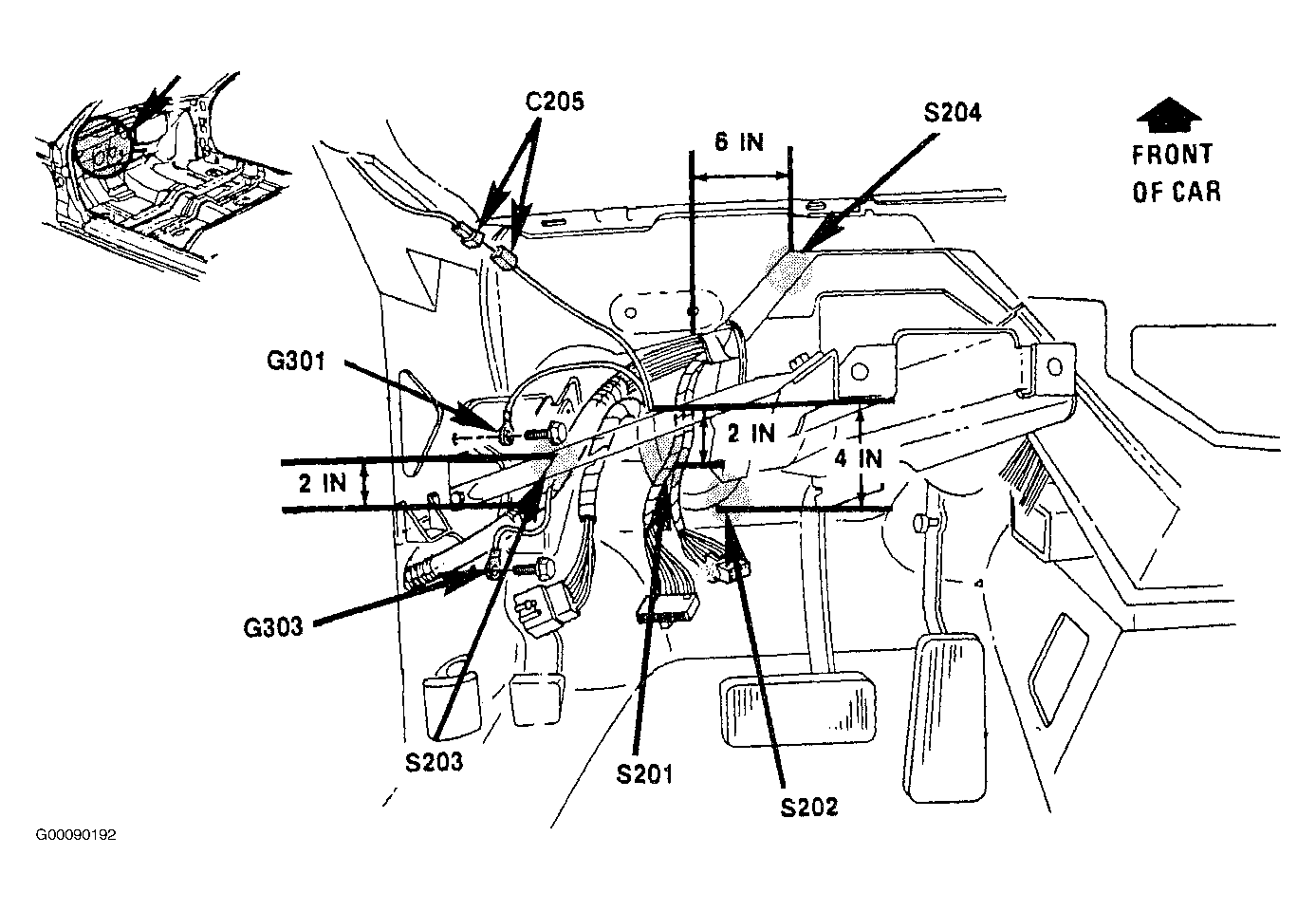

Fig 39: Behind Left Side Of Instrument Panel (1 Of 7)
Courtesy of GENERAL MOTORS CORP.

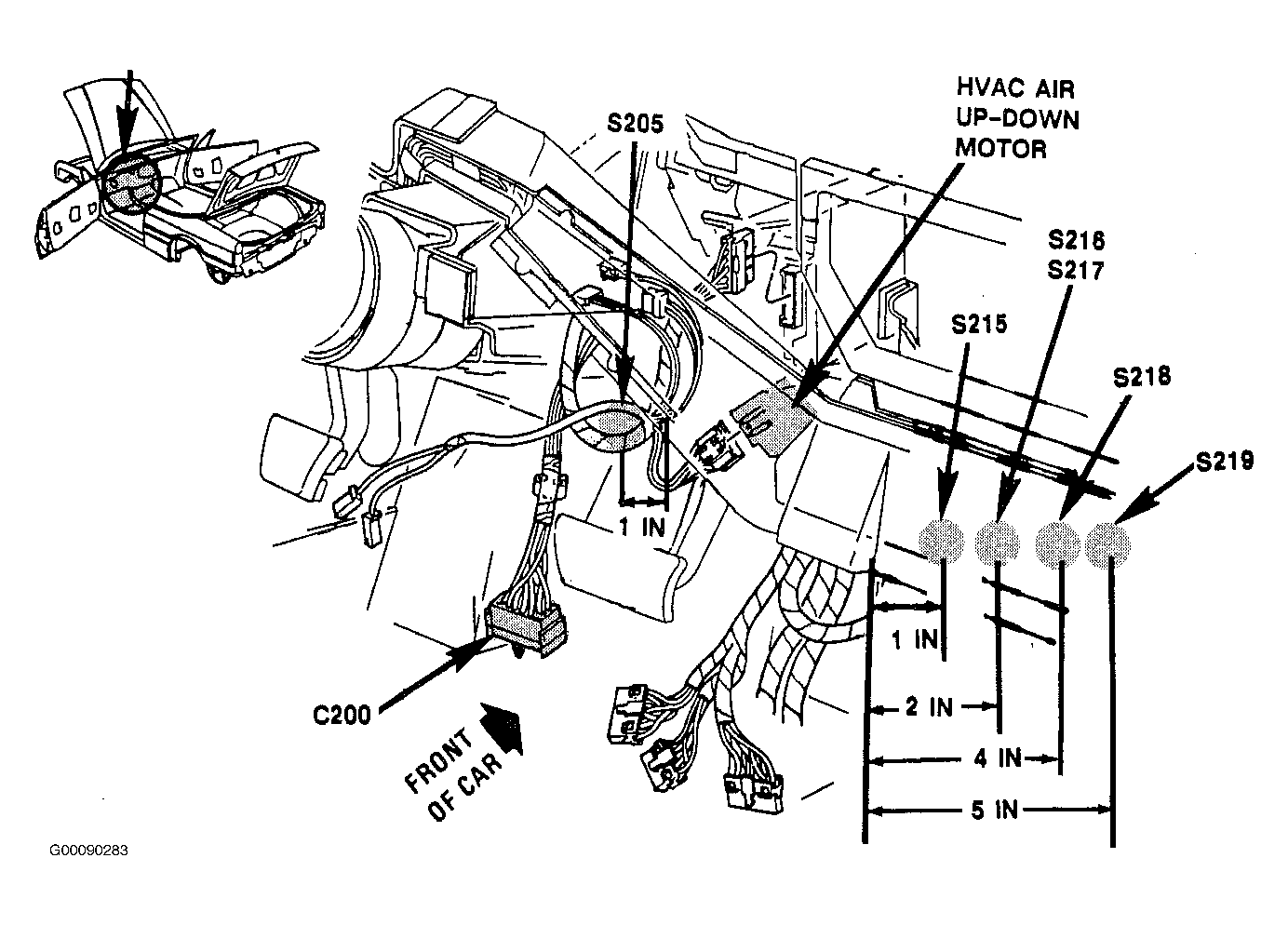

Fig 40: Behind Left Side Of Instrument Panel (2 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Behind Left Side Of Instrument Panel (3 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 42: Behind Left Side Of Instrument Panel (4 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Behind Left Side Of Instrument Panel (5 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Behind Left Side Of Instrument Panel (6 Of 7)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Behind Left Side Of Instrument Panel (7 Of 7)
Courtesy of GENERAL MOTORS CORP.

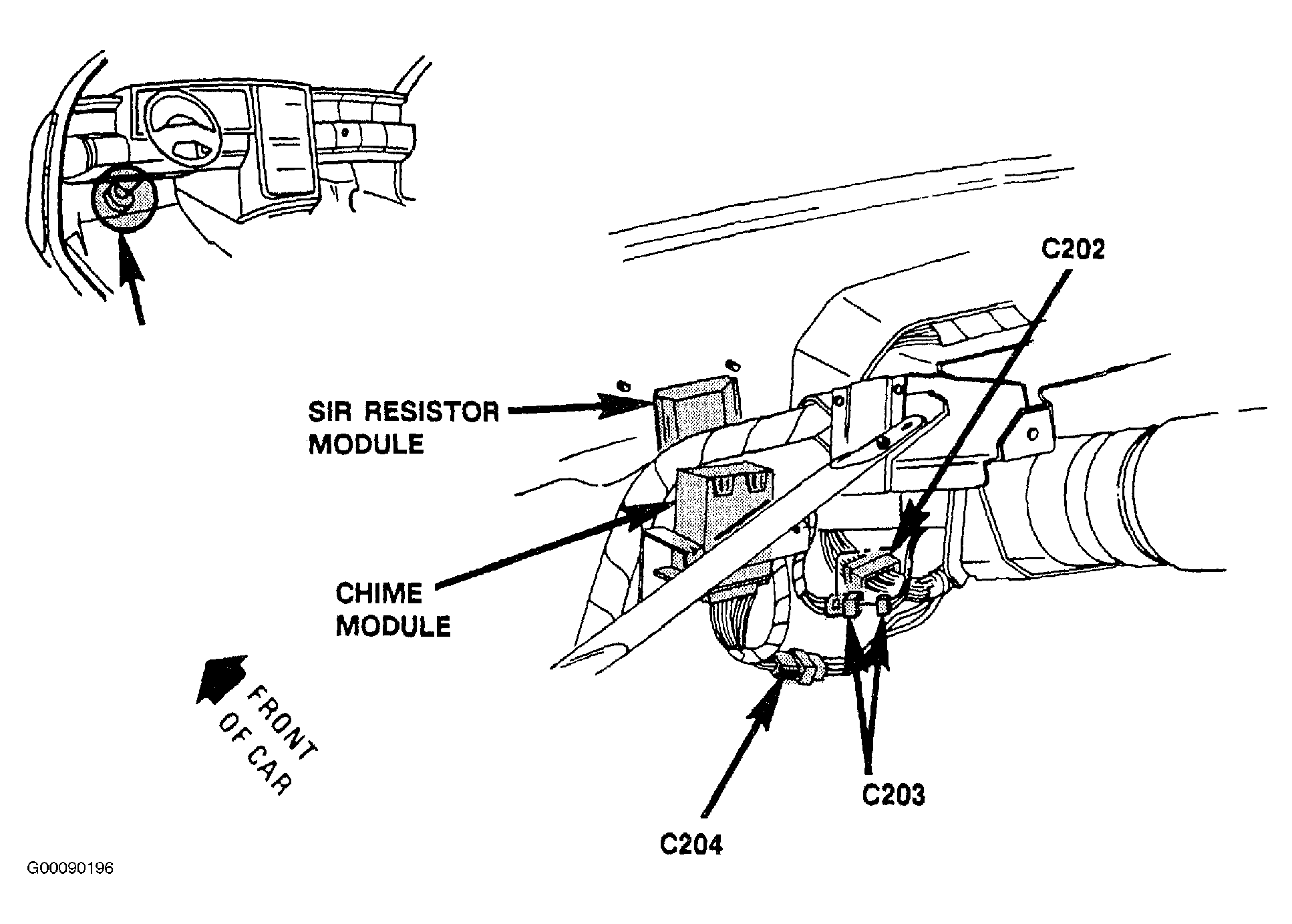

Fig 46: Near Base Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.

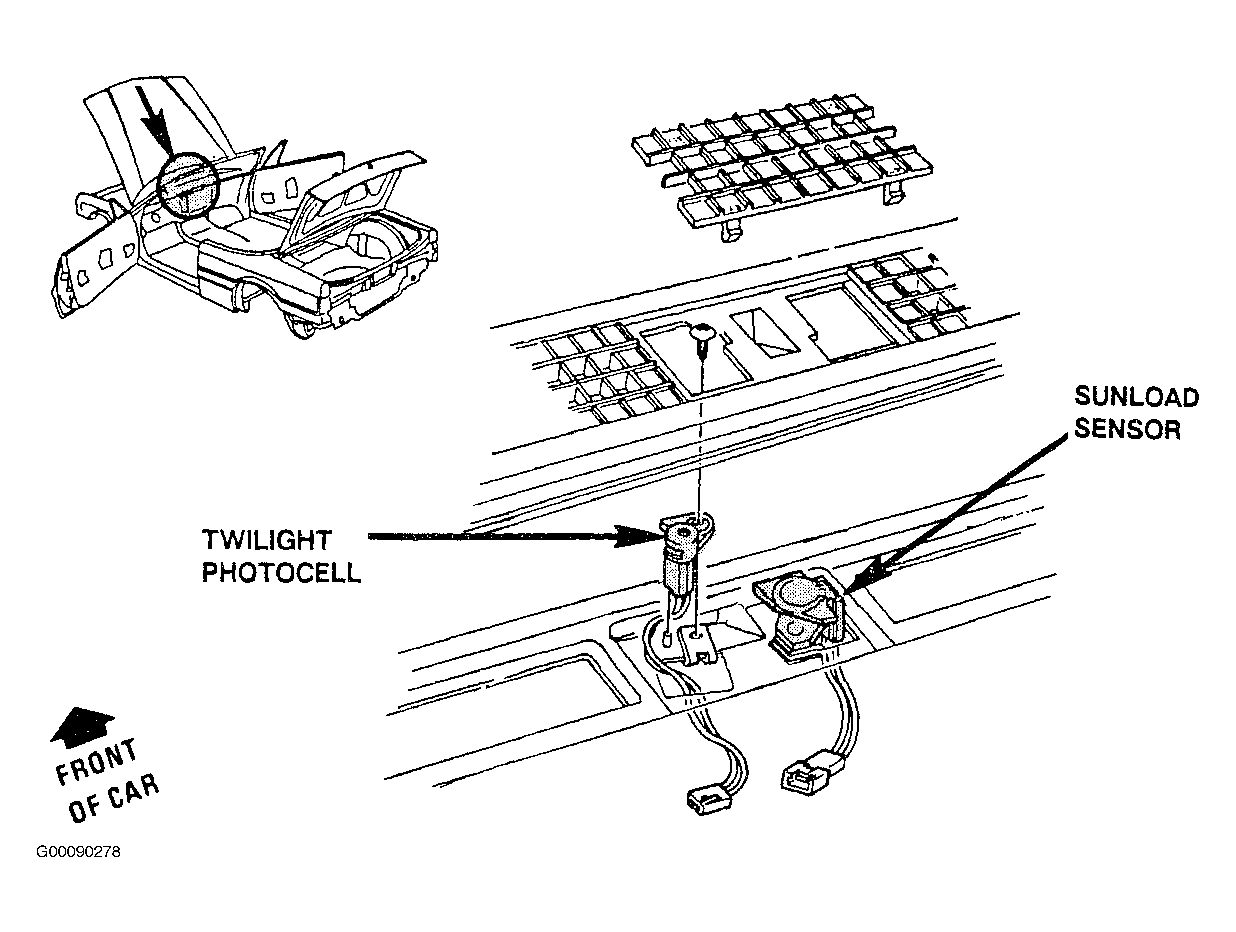

Fig 48: Top Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

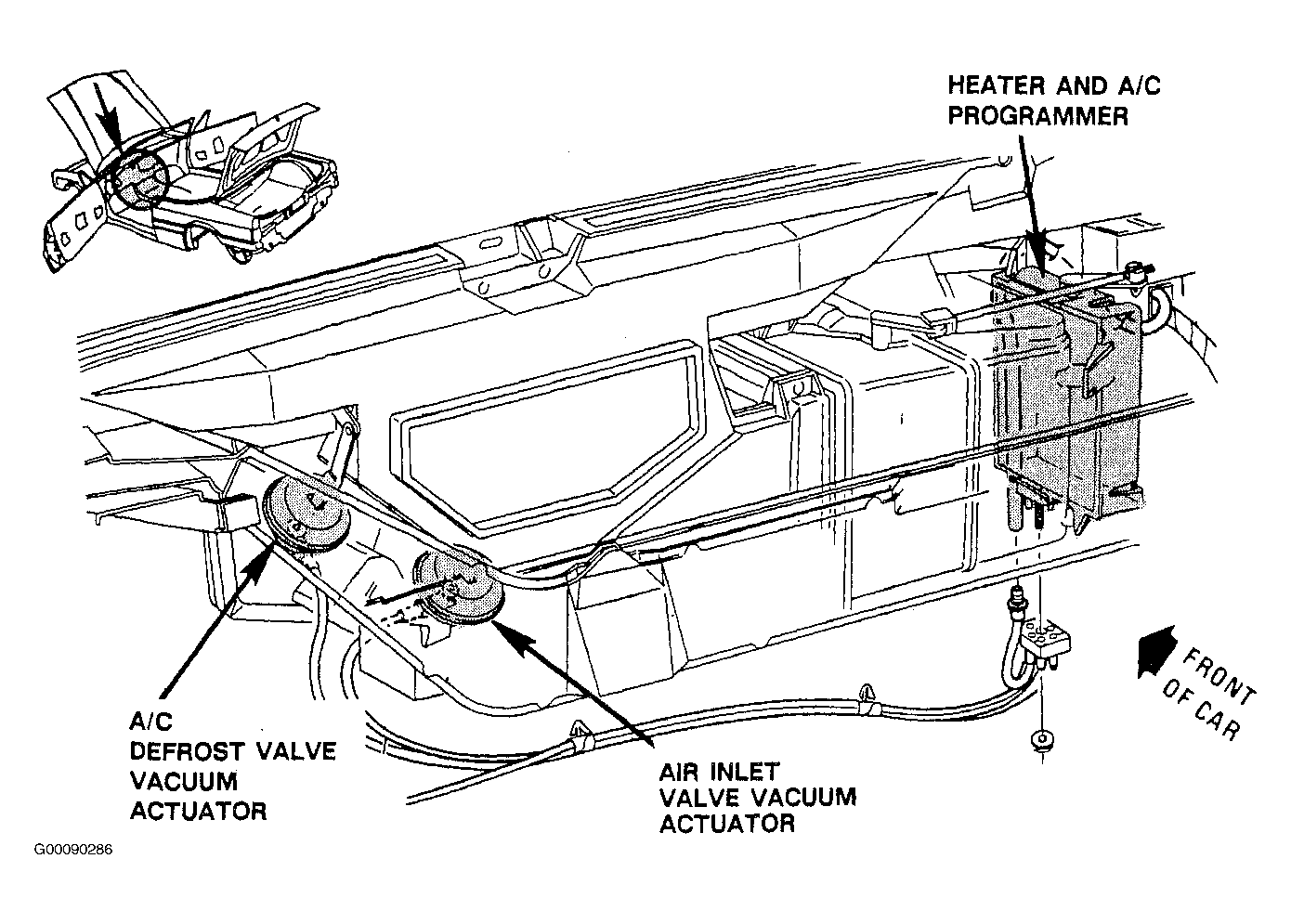

Fig 49: Behind Right Side Of Instrument Panel (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Behind Right Side Of Instrument Panel (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Behind Right Side Of Instrument Panel (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Above Brake Pedal
Courtesy of GENERAL MOTORS CORP.

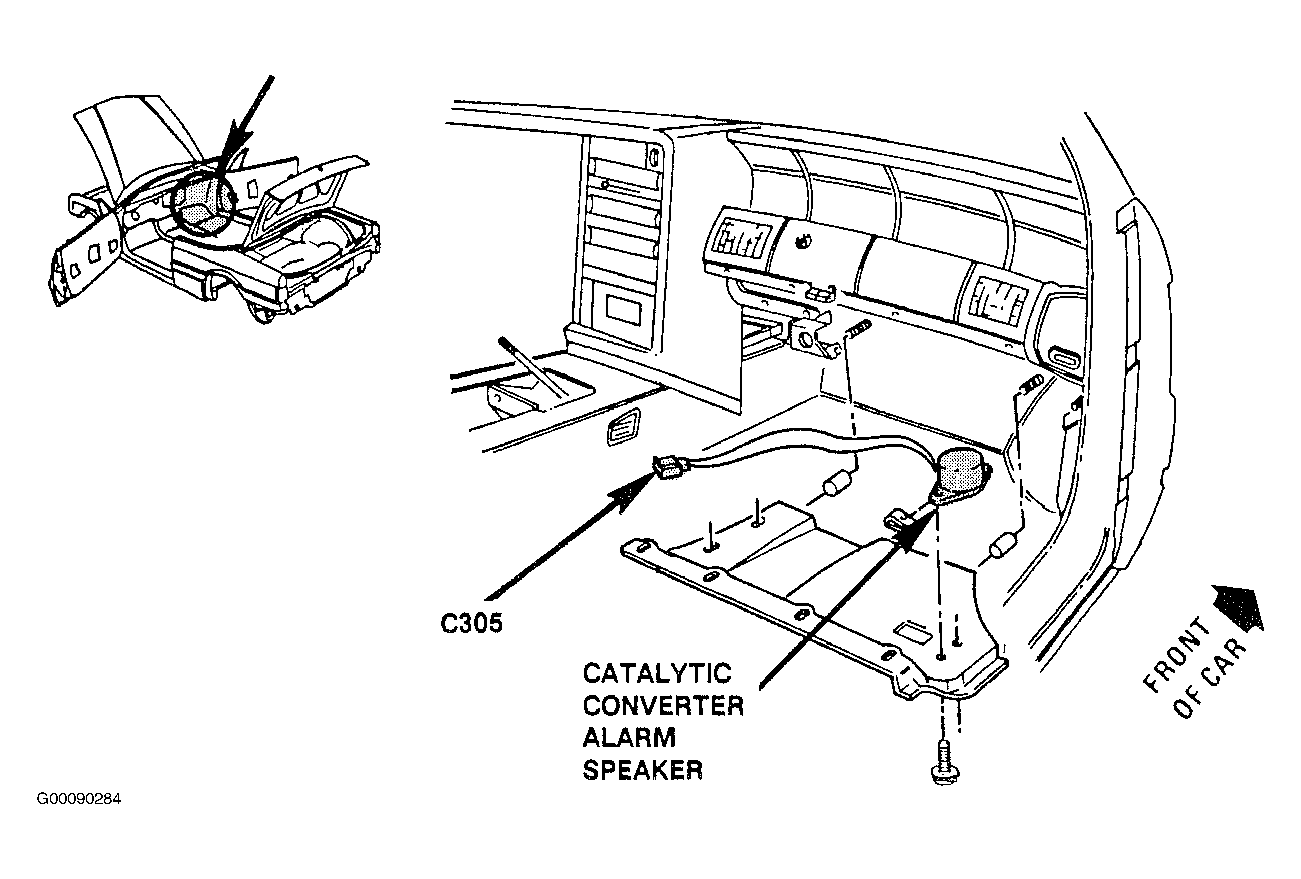

Fig 53: Under Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 54: Right Side Of Console
Courtesy of GENERAL MOTORS CORP.

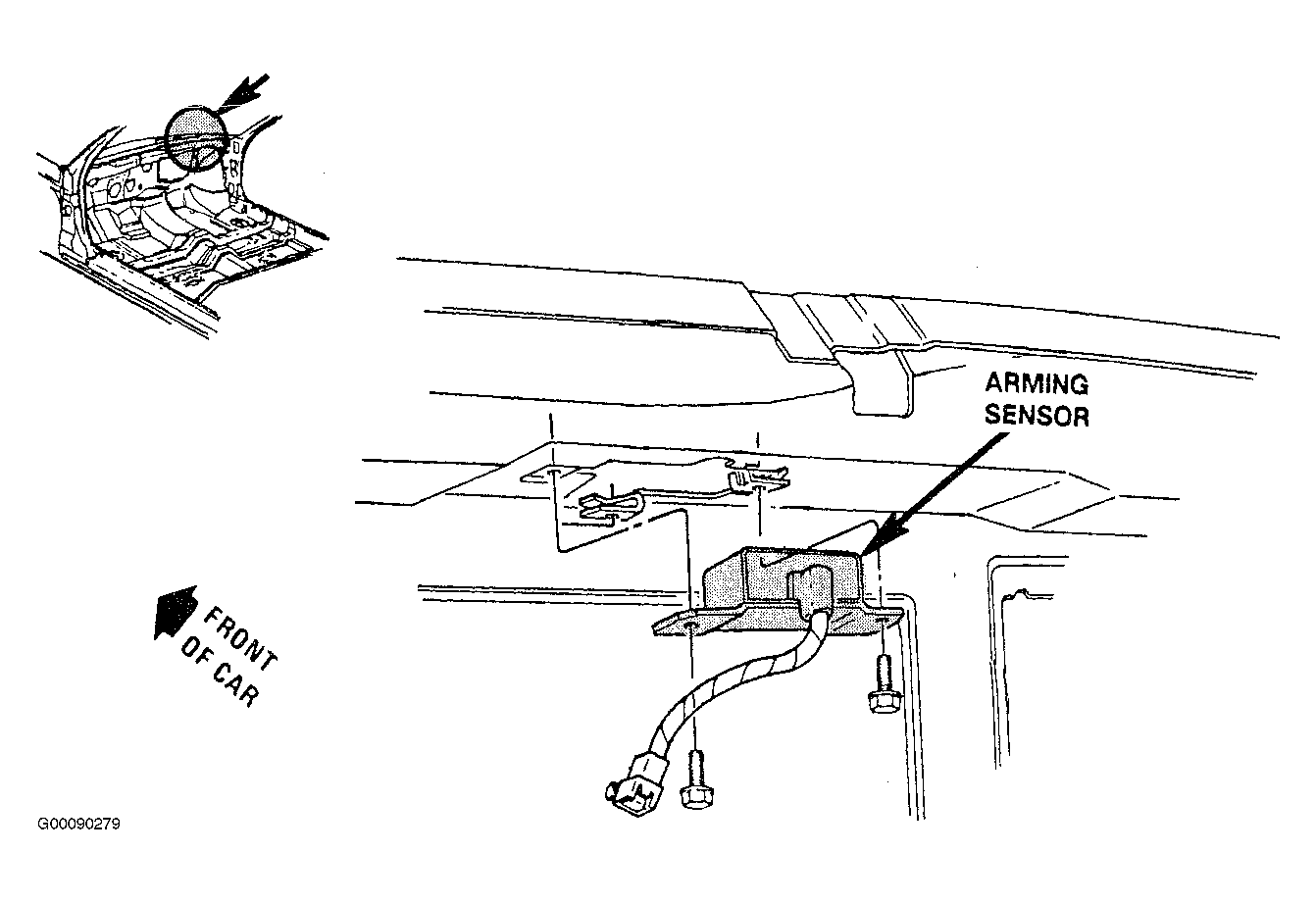

Fig 55: Behind Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 56: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

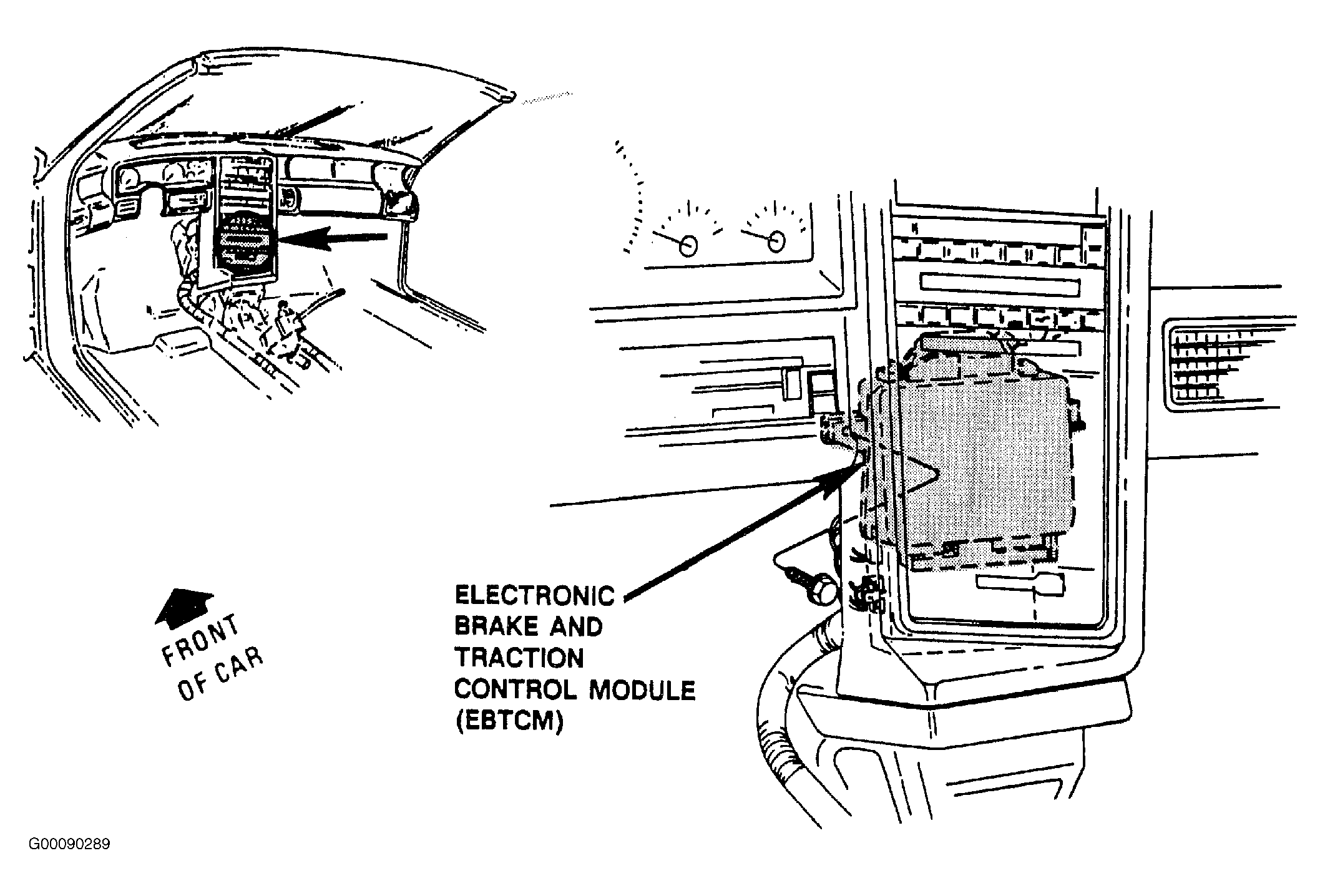

Fig 57: Center Of Instrument Panel (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Center Of Instrument Panel (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Of Console
Courtesy of GENERAL MOTORS CORP.
Fig 60: Center Of Console
Courtesy of GENERAL MOTORS CORP.
Fig 61: Under Console
Courtesy of GENERAL MOTORS CORP.

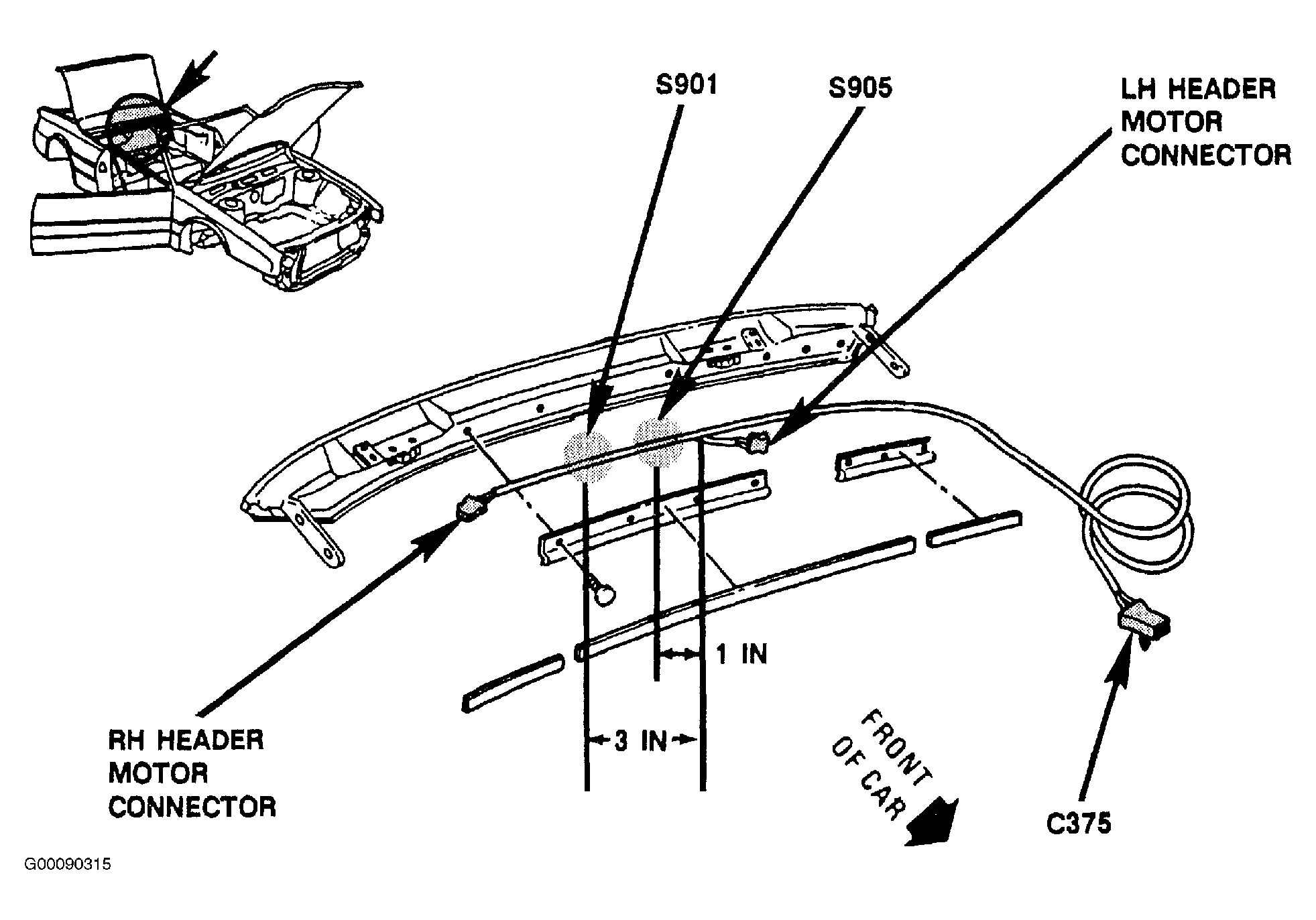

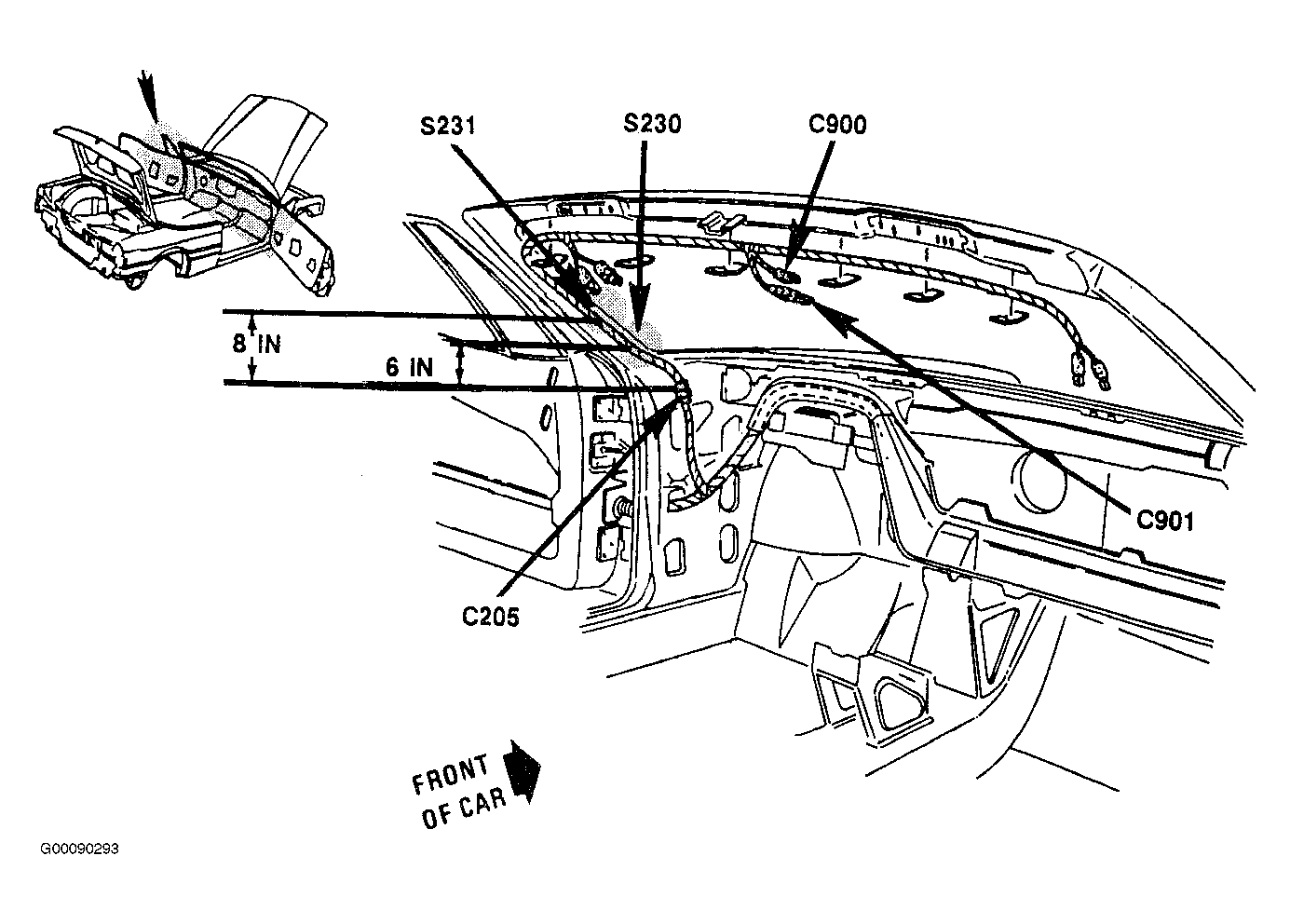

Fig 62: Windshield Header
Courtesy of GENERAL MOTORS CORP.

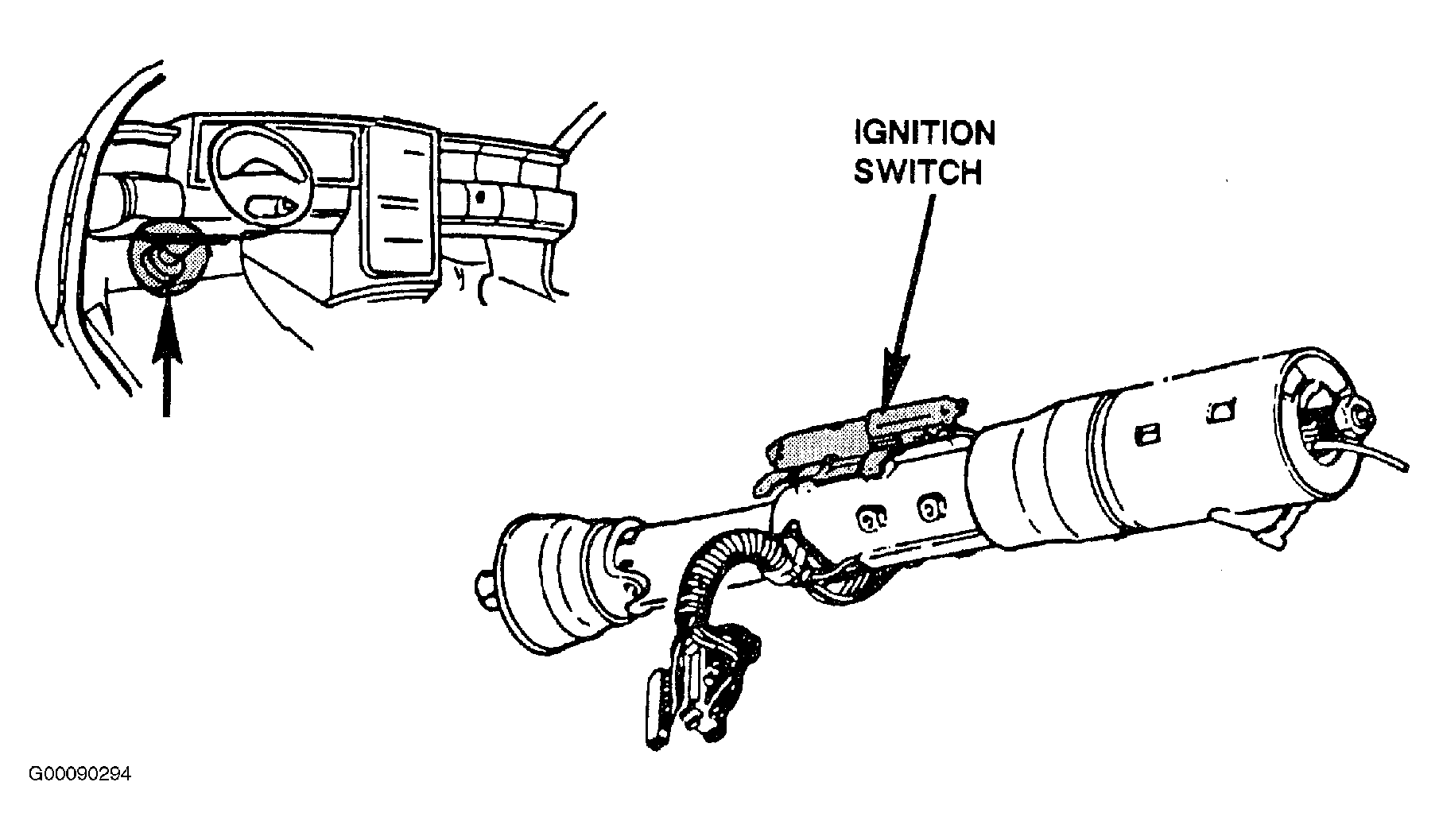

Fig 63: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Door
Courtesy of GENERAL MOTORS CORP.

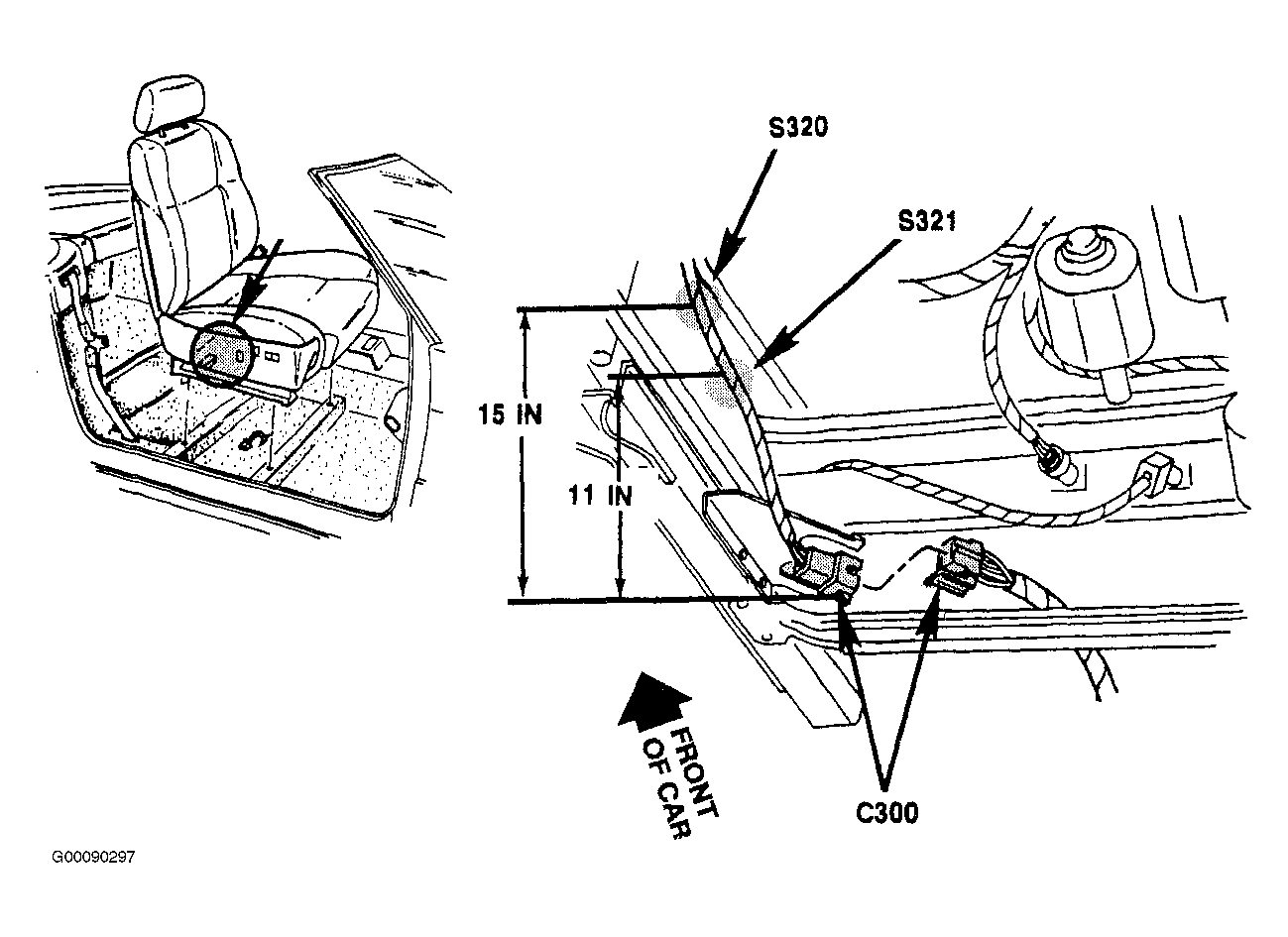

Fig 65: Under Drivers Seat
Courtesy of GENERAL MOTORS CORP.
Fig 66: Under Passengers Seat
Courtesy of GENERAL MOTORS CORP.

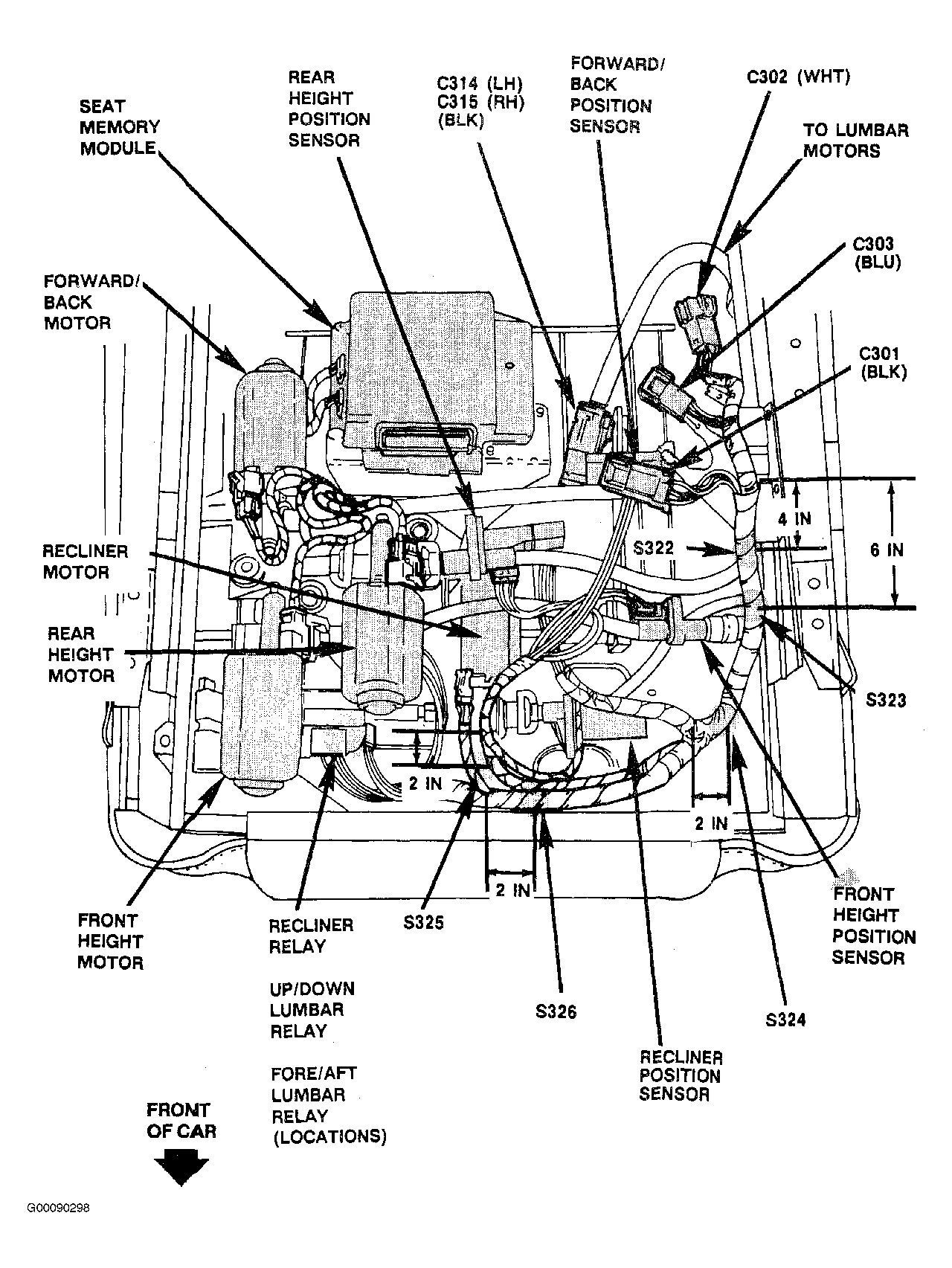

Fig 67: Underside Of Drivers Seat (Passengers Seat Similar)
Courtesy of GENERAL MOTORS CORP.

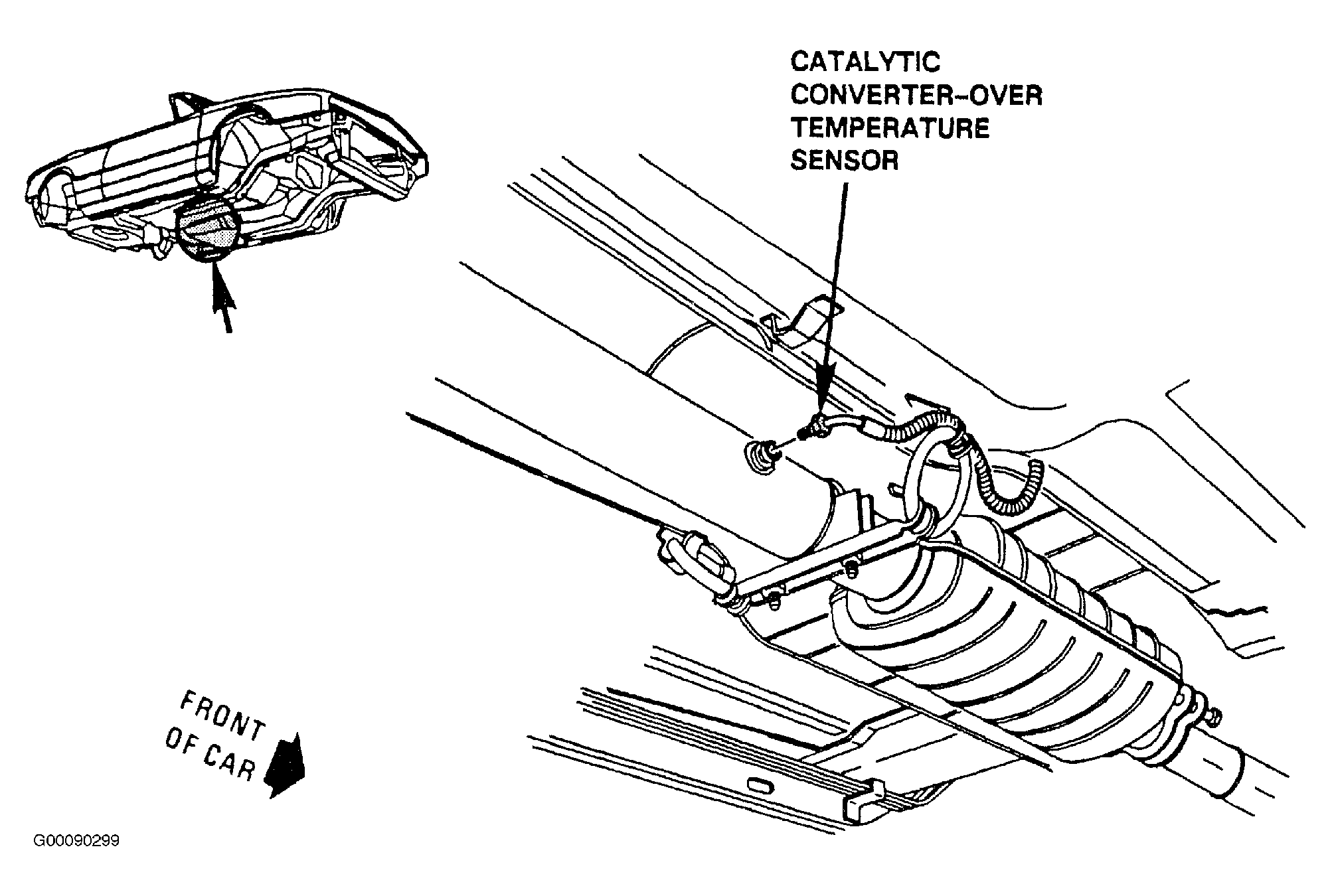

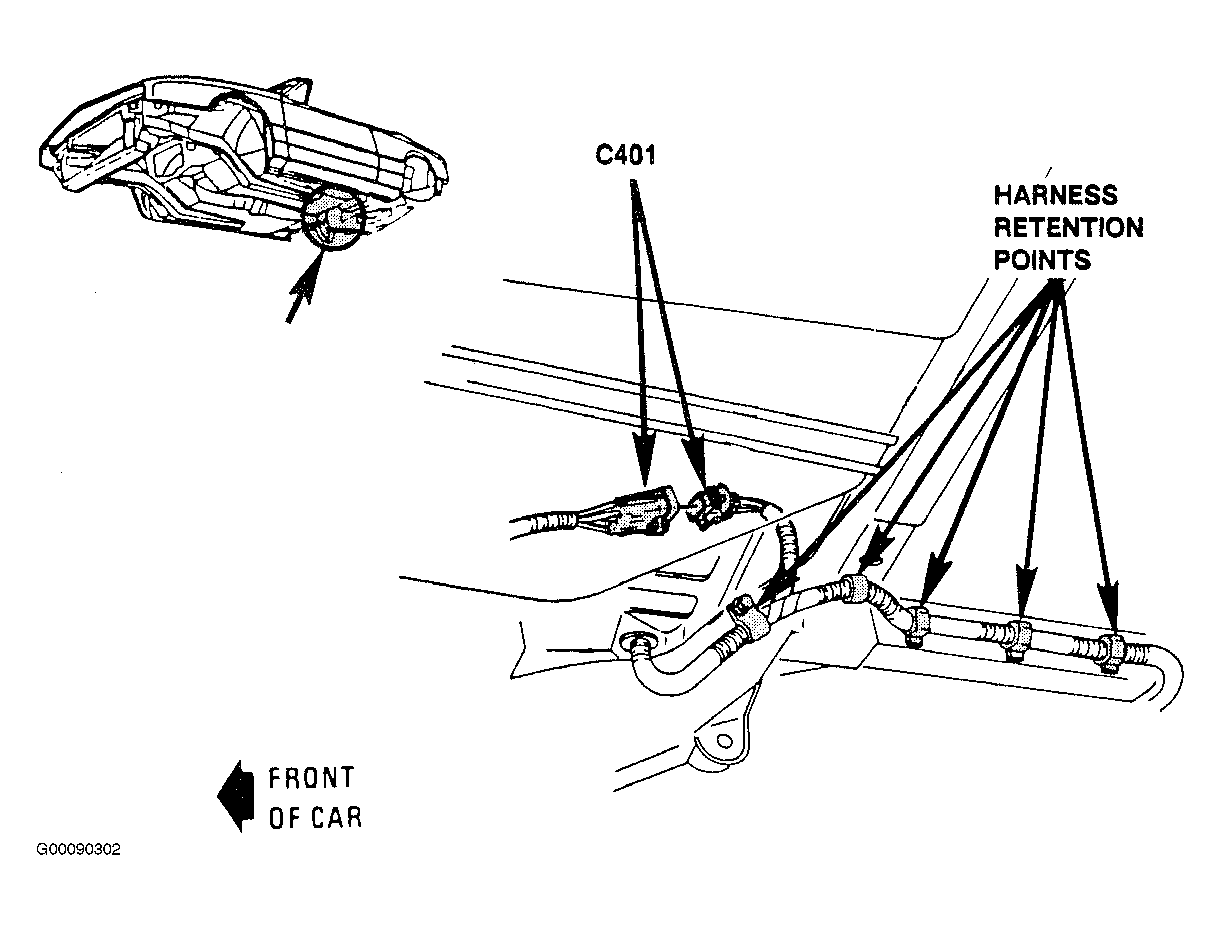

Fig 68: Under Center Of Car
Courtesy of GENERAL MOTORS CORP.

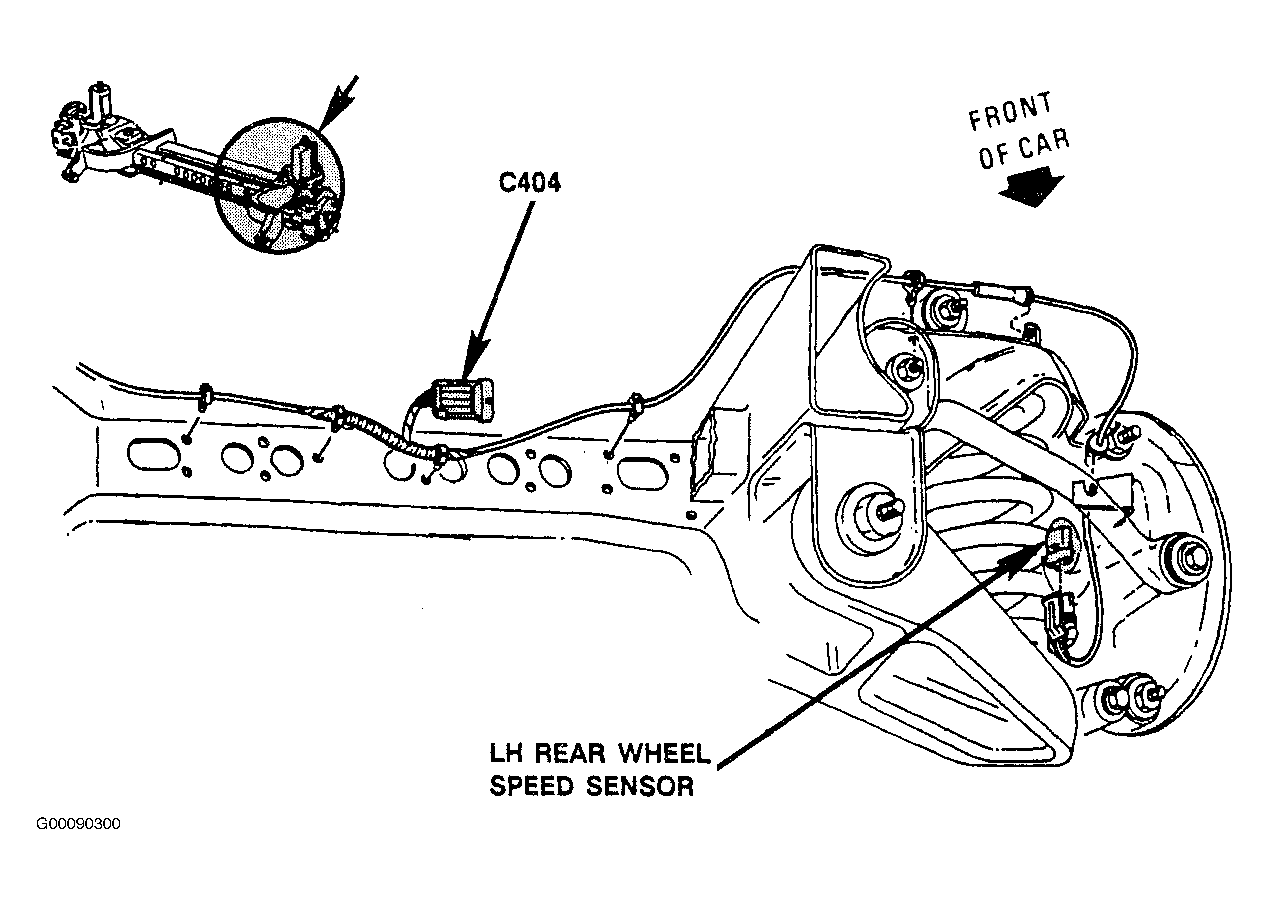

Fig 69: Left Side Rear Of Rear Suspension Support
Courtesy of GENERAL MOTORS CORP.
Fig 70: Top Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 71: Lower Left Side Of Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 72: Right Side Of Rear Suspension (Left Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Quarter Panel
Courtesy of GENERAL MOTORS CORP.
Fig 74: Behind Passengers Seat
Courtesy of GENERAL MOTORS CORP.
Fig 75: Behind Drivers Seat (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Behind Drivers Seat (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

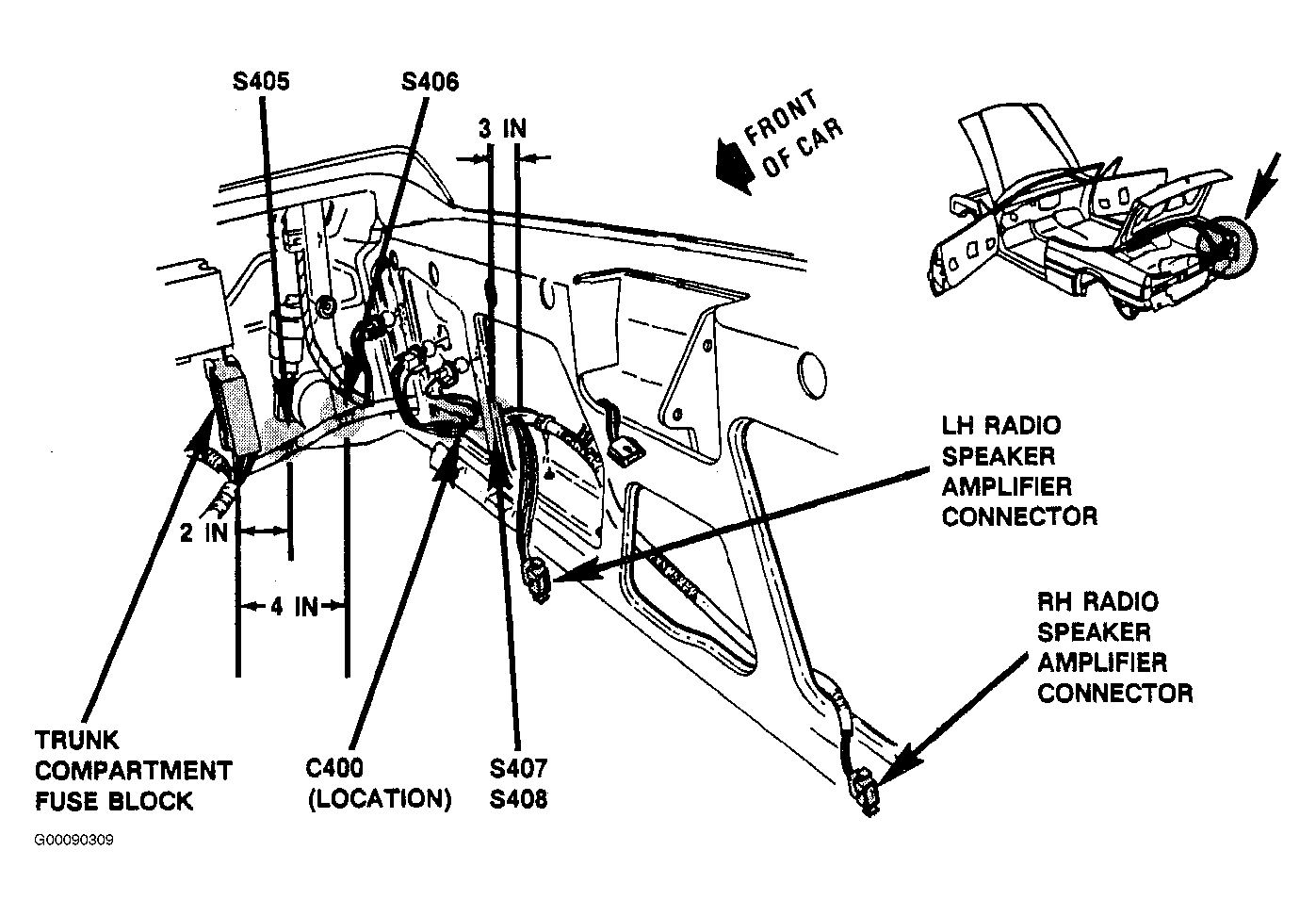

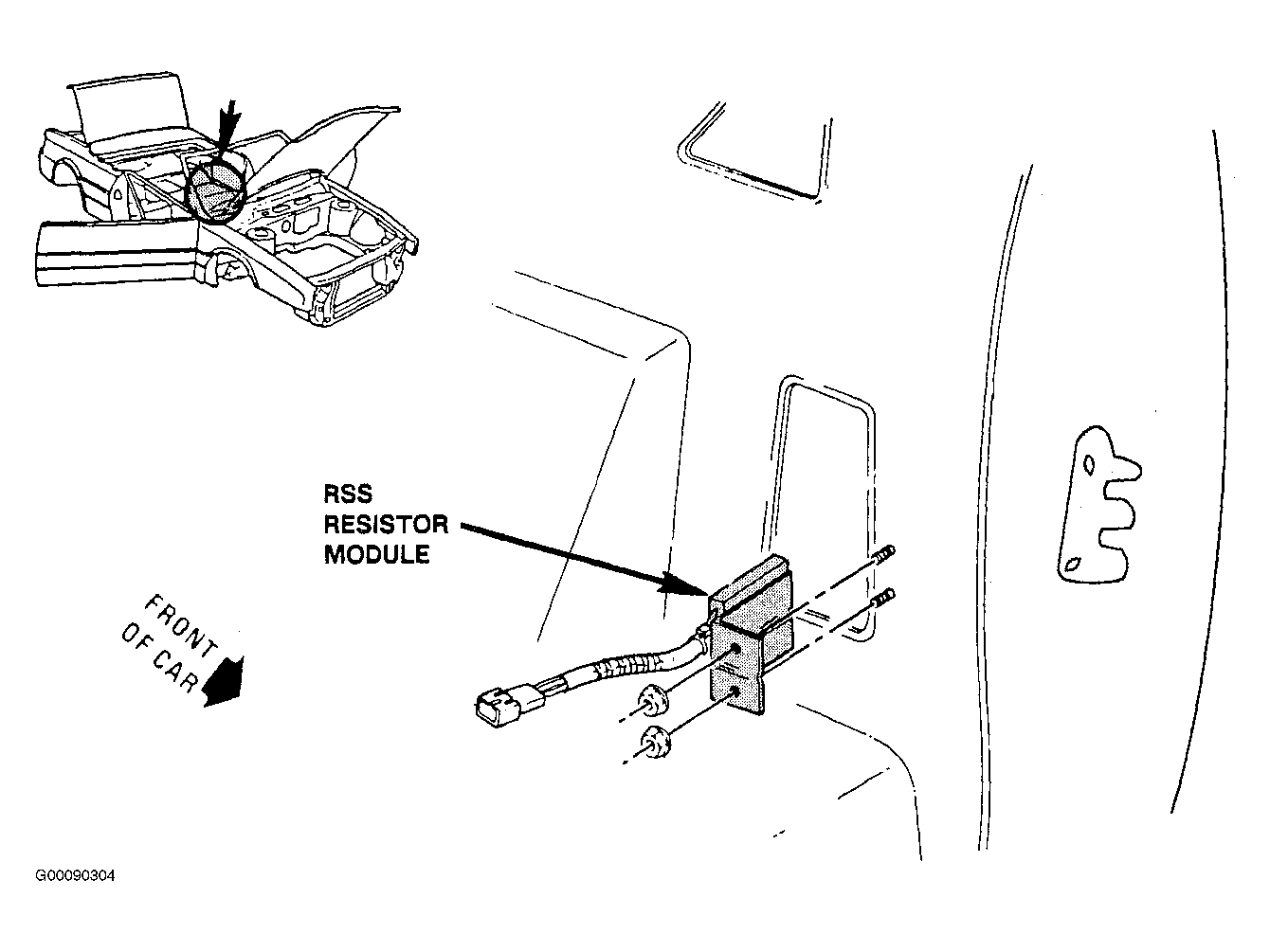

Fig 77: Right Side Of Trunk Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 78: Right Rear Of Trunk Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 79: Center Rear Of Trunk Compartment
Courtesy of GENERAL MOTORS CORP.

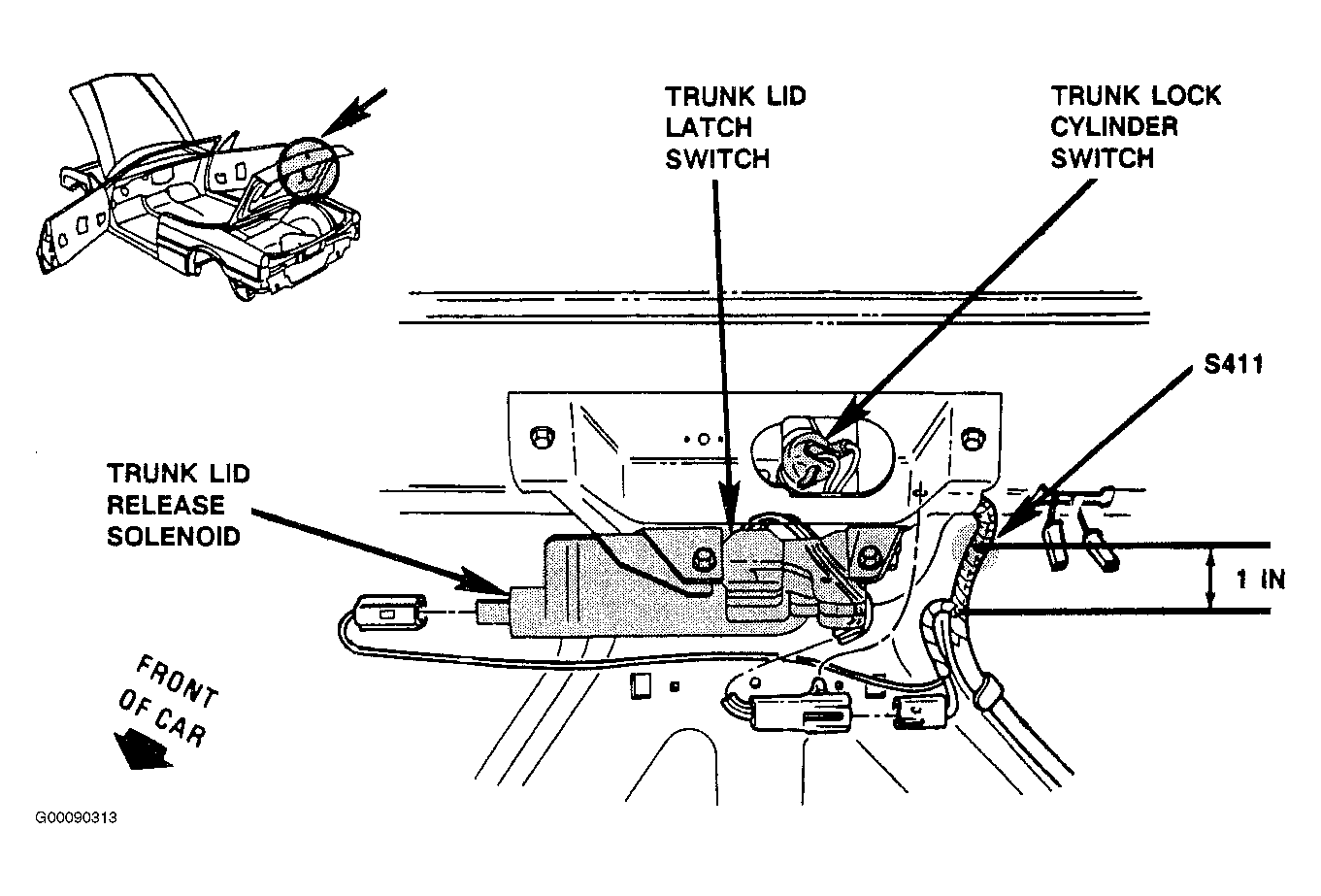

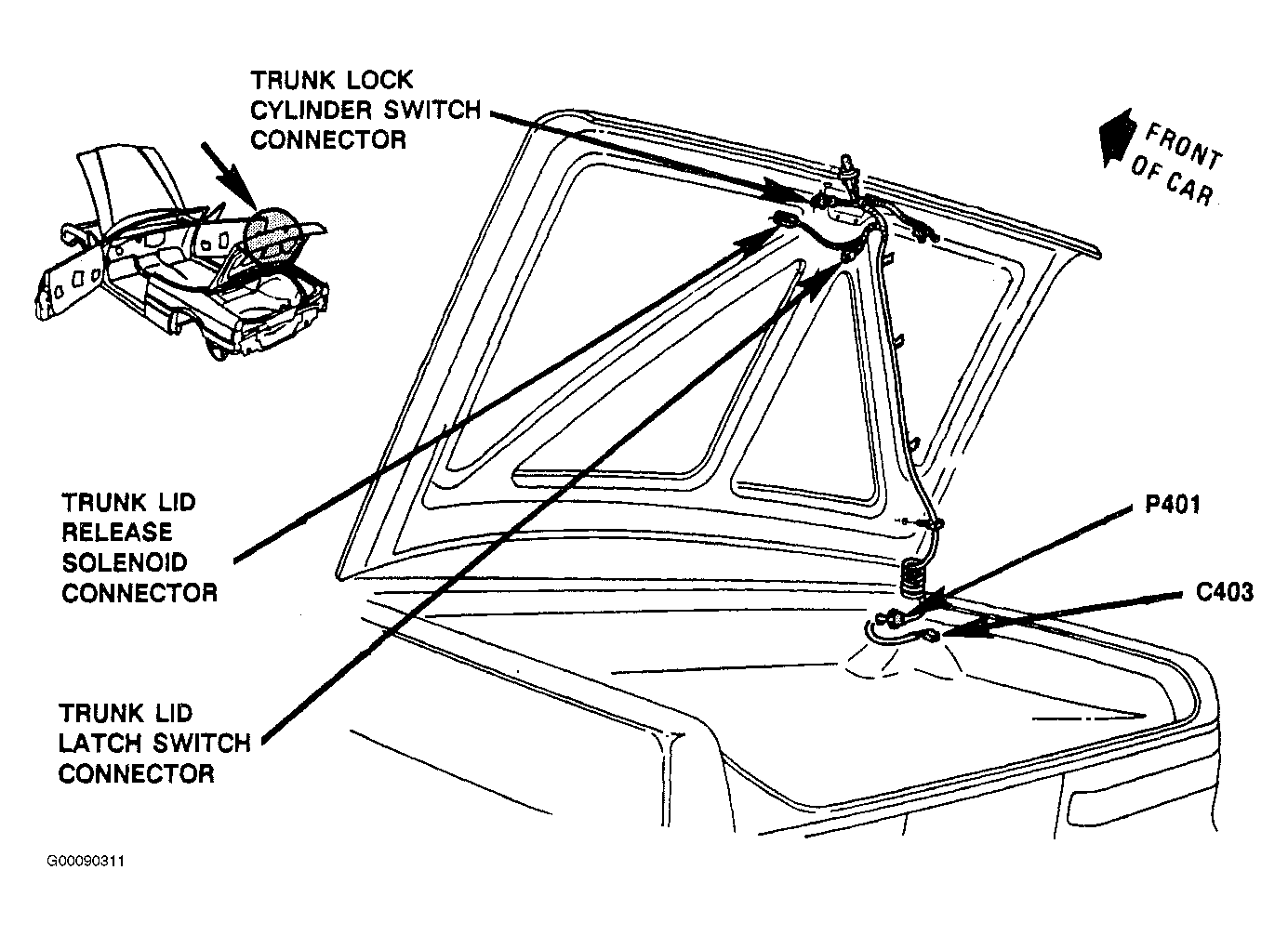

Fig 80: Underside Of Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 81: Rear Of Trunk Lid
Courtesy of GENERAL MOTORS CORP.
Fig 82: Under Rear Of Trunk
Courtesy of GENERAL MOTORS CORP.

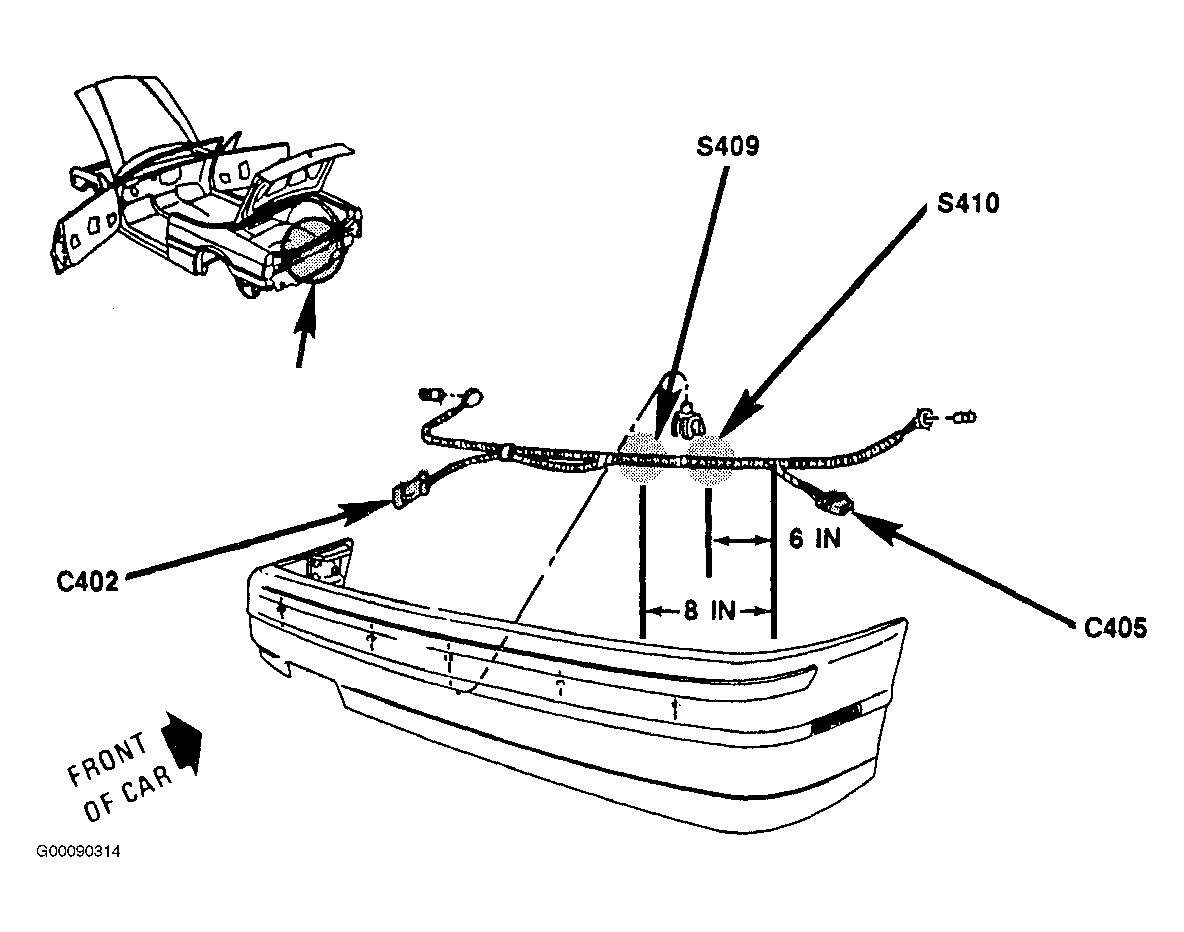

Fig 83: Inside Rear Bumper
Courtesy of GENERAL MOTORS CORP.
Fig 84: Top Of Soft Top Frame
Courtesy of GENERAL MOTORS CORP.

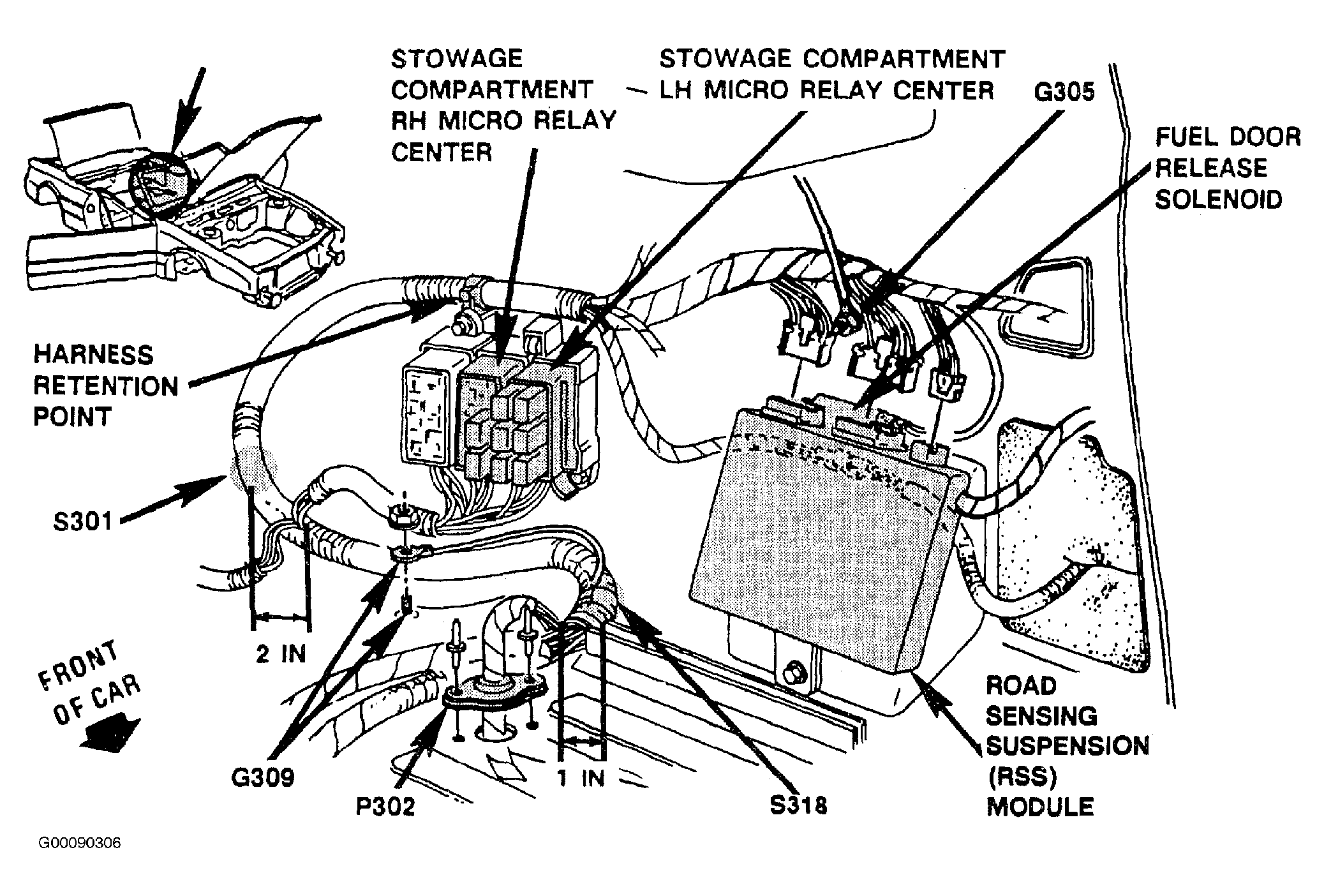

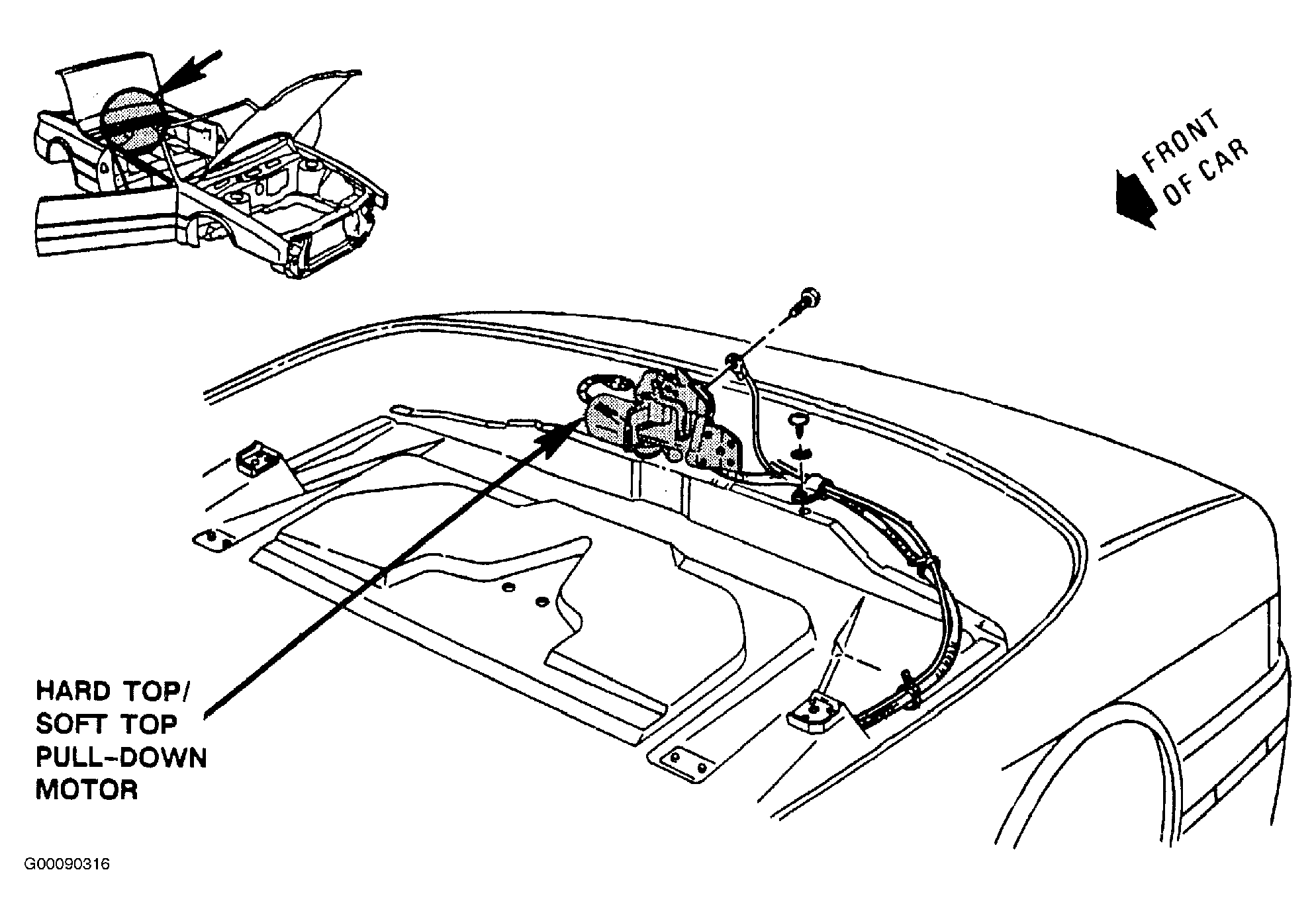

Fig 85: Center Of Storage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 86: Lower Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 87: Lower Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

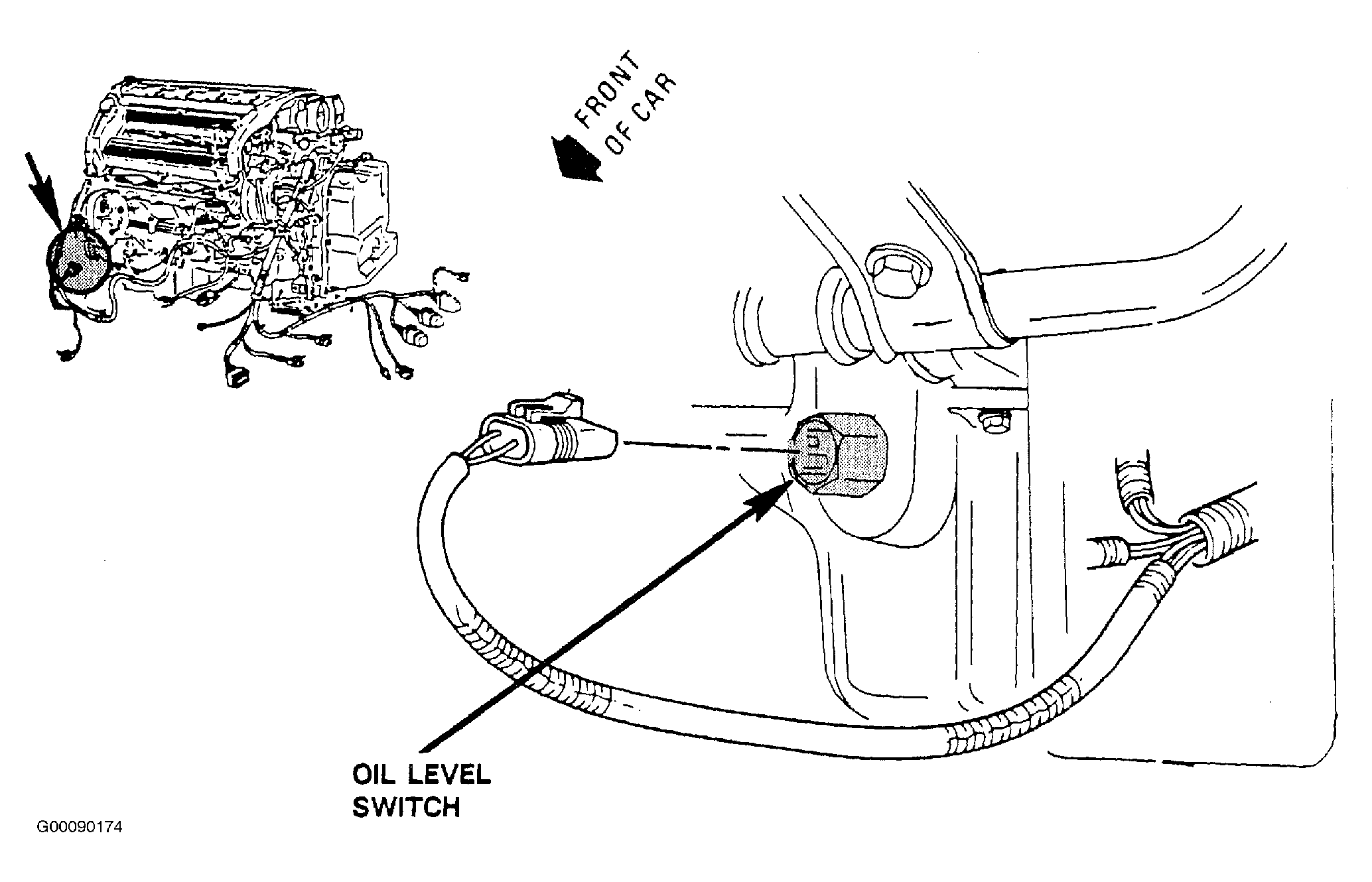

Fig 88: Lower Front Of Engine
Courtesy of GENERAL MOTORS CORP.
