Home >> Cadillac >> 1993 >> Allante >> Repair and Diagnosis >> Engine Performance >> Engine Controls - Service & Adjustment Specifications >> Ignition Systems >> Firing Order

Firing Order

Engine firing order is 1-2-7-3-4-5-6-8. For ignition coil spark plug wire routing, see Fig 1 .

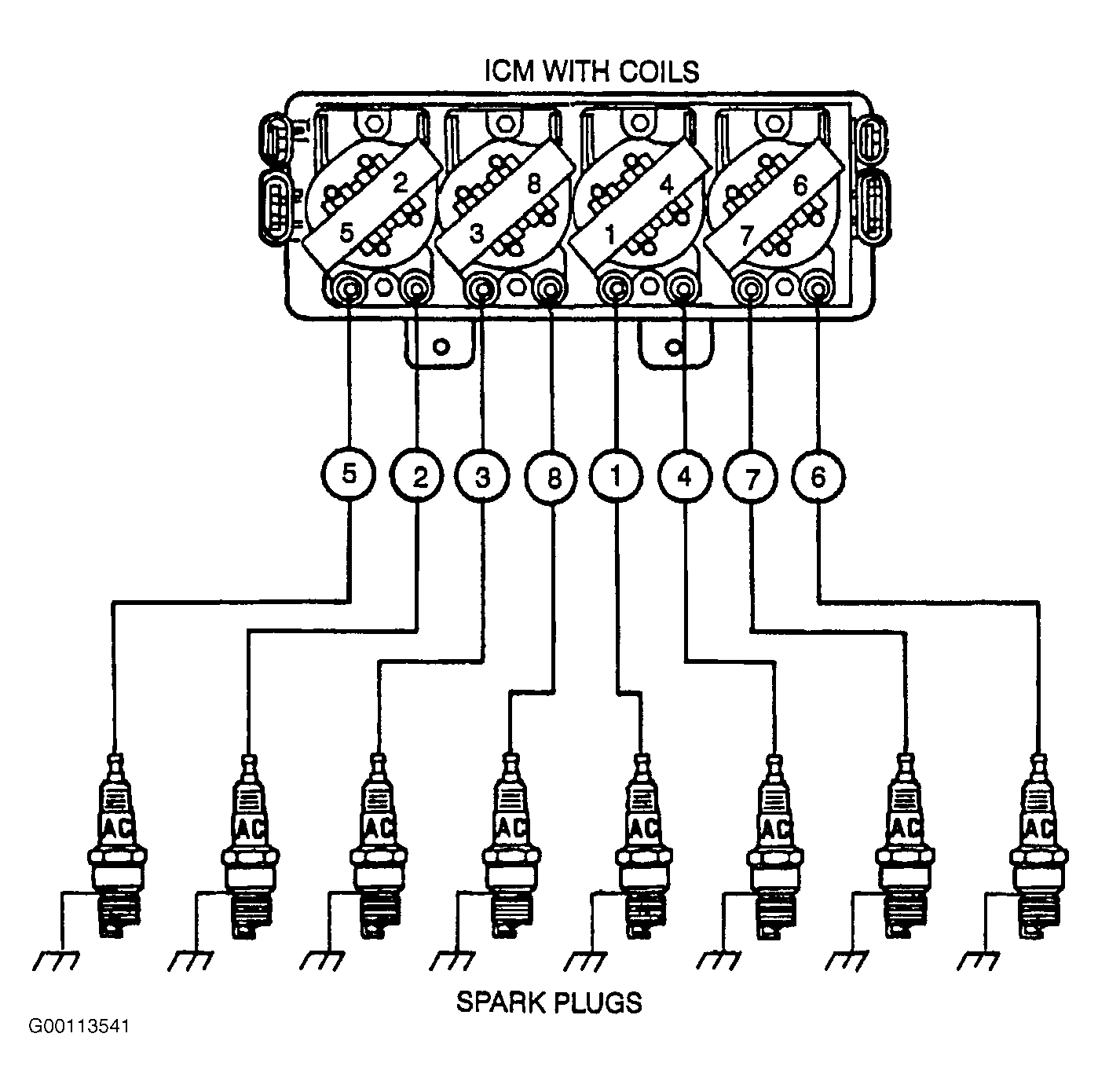

Fig 1: Identifying Ignition Coil Spark Plug Wire Routing

G00113541

Courtesy of GENERAL MOTORS CORP.
