Home >> Cadillac >> 1993 >> Allante >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System & Component Testing >> Ignition Systems >> Chart 6D4-3: Ignition Control Check >> Notes

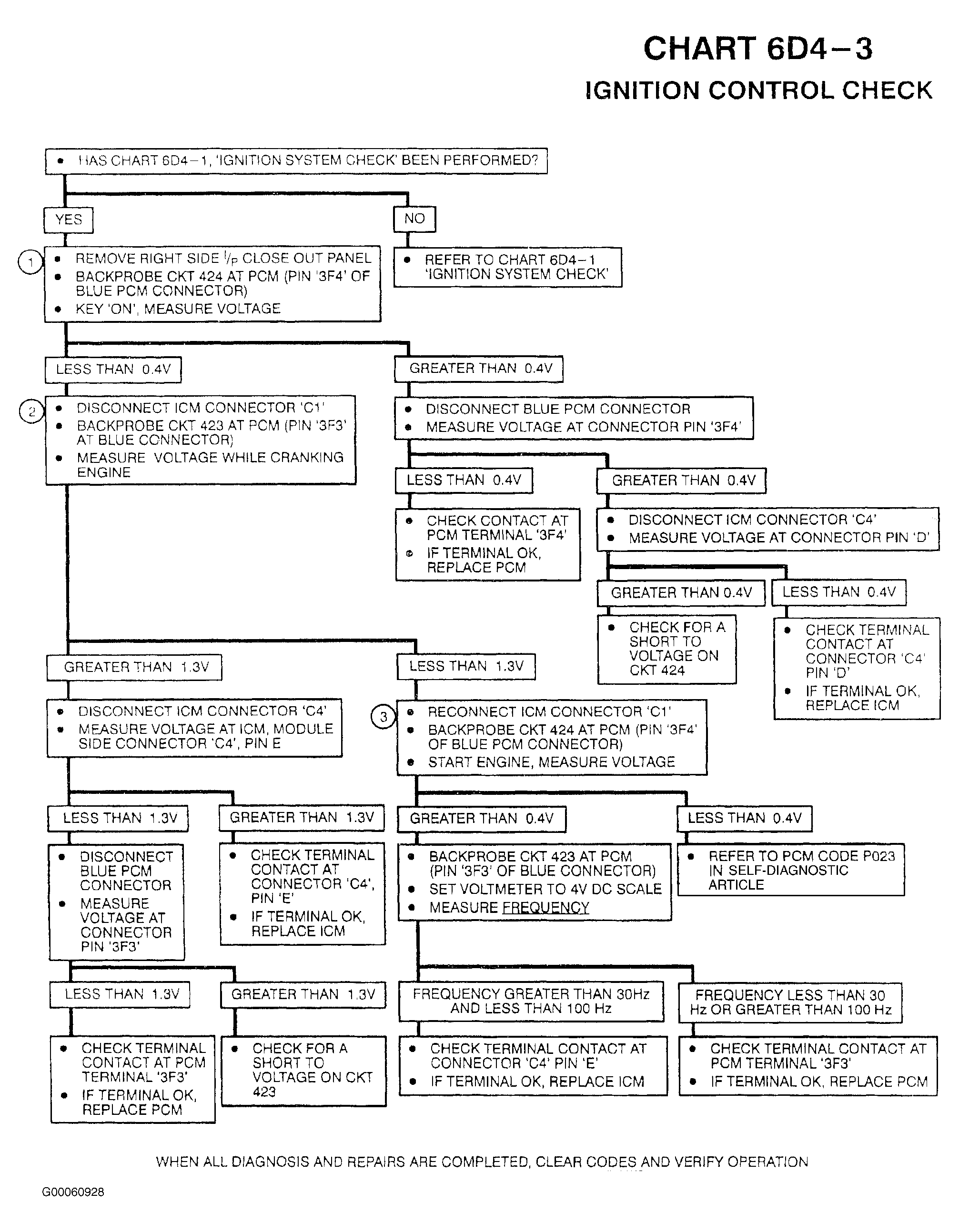

Chart 6D4-3: Ignition Control Check: Notes

NOTE: For testing, see Figure . For circuit identification, see Figure .
