Engine Cooling Fan: Testing: FLEETWOOD

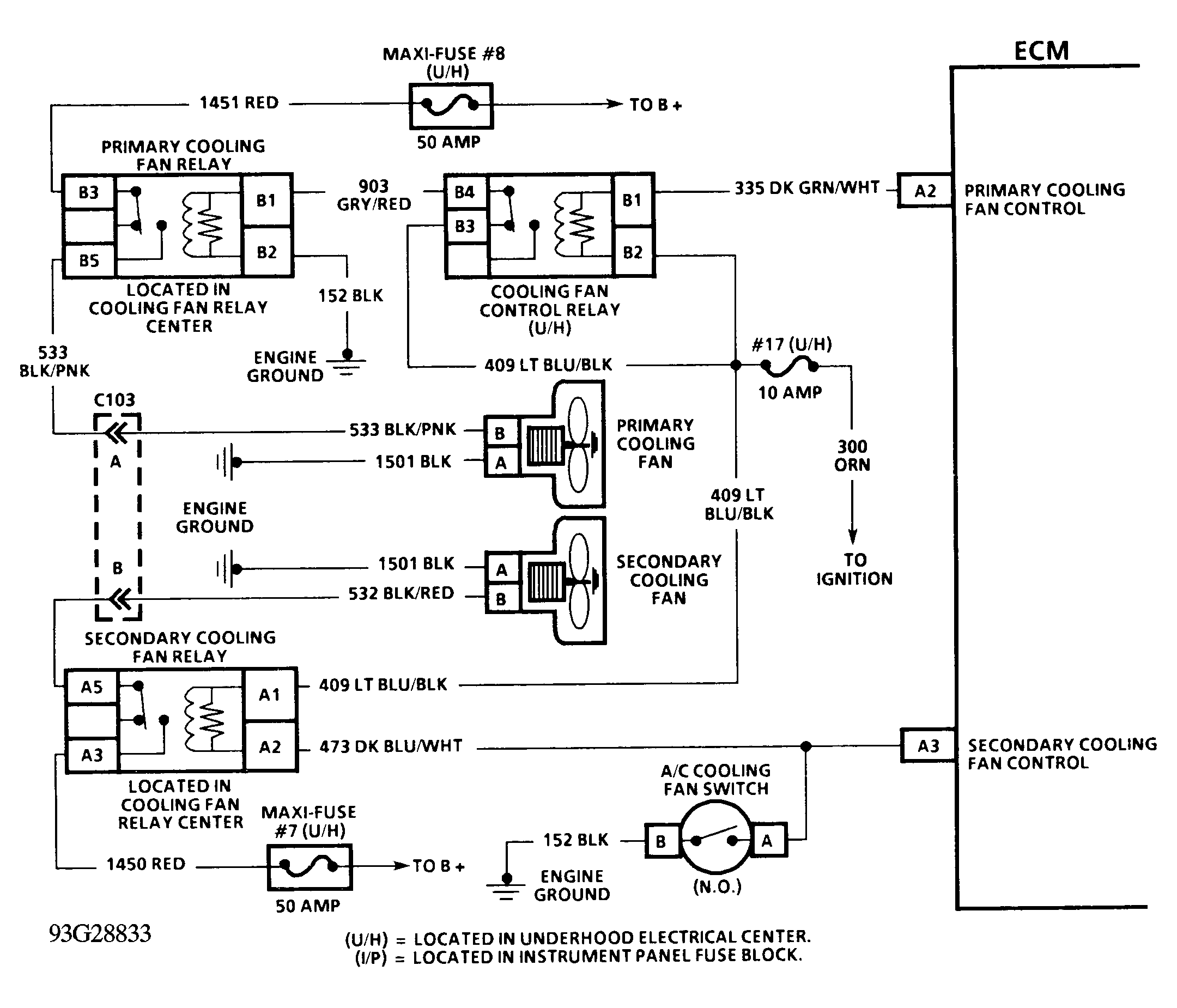

Fig 1: Chart C-12 - Wiring Diagram (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

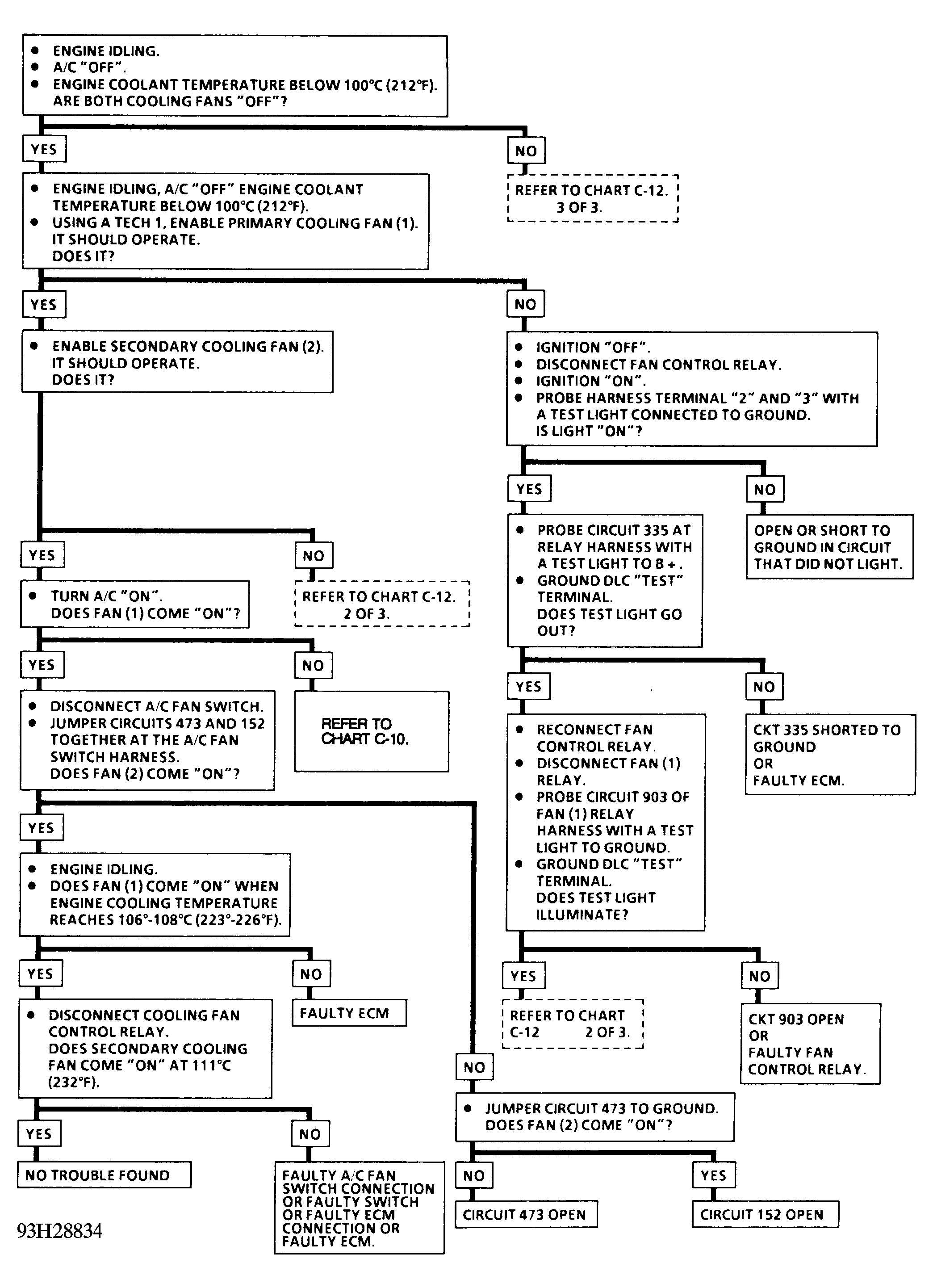

Fig 2: Chart C-12, Cooling Fan Diagnosis - Flowchart (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Chart C-12 - Wiring Diagram (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

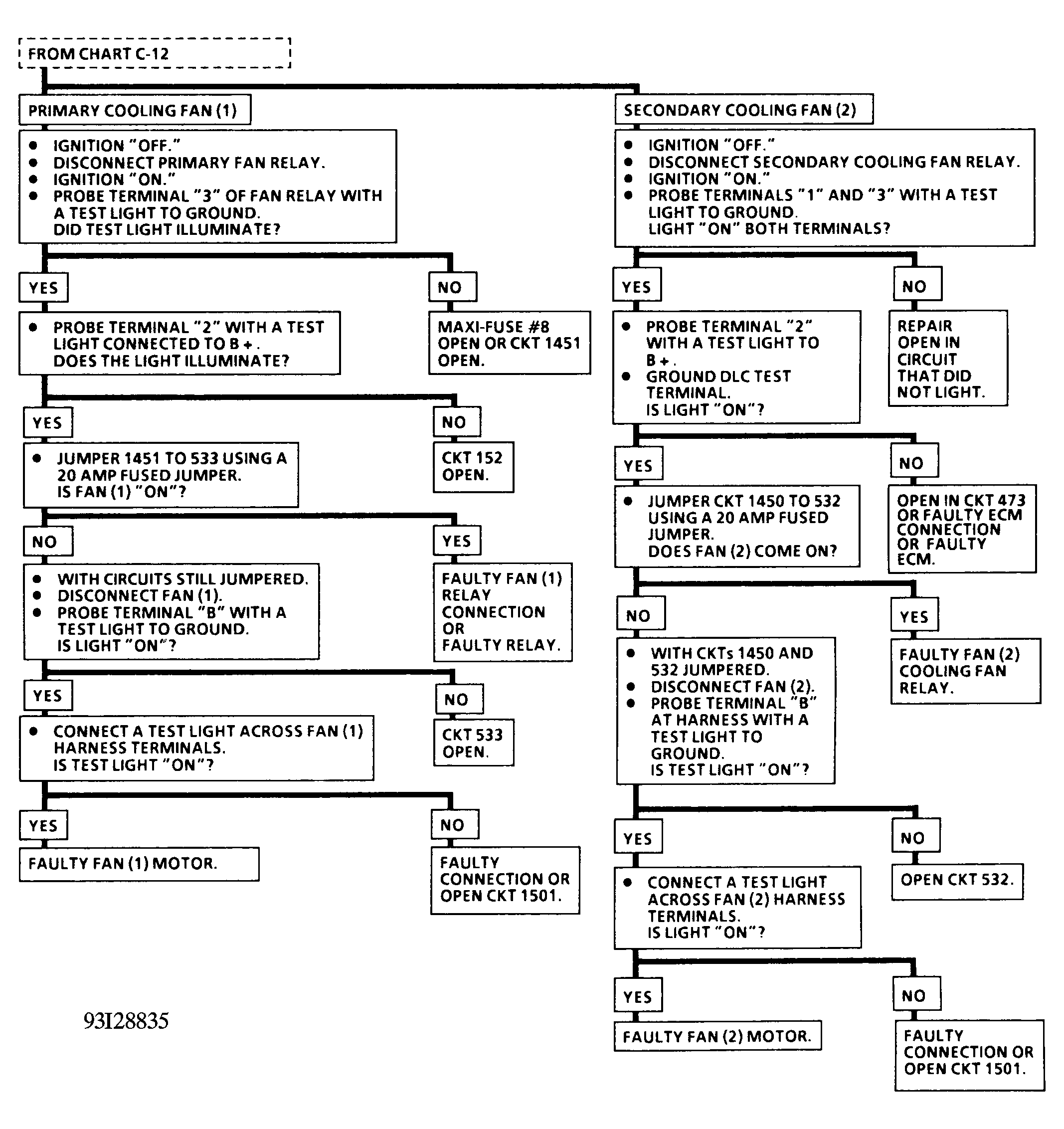

Fig 4: Chart C-12, Cooling Fan Diagnosis - Flowchart (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Chart C-12 - Wiring Diagram (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

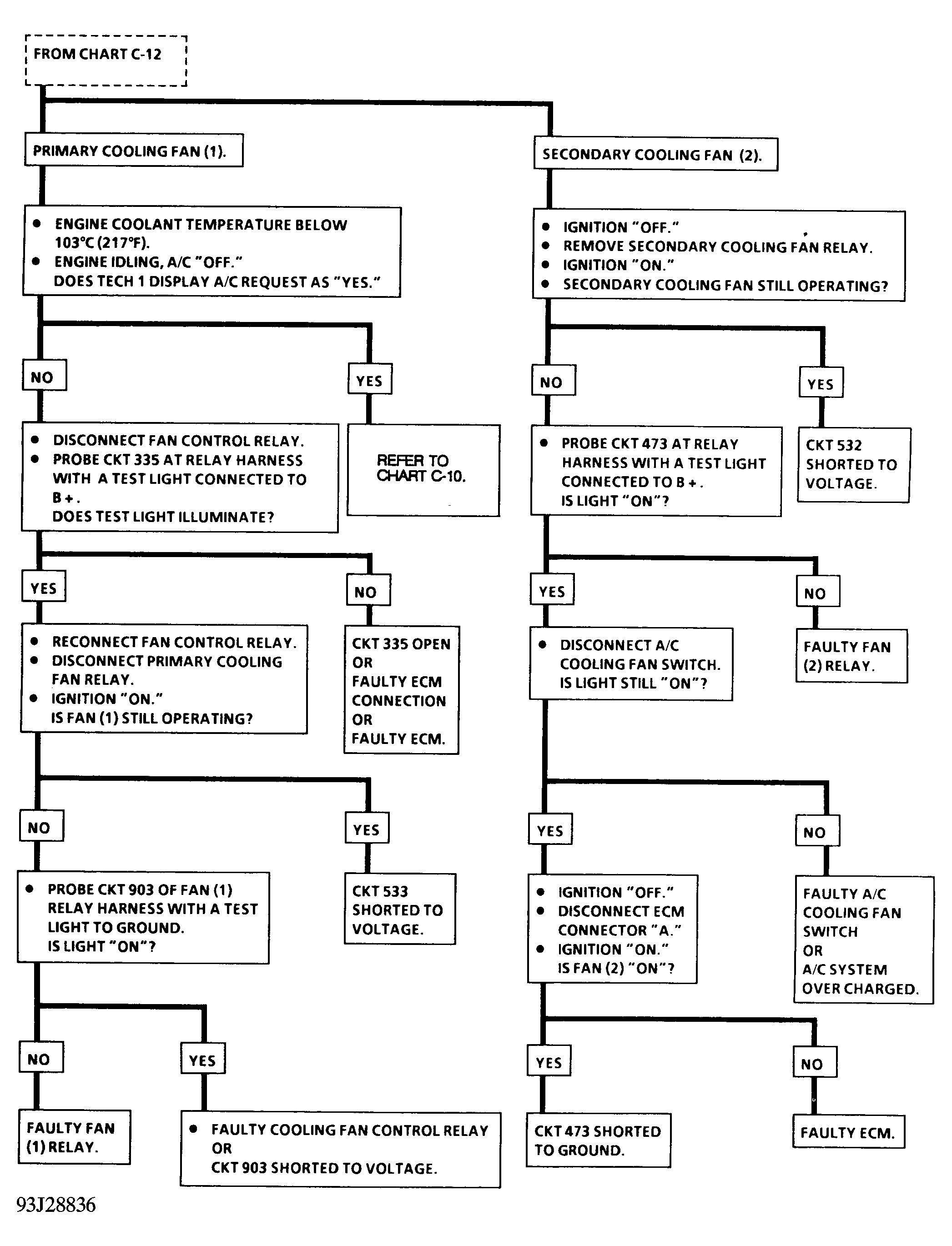

Fig 6: Chart C-12, Cooling Fan Diagnosis - Flowchart (3 Of 3)

Courtesy of GENERAL MOTORS CORP.

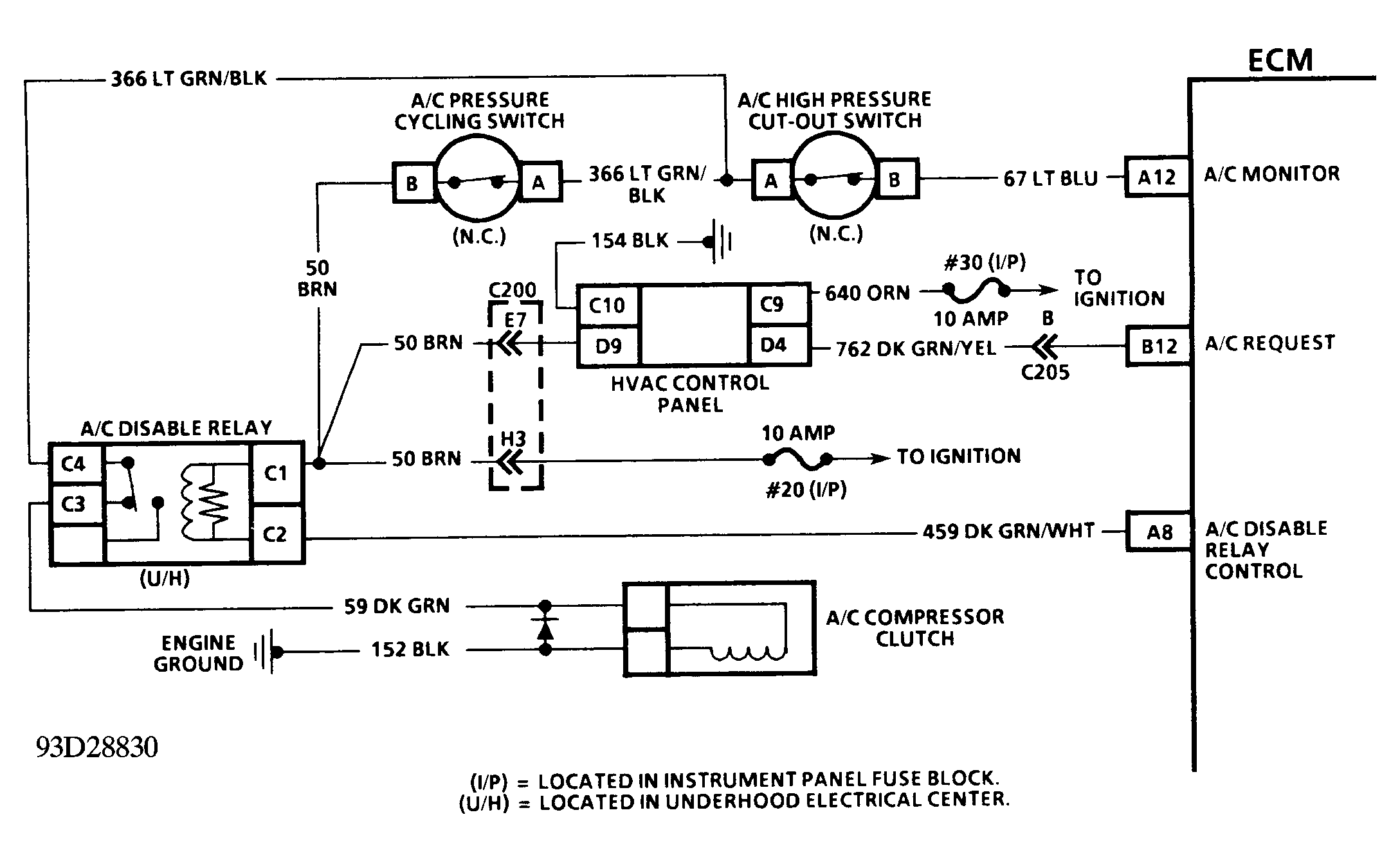

Fig 7: Chart C-10 - Wiring Diagram (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

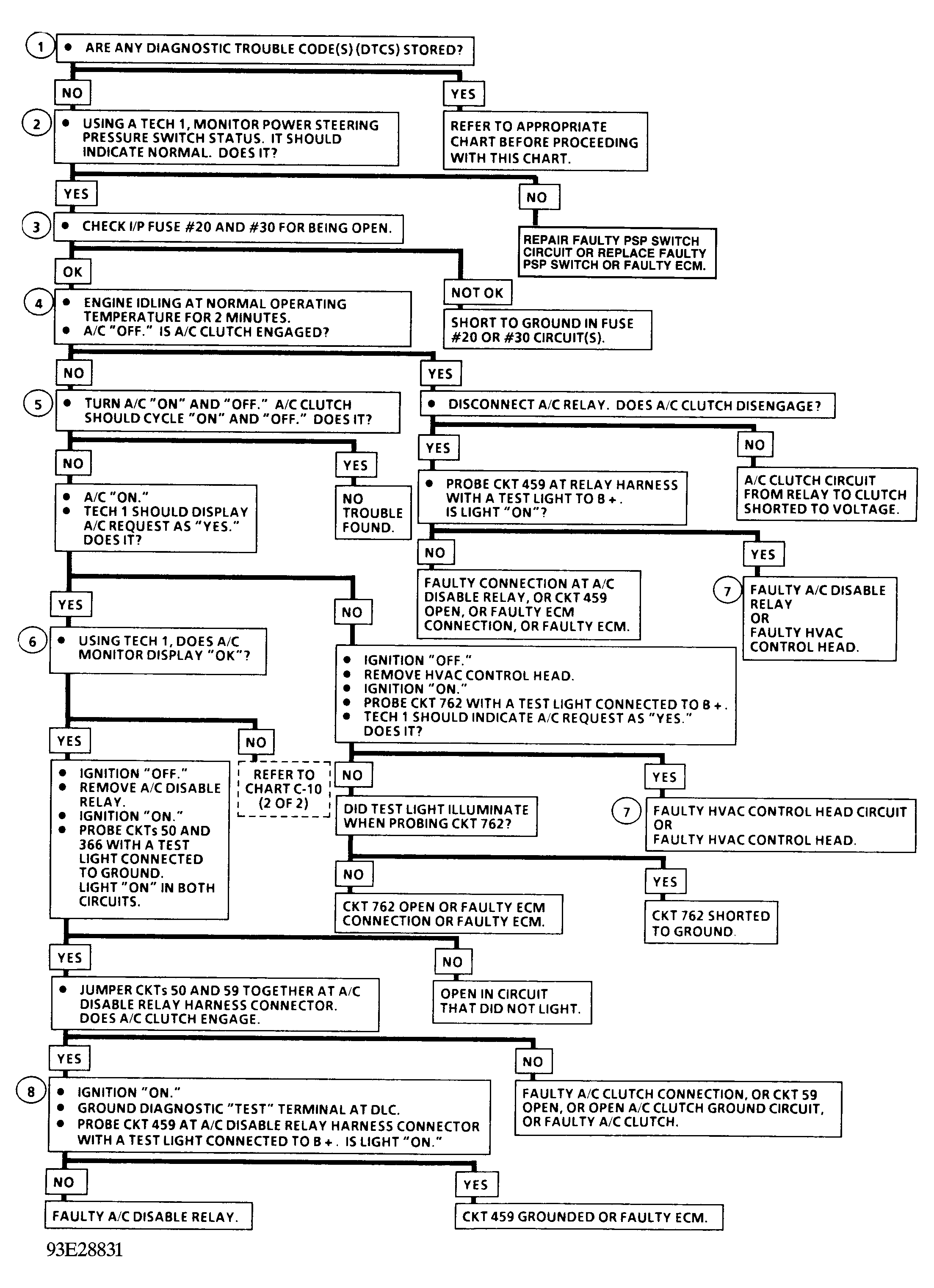

Fig 8: Chart C-10, A/C Clutch Circuit Diagnosis - Flowchart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Chart C-10 - Wiring Diagram (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

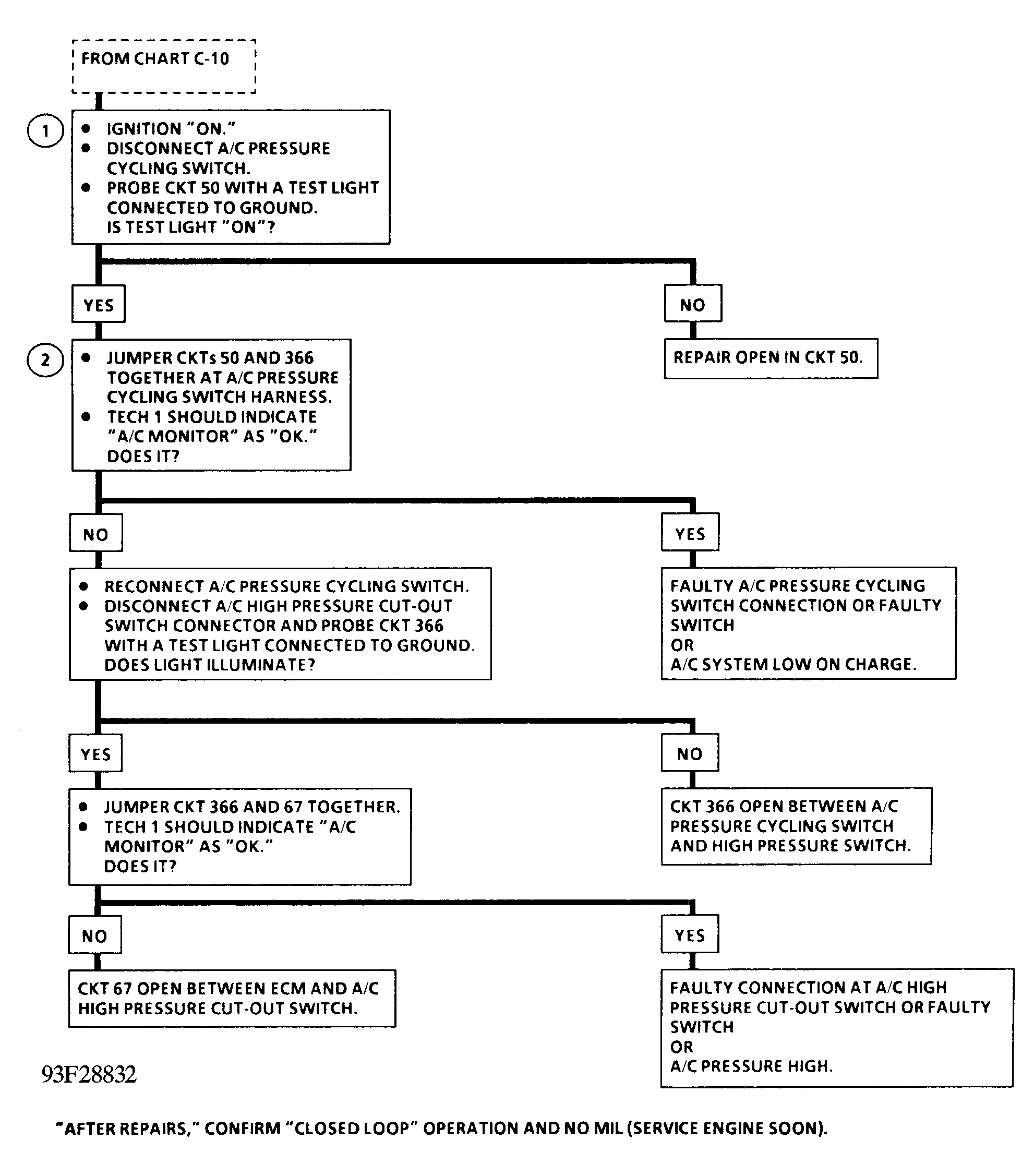

Fig 10: Chart C-10, A/C Clutch Circuit Diagnosis - Flowchart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
