Pcm Code P056 - Transaxle Input Speed Sensor Circuit Problem: Overview

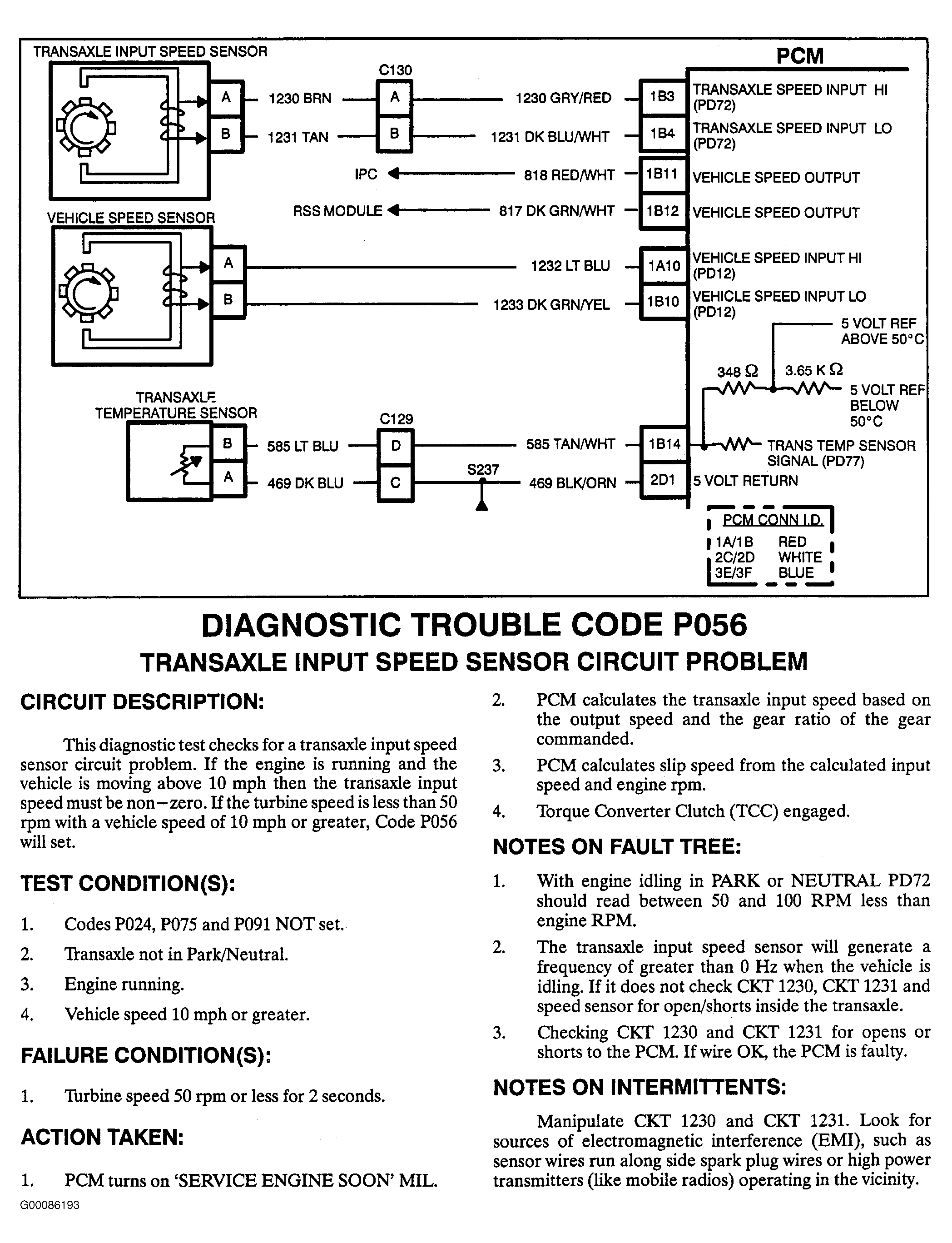

Fig 1: PCM Code P056 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

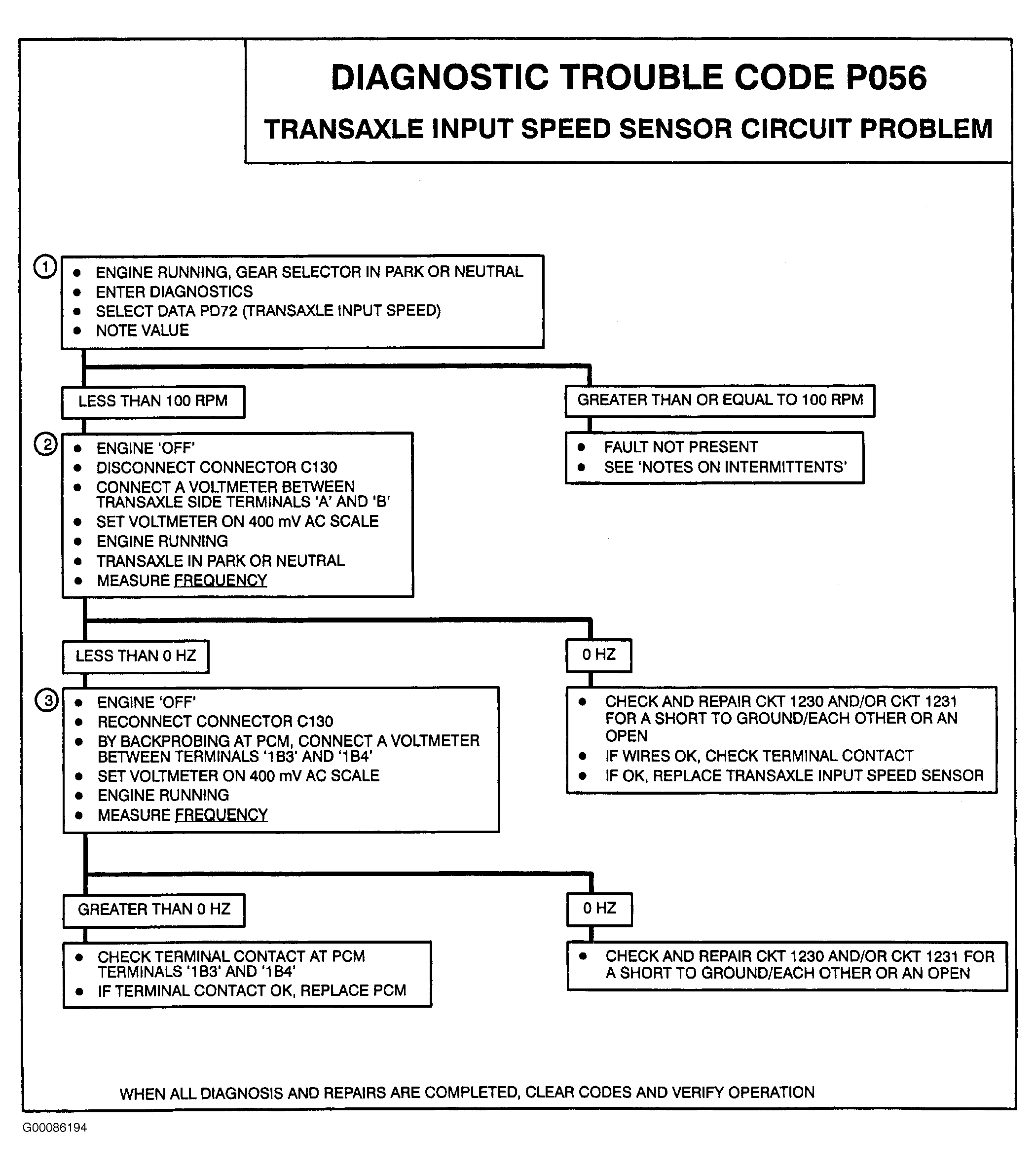

Fig 2: PCM Code P056 Flow Chart - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
