Code P047, Pcm/IPC Data Problem: Action

PCM turns on MIL. PCM sets all data to zero. PCM boosts idle to compensate for possible A/C clutch engagement. Cooling fan control will be based on engine coolant temperature only.

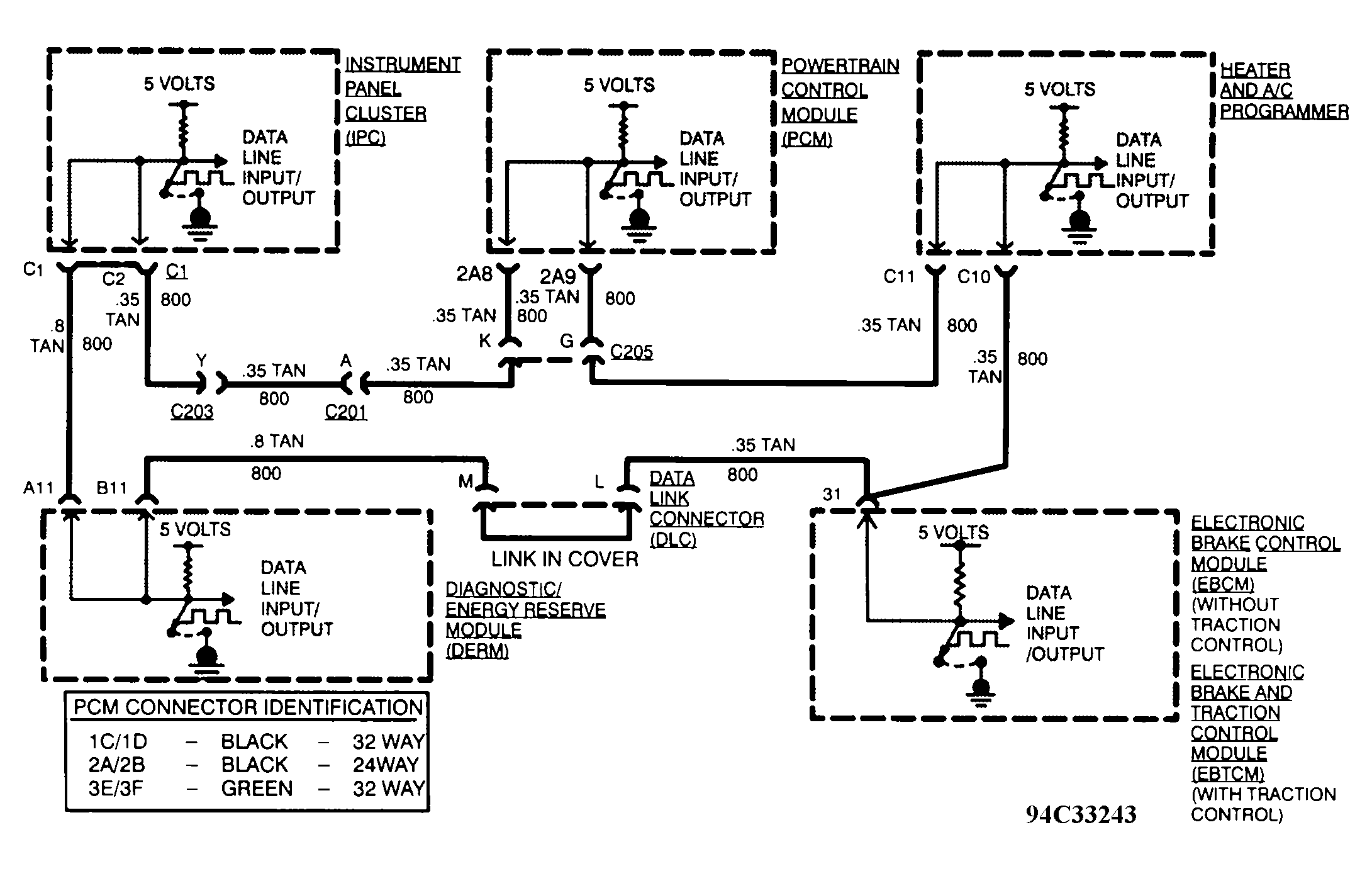

Fig 1: Code P047 Schematic, PCM/IPC Data Problem

Courtesy of GENERAL MOTORS CORP.
