Code P091, Transaxle Range Switch Problem: Action

PCM turns on MIL. PCM disables cruise control.

Fig 1: Code P091 Schematic, Transaxle Range Switch Problem

Courtesy of GENERAL MOTORS CORP.

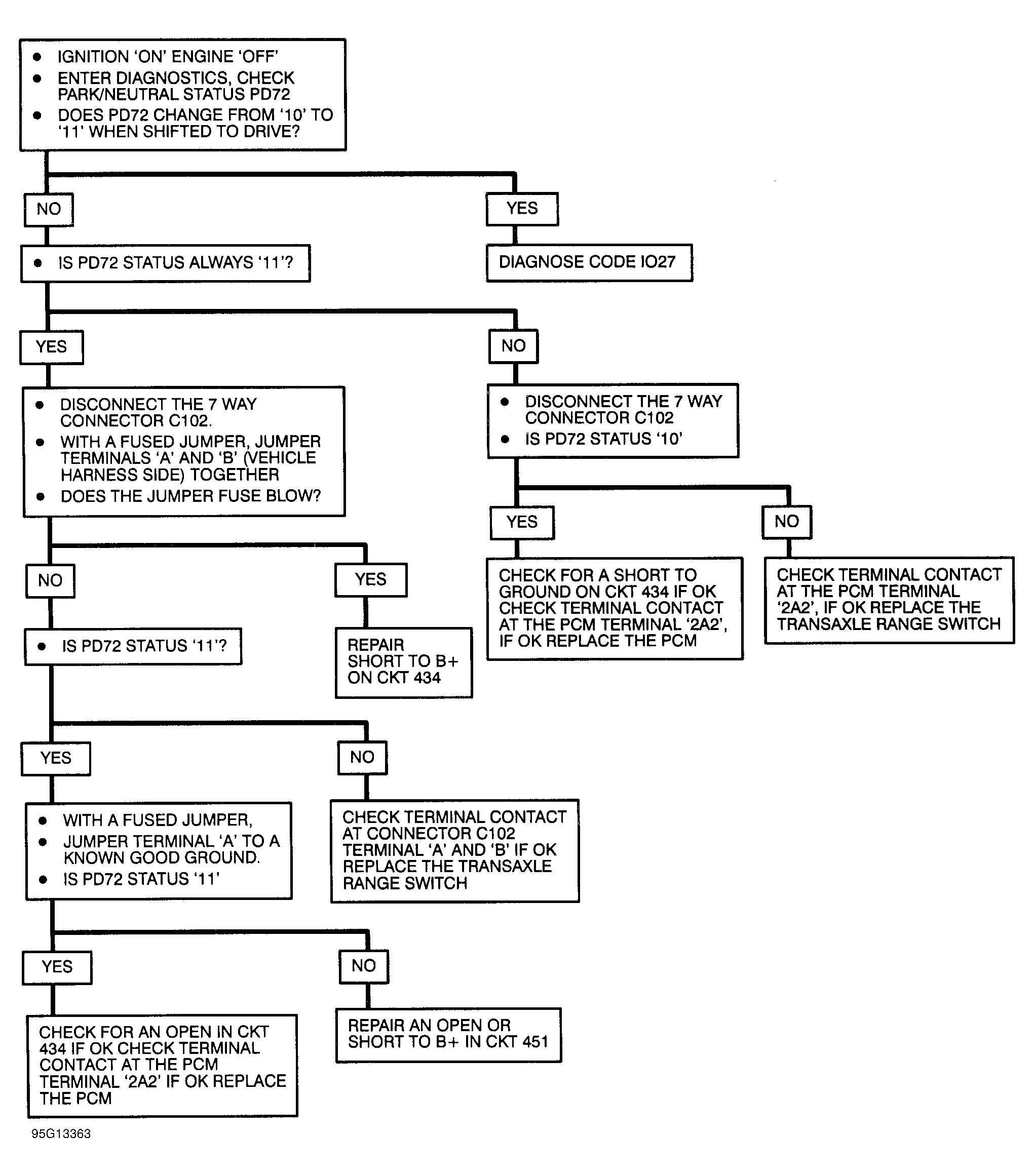

Fig 2: Code P091 Diagnostic Flow Chart, Transaxle Range Switch Problem

Courtesy of GENERAL MOTORS CORP.
