Home >> Cadillac >> 1995 >> Eldorado Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Pcm Code Charts >> Code P080, TP Sensor/Idle Learn Not Complete >> Actions

Code P080, TP Sensor/Idle Learn Not Complete: Actions

PCM turns on MIL.

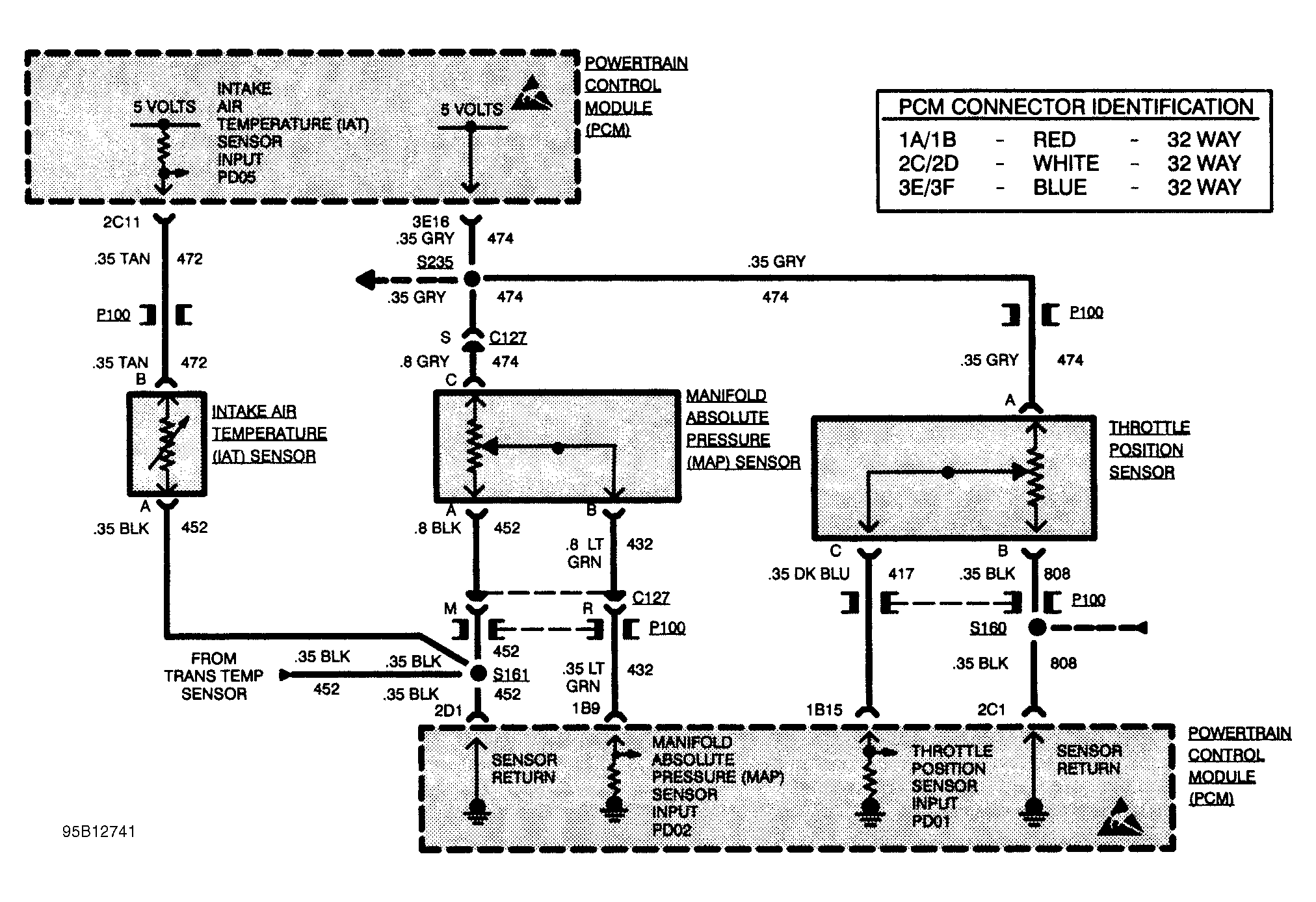

Fig 1: Code P080 Schematic, TP Sensor/Idle Learn Not Complete
G95B12741Courtesy of GENERAL MOTORS CORP.
Fig 2: Code P080 Diag. Flow Chart, TP Sensor/Idle Learn Not Complete
G94I33025Courtesy of GENERAL MOTORS CORP.
