Status Lights Display

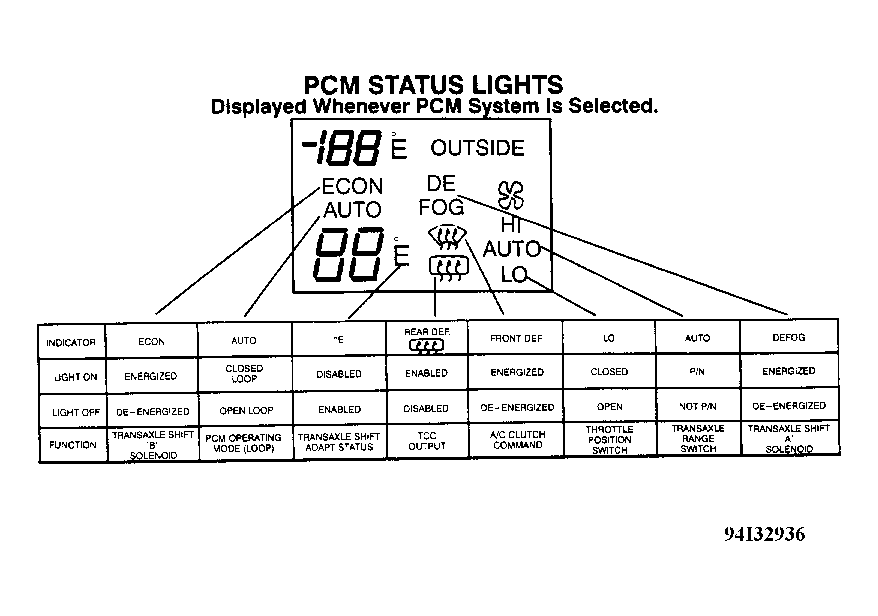

Upon entering PCM system level of self-diagnostic mode, indicator lights on Climate Control Center (CCC) are used to indicate status of certain operating modes. Operational status of these components is indicated by corresponding status light being on or off. See Fig 1 .
