Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

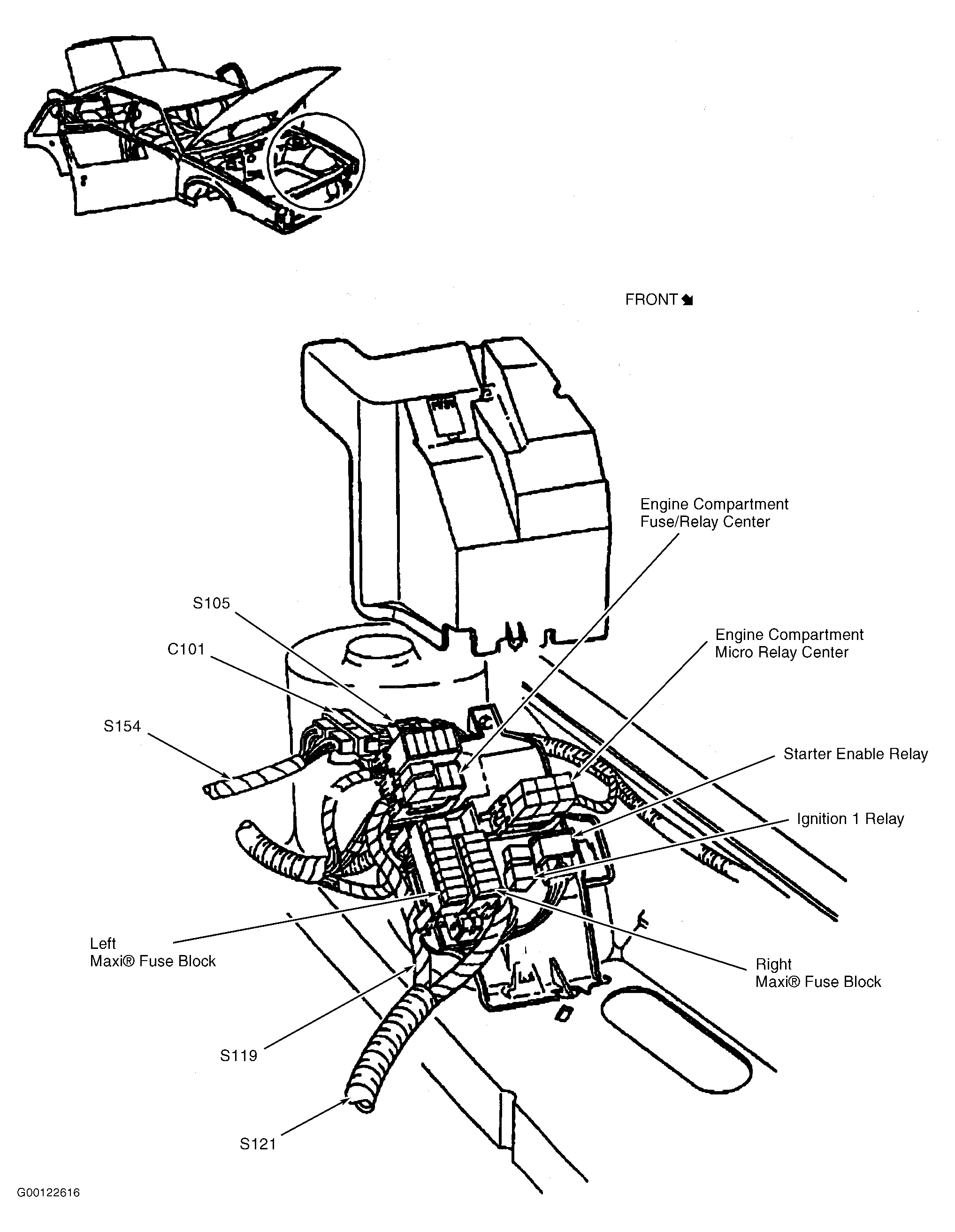

Fig 1: Engine Compartment (4.6L VIN Y & VIN 9)

Fig 2: Left Of Engine Compartment

Fig 3: Behind Rear Seat
