System Operation Check: Notes

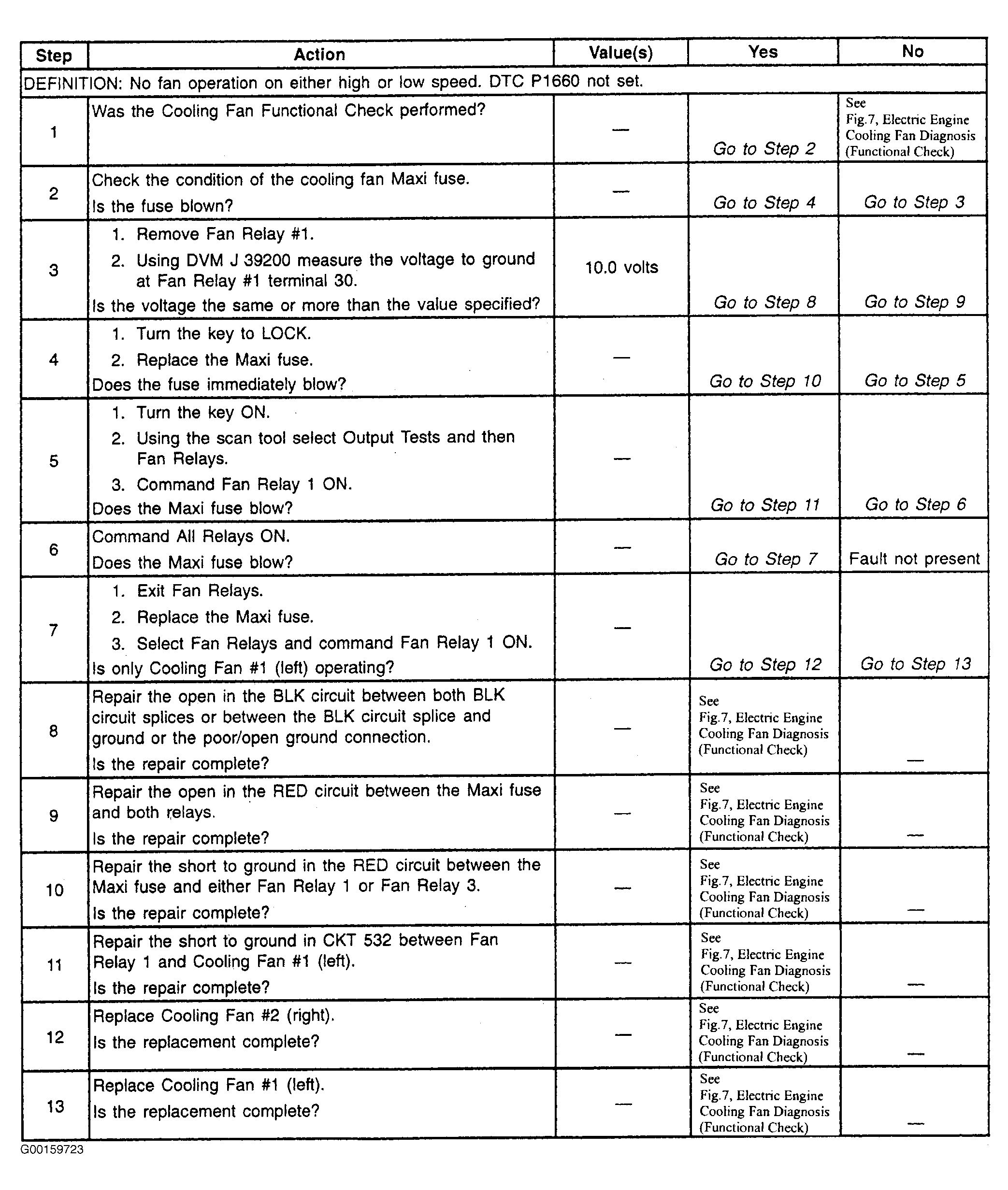

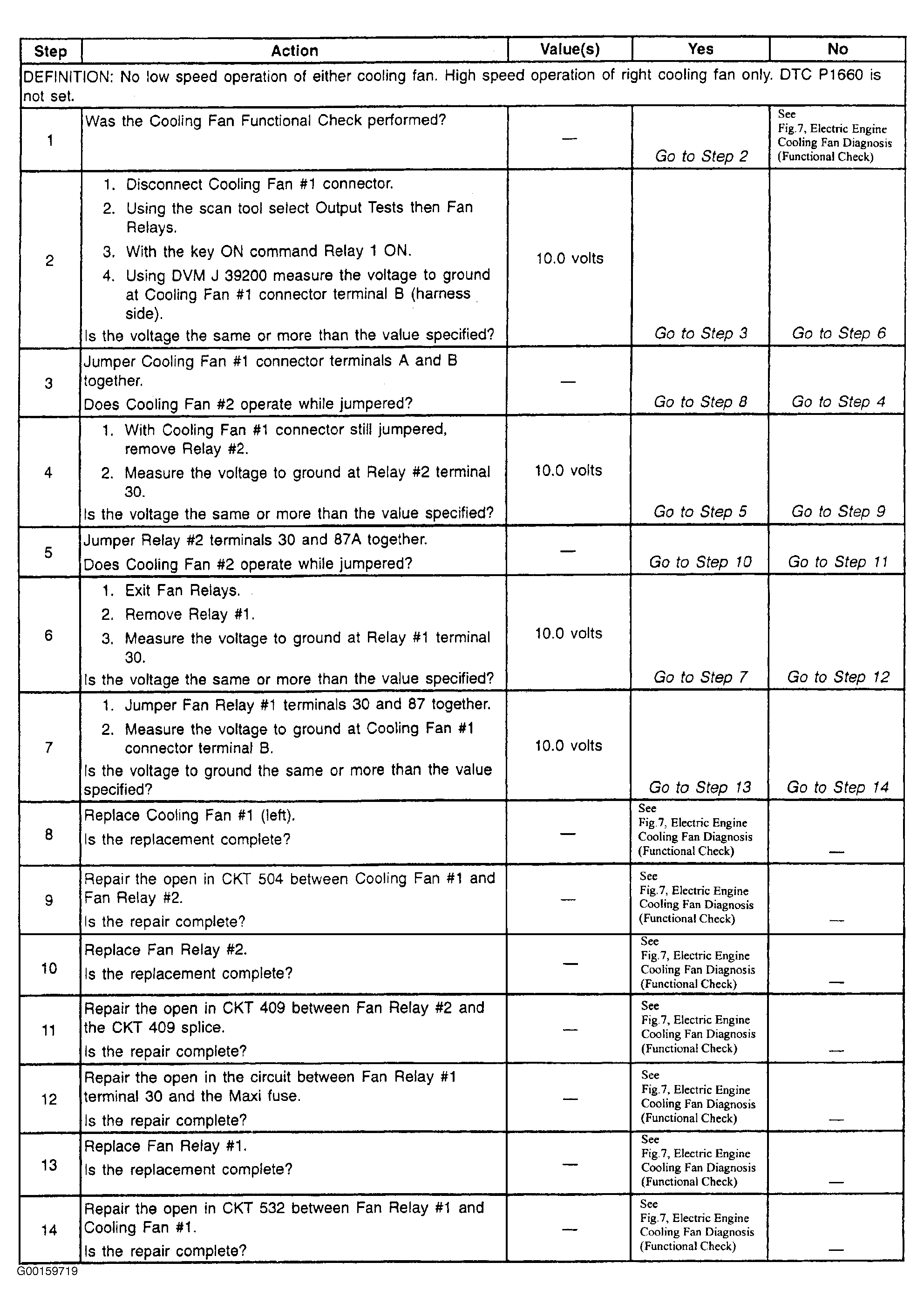

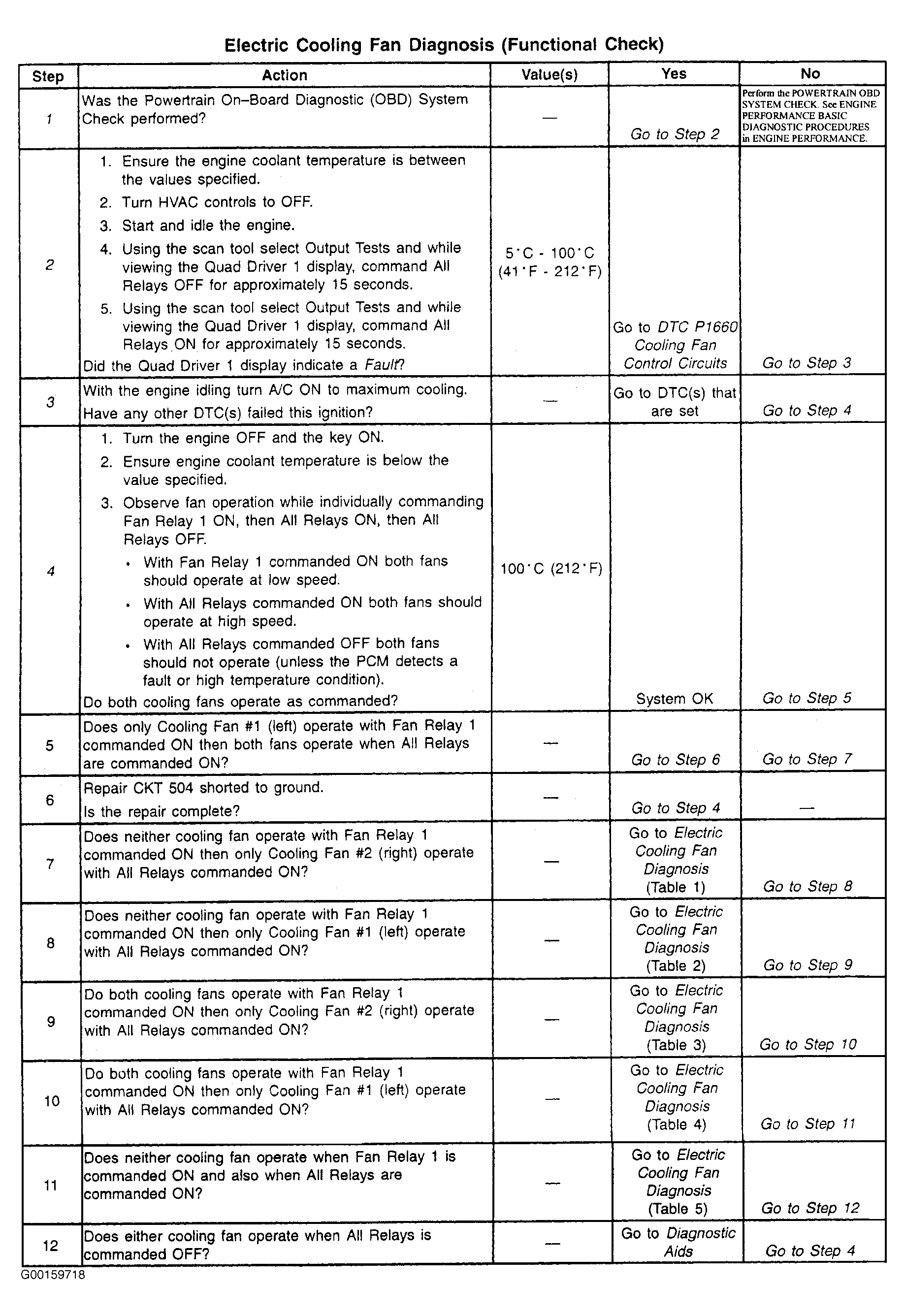

NOTE: Test step(s) below refer to number(s) on electric engine cooling fan diagnosis (functional check). See Figure . For test tables relating to the functional check, see Figure -Figure .
