Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Anti-Lock Brakes System >> Electronic Brake/Traction Control Module >> Electronic Traction Control Switch

Electronic Traction Control Switch

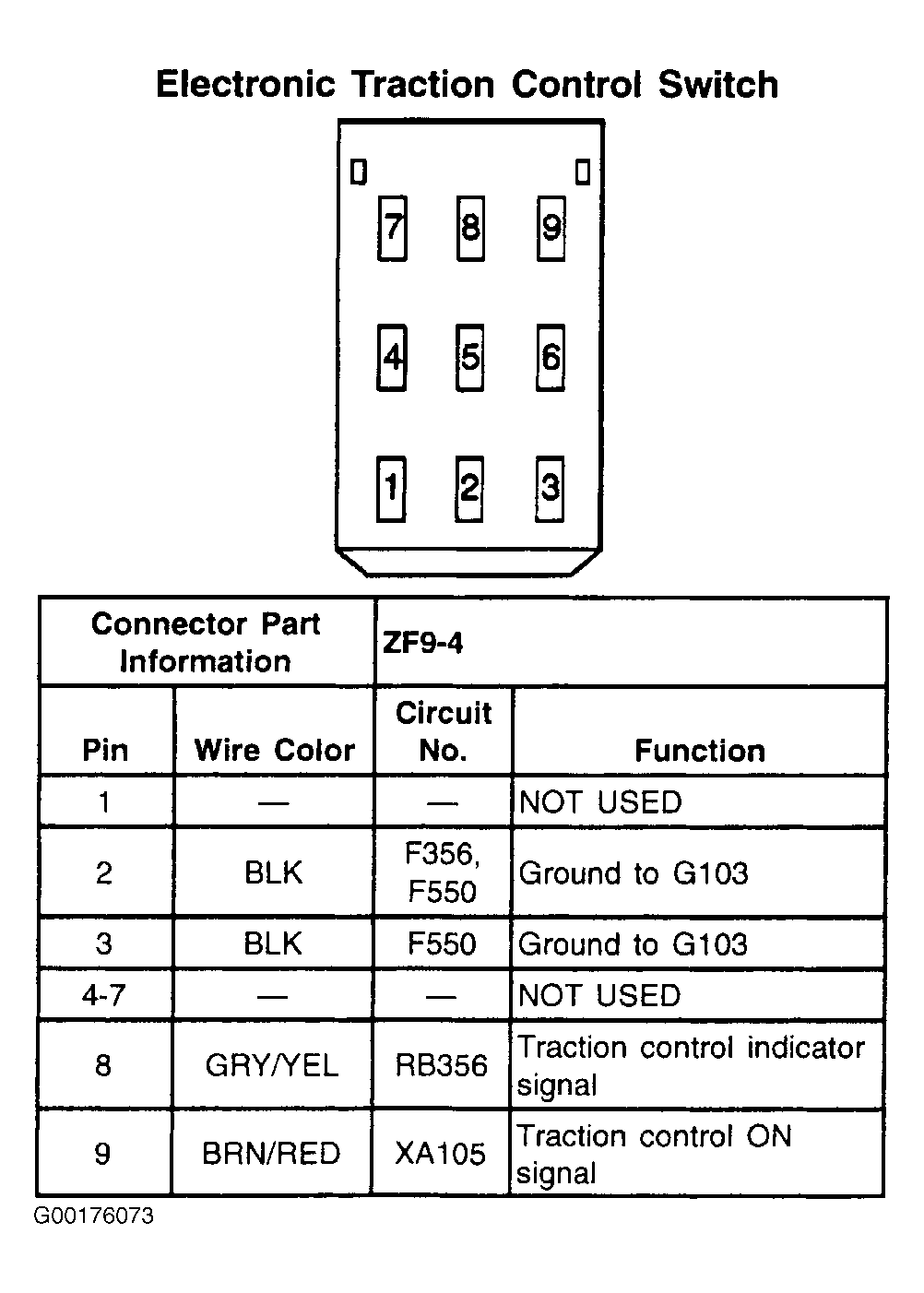

Fig 1: Electronic Traction Control Switch - 9-Pin Connector
G00176073Courtesy of GENERAL MOTORS CORP.
