Connector Terminal Identification
>>
Automatic Level Controls
>>
Rear Suspension Leveling Air Compressor Relay K19
Rear Suspension Leveling Air Compressor Relay K19

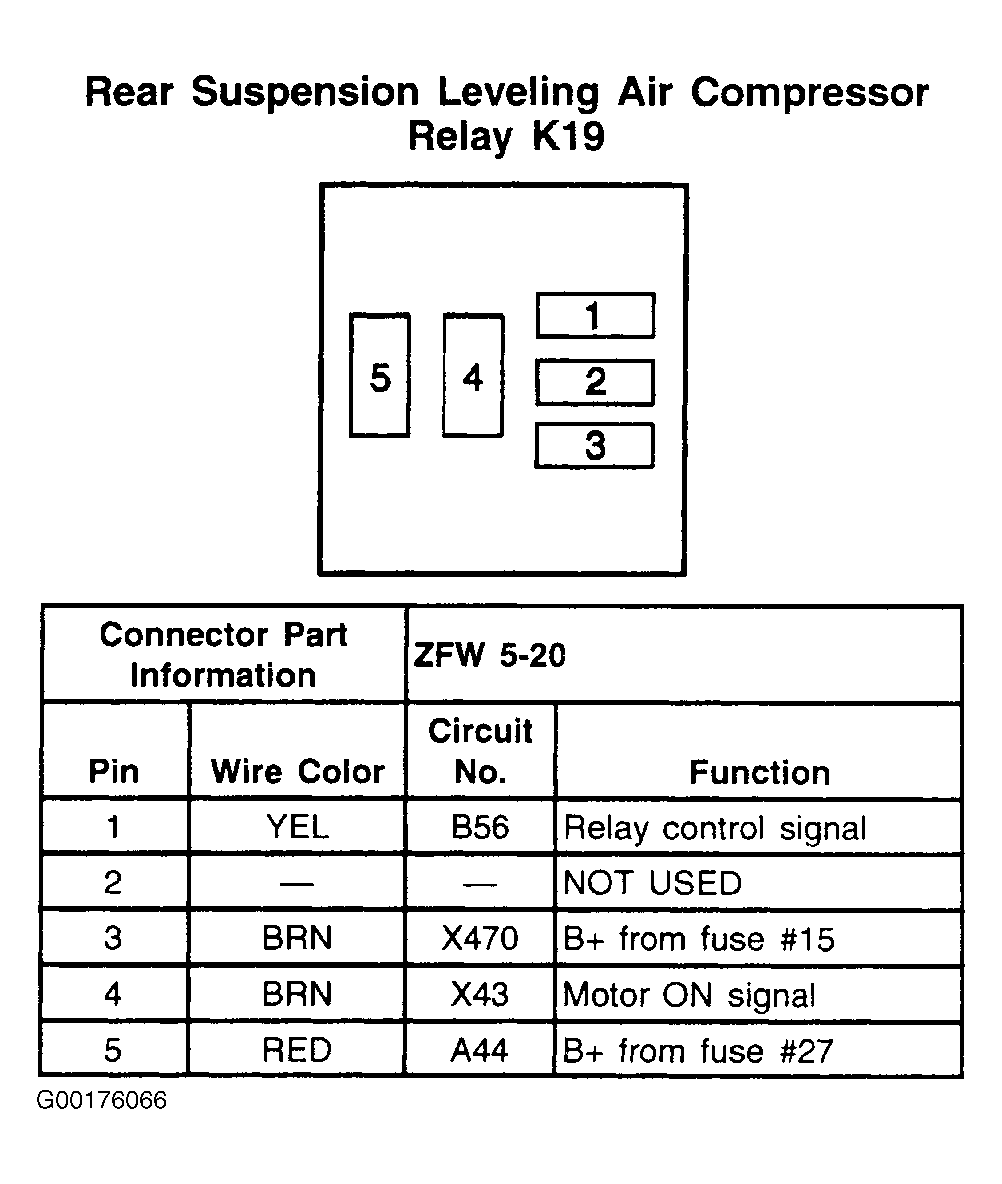

Fig 1: Rear Suspension Leveling Air Compressor Relay K19 - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
