Connector Terminal Identification
>>
Automatic Level Controls
>>
Rear Suspension Leveling Air Compressor
Rear Suspension Leveling Air Compressor

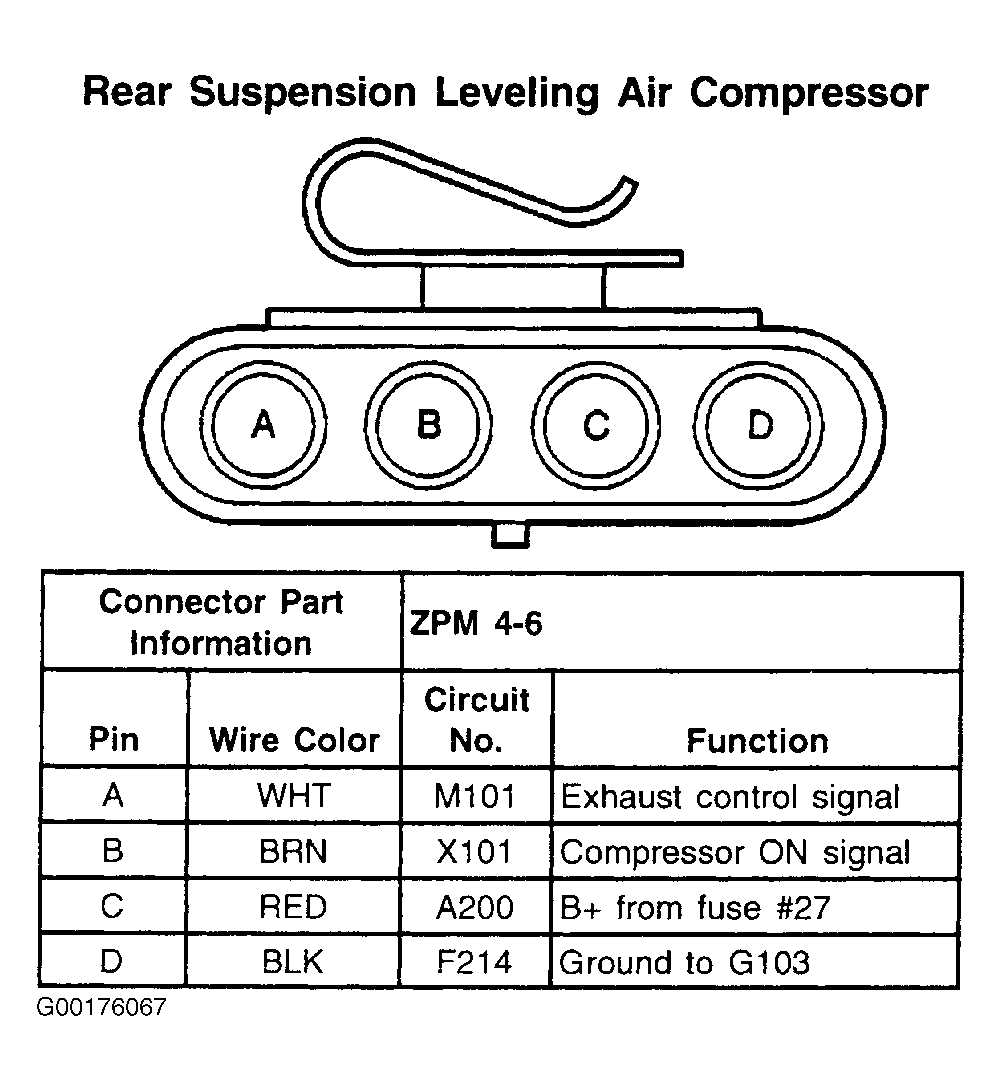

Fig 1: Rear Suspension Leveling Air Compressor - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
