Connector Terminal Identification
>>
Automatic Transmission
>>
Automatic Transmission Winter Mode Switch
Automatic Transmission Winter Mode Switch

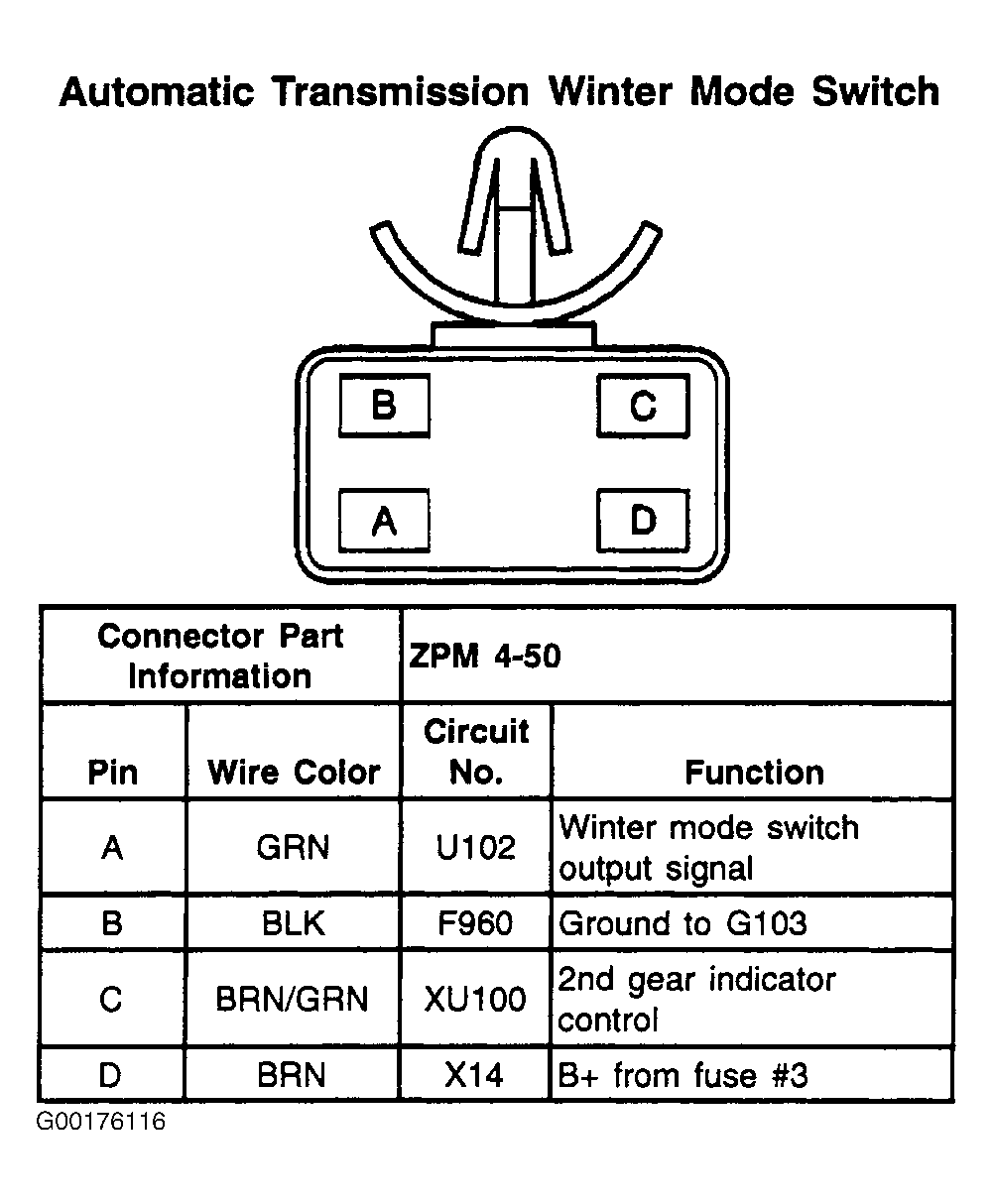

Fig 1: Automatic Transmission Winter Mode Switch - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
