Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Automatic Transmission >> Output Shaft Speed (OSS) Sensor

Output Shaft Speed (OSS) Sensor

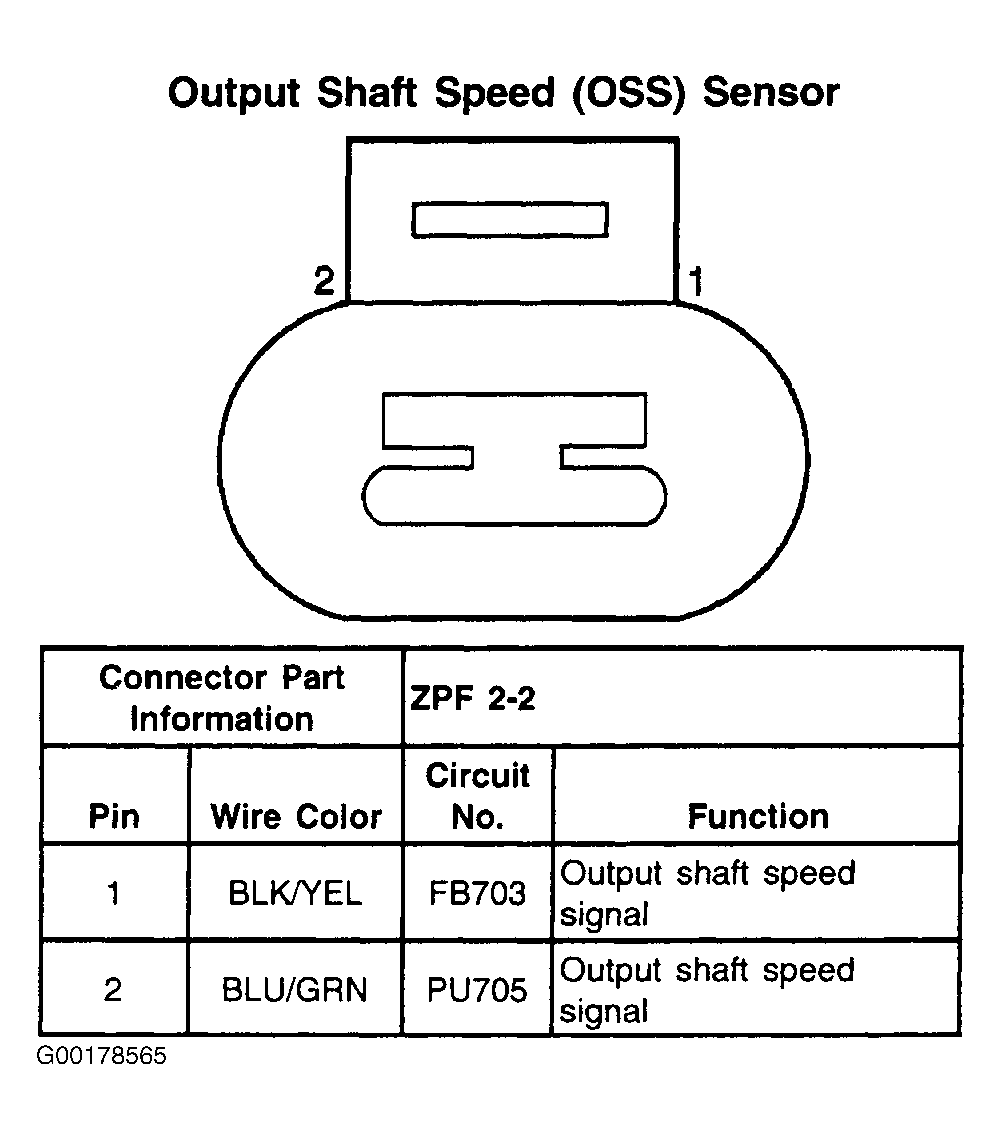

Fig 1: Output Shaft Speed (OSS) Sensor - 2-Pin Connector
G00178565Courtesy of GENERAL MOTORS CORP.
