Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> BTSI >> STOPLAMP Switch

STOPLAMP Switch

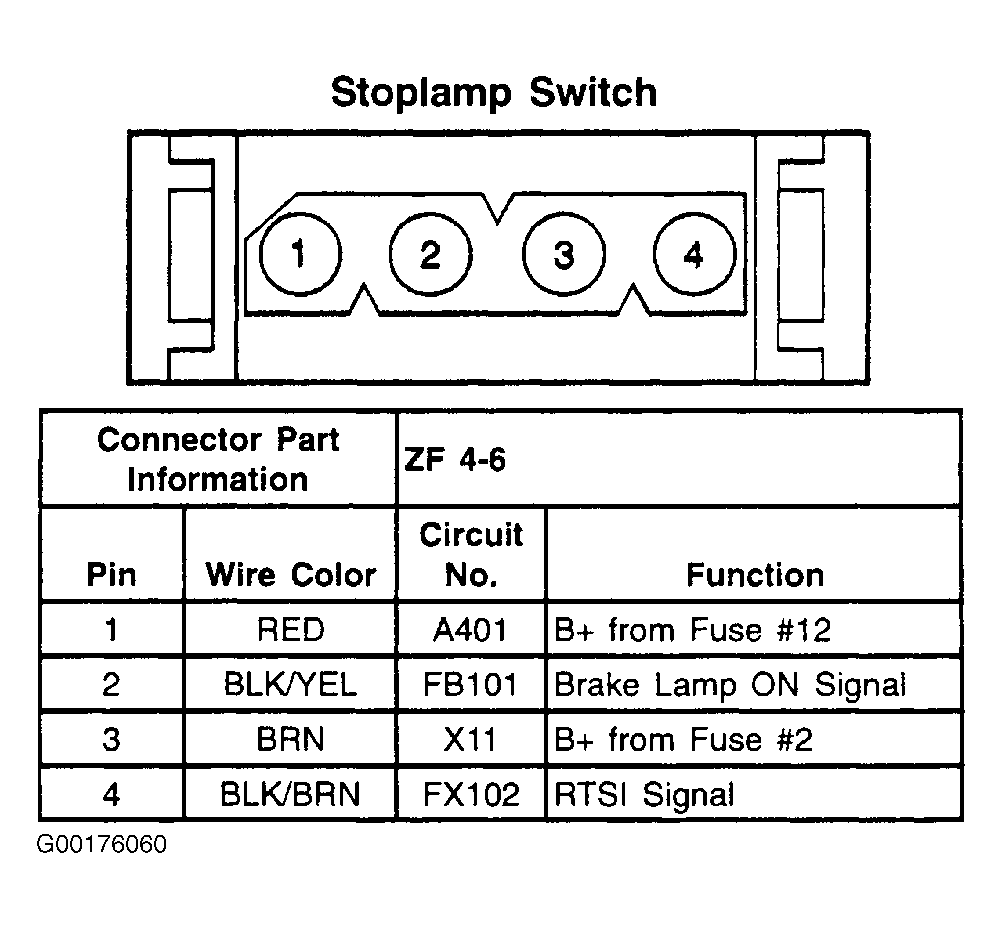

Fig 1: Stoplamp Switch - 4-Pin Connector

G00176060

Courtesy of GENERAL MOTORS CORP.
