Body Control Module (BCM) Connector C1

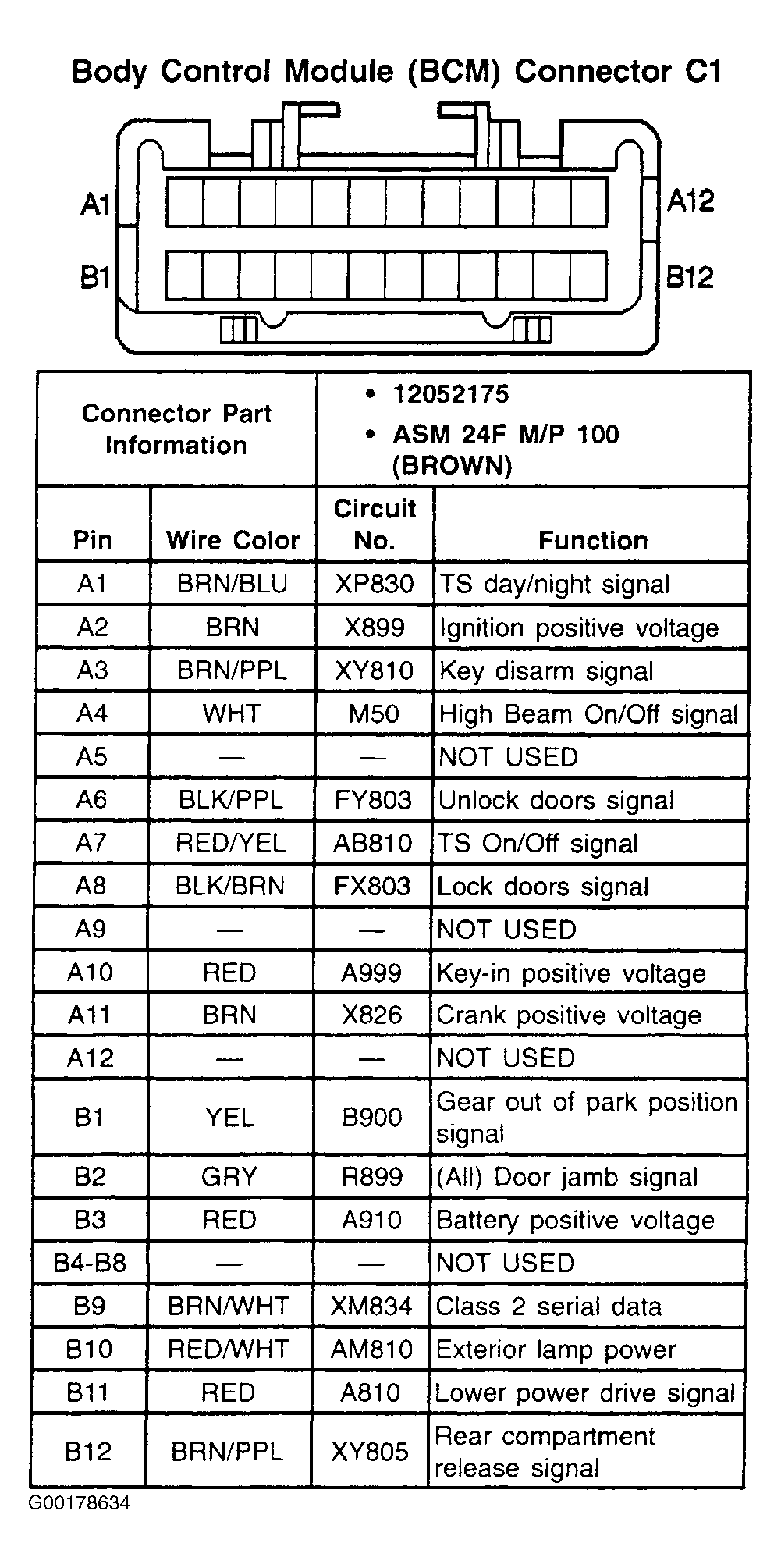

Fig 1: Body Control Module (BCM) Connector C1 - 24-Pin Connector (Brown)

G00178634

Courtesy of GENERAL MOTORS CORP.
