Body Control Module (BCM) Connector C2

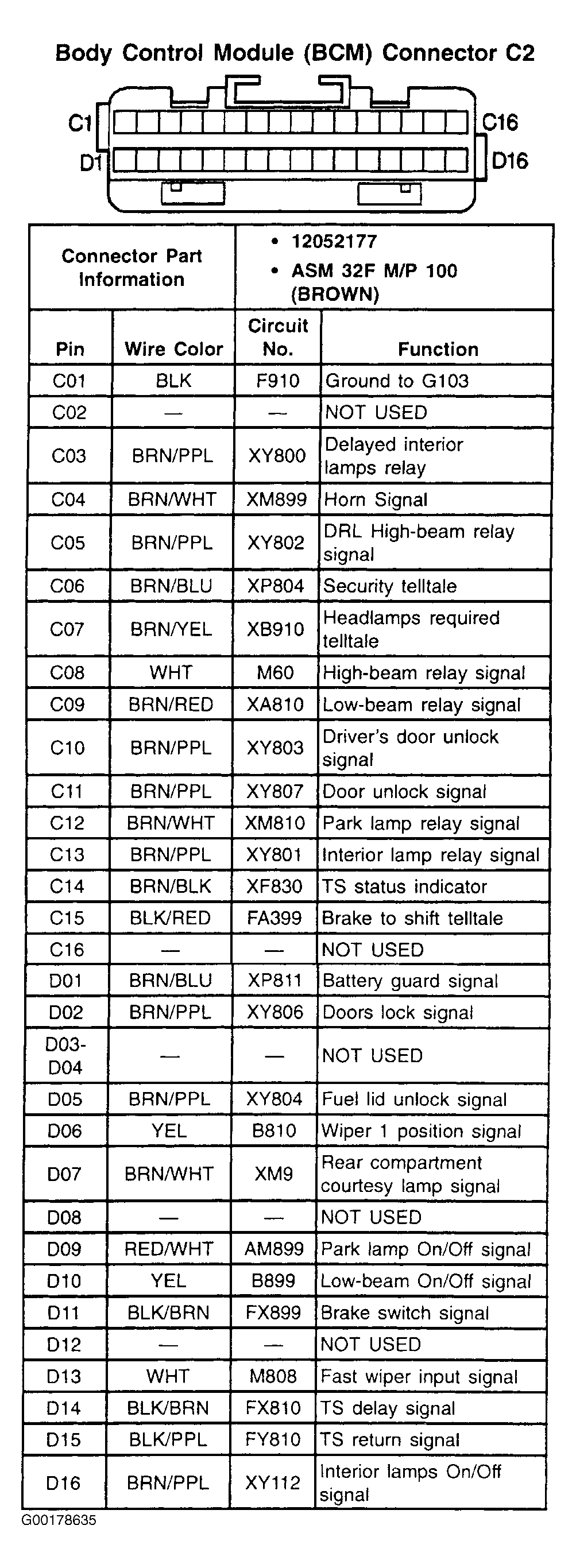

Fig 1: Body Control Module (BCM) Connector C2 - 32-Pin Connector (Brown)

G00178635

Courtesy of GENERAL MOTORS CORP.
