Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Body Control Module >> Door Lock Switch

Door Lock Switch

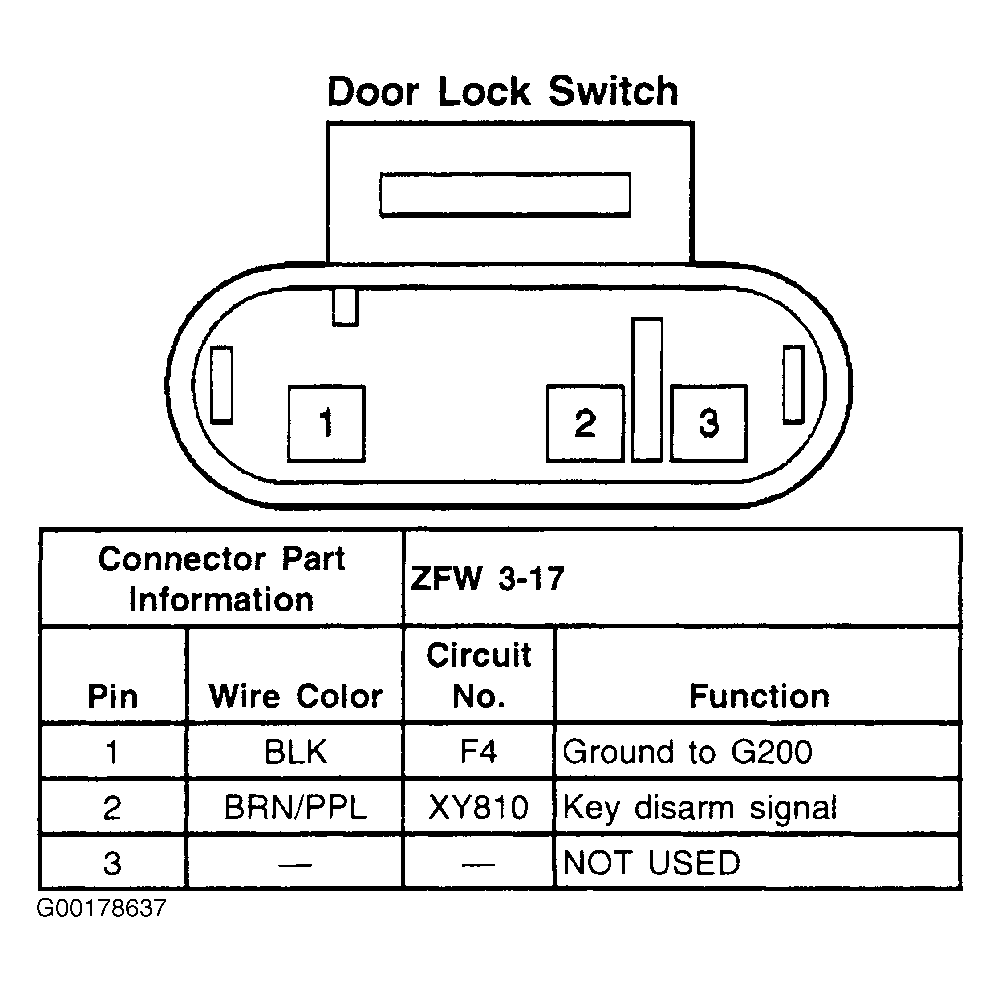

Fig 1: Door Lock Switch - 3-Pin Connector
G00178637Courtesy of GENERAL MOTORS CORP.
