Fuel Injector No. 2

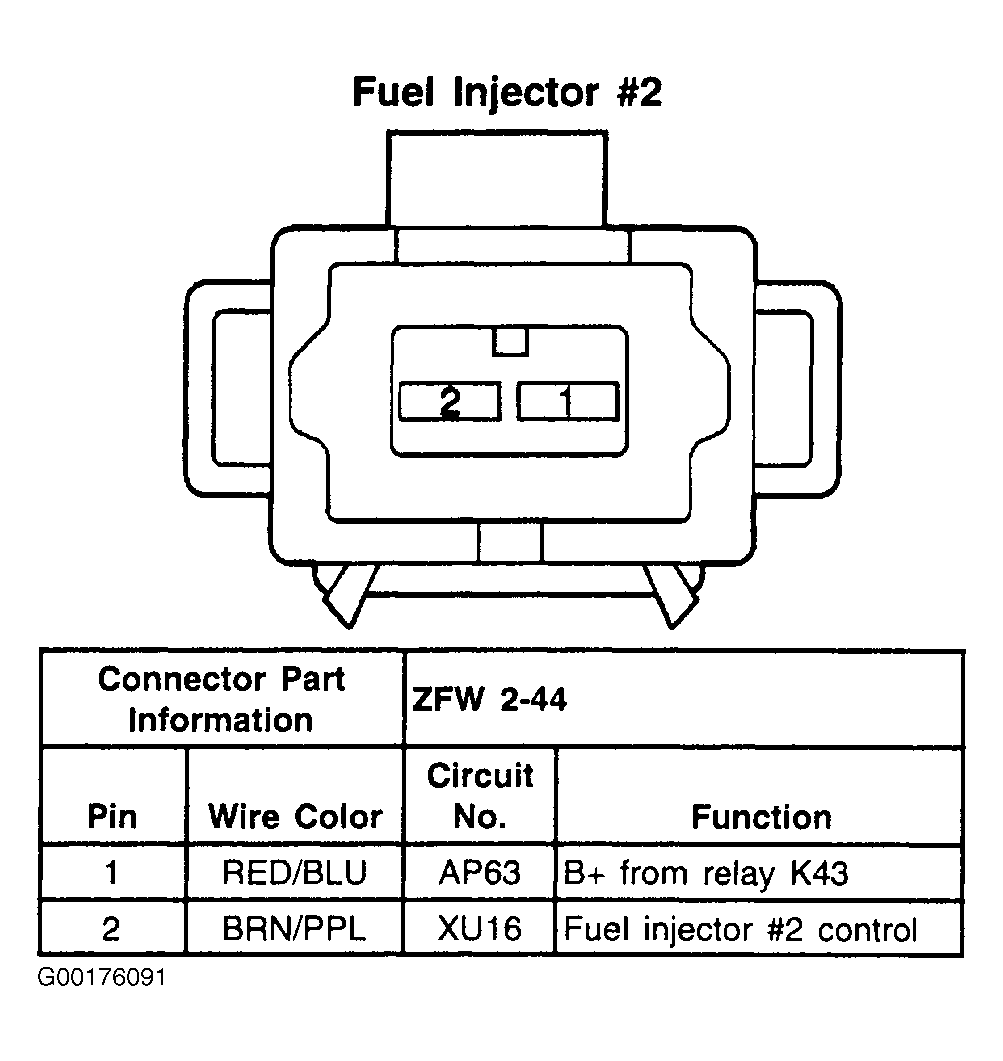

Fig 1: Fuel Injector No. 2 - 2-Pin Connector
G00176091Courtesy of GENERAL MOTORS CORP.
