Connector Terminal Identification
>>
Engine Controls
>>
Fuel Injector No. 6
Fuel Injector No. 6

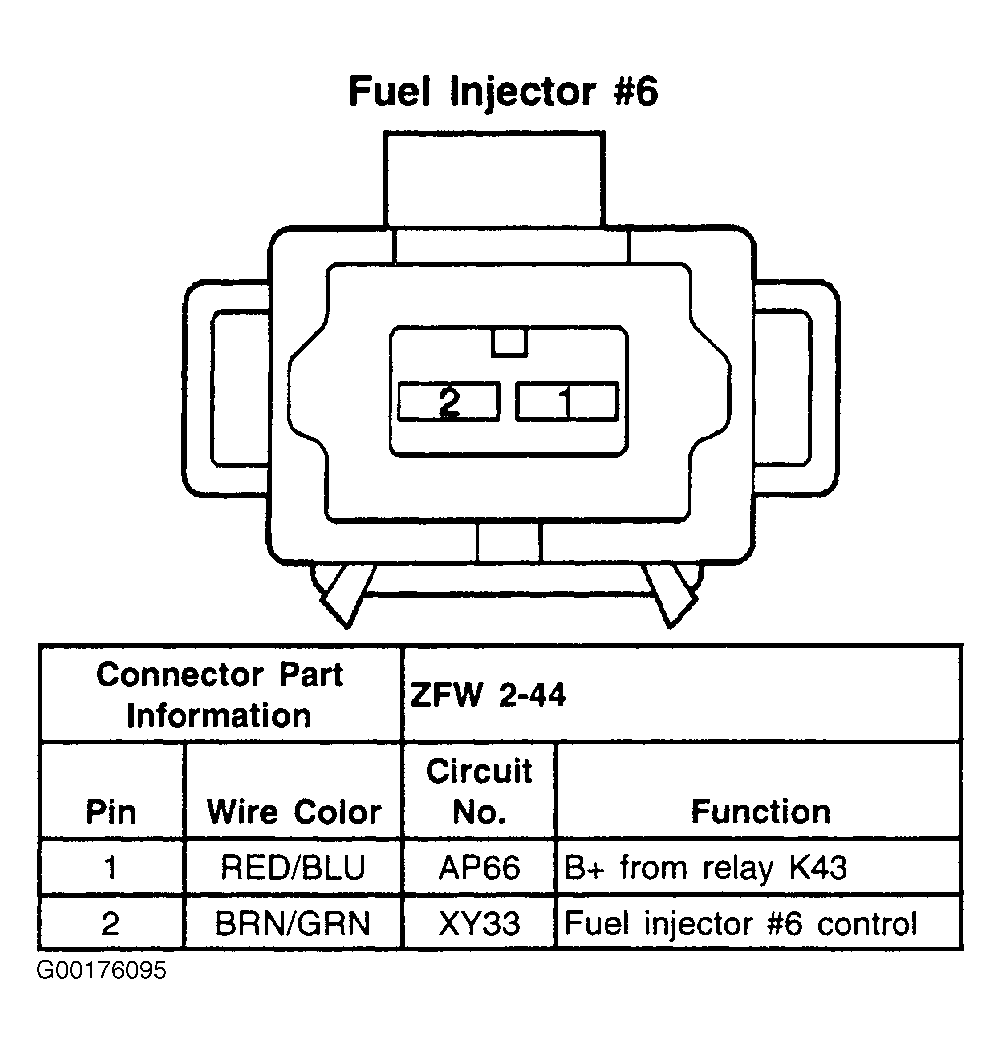

Fig 1: Fuel Injector No. 6 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
