Heated Oxygen Sensor (Bank 1, Position 1)

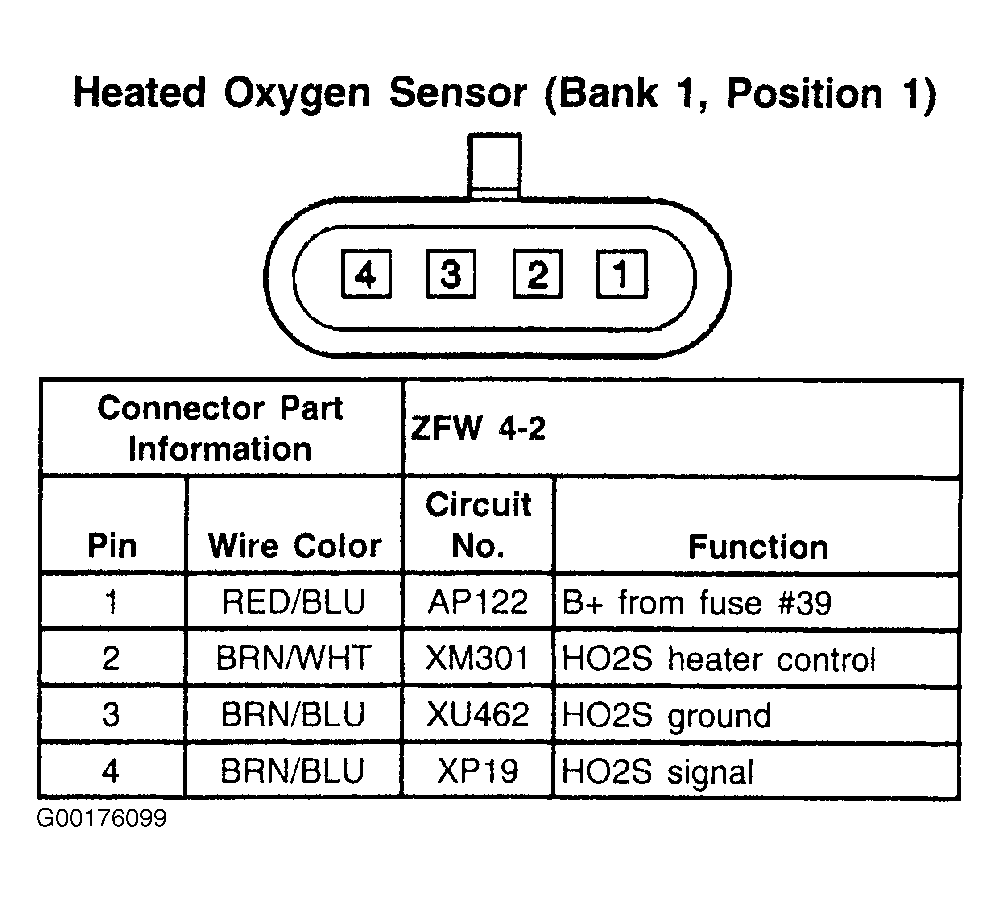

Fig 1: Heated Oxygen Sensor (Bank 1, Position 1) - 4-Pin Connector

G00176099

Courtesy of GENERAL MOTORS CORP.
