Heated Oxygen Sensor (Bank 1, Position 2)

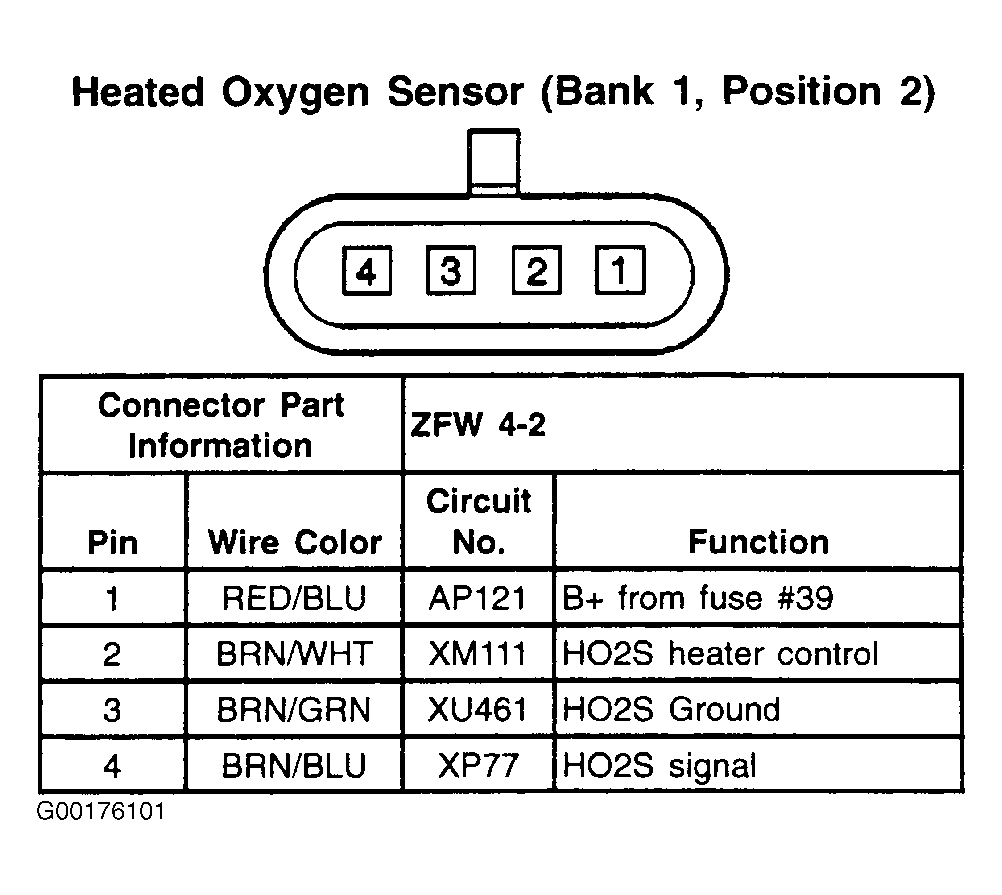

Fig 1: Heated Oxygen Sensor (Bank 1, Position 2) - 4-Pin Connector

G00176101

Courtesy of GENERAL MOTORS CORP.
