Idle Air Control (IAC) Valve

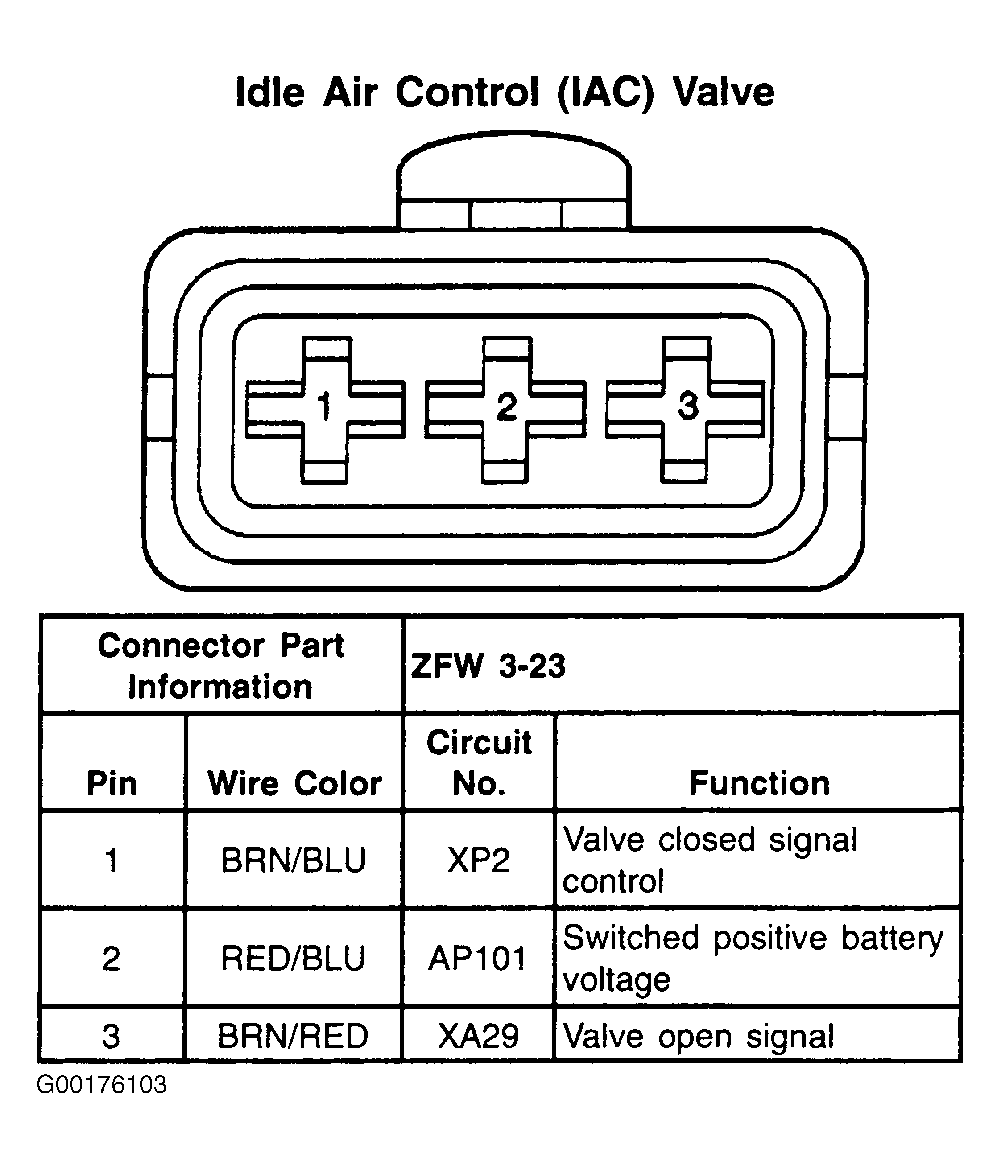

Fig 1: Idle Air Control (IAC) Valve - 3-Pin Connector
G00176103Courtesy of GENERAL MOTORS CORP.
