Intake Resonance Switch-Over Valve Solenoid Valve

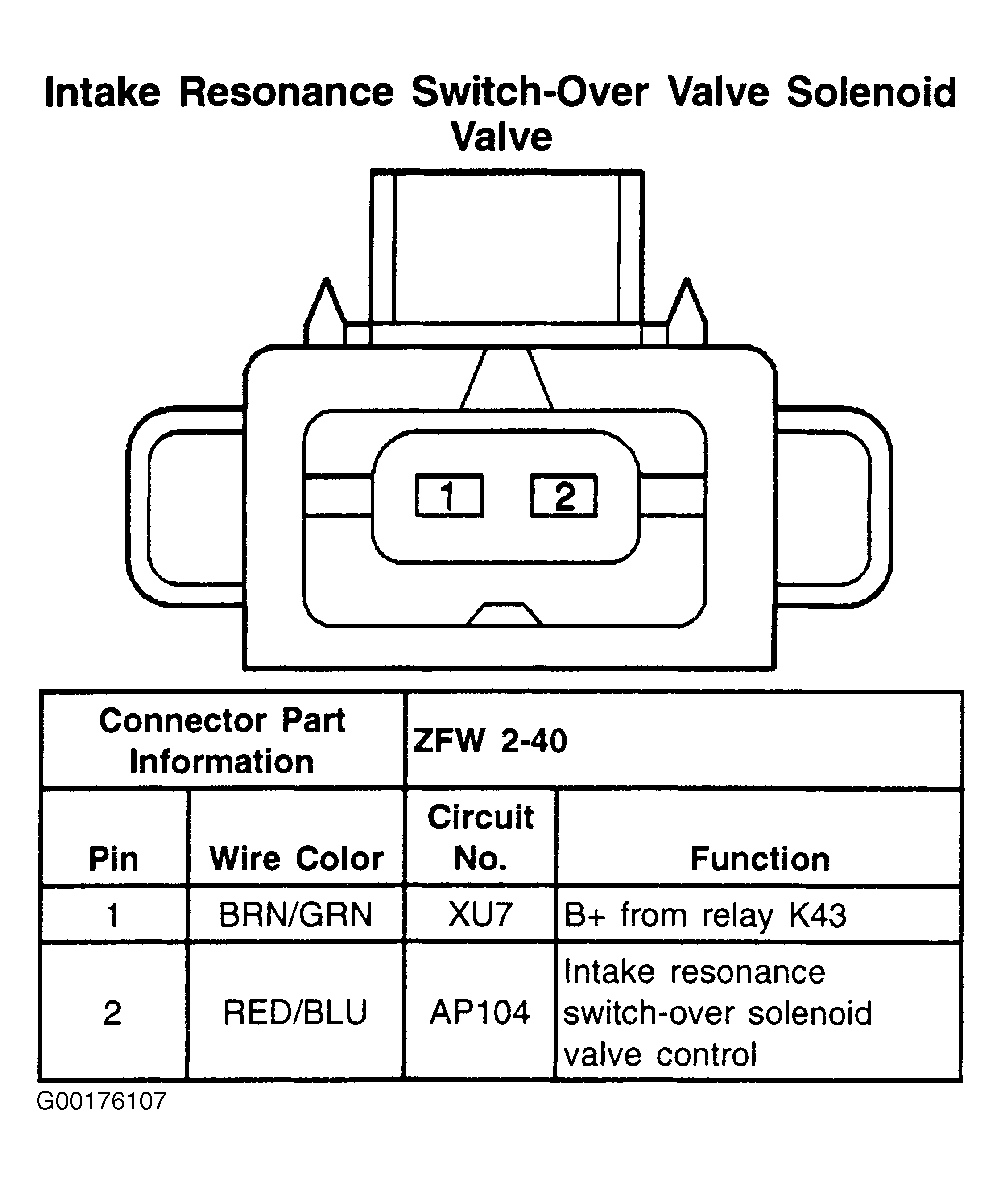

Fig 1: Intake Resonance Switch-Over Valve Solenoid Valve - 2-Pin Connector

G00176107

Courtesy of GENERAL MOTORS CORP.
