Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Engine Controls >> Secondary Air Injection Pump

Secondary Air Injection Pump

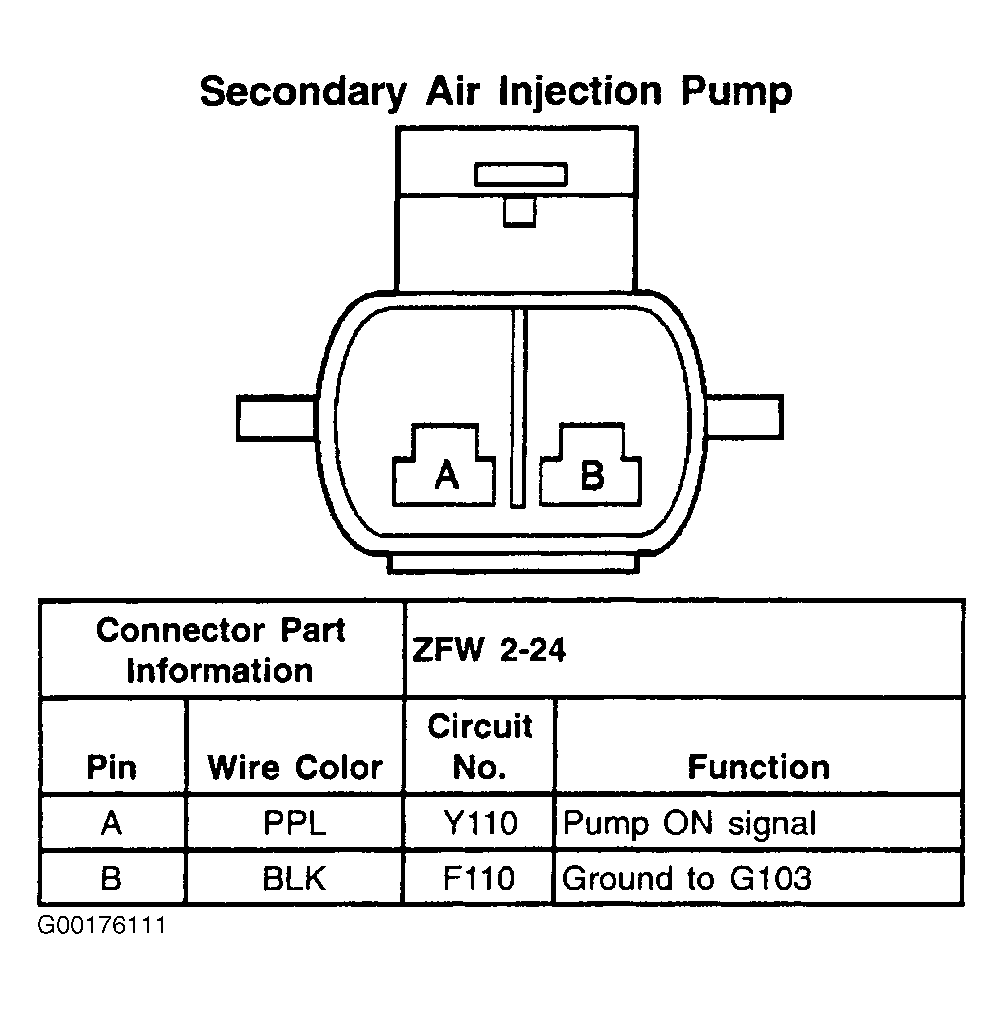

Fig 1: Secondary Air Injection Pump - 2-Pin Connector
G00176111Courtesy of GENERAL MOTORS CORP.
